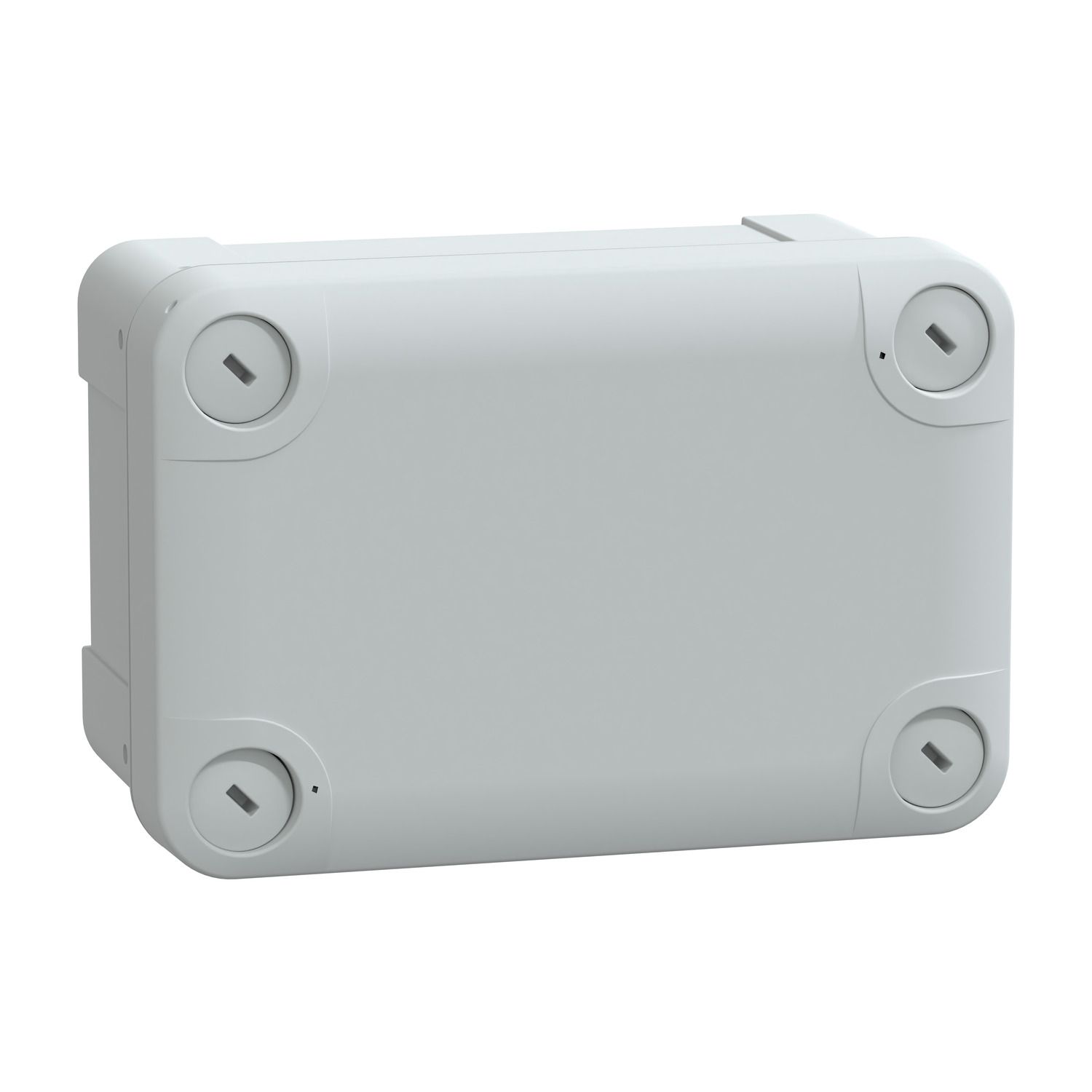

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 opaque PC cover H20
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 opaque PC cover H20
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 opaque PC cover H20
SKU:

NSYTBP1397

Thalassa, PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 opaque PC cover H20

$17.23
Available for Shipping : 24-Nov-2024
Thalassa, PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 opaque PC cover H20
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
Thalassa TBP industrial PC box with opaque PC cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 72 mm
Width 93 mm
Quantity per set set of 2
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover low plain cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBP
Internal depth 65 mm
Internal height 125 mm
Internal width 80 mm
Product or component type industrial box
Height 138 mm
Removable parts cover by captive screws
Complementary
Colour grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Material polycarbonate
Electrical insulation class class II
Net weight 0.25 kg
Standards IEC 62208, UL 508 A
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.25 cm
Package 1 Width 7.25 cm
Package 1 Length 10.25 cm
Package 1 Weight 252 g
Unit Type of Package 2 2
Number of Units in Package 2 696
Package 2 Height 120 cm
Package 2 Width 80 cm
Package 2 Length 135 cm
Package 2 Weight 211 kg
