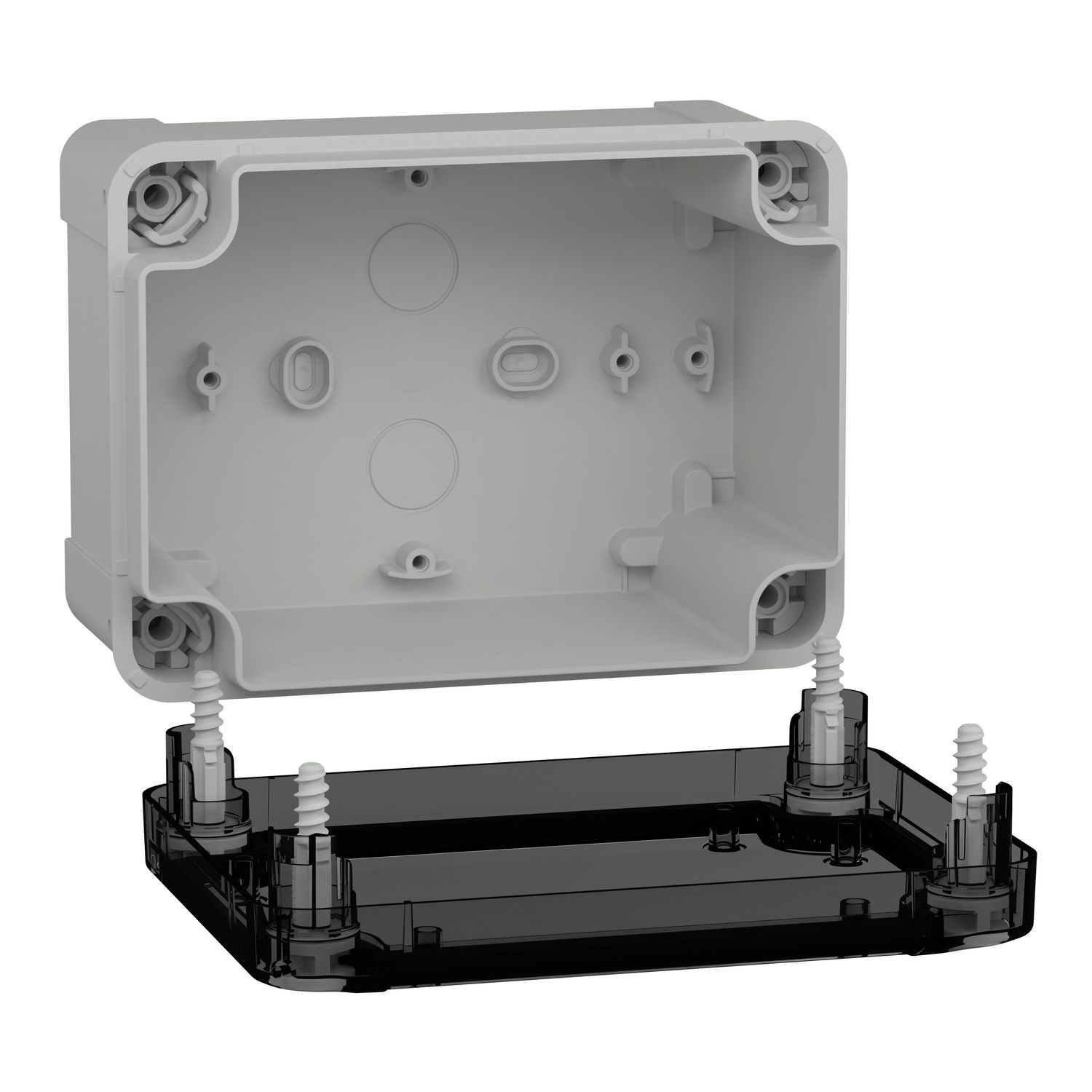

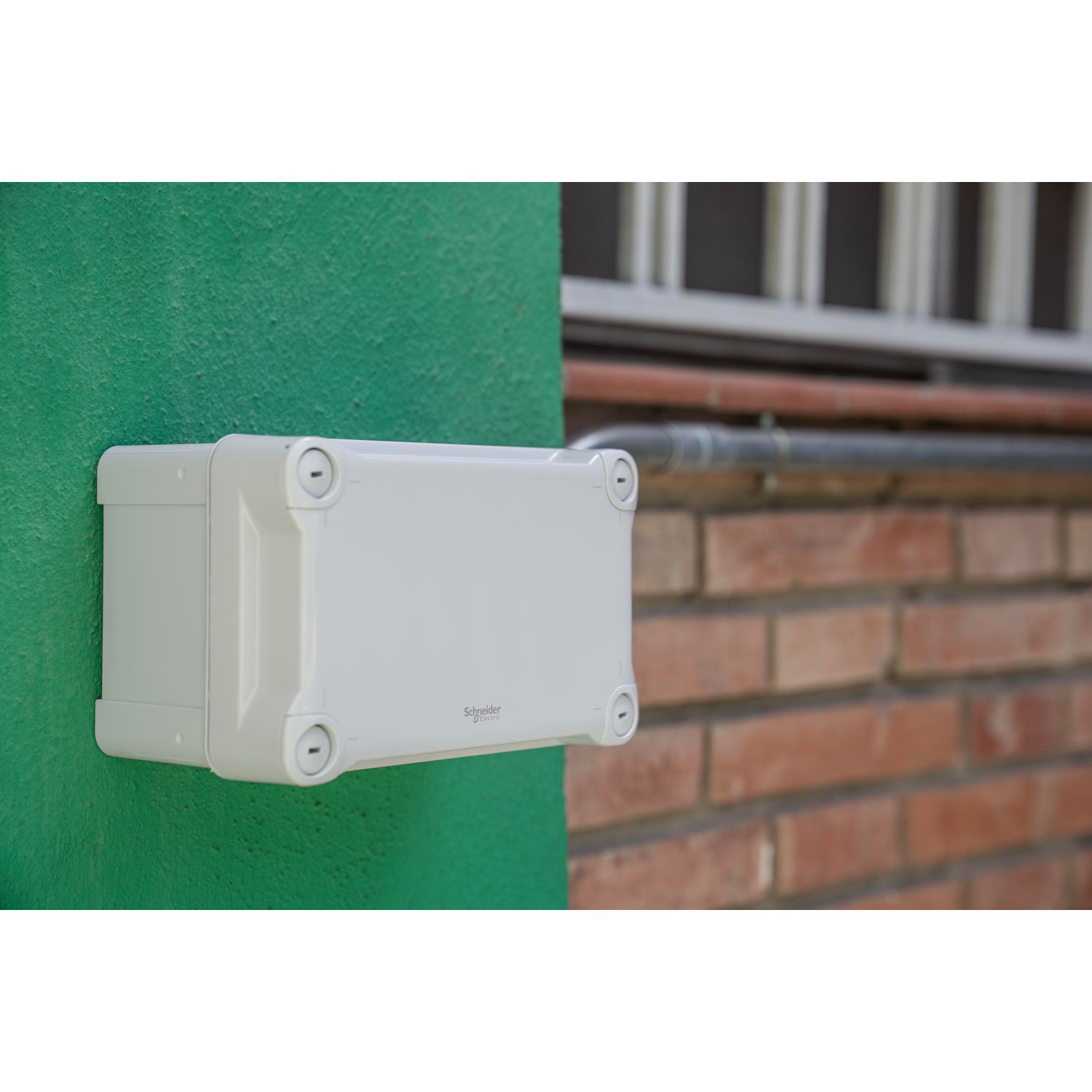

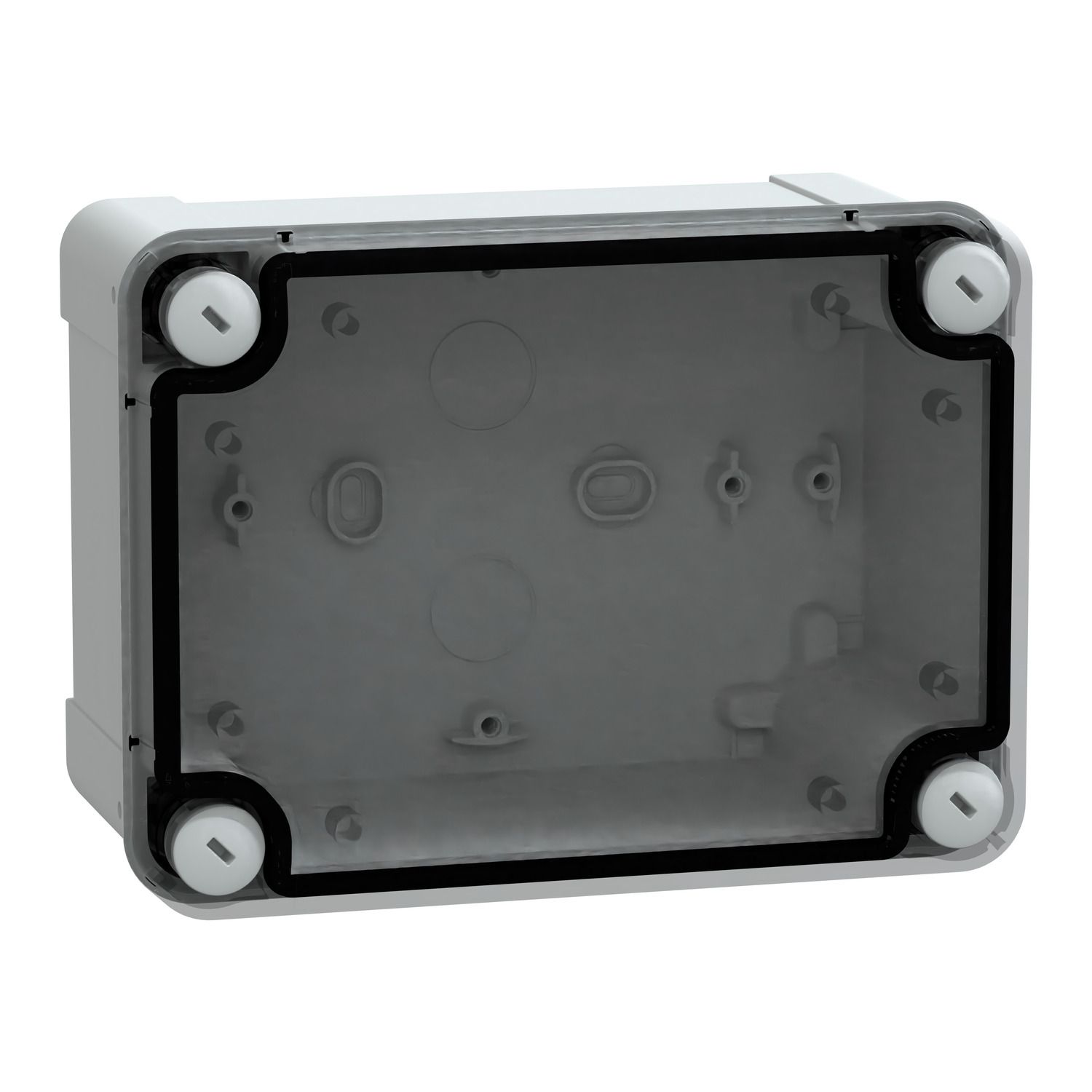

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20
SKU:

NSYTBP16128T

Thalassa, PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20

$22.15
Available for Shipping : 14-Nov-2024
Thalassa, PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
Thalassa TBP industrial PC box with transparent PC cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 87 mm
Width 121 mm
Quantity per set set of 2
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover low transparent cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBP
Internal depth 80 mm
Internal height 150 mm
Internal width 105 mm
Product or component type industrial box
Height 164 mm
Removable parts cover by captive screws
Complementary
Colour transparent, grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Material polycarbonate
Electrical insulation class class II
Net weight 0.34 kg
Standards IEC 62208, UL 508 A
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.636 cm
Package 1 Width 11.938 cm
Package 1 Length 16.256 cm
Package 1 Weight 317.518 g
Unit Type of Package 2 2
Number of Units in Package 2 384
Package 2 Height 120 cm
Package 2 Width 80 cm
Package 2 Length 135 cm
Package 2 Weight 165 kg

Related products

Picture of Fixing lugs in thermoplastic PC and screws. for boxes = H150xL150 mm.

Fixing lugs in thermoplastic PC and screws. for boxes = H150xL150 mm.

NSYAEFTB
$10.43
View Detail

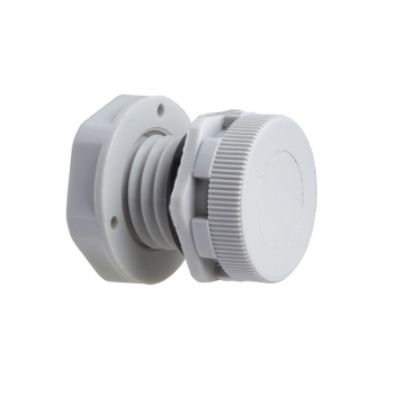

Picture of Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar

Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar

NSYCAG12LPH2
$9.56
View Detail

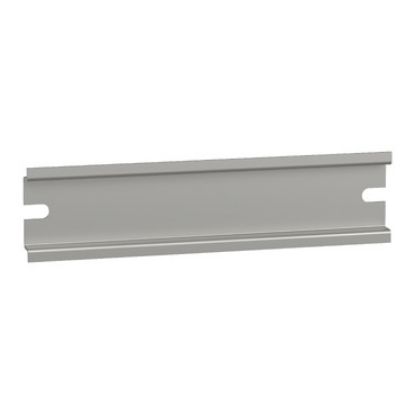

Picture of Symmetrical DIN rail, H35xD7.5 mm Length: 140 mm, for boxes of 150 mm (Internal)

Symmetrical DIN rail, H35xD7.5 mm Length: 140 mm, for boxes of 150 mm (Internal)

NSYAMRD16357TB
$10.76
View Detail

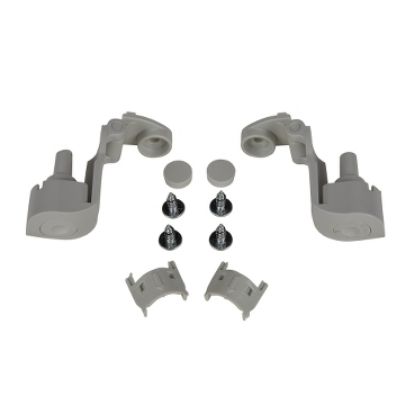

Picture of Hinges, for cover-depth 40 mm. In thermoplastic PC with screws.
