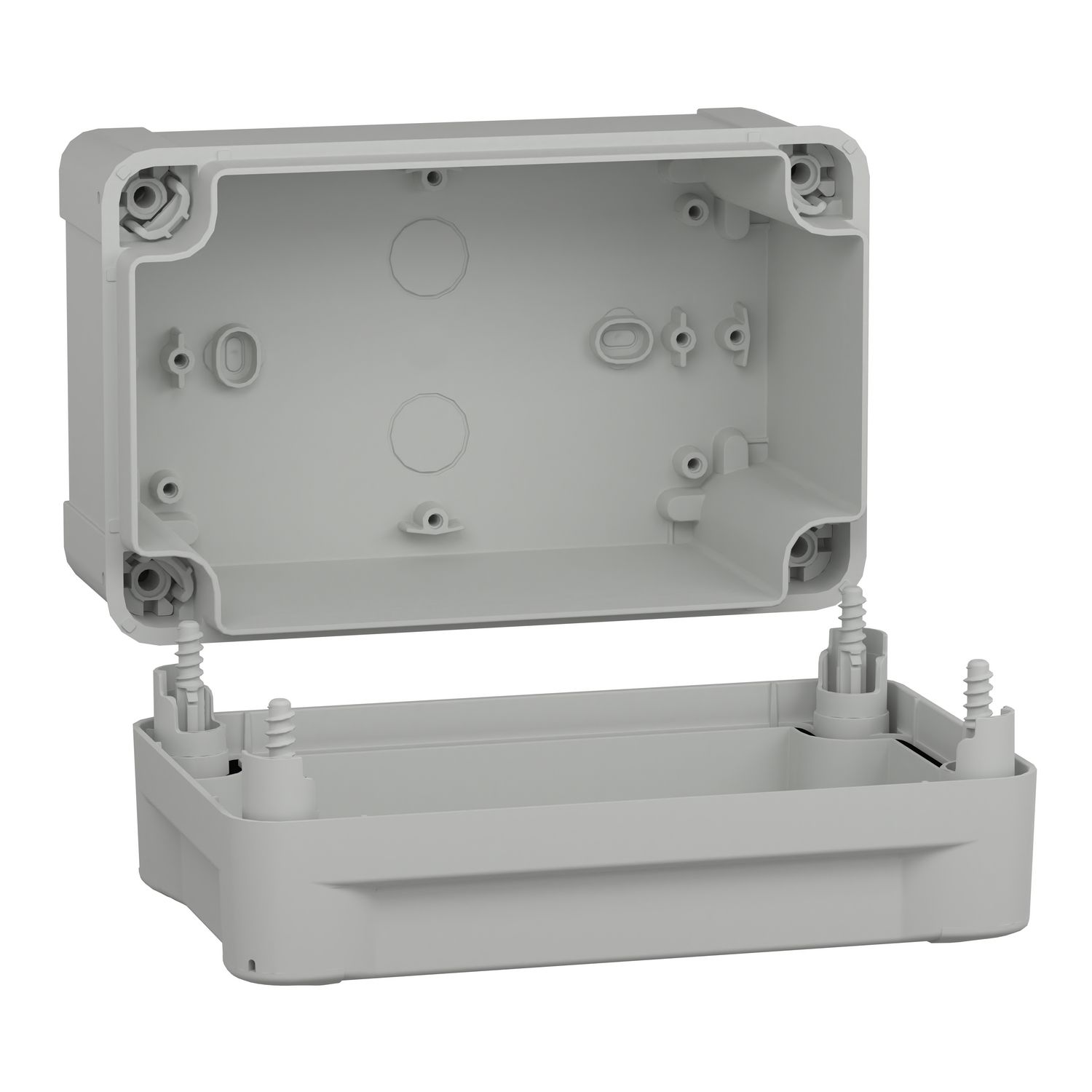

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40

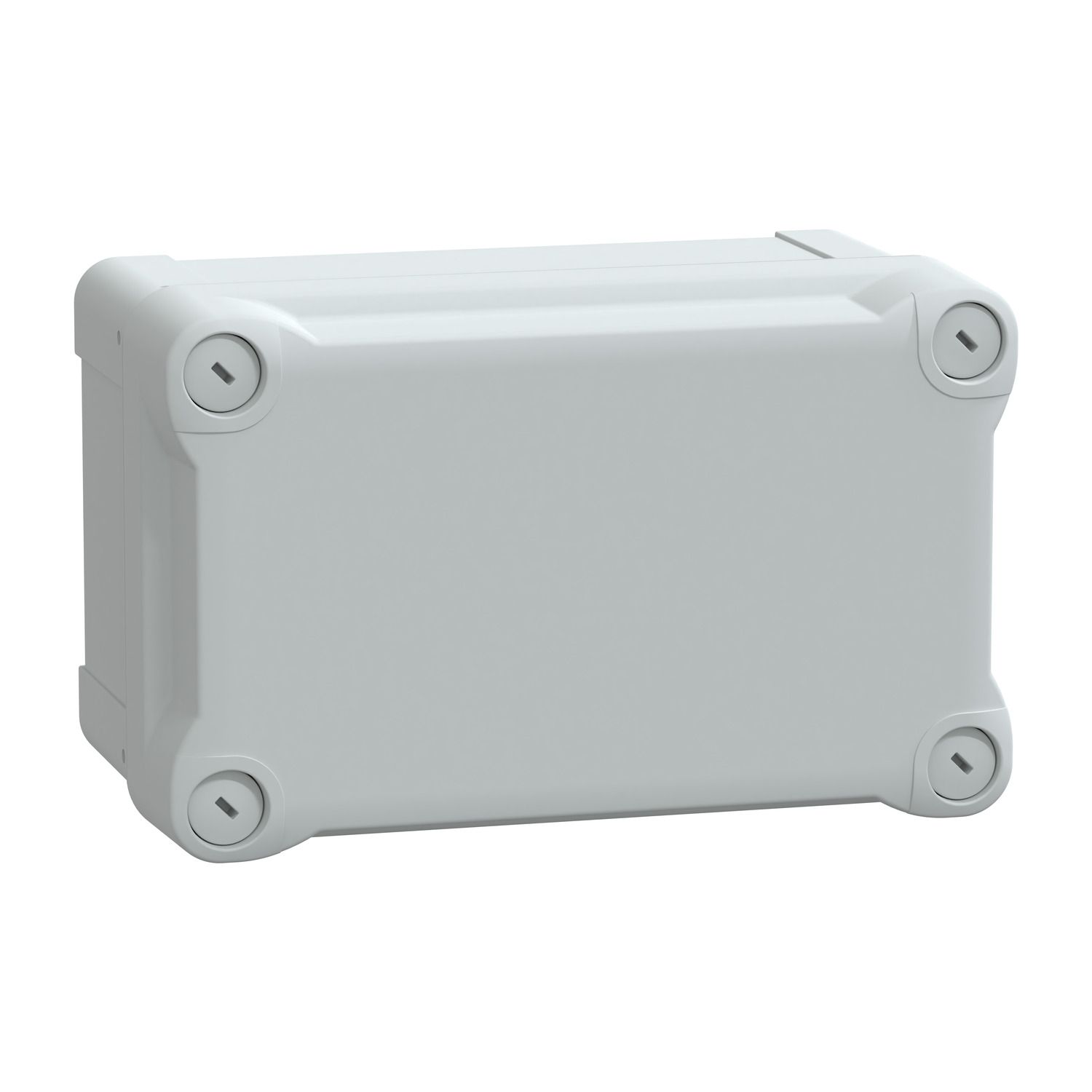

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40

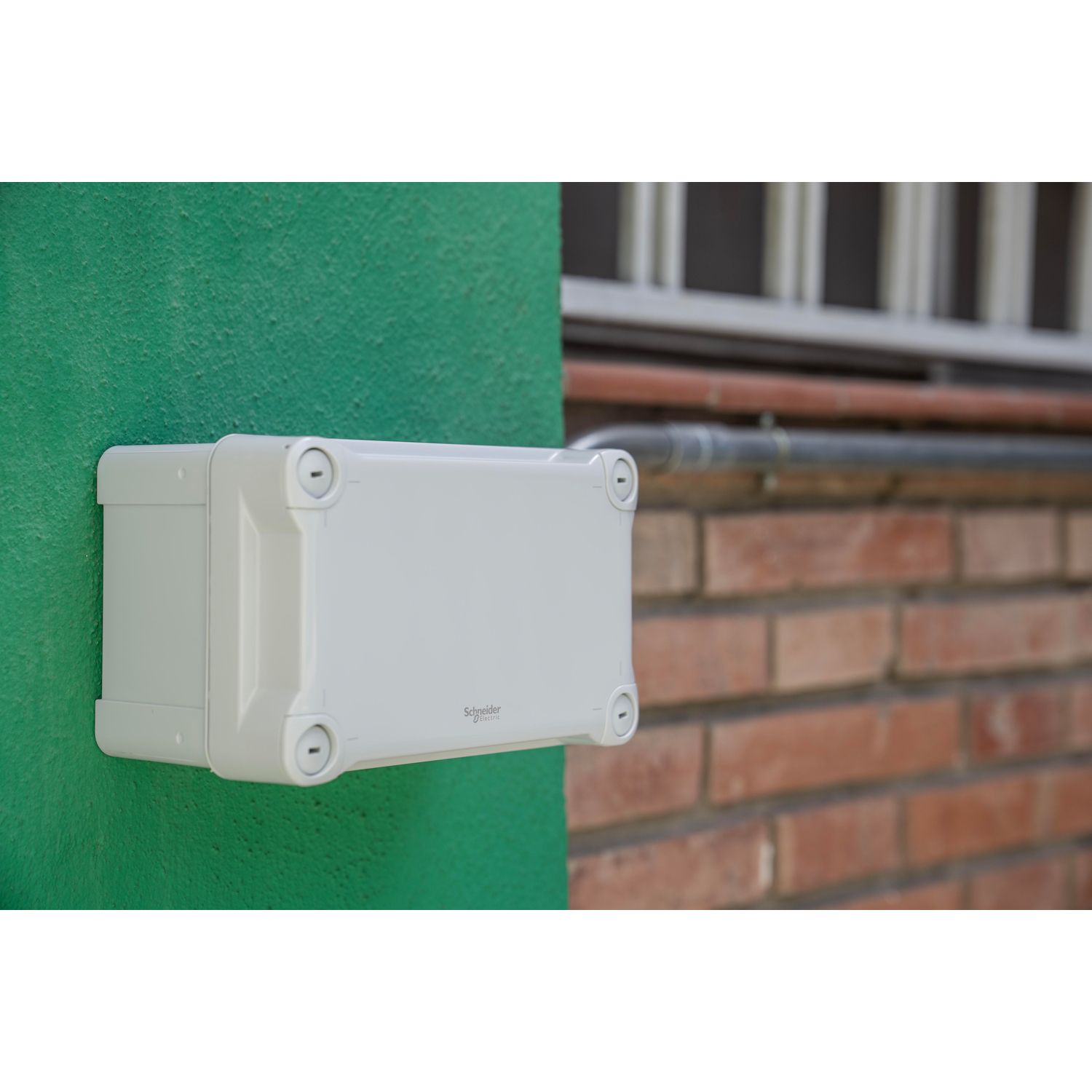

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40
SKU:

NSYTBP191210H

Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40

$24.17 INC GST
Available for Shipping : 12-May-2025
Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This TBP is a wall-mounted box made of polycarbonate It is designed for multi-purpose applications and can be used indoor or outdoor The box has a grey (RAL 7035) body and a high plain cover The enclosure has a nominal height, width, and depth of 192 mm, 121 mm, and 105 mm, respectively The internal dimensions of the box are 175 mm x 105 mm x 100 mm The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions It is also resistant to fire up to 960°C in accordance with IEC 62208 standard The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262) It can be stored in ambient air temperatures ranging from -15 to 60°C and used in ambient air temperature ranging from -25 to 80 °C without affecting its performance The product is UL certified

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 105 mm
Width 121 mm
Quantity per set set of 2
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover high plain cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBP
Internal depth 100 mm
Internal height 175 mm
Internal width 105 mm
Product or component type industrial box
Height 192 mm
Removable parts cover by captive screws
Complementary
Colour grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Material polycarbonate
Electrical insulation class class II
Net weight 0.43 kg
Standards UL 508 A, IEC 62208
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.5 cm
Package 1 Width 12.1 cm
Package 1 Length 19.2 cm
Package 1 Weight 430 g
Unit Type of Package 2 2
Number of Units in Package 2 264
Package 2 Height 120 cm
Package 2 Width 80 cm
Package 2 Length 134 cm
Package 2 Weight 125 kg
