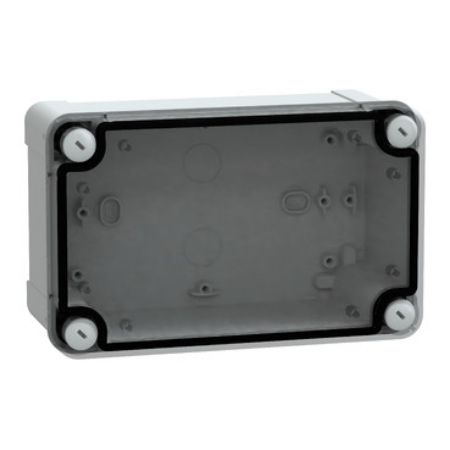

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D80 Ext.H192W121D87 Transp.cover H20

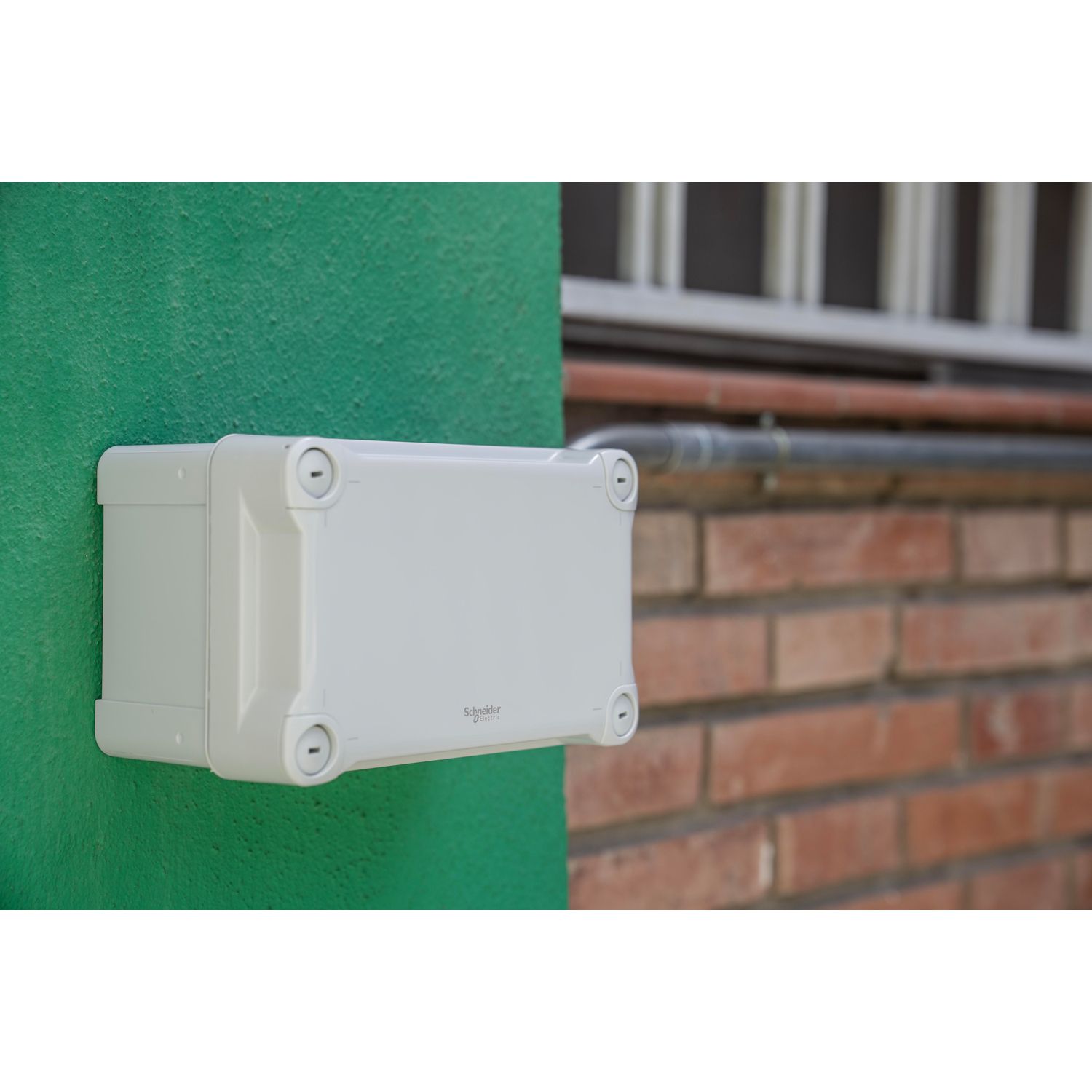

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D80 Ext.H192W121D87 Transp.cover H20

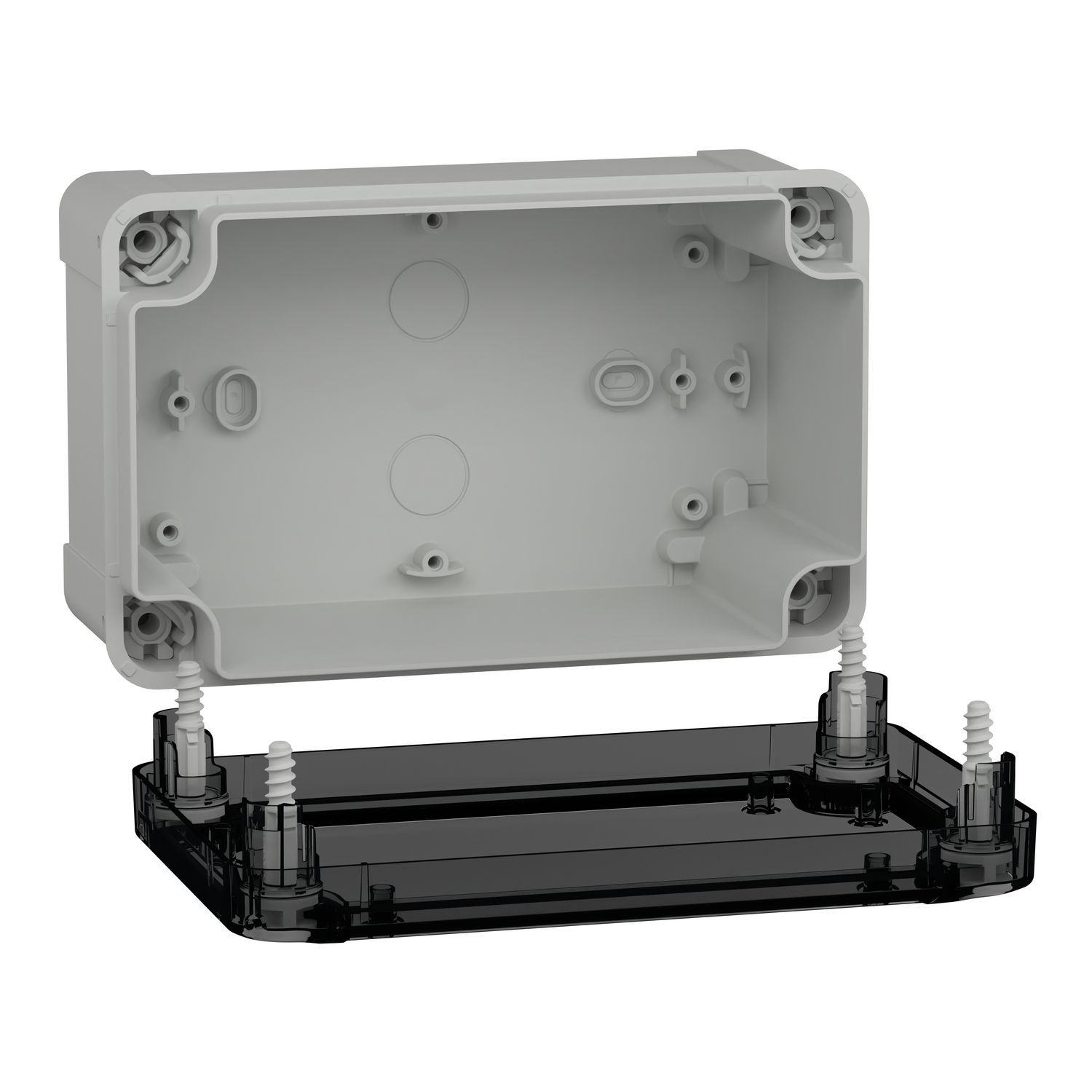

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D80 Ext.H192W121D87 Transp.cover H20
SKU:

NSYTBP19128T

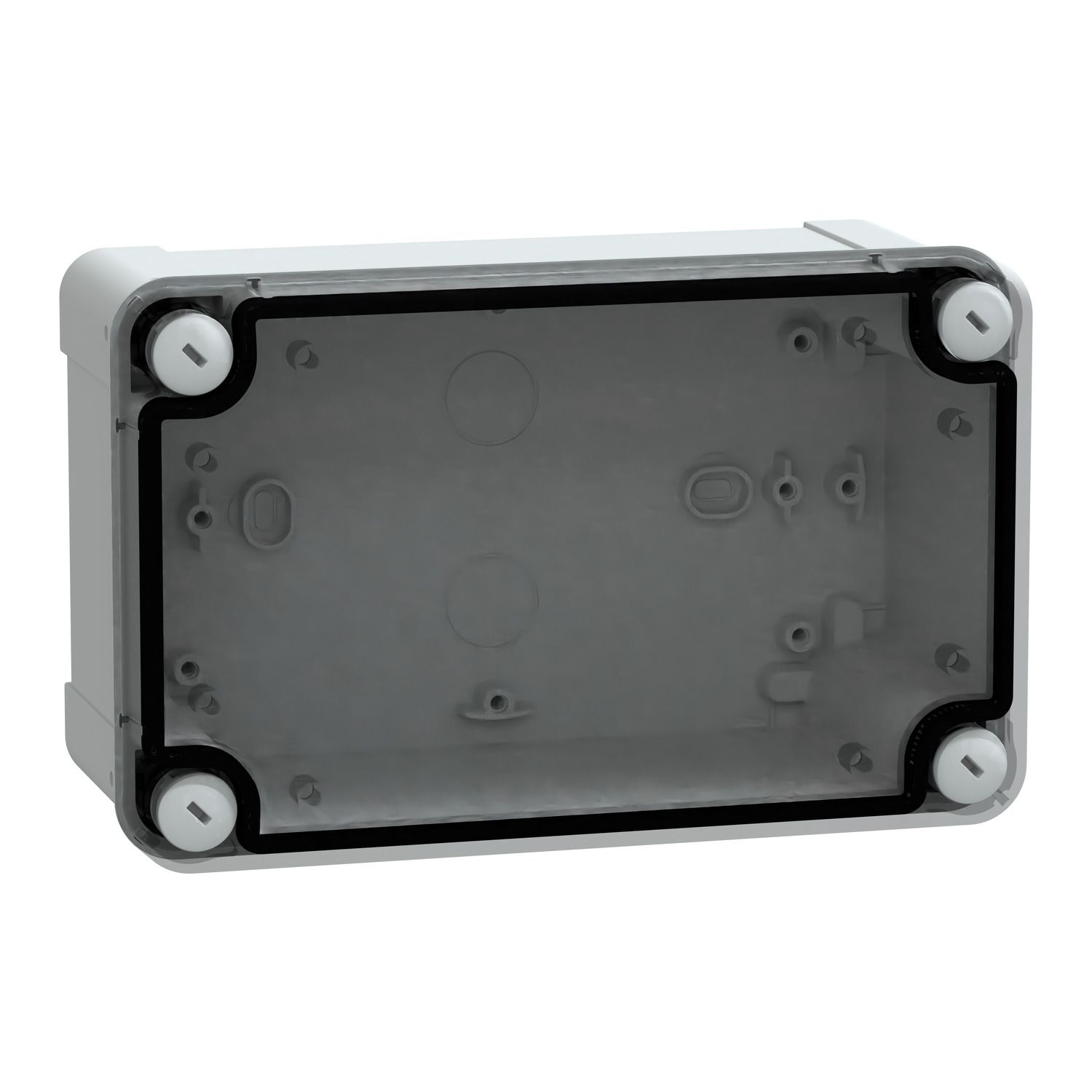

Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D80 Ext.H192W121D87 Transp.cover H20

$23.35
Thalassa, PC box IP66 IK08 RAL7035 Int.H175W105D80 Ext.H192W121D87 Transp.cover H20
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 02-Nov-2024
End of life manual
Product environmental
Declaration of conformity
Image of product
Product Page Link
Product Data Sheet
Thalassa TBP industrial PC box with transparent PC cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Products specifications

Attribute nameAttribute value
Main
Device applicationmulti-purpose
Depth87 mm
Width121 mm
Quantity per setset of 2
Enclosure mountingwall mounted
Cover fixingplastic screws
Body typeone piece moulded
RangeThalassa
Type of front coverlow transparent cover
Device composition4 cover screw, 1 cover, 1 body
Lock typecaptive screw flat outside sealed area
Product nameThalassa TBP
Internal depth80 mm
Internal height175 mm
Internal width105 mm
Product or component typeindustrial box
Height192 mm
Removable partscover by captive screws
Complementary
Colourtransparent, grey (RAL 7035)
Mounting locationoutdoor (with canopy or shelter and anticondensation valve)
Materialpolycarbonate
Electrical insulation classclass II
Net weight0.38 kg
StandardsUL 508 A, IEC 62208
Product certificationsUL, TÜV
Environment
Fire resistance960 °C
Ambient air temperature for storage-15-60 °C
IP degree of protectionIP66 conforming to NEMA 4.4X
Ambient air temperature for operation-25-80 °C
IK degree of protectionIK08 conforming to IEC 62262
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.7 cm
Package 1 Width12.1 cm
Package 1 Length19.2 cm
Package 1 Weight380 g
Unit Type of Package 22
Number of Units in Package 2336
Package 2 Height120 cm
Package 2 Width80 cm
Package 2 Length135 cm
Package 2 Weight164 kg
