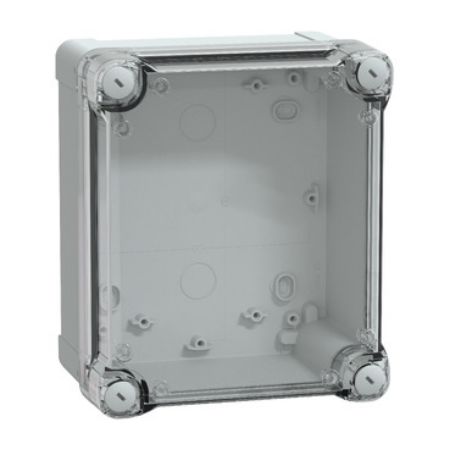

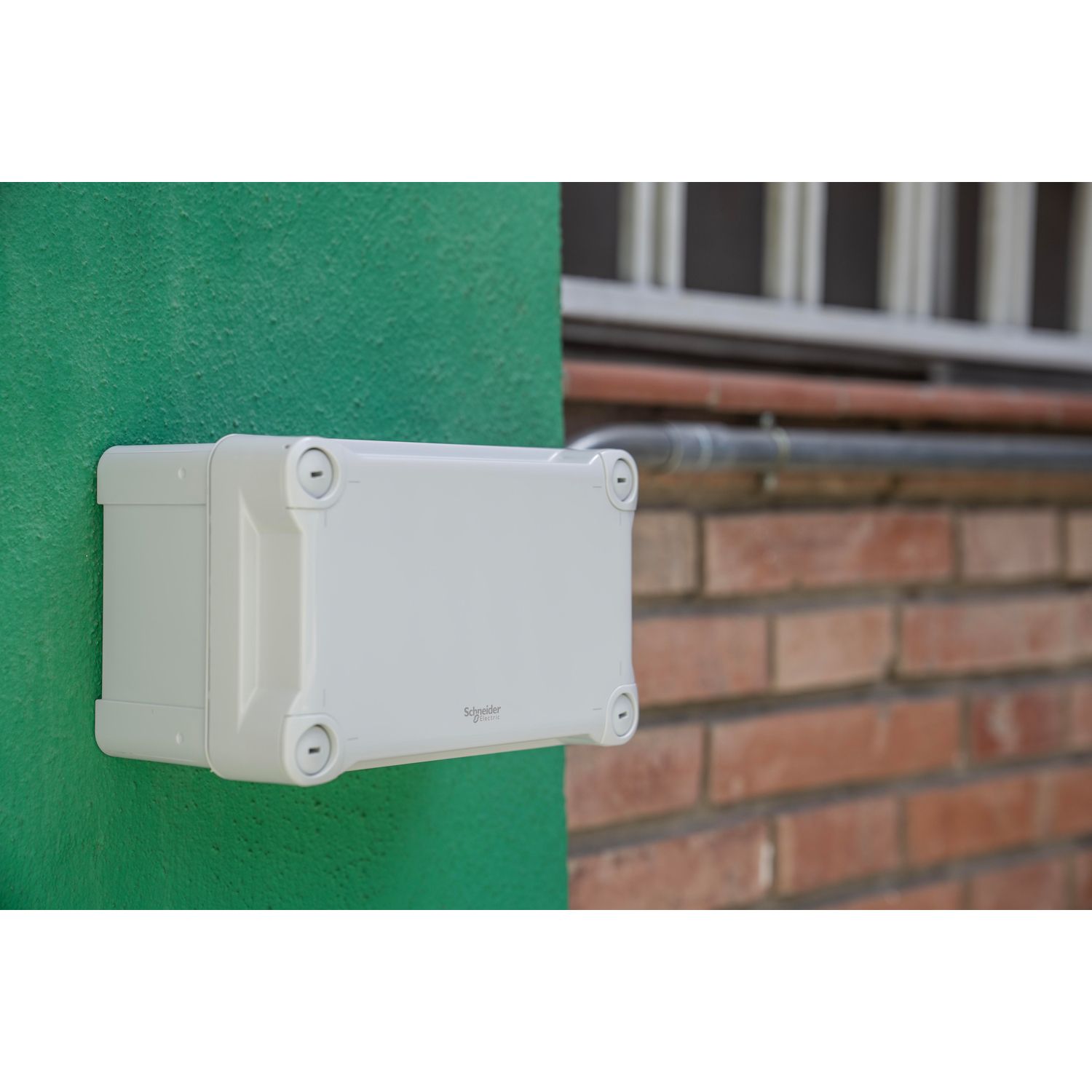

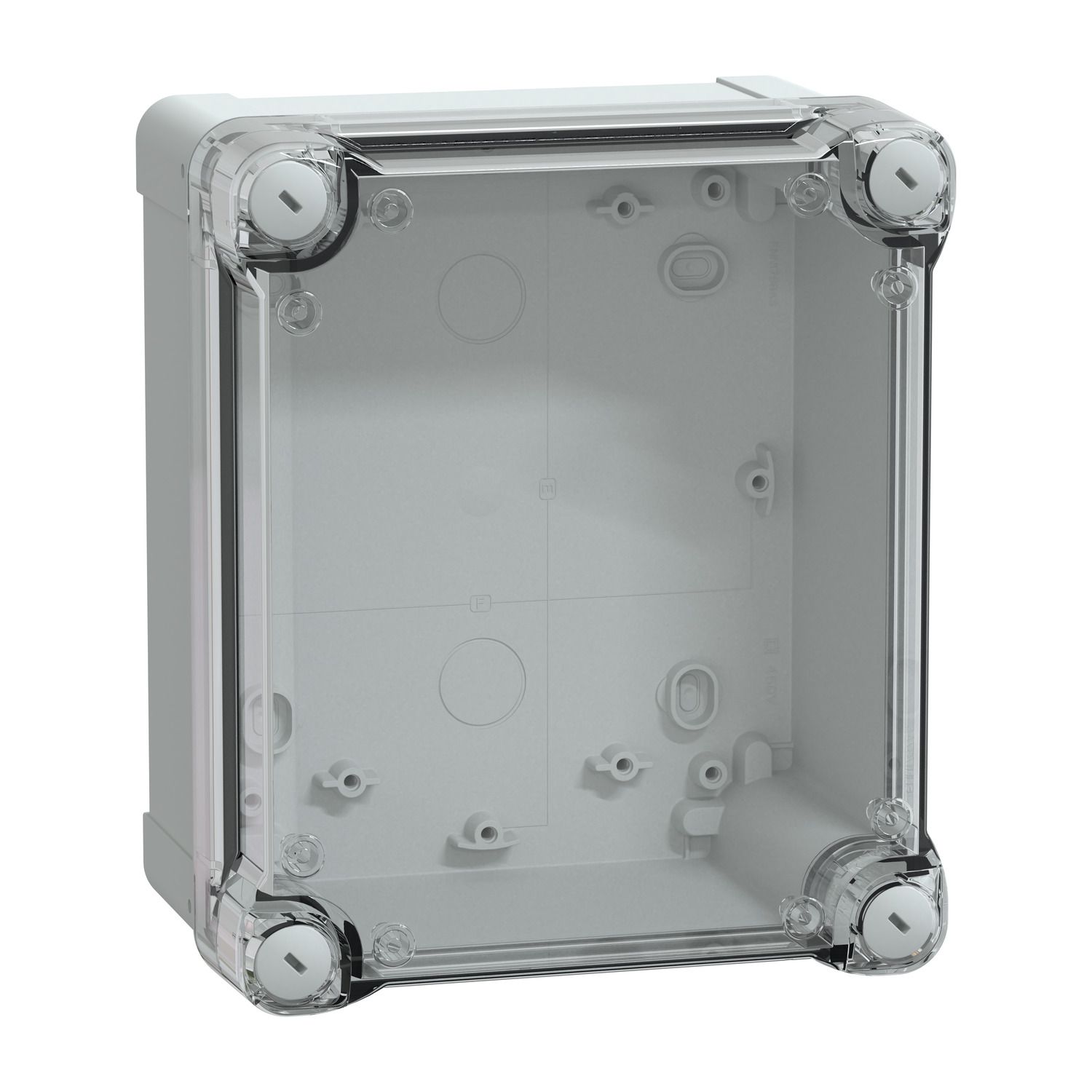

Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
Picture of Thalassa, PC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
SKU:

NSYTBP191610HT

Thalassa, PC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40

$32.60 INC GST
Available for Shipping : 20-Aug-2025
Thalassa, PC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 105 mm
Width 164 mm
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover low transparent cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBP
Internal depth 100 mm
Internal height 175 mm
Internal width 150 mm
Product or component type industrial box
Height 192 mm
Removable parts cover by captive screws
Complementary
Colour transparent, grey (RAL 7035)
Mounting location outdoor (with canopy or shelter and anticondensation valve)
Material polycarbonate
Electrical insulation class class II
Net weight 0.6 kg
Standards IEC 62208, UL 508 A
Product certifications UL, TÜV
Environment
Fire resistance 960 °C
Ambient air temperature for storage -15-60 °C
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-80 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.5 cm
Package 1 Width 16.4 cm
Package 1 Length 19.3 cm
Package 1 Weight 600 g
Unit Type of Package 2 2
Number of Units in Package 2 17
Package 2 Height 40 cm
Package 2 Width 40.5 cm
Package 2 Length 60 cm
Package 2 Weight 11.2 kg
Unit Type of Package 3 3
Number of Units in Package 3 425
Package 3 Height 214 cm
Package 3 Width 100 cm
Package 3 Length 120 cm
Package 3 Weight 295 kg

Related products

Picture of Fixing lugs in thermoplastic PC and screws. for boxes = H150xL150 mm.

Fixing lugs in thermoplastic PC and screws. for boxes = H150xL150 mm.

NSYAEFTB
$11.47 INC GST
View Detail

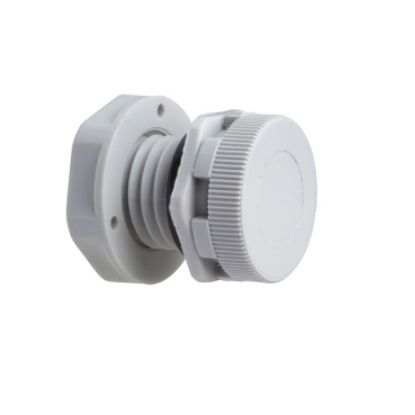

Picture of Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar

Sealed pressure balance valves IP68 ØM12 F120 liters/hour when 0,07 bar

NSYCAG12LPH2
$10.52 INC GST
View Detail

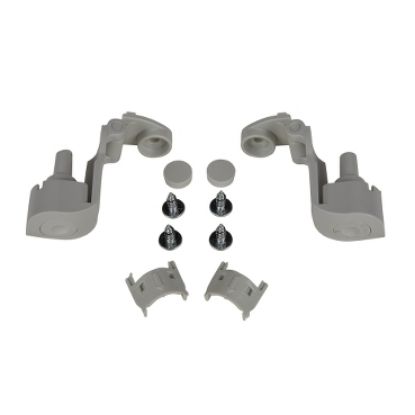

Picture of Hinges, for cover-depth 40 mm. In thermoplastic PC with screws.
