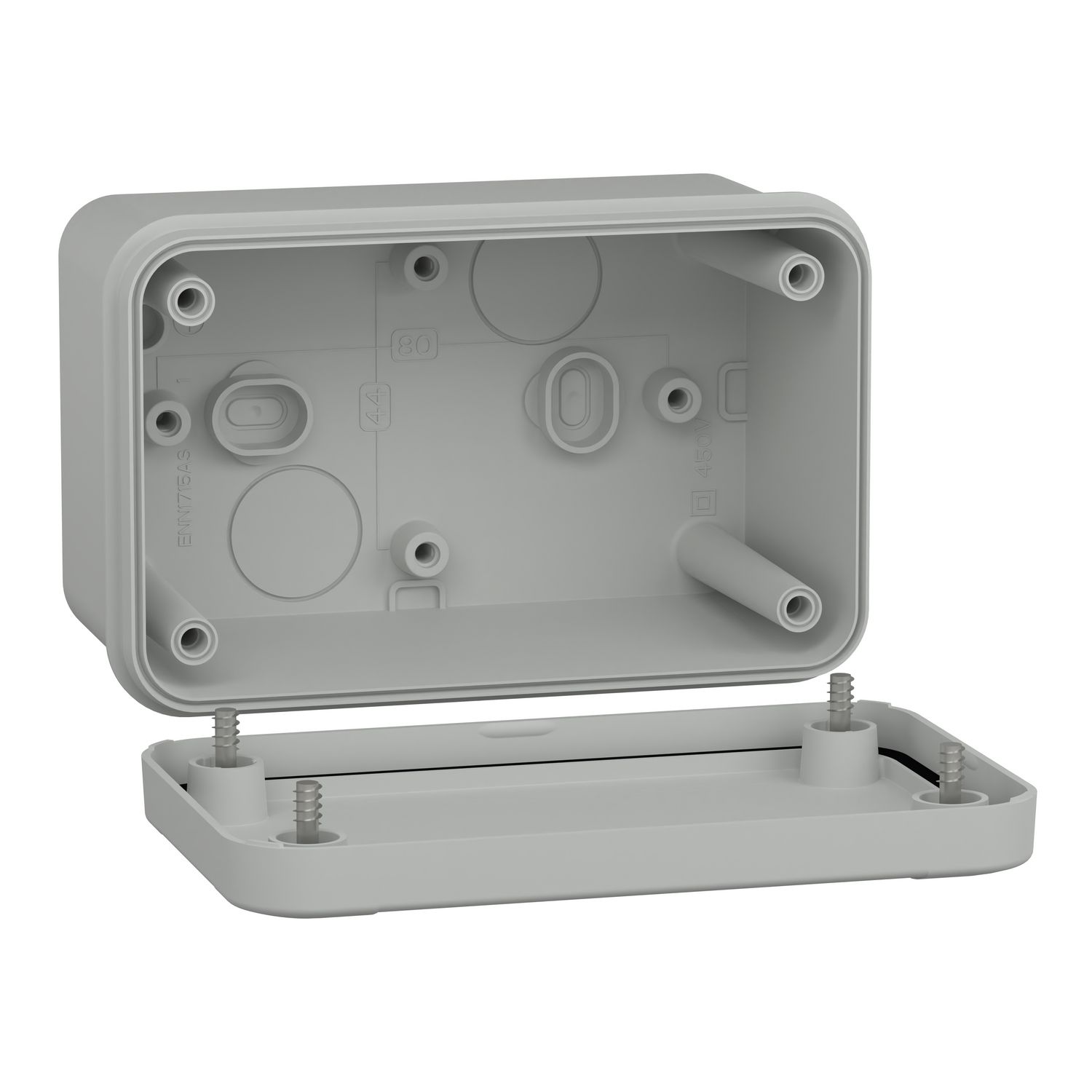

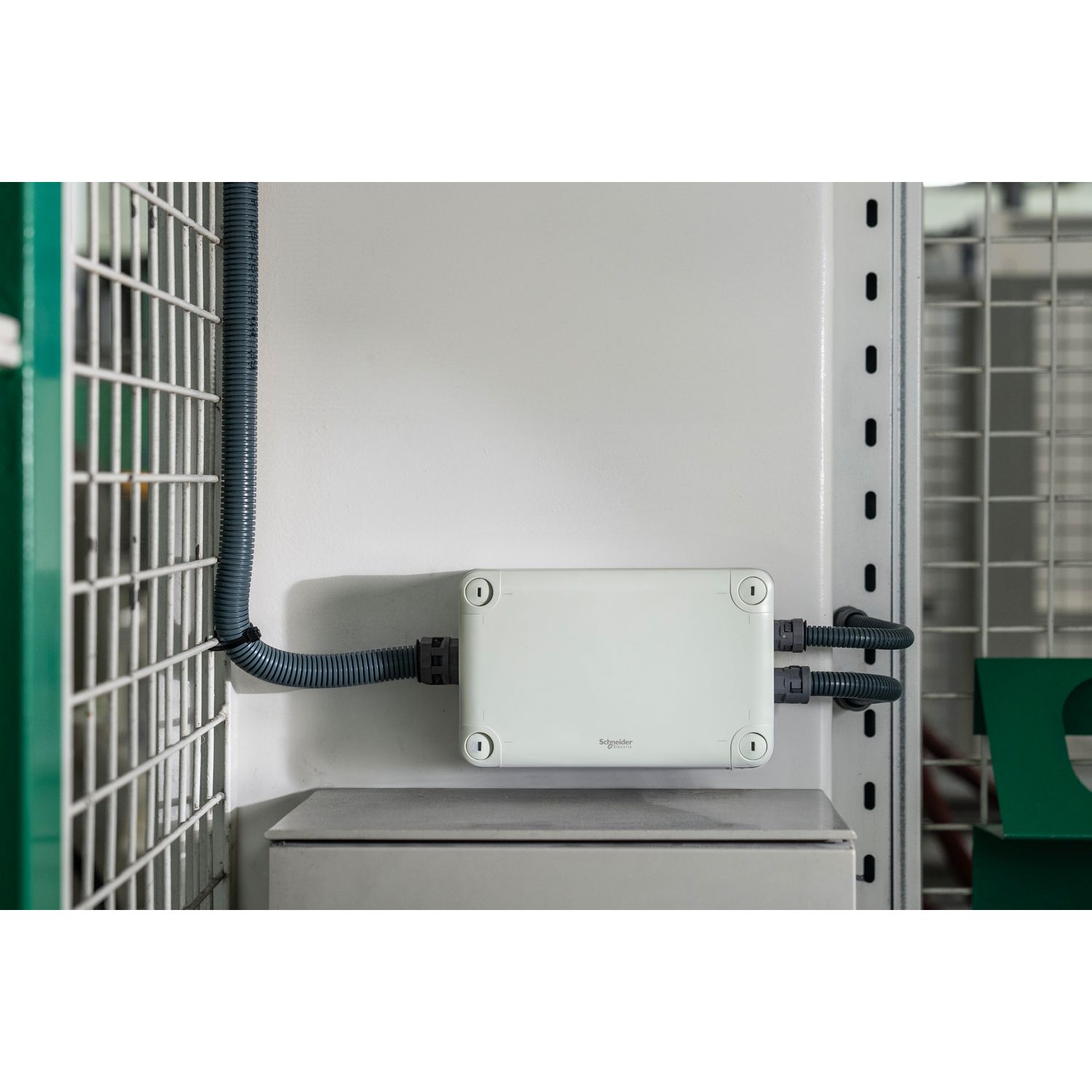

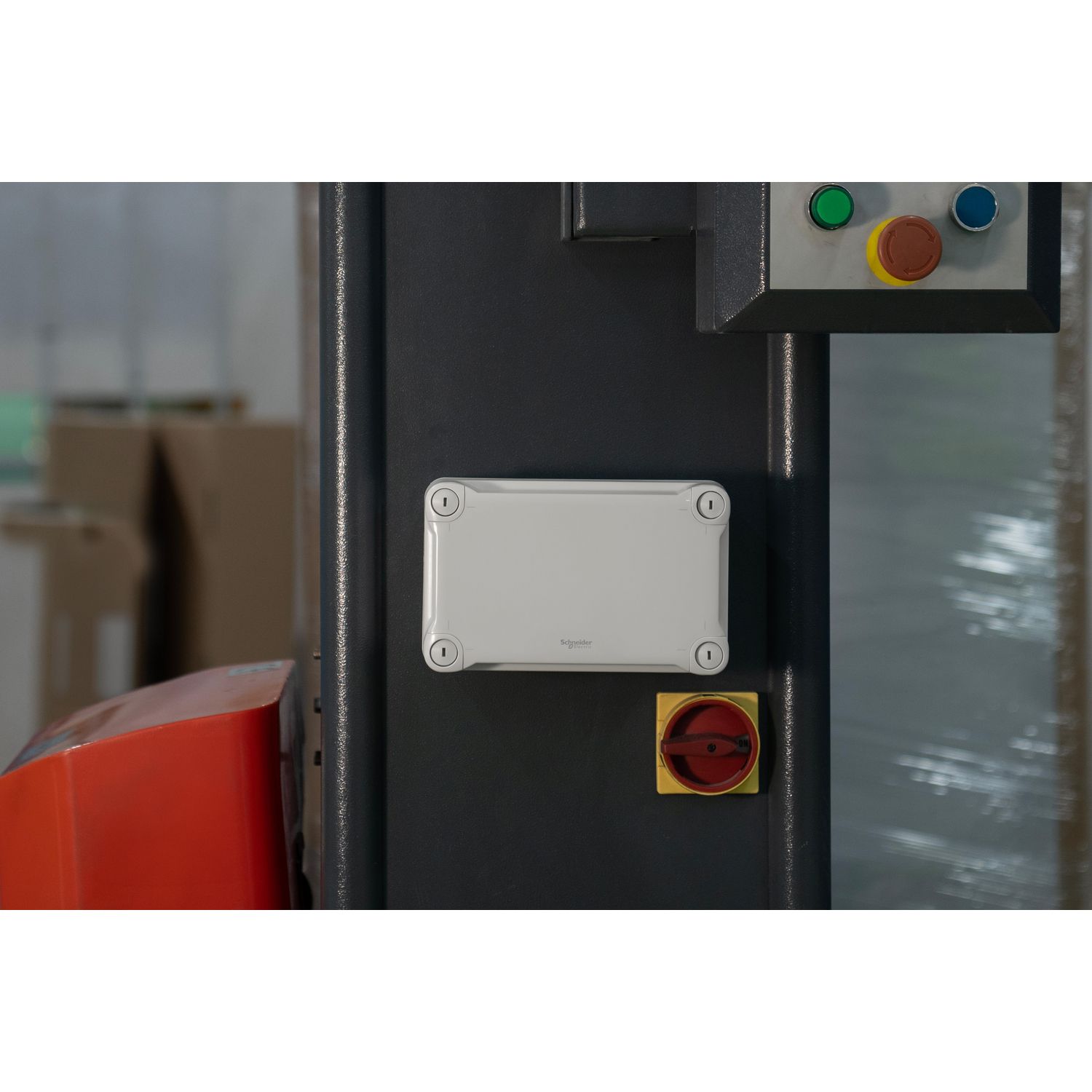

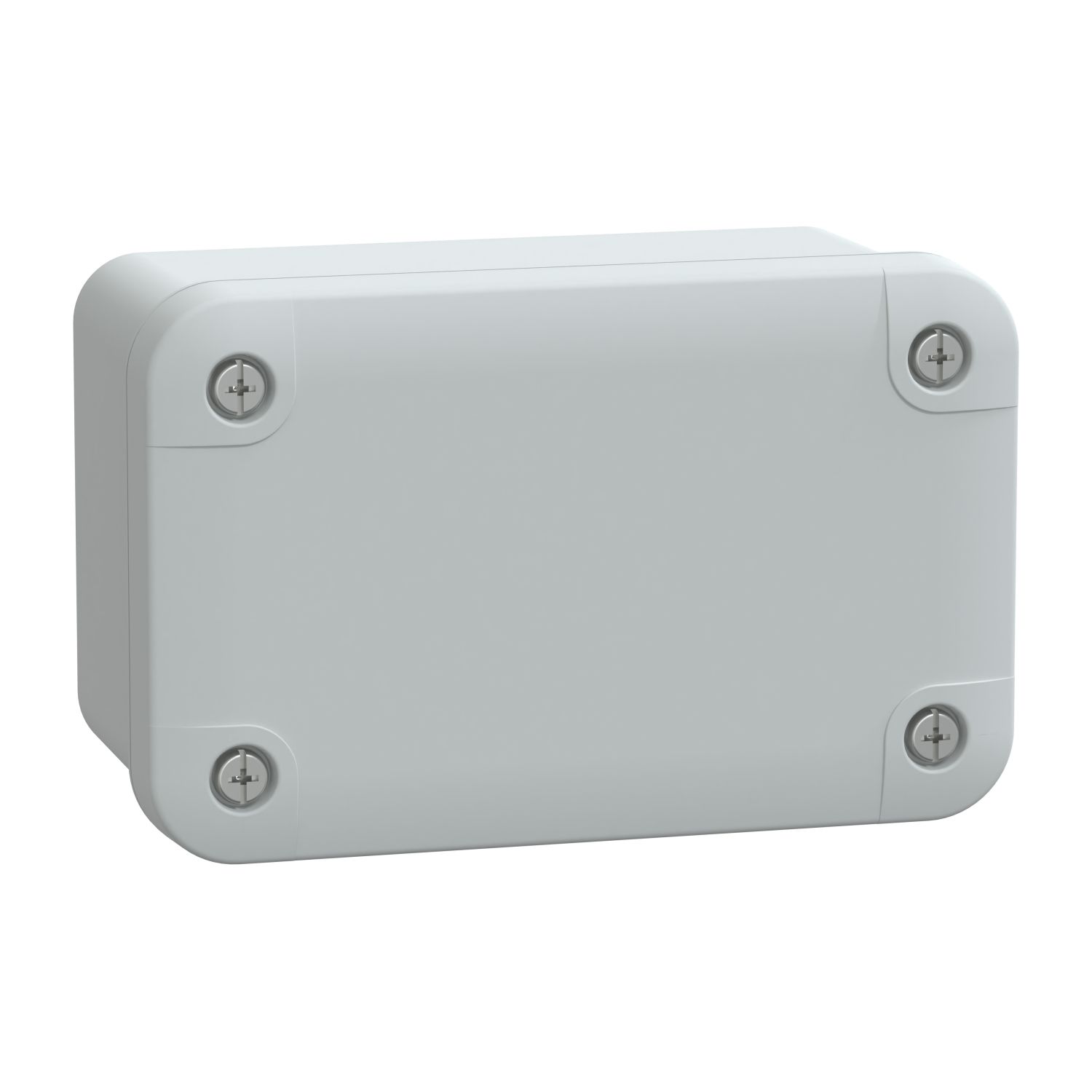

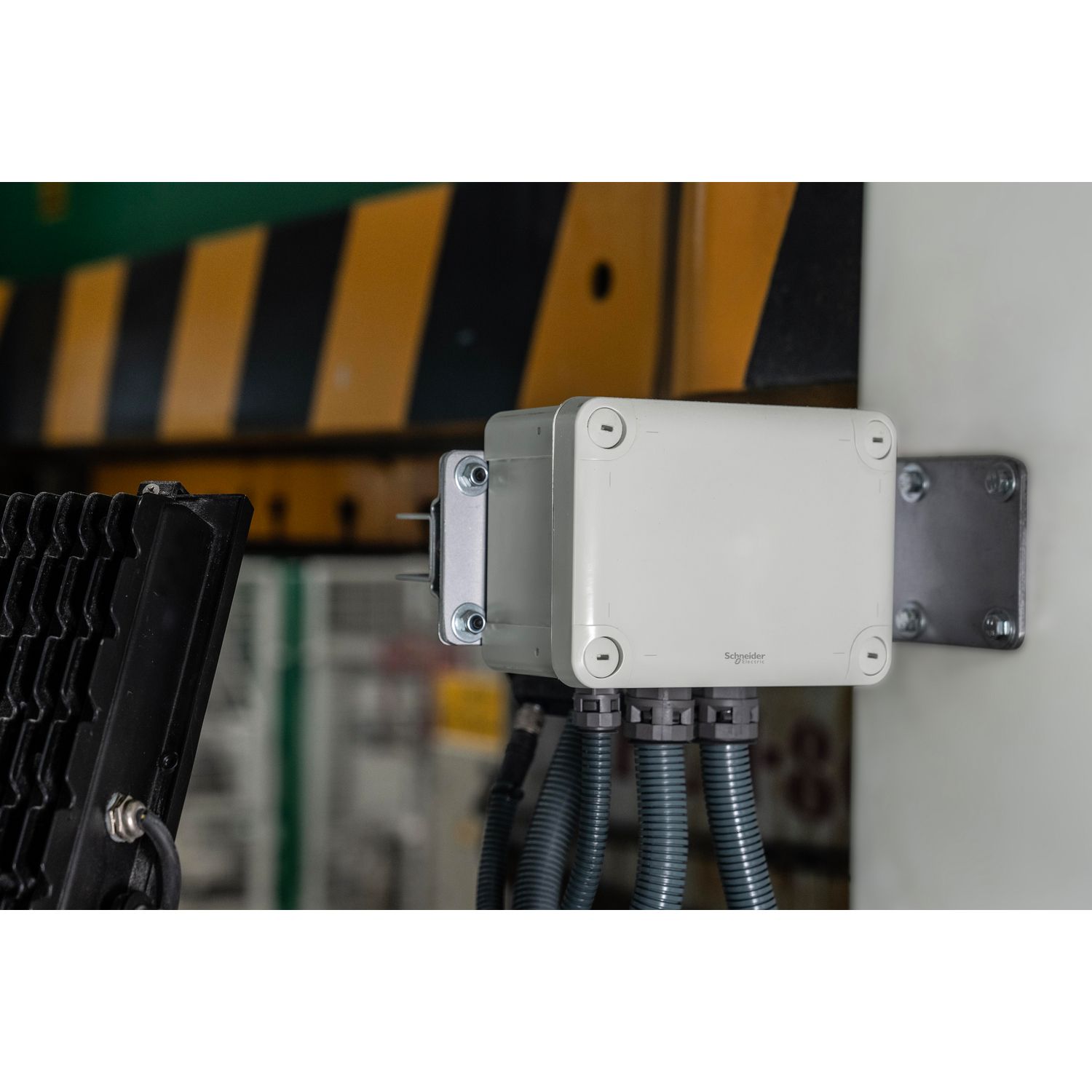

Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10
SKU:

NSYTBS1176

Thalassa, ABS box IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10

$7.07
Thalassa, ABS box IP66 IK07 RAL7035 Int.H105W65D55 Ext.H116W74D62 Opaque cover H10
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Declaration of conformity
Image of product
Product environmental
Product Page Link
Product Data Sheet
Thalassa TBS industrial ABS box with opaque cover H10. Int is 105 x 65 x 55 mm. Ext is 116 x 74 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Products specifications

Attribute nameAttribute value
Main
Device applicationmulti-purpose
Quantity per setset of 5
Enclosure mountingwall mounted
Cover fixingmetal screws
RangeThalassa
Type of front coverlow plain cover
Lock typecaptive screw flat outside sealed area
Internal depth55 mm
Internal height105 mm
Height116 mm
Removable partscover by captive screws
Depth62 mm
Width74 mm
Body typeone piece moulded
Device composition4 cover screw, 1 cover, 1 body
Product nameThalassa TBS
Internal width65 mm
Product or component typeindustrial box
Complementary
Colourgrey (RAL 7035)
Fire resistance650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage-15-40 °C
Electrical insulation classclass II
IP degree of protectionIP66 conforming to NEMA 4.4X
Ambient air temperature for operation-25-60 °C
IK degree of protectionIK07 conforming to IEC 62262
MaterialABS (acrylonitrile butadiene-styrene)
Net weight0.108 kg
StandardsIEC 62208
Product certificationsTÜV
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.3 cm
Package 1 Width7.4 cm
Package 1 Length11.5 cm
Package 1 Weight92 g
Unit Type of Package 22
Number of Units in Package 25
Package 2 Height8.8 cm
Package 2 Width12.6 cm
Package 2 Length33.4 cm
Package 2 Weight532 g
Unit Type of Package 33
Number of Units in Package 3105
Package 3 Height40.6 cm
Package 3 Width40.2 cm
Package 3 Length61.4 cm
Package 3 Weight12.168 kg
Unit Type of Package 44
Number of Units in Package 41260
Package 4 Height120 cm
Package 4 Width80 cm
Package 4 Length135 cm
Package 4 Weight152 kg
