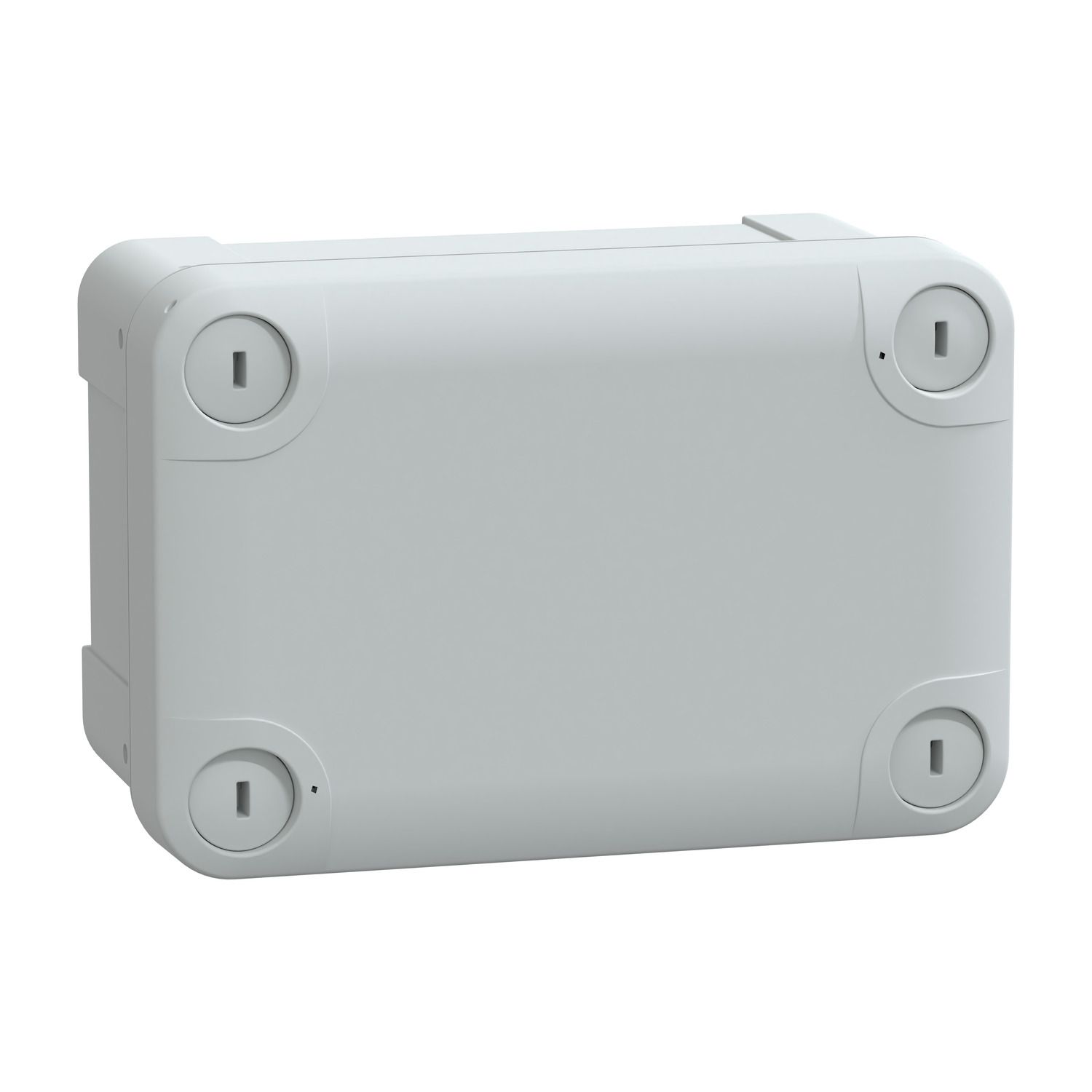

Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H125W80D65 Ext.H138W93D72 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H125W80D65 Ext.H138W93D72 Opaque cover H20
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H125W80D65 Ext.H138W93D72 Opaque cover H20
SKU:

NSYTBS1397

Thalassa, ABS box IP66 IK07 RAL7035 Int.H125W80D65 Ext.H138W93D72 Opaque cover H20

$13.61
Available for Shipping : 24-Nov-2024
Thalassa, ABS box IP66 IK07 RAL7035 Int.H125W80D65 Ext.H138W93D72 Opaque cover H20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
Thalassa TBS industrial ABS box with opaque cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Depth 72 mm
Width 93 mm
Quantity per set set of 2
Enclosure mounting wall mounted
Cover fixing plastic screws
Body type one piece moulded
Range Thalassa
Type of front cover low plain cover
Device composition 4 cover screw, 1 cover, 1 body
Lock type captive screw flat outside sealed area
Product name Thalassa TBS
Internal depth 65 mm
Internal height 125 mm
Internal width 80 mm
Product or component type industrial box
Height 138 mm
Removable parts cover by captive screws
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Material ABS (acrylonitrile butadiene-styrene)
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Net weight 0.22 kg
Standards IEC 62208
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.2 cm
Package 1 Width 9.3 cm
Package 1 Length 13.8 cm
Package 1 Weight 220 g
Unit Type of Package 2 2
Number of Units in Package 2 696
Package 2 Height 120 cm
Package 2 Width 80 cm
Package 2 Length 136 cm
Package 2 Weight 176 kg
