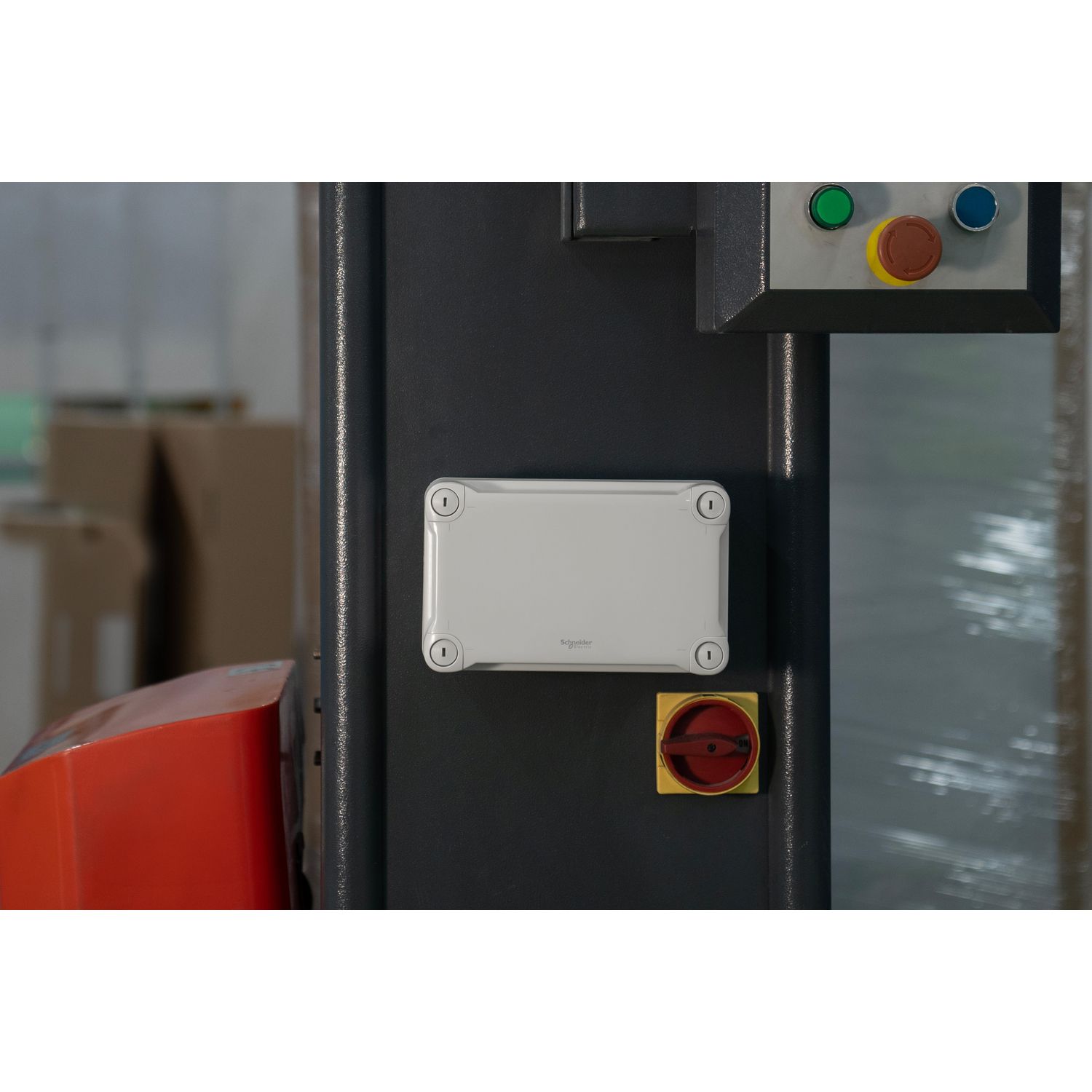

Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H150W105D80 Ext.H164W121D87 Opaque cover H20

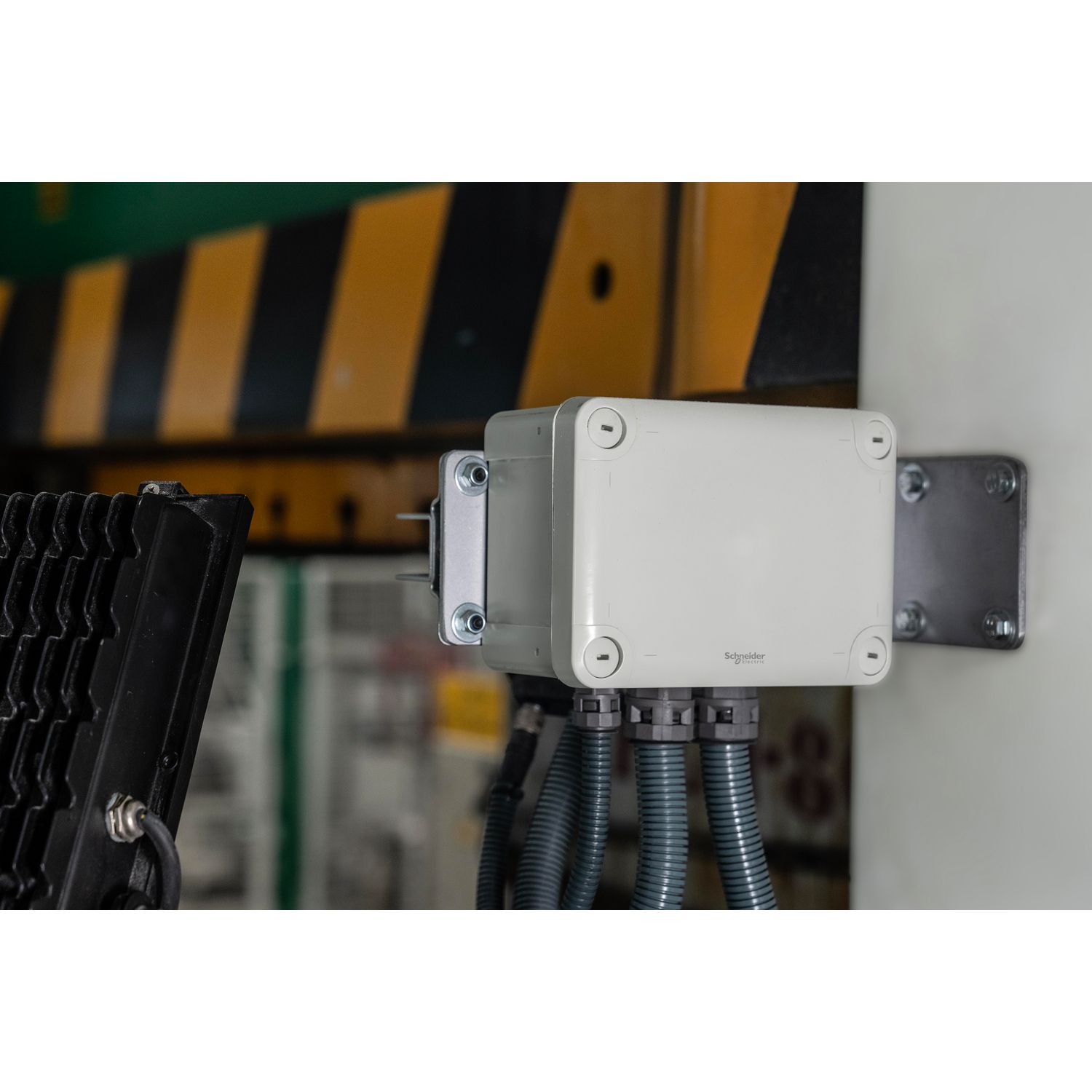

Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H150W105D80 Ext.H164W121D87 Opaque cover H20

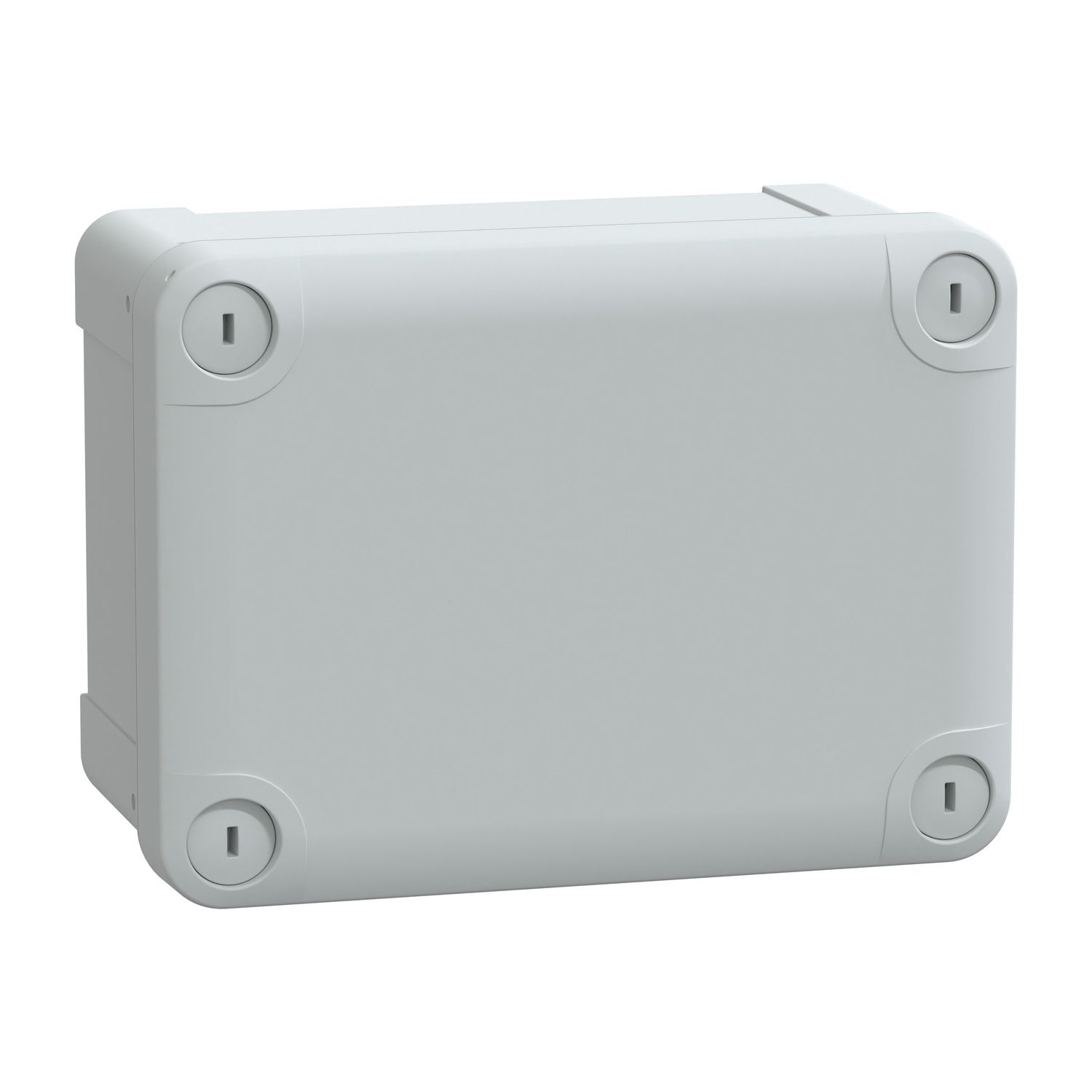

Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H150W105D80 Ext.H164W121D87 Opaque cover H20
SKU:

NSYTBS16128

Thalassa, ABS box IP66 IK07 RAL7035 Int.H150W105D80 Ext.H164W121D87 Opaque cover H20

$17.05
Available for Shipping : 24-Nov-2024
Thalassa, ABS box IP66 IK07 RAL7035 Int.H150W105D80 Ext.H164W121D87 Opaque cover H20
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
Thalassa TBS industrial ABS box with opaque cover H20. Int is 150 x 105 x 80 mm. Ext is 164 x 121 x 87 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Quantity per set set of 2
Enclosure mounting wall mounted
Cover fixing plastic screws
Range Thalassa
Type of front cover low plain cover
Lock type captive screw flat outside sealed area
Internal depth 80 mm
Internal height 150 mm
Height 164 mm
Removable parts cover by captive screws
Depth 87 mm
Width 121 mm
Body type one piece moulded
Device composition 4 cover screw, 1 cover, 1 body
Product name Thalassa TBS
Internal width 105 mm
Product or component type industrial box
Complementary
Colour grey (RAL 7035)
Fire resistance 650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage -15-40 °C
Electrical insulation class class II
IP degree of protection IP66 conforming to NEMA 4.4X
Ambient air temperature for operation -25-60 °C
IK degree of protection IK07 conforming to IEC 62262
Material ABS (acrylonitrile butadiene-styrene)
Net weight 0.32 kg
Standards IEC 62208
Product certifications TÜV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.7 cm
Package 1 Width 12.1 cm
Package 1 Length 16.4 cm
Package 1 Weight 320 g
Unit Type of Package 2 2
Number of Units in Package 2 384
Package 2 Height 120 cm
Package 2 Width 80 cm
Package 2 Length 135 cm
Package 2 Weight 135 kg
