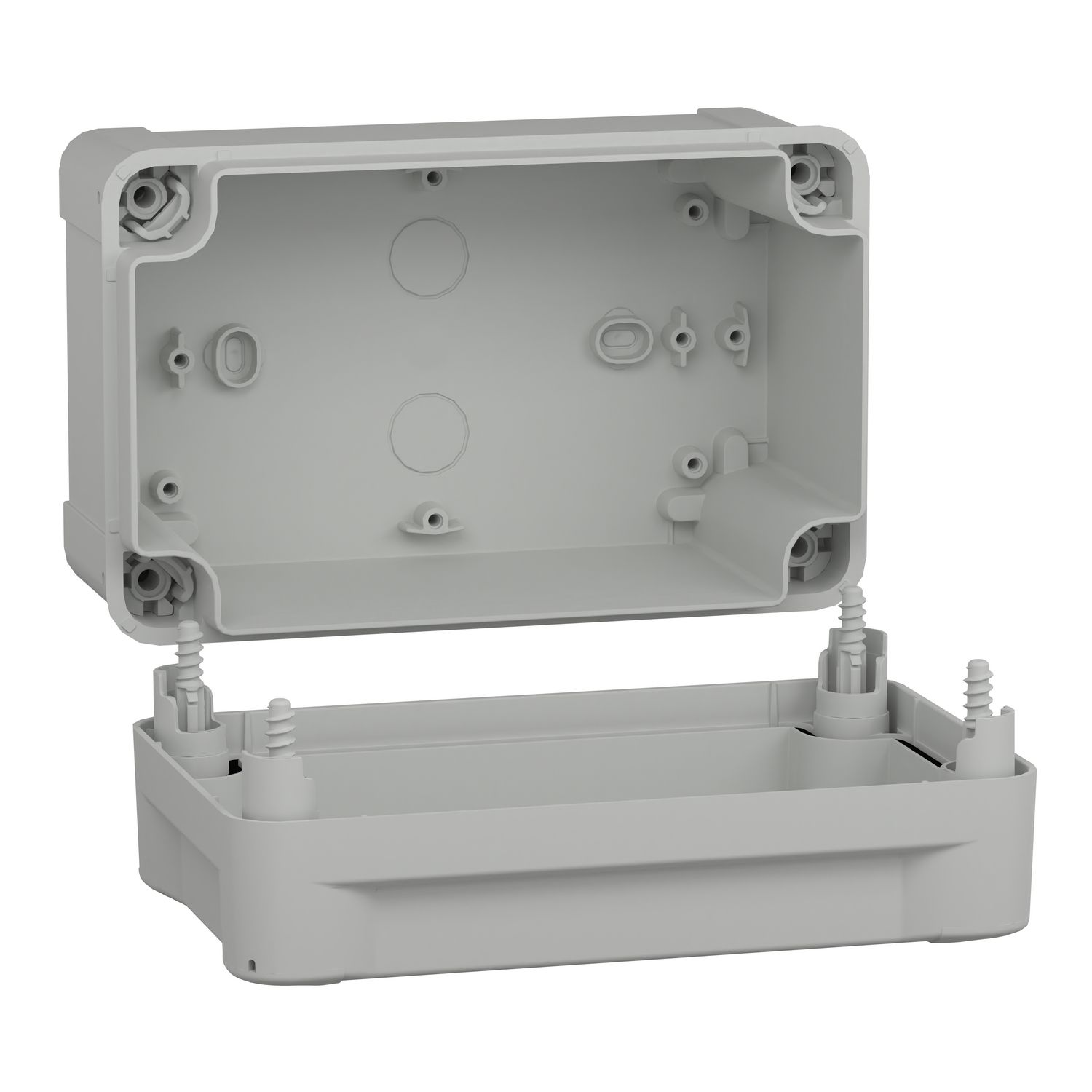

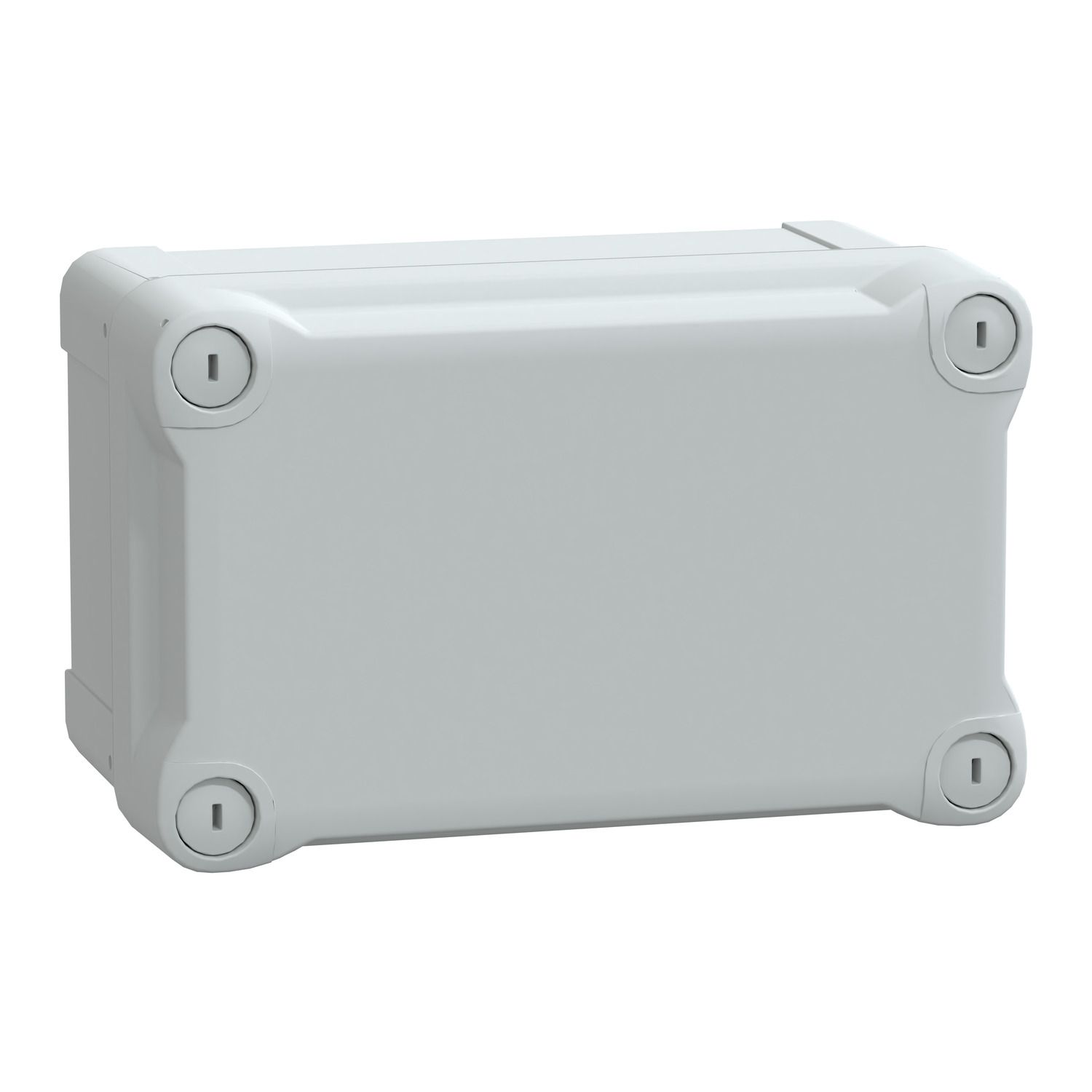

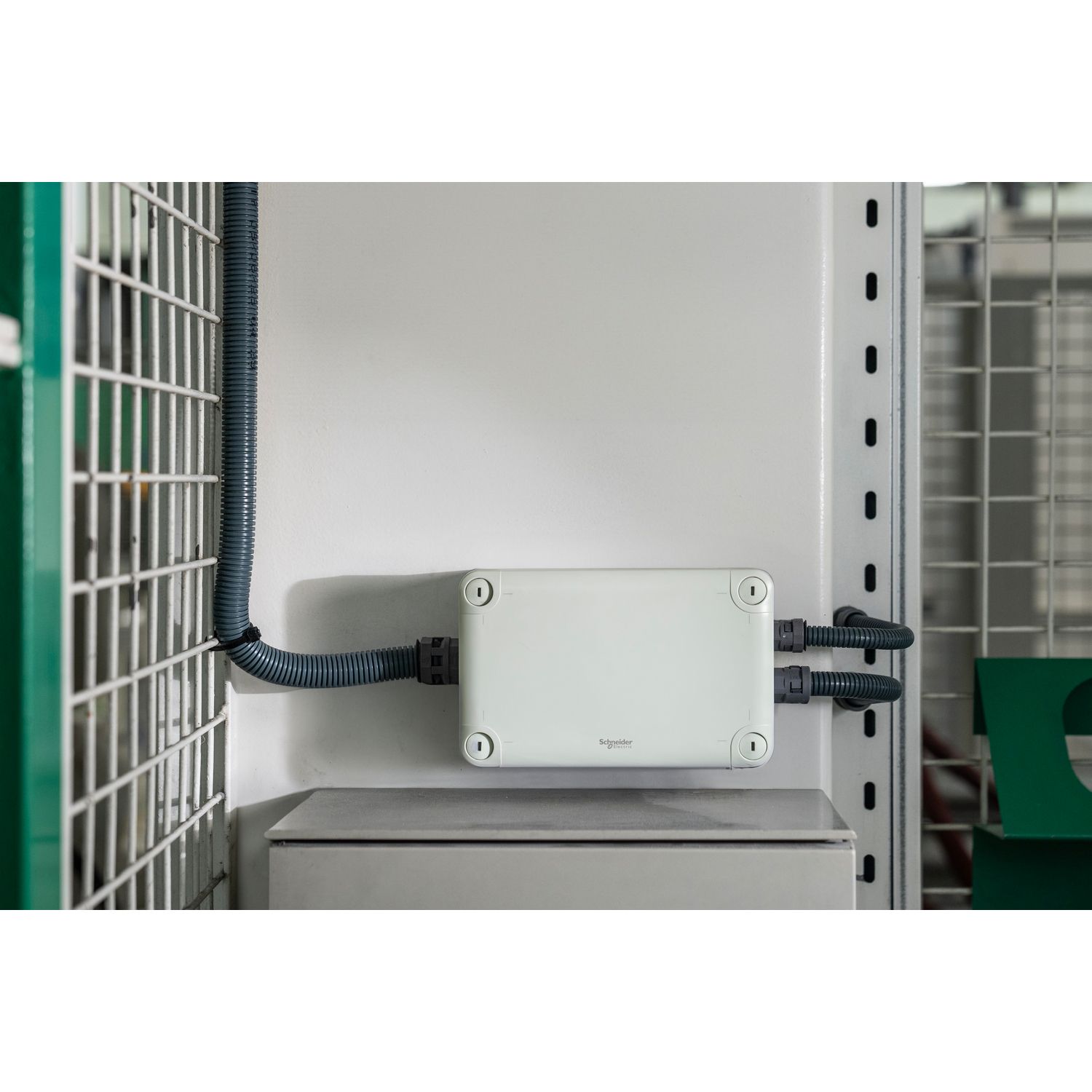

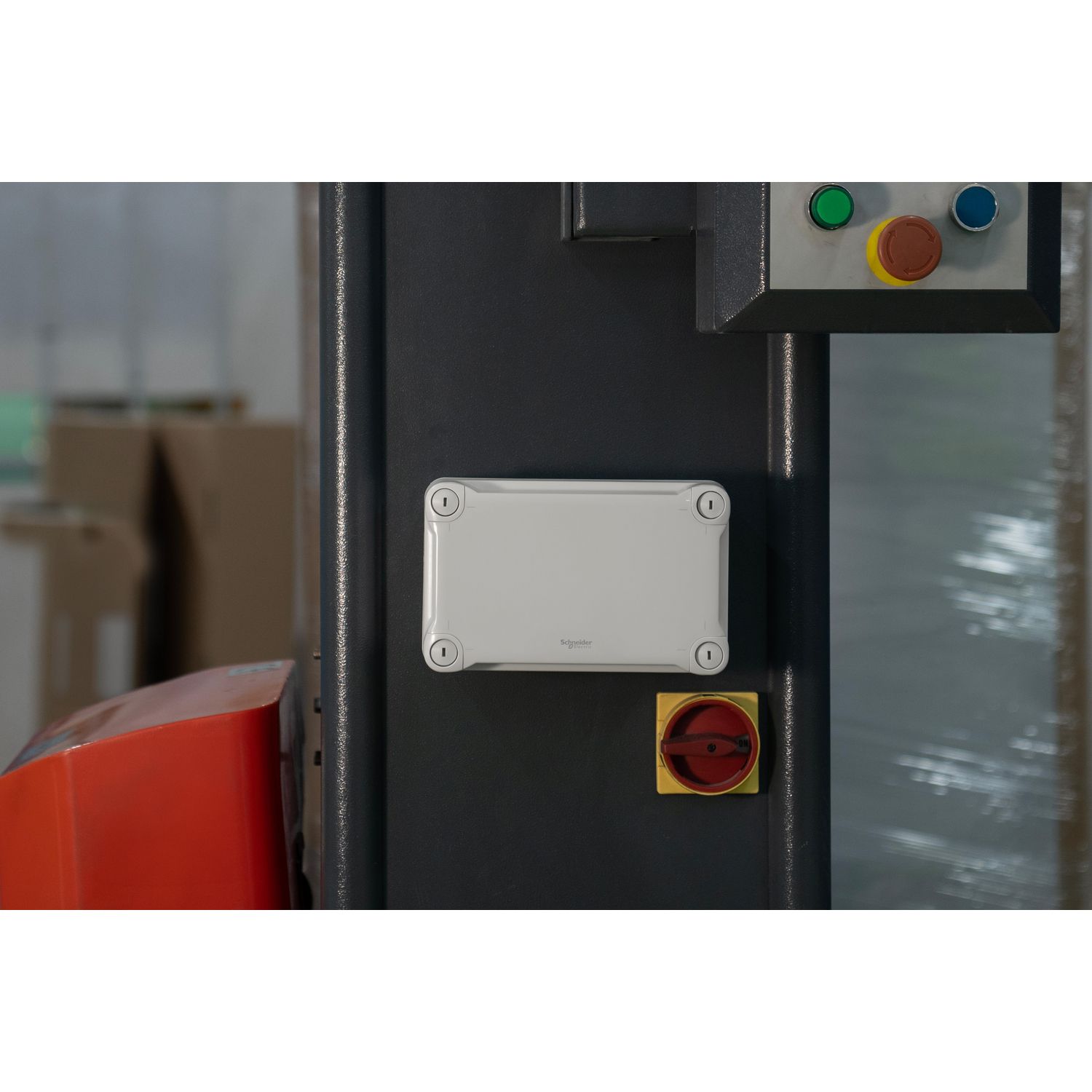

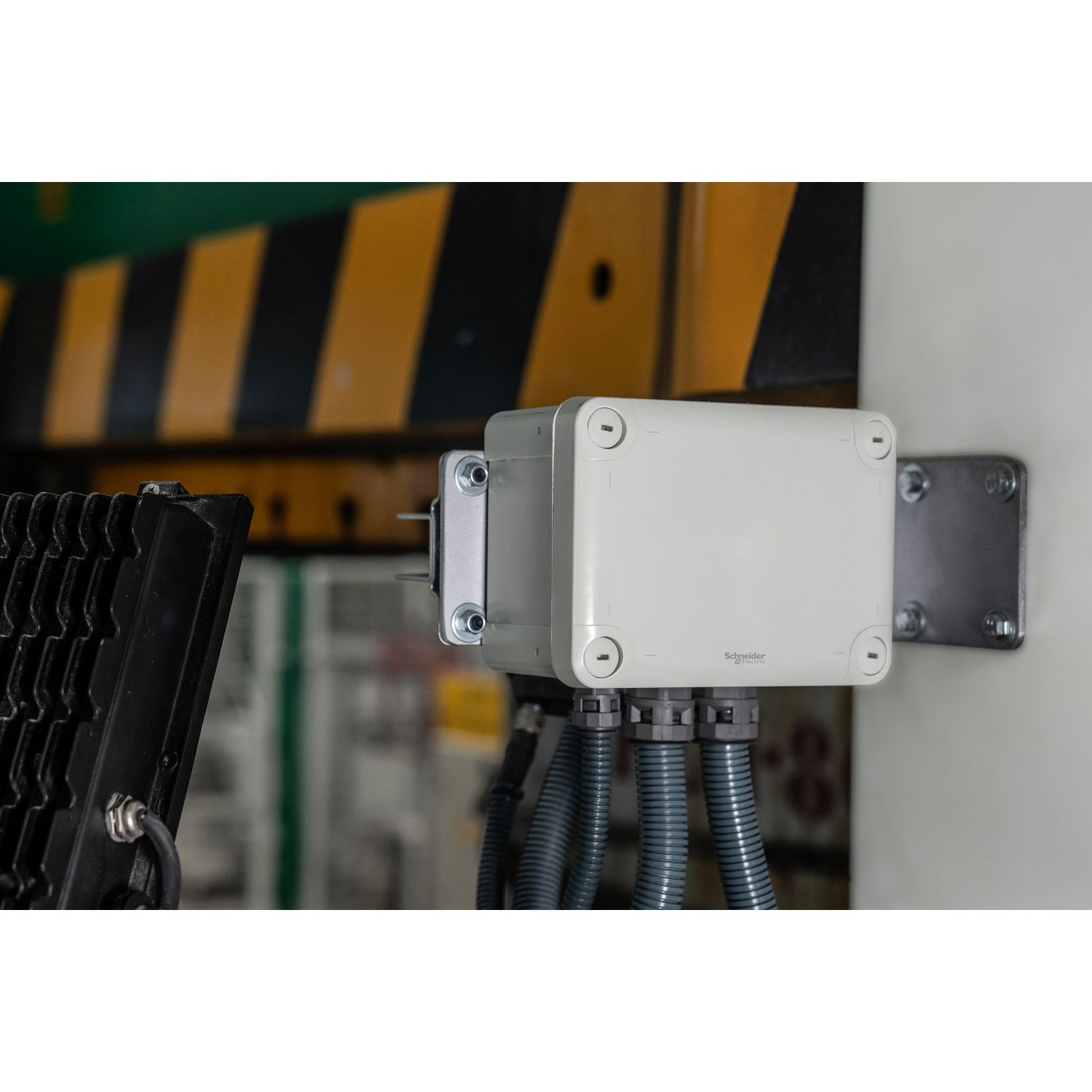

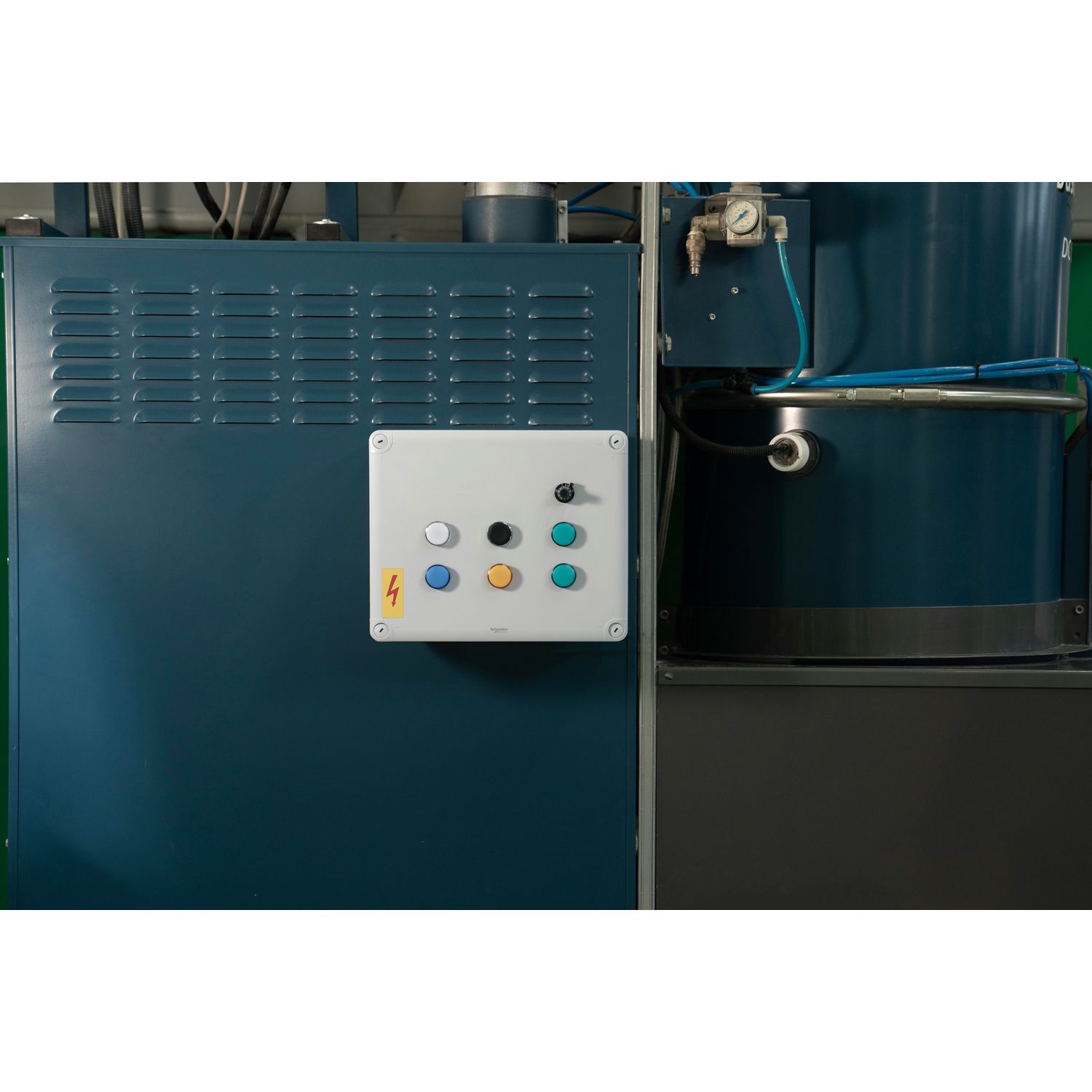

Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Opaque cover H40
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Opaque cover H40
Picture of Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Opaque cover H40
SKU:

NSYTBS191210H

Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Opaque cover H40

$19.38
Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Opaque cover H40
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Declaration of conformity
Image of product
Product environmental
Product Page Link
Product Data Sheet
Thalassa TBS industrial ABS box with opaque cover H40. Int is 175 x 105 x 100 mm. Ext is 192 x 121 x 105 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Products specifications

Attribute nameAttribute value
Main
Device applicationmulti-purpose
Quantity per setset of 2
Enclosure mountingwall mounted
Cover fixingplastic screws
RangeThalassa
Type of front coverhigh plain cover
Lock typecaptive screw flat outside sealed area
Internal depth100 mm
Internal height175 mm
Height192 mm
Removable partscover by captive screws
Depth105 mm
Width121 mm
Body typeone piece moulded
Device composition4 cover screw, 1 cover, 1 body
Product nameThalassa TBS
Internal width105 mm
Product or component typeindustrial box
Complementary
Colourgrey (RAL 7035)
Fire resistance650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage-15-40 °C
Electrical insulation classclass II
IP degree of protectionIP66 conforming to NEMA 4.4X
Ambient air temperature for operation-25-60 °C
IK degree of protectionIK07 conforming to IEC 62262
MaterialABS (acrylonitrile butadiene-styrene)
Net weight0.43 kg
StandardsIEC 62208
Product certificationsTÜV
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height11.0 cm
Package 1 Width11.6 cm
Package 1 Length19.0 cm
Package 1 Weight362.0 g
Unit Type of Package 22
Number of Units in Package 22
Package 2 Height11.8 cm
Package 2 Width20.0 cm
Package 2 Length25.8 cm
Package 2 Weight832.0 g
Unit Type of Package 33
Number of Units in Package 322
Package 3 Height39.4 cm
Package 3 Width38.8 cm
Package 3 Length60.4 cm
Package 3 Weight9.926 kg
Unit Type of Package 44
Number of Units in Package 4264
Package 4 Height120 cm
Package 4 Width80 cm
Package 4 Length135 cm
Package 4 Weight134 kg
