SKU:

NSYTBS191210HT

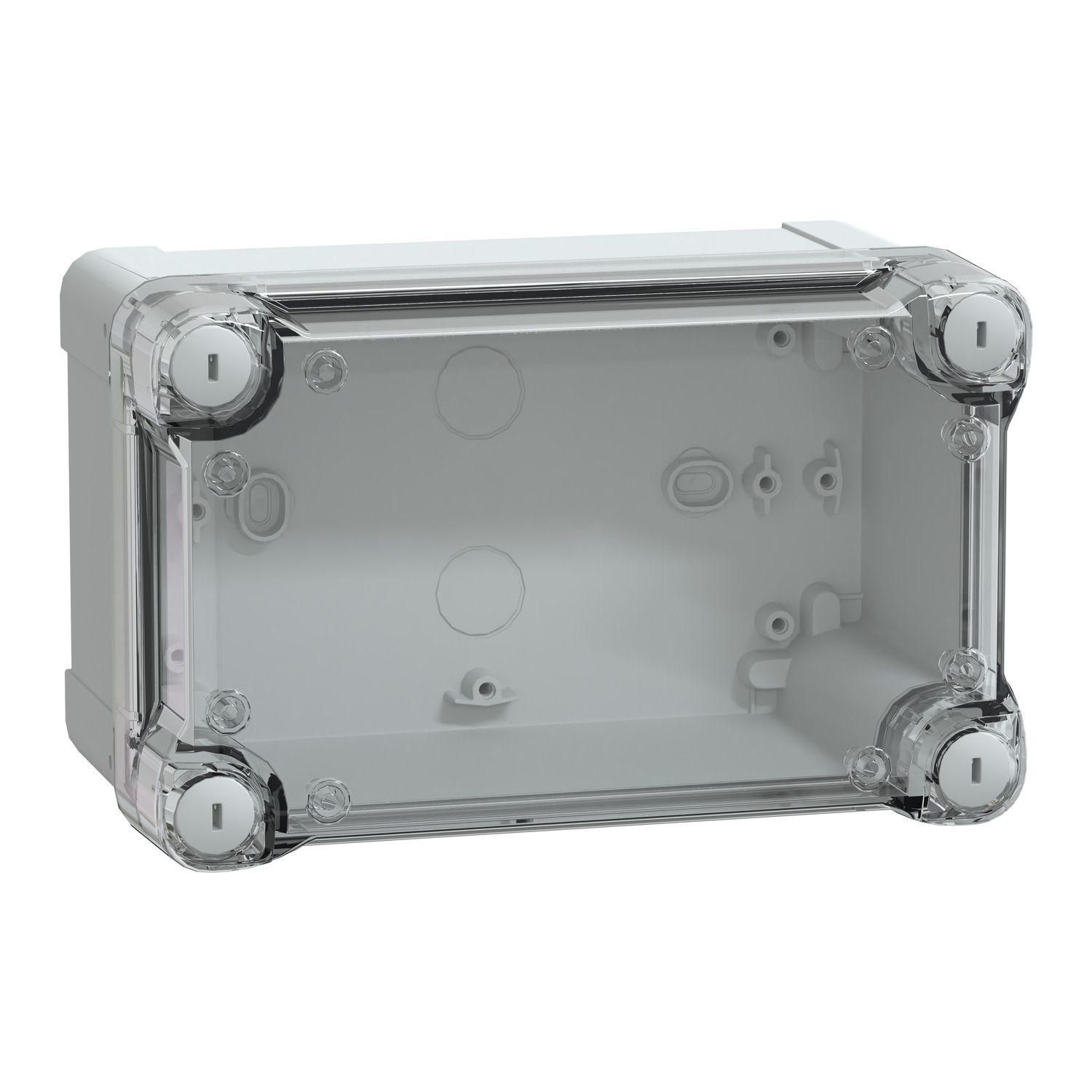

Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40

$23.17 INC GST

Qty:

Available for Shipping : 28-Jan-2025

Thalassa, ABS box IP66 IK07 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40

Manufacturer: Schneider Electric

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device application	multi-purpose
Depth	105 mm
Width	121 mm
Quantity per set	set of 2
Enclosure mounting	wall mounted
Cover fixing	plastic screws
Body type	one piece moulded
Range	Thalassa
Type of front cover	high transparent cover
Device composition	4 cover screw, 1 cover, 1 body
Lock type	captive screw flat outside sealed area
Product name	Thalassa TBS
Internal depth	100 mm
Internal height	175 mm
Internal width	105 mm
Product or component type	industrial box
Height	192 mm
Removable parts	cover by captive screws
Complementary
Colour	transparent, grey (RAL 7035)
Fire resistance	650 °C conforming to IEC 60695-2-11
Material	ABS (acrylonitrile butadiene-styrene)
Ambient air temperature for storage	-15-40 °C
Electrical insulation class	class II
IP degree of protection	IP66 conforming to NEMA 4.4X
Net weight	0.45 kg
Standards	IEC 62208
Ambient air temperature for operation	-25-60 °C
IK degree of protection	IK07 conforming to IEC 62262
Product certifications	TÜV
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.0 cm
Package 1 Width	20.0 cm
Package 1 Length	26.0 cm
Package 1 Weight	450.0 g
Unit Type of Package 2	2
Number of Units in Package 2	264
Package 2 Height	120 cm
Package 2 Width	80 cm
Package 2 Length	135 cm
Package 2 Weight	140 kg
