SKU:

NSYTJ12040

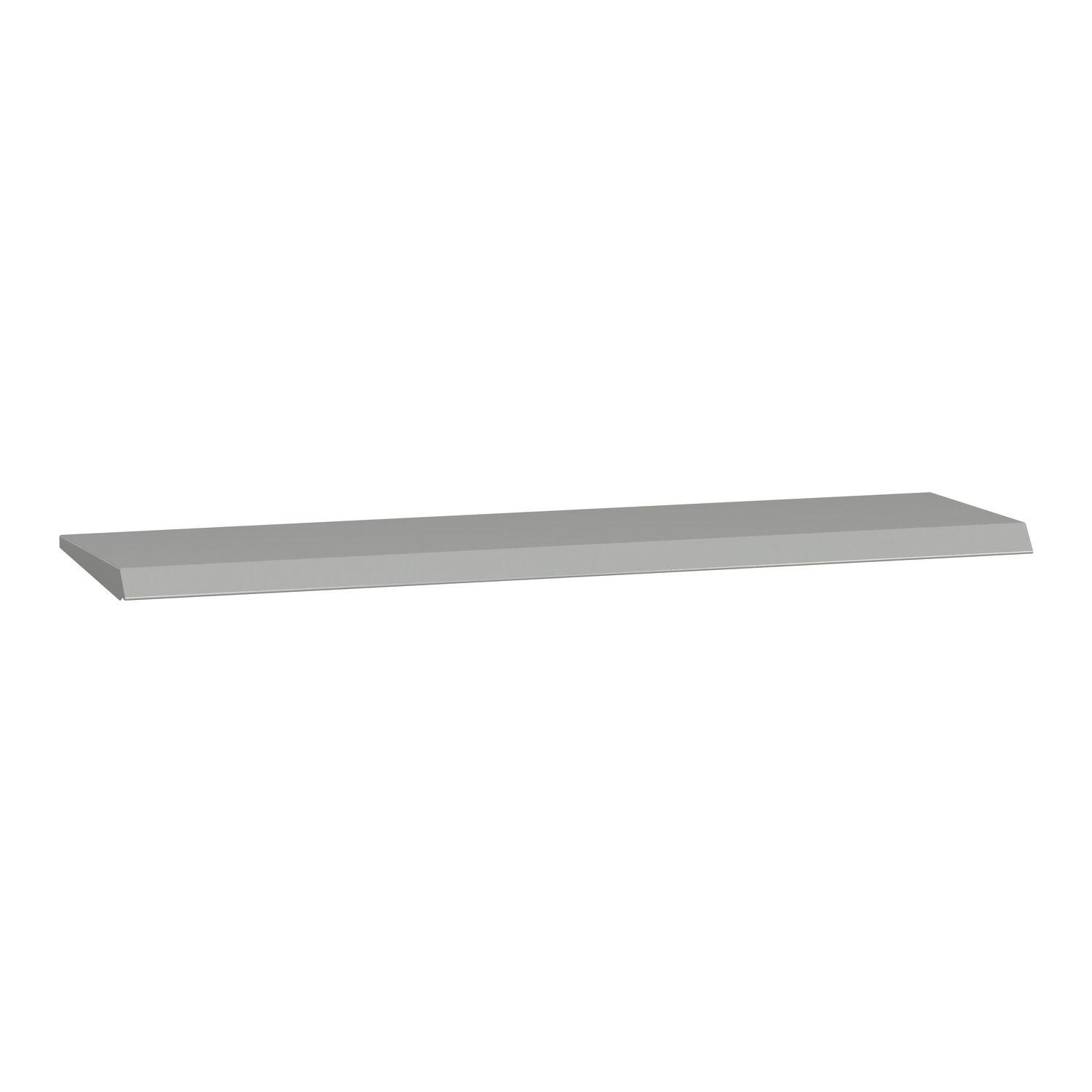

Spacial WM enclosure canopy W1200xD400 Colour RAL7035.. Fixings supplied.

$438.98
Available for Shipping : 01-Jan-2025
Spacial WM enclosure canopy W1200xD400 Colour RAL7035.. Fixings supplied.
Manufacturer: Schneider Electric
Multi-purpose canopy for Spacial CRN and Spacial S3D enclosures The canopy is to be installed on all enclosure models with 1200mm width and 400mm depth The nominal width is 1200mm and real width is 1209mm The nominal depth is 400mm and real depth is 414,5mm The height is 42mm Fixed by 4 screws - screw type M6 on top of enclosure The canopy is made from galvanised steel (color RAL 7035) Provides high resistance to impacts, temperature and bad weather Anti-corrosion protection is ensured by epoxy-polyester powder coating The kit is made up of canopy, fixing elements and instruction sheet Net weight is 7,5kg This product is qualified as a green premium, with minimal use of hazardous substances

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Mounting location on top of enclosure
Range Spacial
Device composition instruction sheet, fixing elements,  canopy
Product or component type canopy
Accessory / separate part category enclosure accessory
Range compatibility Spacial Spacial S3D, Spacial Spacial CRN
Enclosure nominal dimensions -
Complementary
Colour grey (RAL 7035)
Material galvanised steel
Height 42 mm
Width 1209 mm real: , 1200 mm nominal:
Depth 414.5 mm real: , 400 mm nominal:
Fixing mode by 4 screws - screw type M6
Net weight 7.5 kg
Surface finish epoxy-polyester powder
Mounting diameter 8 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 42.5 cm
Package 1 Length 122.0 cm
Package 1 Weight 7.5 kg
