SKU:

NSYTRR23PE

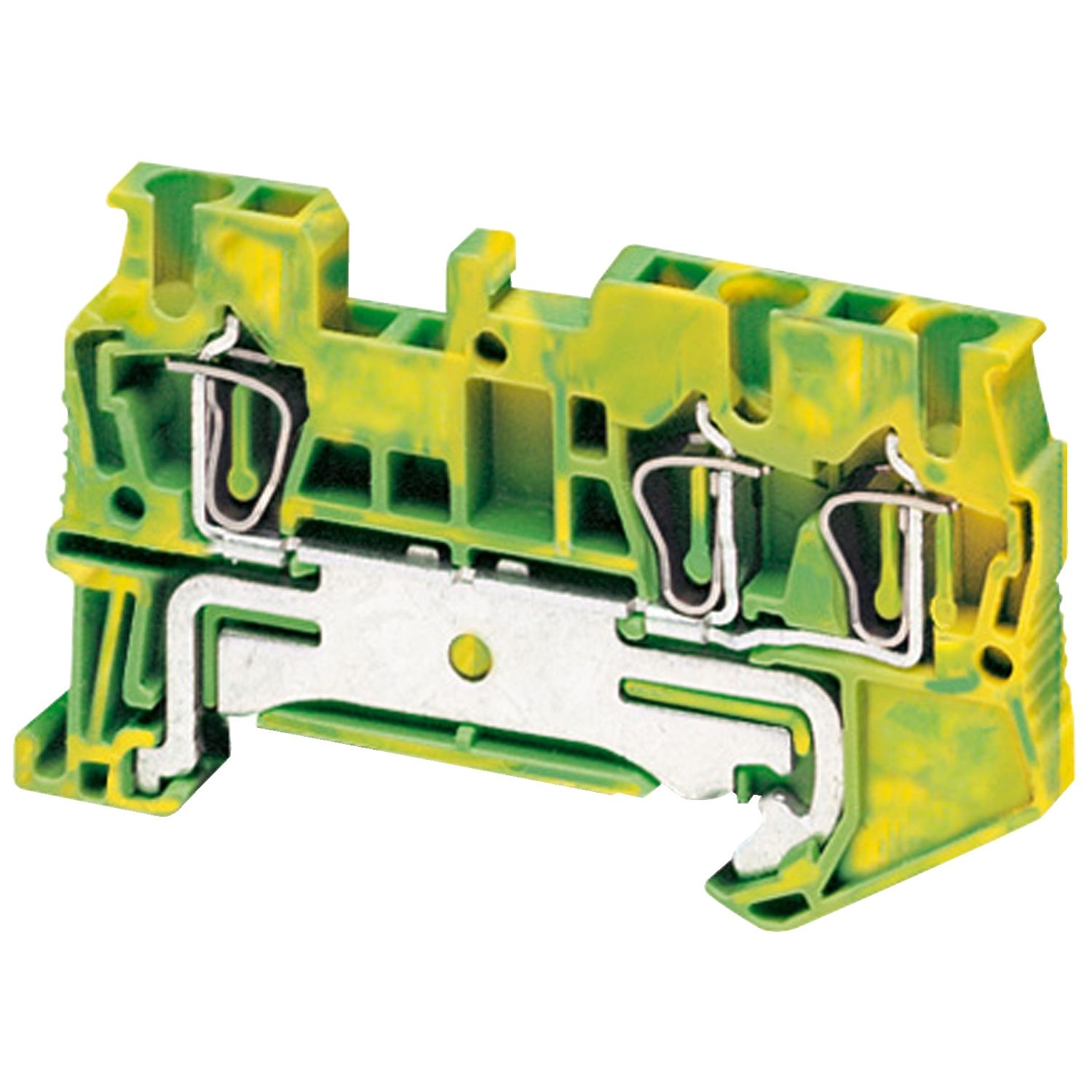

Terminal block, Linergy TR, spring type, protective earth, 3 points, 2.5mm², green-yellow, set of 50

$8.72 INC GST

Qty:

Available for Shipping : 16-Mar-2025

Terminal block, Linergy TR, spring type, protective earth, 3 points, 2.5mm², green-yellow, set of 50

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Product Page Link

Product Data Sheet

Products specifications

Attribute name	Attribute value
Main
Device short name	TRR
Colour	green-yellow
Quantity per set	set of 50
Mounting mode	clip-on
Range	Linergy
Range of product	Linergy
Nominal cross section	2.5 mm²
Terminal block level	1
Length	60.5 mm
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	protective earth
Complementary
Product compatibility	Spacial enclosures
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Compatibility code	terminal block
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Wire stripping length	10 mm
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Tool type	disconnection: flat screwdriver, connection: flat screwdriver
Number of measurement input	2
Connection position	top
Connections - terminals	2 x spring terminal: downstream, 1 x spring terminal: upstream
Height	36.5 mm
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width	5.2 mm
Material	polyamide 6/6: insulating case
Dielectric constant	3.7 at 1 MHz
Net weight	11.58 g
Cable cross section	0.08-2.5 mm², flexible without cable end, 0.2-2.5 mm², flexible with cable end, 0.08-4 mm², solid
Number of terminals	3
Environment
Ambient air temperature for operation	-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength	1000 V conforming to IEC 60243-1
Product certifications	CSA, EAC, cURus, GL, IEC-Ex, LR, ATEX, DNV, VDE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5 cm
Package 1 Width	9 cm
Package 1 Length	27 cm
Package 1 Weight	11 g
Unit Type of Package 2	2
Number of Units in Package 2	50
Package 2 Height	5 cm
Package 2 Width	9 cm
Package 2 Length	27 cm
Package 2 Weight	586 g
Unit Type of Package 3	3
Number of Units in Package 3	400
Package 3 Height	15 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	5.096 kg
