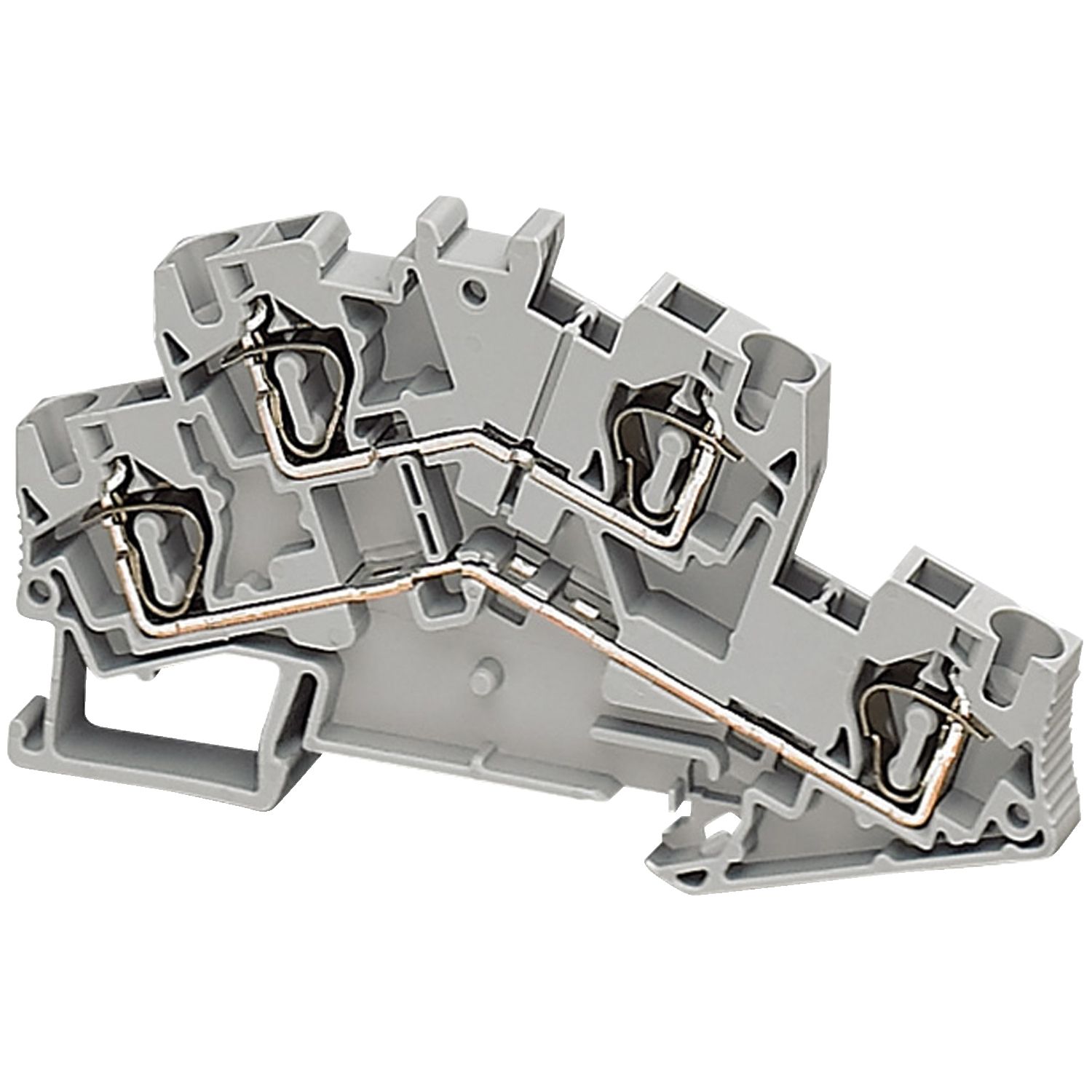

Picture of Terminal block, Linergy TR, spring type, double level, 4 points, 4mm², grey, set of 50
SKU:

NSYTRR44D

Terminal block, Linergy TR, spring type, double level, 4 points, 4mm², grey, set of 50

Old price: $6.27 INC GST
$5.64 INC GST
Available for Shipping : 08-Dec-2025
Terminal block, Linergy TR, spring type, double level, 4 points, 4mm², grey, set of 50
  • It belongs to linergy passthrough terminal block with 4 mm² nominal cross section.
  • Mounting by clip-on and sideways connection by two-level 1x1 spring terminals.
  • Releasing pressure on the sides stops the flow of cable ends.
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Accessory / separate part category connection accessory
Terminal block level 2
Length 92.4 mm
Device short name TRR
Colour grey
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type passthrough
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 10 mm
Tool type disconnection: flat screwdriver, connection: flat screwdriver
Number of measurement input 4
Connection position top
Connections - terminals 1 x spring terminal: downstream, 1 x spring terminal: upstream
Height 55 mm
[In] rated current 28-28 A conforming to EN/IEC 60947-7-1, 30-30 A cURus
Material chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 18 g
Number of terminals 2
Product compatibility Spacial enclosures
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V cURus, 500 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 6.2 mm
Cable cross section 0.2-4 mm², flexible with cable end, 0.08-6 mm², solid with cable end, 0.08-4 mm², flexible without cable end, 0.08-4 mm², solid without cable end
Environment
Product certifications IEC-Ex, cURus, DNV, ATEX, GL, EAC, CSA, VDE, LR
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.7 cm
Package 1 Width 6 cm
Package 1 Length 9.5 cm
Package 1 Weight 18 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 6.2 cm
Package 2 Width 11.3 cm
Package 2 Length 31 cm
Package 2 Weight 919 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 7.861 kg
