SKU:

NSYTRV162

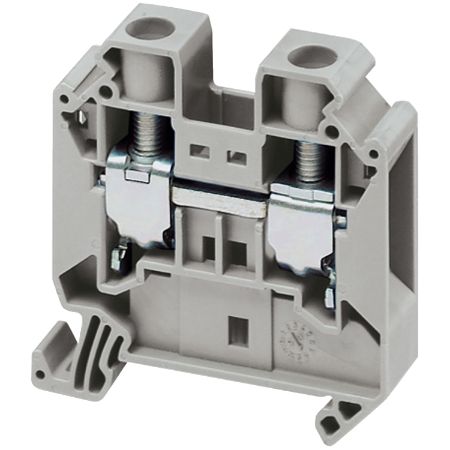

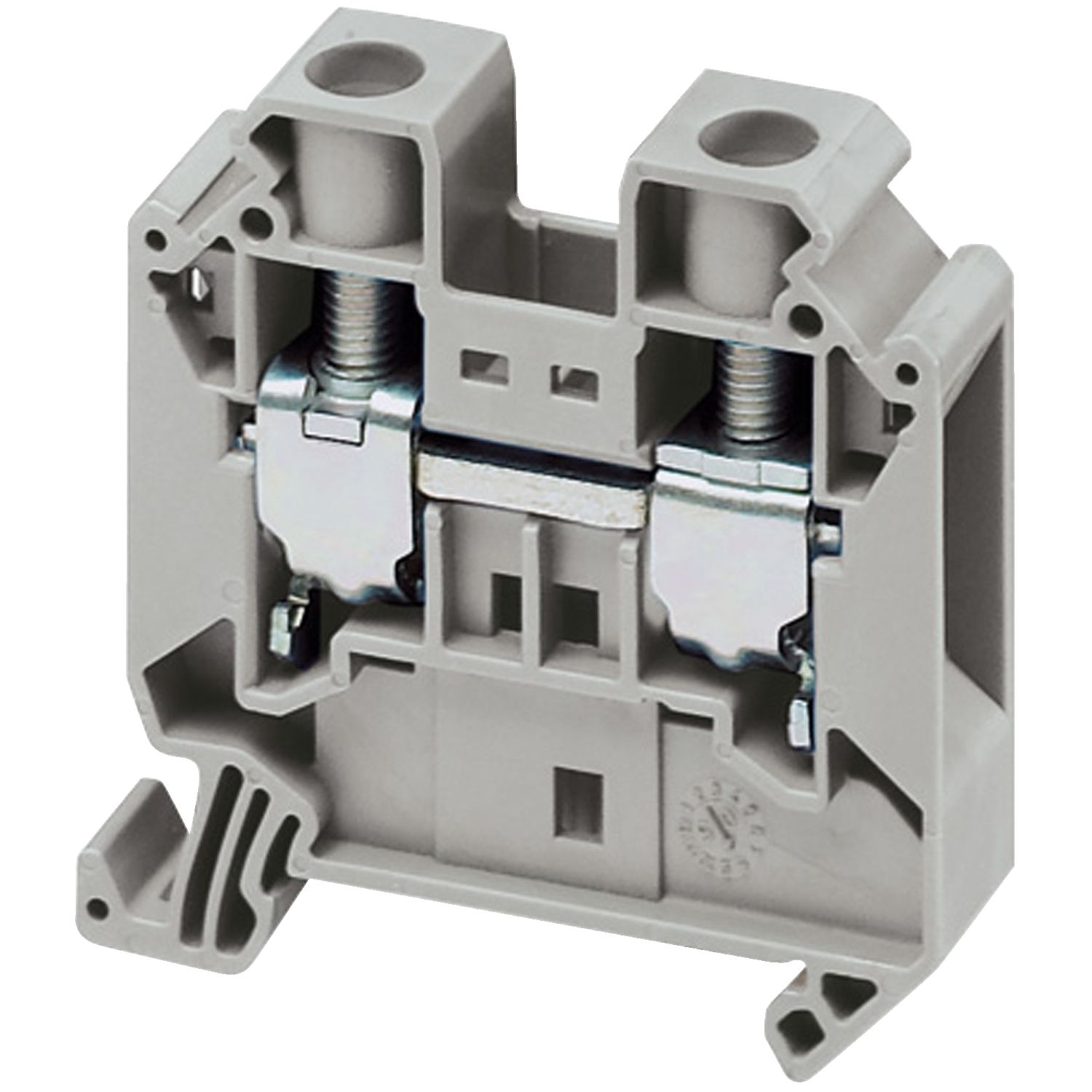

Linergy, Screw Terminal, Feed Through, 2 Points, 16mm² , Grey

$7.19

Qty:

Available for Shipping : 24-Nov-2024

Linergy, Screw Terminal, Feed Through, 2 Points, 16mm² , Grey

It belongs to linergy passthrough terminal block with 16 mm² nominal cross section

Mounting by clip-on and sideways connection by single-level 1x1 screw terminals

Releasing pressure on the sides stops the flow of cable ends

Facilitates storage by avoiding mixing cable ends of different sizes

Identifies the cross section of cable ends it contains

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Product Page Link

Product Data Sheet

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 16 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 76A conforming to EN/IEC 60947-7-1, 85A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name	Attribute value
Main
Quantity per set	set of 50
Accessory / separate part category	connection accessory
Terminal block level	1
Length	55.5 mm
Device short name	TRV
Colour	grey
Mounting mode	clip-on
Range	Linergy
Range of product	Linergy
Nominal cross section	16 mm²
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	passthrough
Complementary
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code	terminal block
Wire stripping length	14 mm
Tool type	disconnection: screwdriver, connection: screwdriver
Number of measurement input	2
Connection position	sideways
Height	55 mm
[In] rated current	73-73 A conforming to ATEX Exe II Ex II 2 GD, 85-85 A CSA, 85-85 A cURus, 76-76 A conforming to EN/IEC 60947-7-1
Material	chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section	1.5-25 mm², flexible cable without cable end, 1.5-25 mm², solid cable without cable end, 0.2-16 mm², solid cable with cable end, 0.2-10 mm², flexible cable with cable end
Dielectric constant	3.7 at 1 MHz
Net weight	30 g
Number of terminals	2
Product compatibility	Spacial enclosures
Tightening torque	2.5-3 N.m
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage	600 V cURus, 690 V conforming to ATEX Exe II Ex II 2 GD, 600 V CSA, 1000 V conforming to EN/IEC 60947-7-1
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width	12.2 mm
Connections - terminals	1 x screw terminal: downstream (M5), 1 x screw terminal: upstream (M5)
