NSYTRV26T

Linergy, Screw Terminal, 3 Levels, 6 Points, 2,5mm², Grey

$21.02 INC GST

Qty:

Available for Shipping : 23-Jan-2025

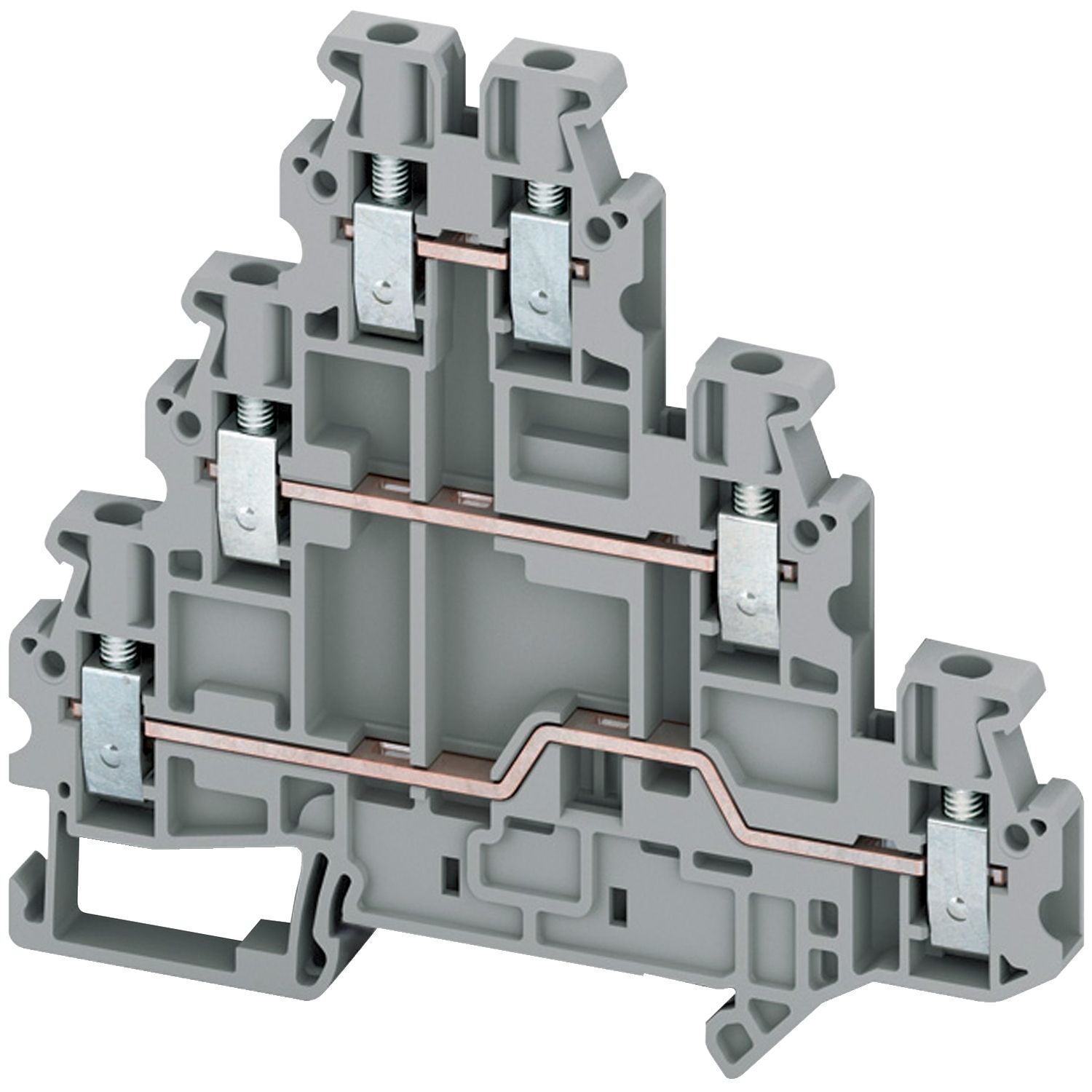

Linergy, Screw Terminal, 3 Levels, 6 Points, 2,5mm², Grey

It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section

Mounting by clip-on and sideways connection by single-level 1x1 screw terminals

Releasing pressure on the sides stops the flow of cable ends

Facilitates storage by avoiding mixing cable ends of different sizes

Identifies the cross section of cable ends it contains

Be the first to review this product

Manufacturer: Schneider Electric

Catalogue

Product environmental

Product Page Link

Product Data Sheet

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 500V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1. It has grey surface treatment. Mounting by clip-on and sideways connection by three-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name	Attribute value
Main
Quantity per set	set of 50
Accessory / separate part category	connection accessory
Terminal block level	3
Length	90 mm
Device short name	TRV
Colour	grey
Mounting mode	clip-on
Range	Linergy
Range of product	Linergy
Nominal cross section	2.5 mm²
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	passthrough
Complementary
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code	terminal block
Wire stripping length	9 mm
Tool type	disconnection: screwdriver, connection: screwdriver
Number of measurement input	3
Connection position	sideways
Height	77.5 mm
[In] rated current	20-20 A conforming to EN/IEC 60947-7-1
Material	chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section	0.14-4 mm², flexible cable without cable end, 0.14-4 mm², solid cable without cable end, 0.2-2.5 mm², flexible cable with cable end, 0.14-4 mm², solid cable with cable end
Dielectric constant	3.7 at 1 MHz
Net weight	25.1 g
Number of terminals	2
Product compatibility	Spacial enclosures
Tightening torque	0.5-0.6 N.m
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage	500 V conforming to EN/IEC 60947-7-1
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width	5.2 mm
Connections - terminals	1 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3)
Environment
Product certifications	cURus, CSA, EAC
Ambient air temperature for operation	-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength	1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.500 cm
Package 1 Width	11.000 cm
Package 1 Length	36.500 cm
Package 1 Weight	26.000 g
Unit Type of Package 2	2
Number of Units in Package 2	50
Package 2 Height	9.500 cm
Package 2 Width	11.000 cm
Package 2 Length	36.500 cm
Package 2 Weight	1.324 kg
Unit Type of Package 3	3
Number of Units in Package 3	300
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	8.456 kg
Unit Type of Package 4	4
Number of Units in Package 4	2400
Package 4 Height	75.000 cm
Package 4 Width	60.000 cm
Package 4 Length	80.000 cm
Package 4 Weight	77.756 kg
