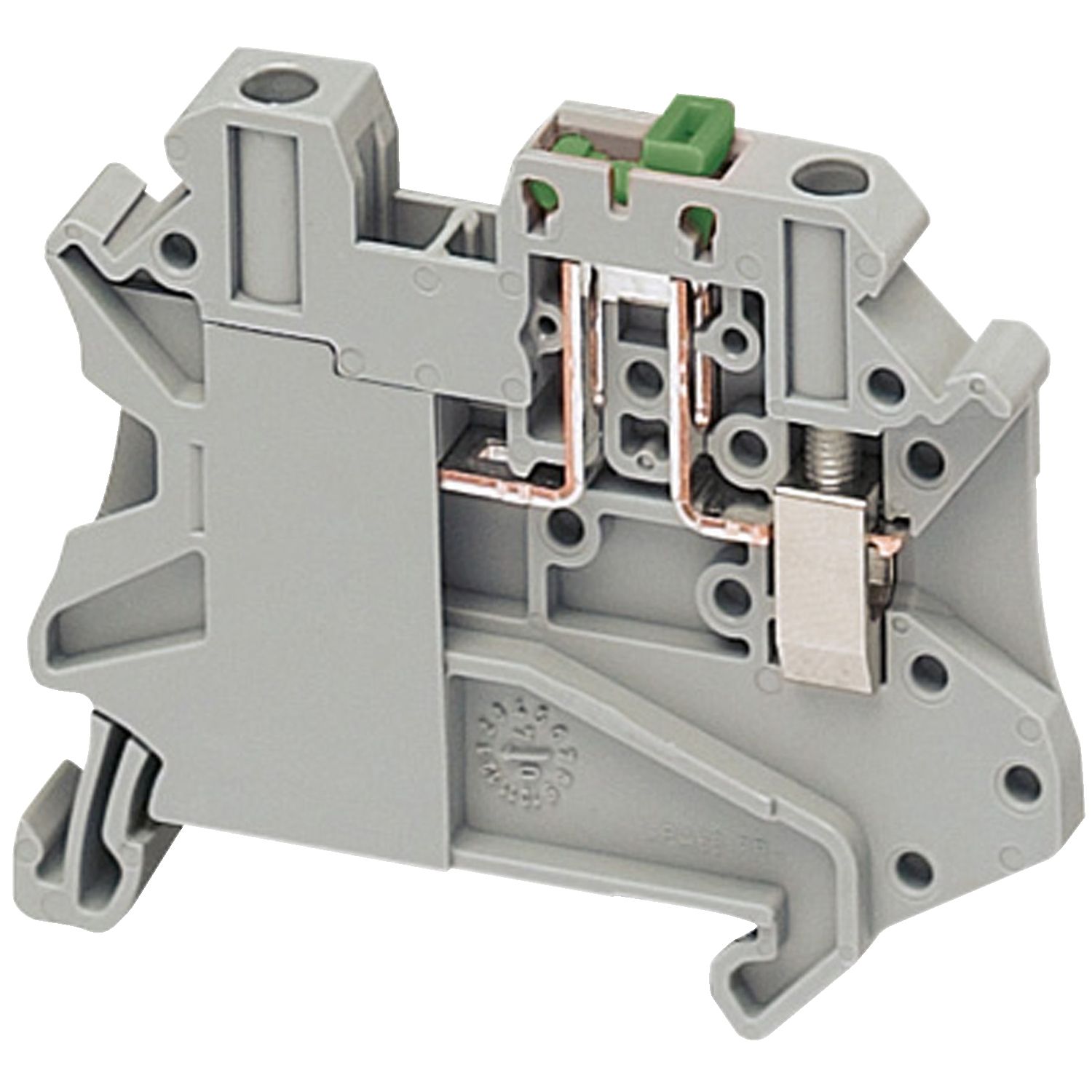

Picture of Linergy TR terminals blocks, Blade Disc. Terminal Block, 4mm², 20A, Single Level, 1x1 Screw
SKU:

NSYTRV42STAR

Linergy TR terminals blocks, Blade Disc. Terminal Block, 4mm², 20A, Single Level, 1x1 Screw

$3.66
Available for Shipping : 24-Nov-2024
Linergy TR terminals blocks, Blade Disc. Terminal Block, 4mm², 20A, Single Level, 1x1 Screw
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Terminal block level 1
Length 57.8 mm
Device short name TRV
Colour orange
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type blade disconnect
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 9 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 2
Connection position sideways
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Height 49.1 mm
[In] rated current 16-16 A cURus, 16-16 A CSA, 20-20 A conforming to EN/IEC 60947-7-1
Material polyamide 6/6: insulating case
Dielectric constant 3.7 at 1 MHz
Net weight 13.8 g
Provided equipment test point
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 0.6-0.8 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V cURus, 600 V CSA, 500 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 6.2 mm
Cable cross section 0.14-6 mm², solid, 0.14-6 mm², flexible without cable end
Environment
Product certifications EAC, cURus, CSA
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 7.0 cm
Package 1 Length 27.0 cm
Package 1 Weight 14.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 5.0 cm
Package 2 Width 7.0 cm
Package 2 Length 27.0 cm
Package 2 Weight 740.0 g
