Picture of Linergy, Screw Terminal, Double Level, 4 Points, 4mm² , Grey
SKU:

NSYTRV44D

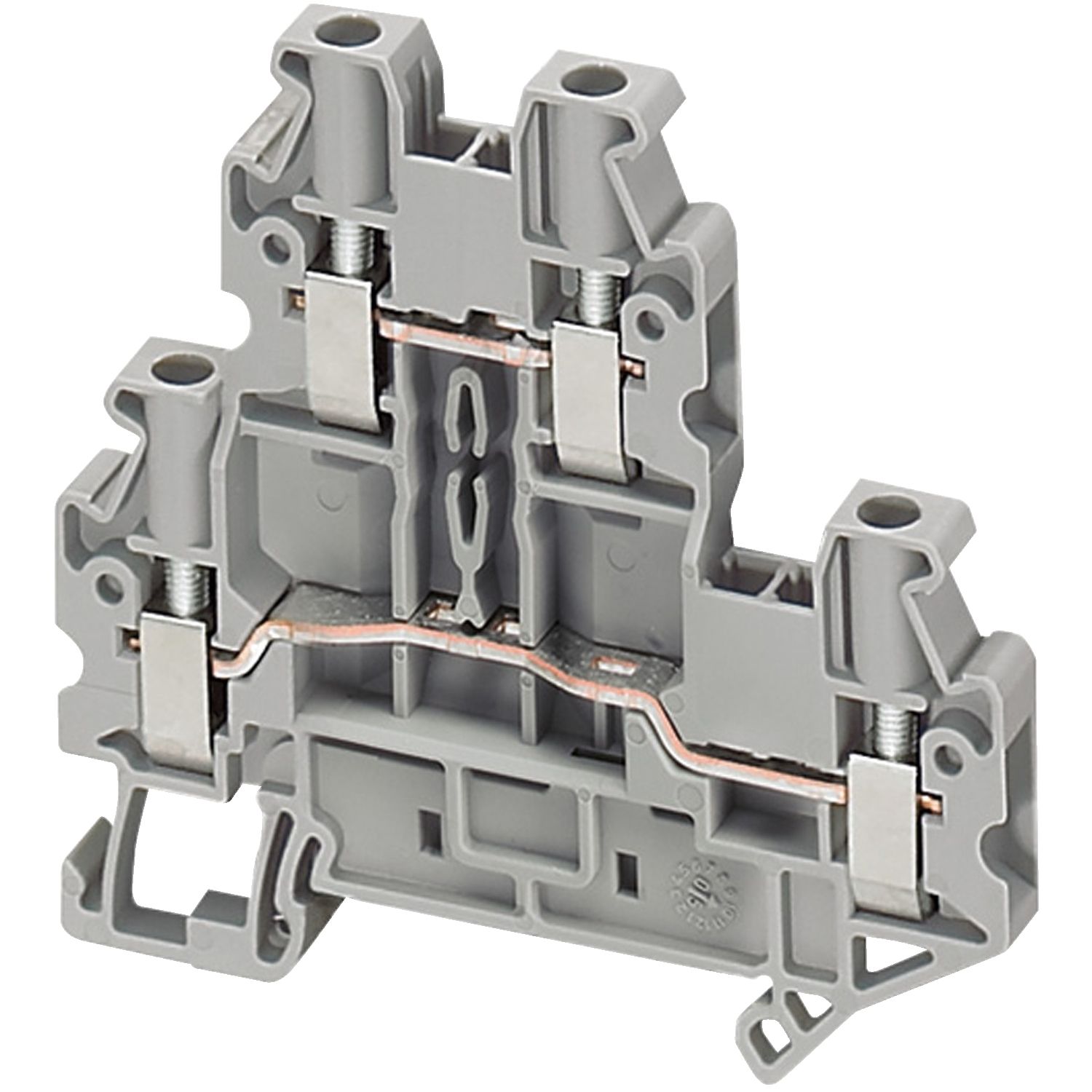

Linergy, Screw Terminal, Double Level, 4 Points, 4mm² , Grey

$8.36
Available for Shipping : 24-Nov-2024
Linergy, Screw Terminal, Double Level, 4 Points, 4mm² , Grey
  • It belongs to linergy passthrough terminal block with 4 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Product Page Link
Product Data Sheet
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 800V conforming to EN/IEC 60947-7-1 and 440V conforming to ATEX Exe II Ex II 2 GD. The rated current is 30A conforming to EN/IEC 60947-7-1, 30A conforming to CSA/cURus and 25.5A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by double-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Accessory / separate part category connection accessory
Terminal block level 2
Length 69.9 mm
Device short name TRV
Colour grey
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 4 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type passthrough
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 9 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 4
Connection position sideways
Height 65 mm
[In] rated current 25.5-25.5 A conforming to ATEX Exe II Ex II 2 GD, 30-30 A conforming to EN/IEC 60947-7-1, 30-30 A cURus, 30-30 A CSA
Material chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section 0.14-6 mm², solid cable without cable end, 0.14-6 mm², flexible cable without cable end, 0.2-4 mm², flexible cable with cable end, 0.14-6 mm², solid cable with cable end
Dielectric constant 3.7 at 1 MHz
Net weight 17 g
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 0.6-0.8 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 440 V conforming to ATEX Exe II Ex II 2 GD, 800 V conforming to EN/IEC 60947-7-1, 600 V cURus, 600 V CSA
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 6.2 mm
Connections - terminals 1 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3)
Environment
Product certifications CSA, DNV, cURus, ATEX, GL, EAC, IEC-Ex, LR
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 7.8 cm
Package 1 Length 32 cm
Package 1 Weight 19 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 7 cm
Package 2 Width 7.8 cm
Package 2 Length 32 cm
Package 2 Weight 978 g
Unit Type of Package 3 3
Number of Units in Package 3 450
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 9.276 kg
Unit Type of Package 4 4
Number of Units in Package 4 3600
Package 4 Height 77 cm
Package 4 Width 60 cm
Package 4 Length 80 cm
Package 4 Weight 82.708 kg
