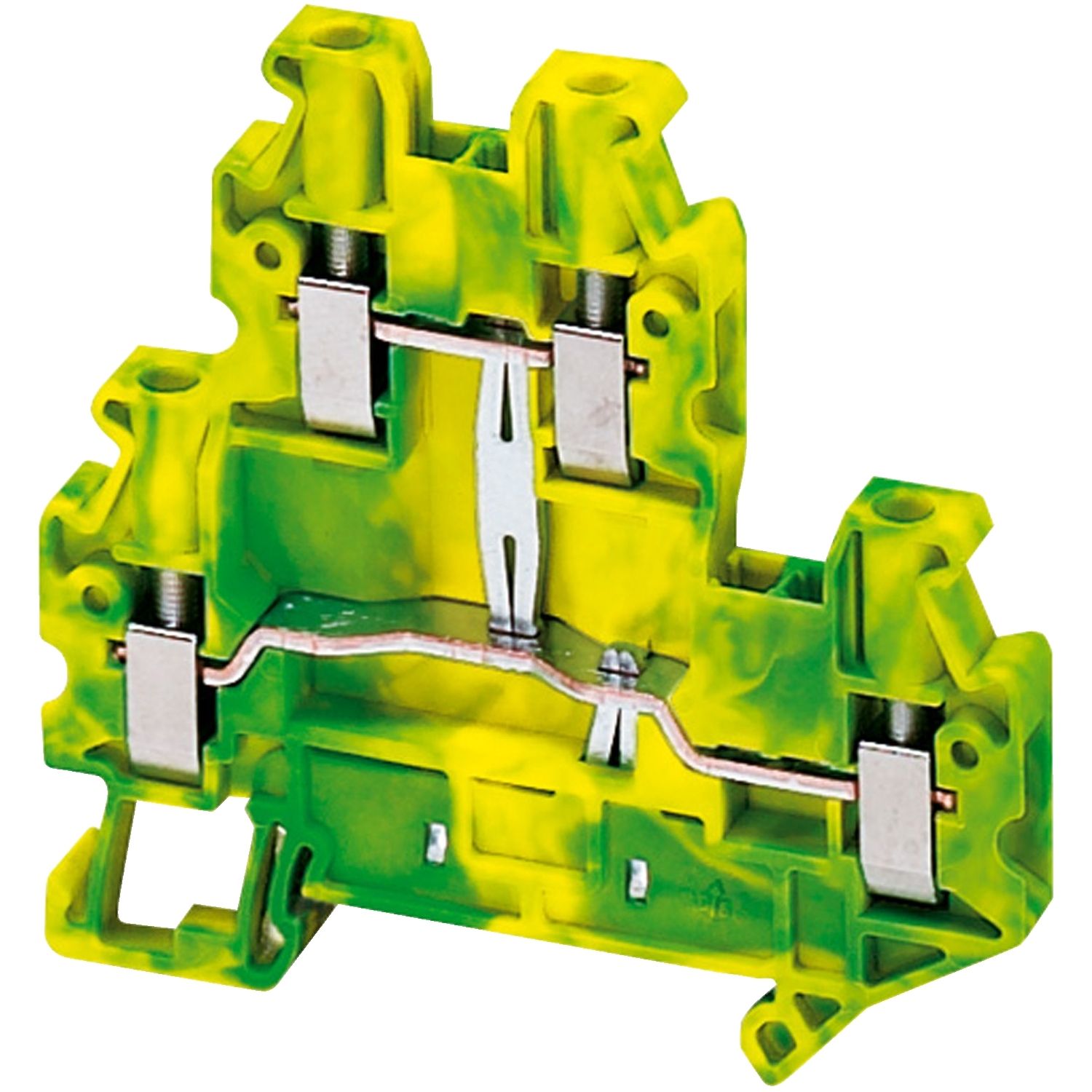

Picture of Linergy, Screw Terminal, Double Level, Protective Earth, 4 Points, 4mm², Green
SKU:

NSYTRV44DPE

Linergy, Screw Terminal, Double Level, Protective Earth, 4 Points, 4mm², Green

$10.94
Linergy, Screw Terminal, Double Level, Protective Earth, 4 Points, 4mm², Green
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Product environmental
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Quantity per setset of 50
Terminal block level2
Length69.9 mm
Device short nameTRV
Colourgreen-yellow
Mounting modeclip-on
RangeLinergy
Range of productLinergy
Nominal cross section4 mm²
Product nameLinergy TR
Product or component typeterminal block
Terminal block typeprotective earth
Complementary
Range compatibilityTeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility codeterminal block
Wire stripping length9 mm
Tool typedisconnection: screwdriver, connection: screwdriver
Number of measurement input4
Connection positionsideways
Connections - terminals1 x screw terminal: downstream, 1 x screw terminal: upstream
Height65 mm
Materialpolyamide 6/6: insulating case
Dielectric constant3.7 at 1 MHz
Net weight23.3 g
Number of terminals2
Product compatibilitySpacial enclosures
Tightening torque0.6-0.8 N.m
Surface resistance1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardanceV0, thickness0.8 mm conforming to UL 94
Dielectric loss0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
Creep resistance500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width6.2 mm
Cable cross section0.14-6 mm², flexible without cable end, 0.2-4 mm², flexible with cable end, 0.14-6 mm², solid
Environment
Product certificationscURus, IEC-Ex, DNV, EAC, ATEX, CSA, GL, LR
Ambient air temperature for operation-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7 cm
Package 1 Width7.6 cm
Package 1 Length31.6 cm
Package 1 Weight23 g
Unit Type of Package 22
Number of Units in Package 250
Package 2 Height7 cm
Package 2 Width8 cm
Package 2 Length32 cm
Package 2 Weight1.205 kg
Unit Type of Package 33
Number of Units in Package 3200
Package 3 Height15 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight5.191 kg
