SKU:

NSYTSAM638SE

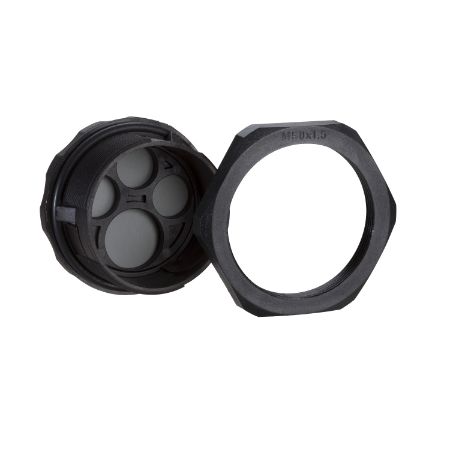

Cable passages IP65, round, M63, w/o connectors, 8 entries.

$429.50
Available for Shipping : 12-Jan-2025
Cable passages IP65, round, M63, w/o connectors, 8 entries.
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Quantity per set set of 10
Range Spacial
Device composition 1 circular plate
Product or component type quick entrance plate
Accessory / separate part category cable management accessory
Range compatibility Spacial Spacial S3HD compact enclosure, Thalassa Thalassa PLS insulating modular box, Thalassa Thalassa PLM compact enclosure, Thalassa Thalassa PHD suitable enclosure, Thalassa Thalassa PLA suitable enclosure, Spacial Spacial SBM industrial box, Spacial Spacial S3CM control enclosure, Spacial Spacial CRN compact enclosure, Spacial Spacial S3D compact enclosure
Complementary
Cable outer diameter 71-71 mm, 63.5-63.5 mm
Cable entry number 8, 2 x 9.6-15.9 mm, 2 x 3-6.5 mm, 4 x 5-9.2 mm
Material polyamide
Height 34 mm real:
Fixing mode by screws, clipped
Net weight 0.68 kg
Mounting support cable gland plate, body of enclosure
Environment
IP degree of protection IP65
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.0 cm
Package 1 Width 15.0 cm
Package 1 Length 9.0 cm
Package 1 Weight 680.0 g
