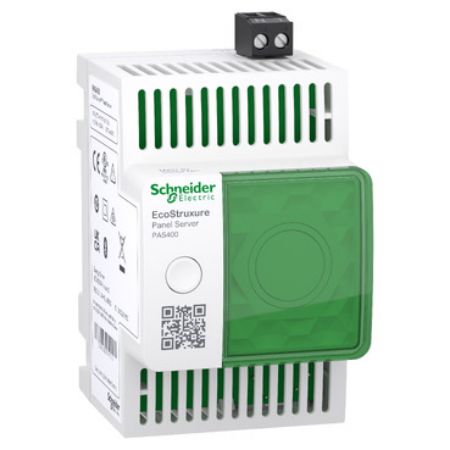

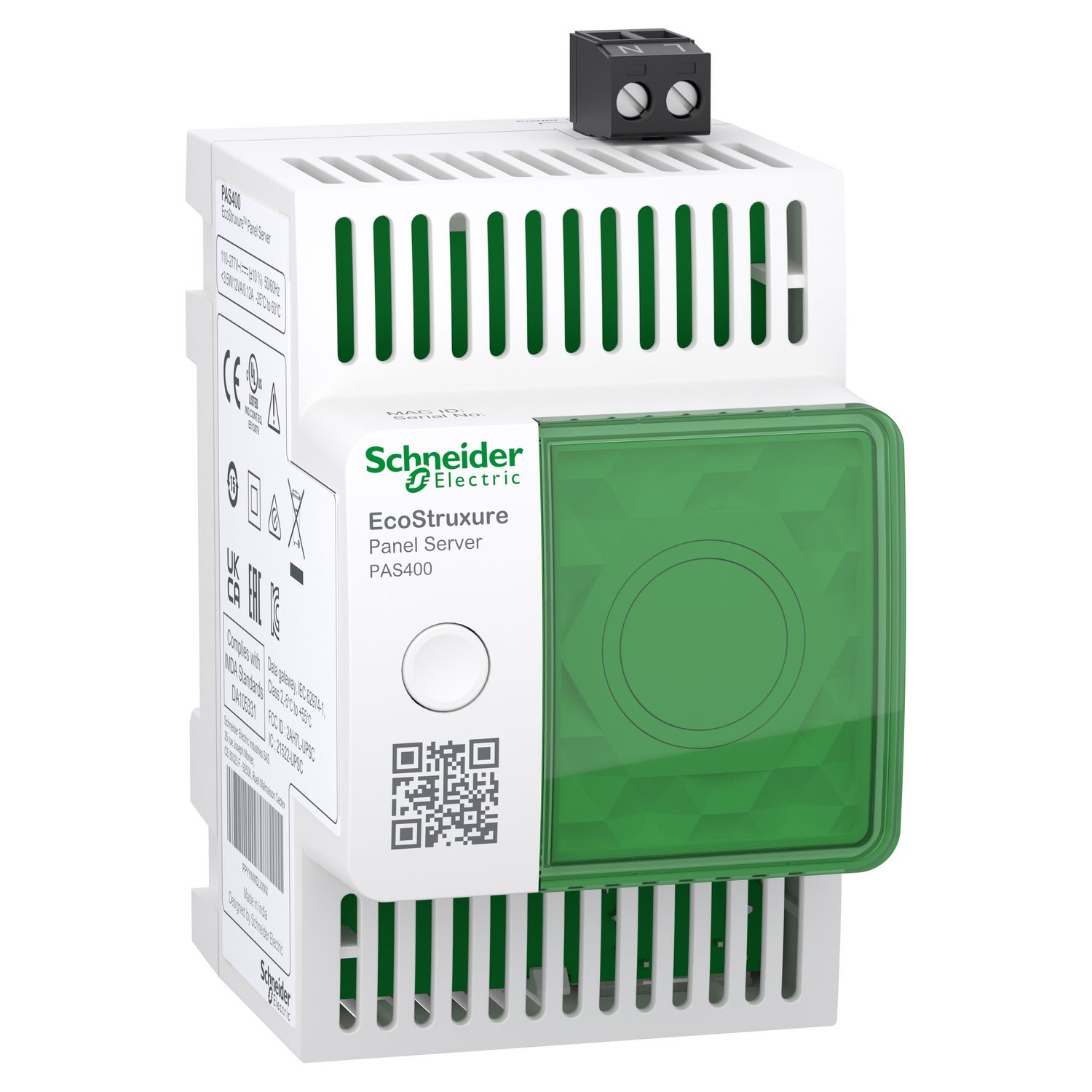

Picture of EcoStruxure Panel Server - entry wireless, concentrator 110-277 VAC/DC
SKU:

PAS400

EcoStruxure Panel Server - entry wireless, concentrator 110-277 VAC/DC

$585.60 INC GST
Available for Shipping : 05-May-2025
EcoStruxure Panel Server (PAS400)
  • Connect smart devices to edge control software or cloud apps.
  • Easy configuration through embedded web pages.
  • Works with EcoStruxure Power Commission for reports and configuration export.
  • Easily track measurements and alarms.
  • Built with IEC 62443-4-1 cybersecurity standards.
  • Advanced diagnostics for quick issue resolution.
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Technical illustration
Catalogue
User guide
Declaration of conformity
Brochure
Product environmental
End of life manual
Product Page Link
Product Data Sheet

The EcoStruxure Panel Server acts as a gateway, connecting wired or wireless smart IoT devices to edge control software or cloud applications. It easily integrates with Schneider Electric wireless devices such as PowerTag Energy, PowerLogic HeatTag, PowerTag Ambiant, PowerTag Control, and more. The built-in, user-friendly web interface allows effortless monitoring of connected devices, tracking of measurements, and viewing of alarm logs. Troubleshooting is simplified with advanced diagnostic information and logs available directly through the web interface.

Commissioning is hassle-free, whether using the embedded web pages or EcoStruxure Power Commissioning, which provides detailed commissioning reports and extra features. The product is designed with user convenience in mind, featuring a compact design and a power supply range of 110–277 VAC/DC, 50–60 Hz, 3W/10VA Max. It operates in temperature conditions ranging from -25°C to +60°C with 5–95% relative humidity.

This product meets major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine Certification, IEC61443-4-2, RCM, EAC, and UKCA. It is DIN rail mountable in a modular enclosure and features IP20 connectors, an IM40 front face nose, and IP30 protection on other faces. It includes one 10/100 Base-T Ethernet RJ45 connector and supports direct cellular connection via an external LTE router through Ethernet or Wi-Fi.

The EcoStruxure Panel Server integrates seamlessly with EcoStruxure edge software like Power Monitoring Expert, Power Operations, and EcoStruxure Building Operations. It is also optimized for EcoStruxure cloud applications, including Facility Expert, Asset Advisor, and Resource Advisor.

Products specifications

Attribute name Attribute value
Main
Device short name PAS400
Device application gateway
[Us] rated supply voltage 110...277 V AC 50/60 Hz
Range EcoStruxure
Communication gateway Ethernet TCP/IP to wireless devices
Product name Panel Server Entry
Product or component type gateway
Complementary
Number of slave 20 slave(s)IEEE 802.15.4
Tightening torque communication: 0.25-0.25 N.m, power supply: 0.6-0.6 N.m
Web services HTTPS server
Realtime clock without any user calibration, with RTC-battery set
Commissioning interface web page, EcoStruxure Power Commission
Mounting mode clip-on
Function available Event Logger, configurable event, backup/restore configuration, firmware update, with integrated web server, energy management, diagnostics on communication, diagnostic report, diagnosis capabilities, embedded web page for configuration and upgrade
Memory capacity 512 MB NAND
Wire stripping length communication: 7 mm, power supply: 7 mm
Communication network type wireless, IEEE 802.15.4, Wi-Fi, IEEE 802.15.45 GHz, Wi-Fi2.4 GHz, Ethernet, 10/100BASE-T
Number of inputs 0-0
Communication service DHCP client, SNTP client, Modbus TCP server, Device Profile for Web Services (DPWS)
Communication port protocol TCP/IP, IPv6, IPv4, NTP/SNTP, HTTPS, DHCP, Modbus TCP
Height 93 mm
Communication port support 1 RJ45: ETHERNET
Depth 70.2 mm
Width 54 mm
Product specific application Wireless Schneider Electric devices ecosystem
Time synchronisation protocol SNTP, NTP
Connections - terminals communication: screw terminal block (bottom) 0.14-1.5 mm² cable(s) , power supply: screw terminal block (top) 1.5-2.5 mm² cable(s)
Net weight 163 g
Range compatibility EcoStruxure Resource Advisor, EcoStruxure Energy Hub, EcoStruxure Asset Advisor, EcoStruxure Power Monitoring Expert, EcoStruxure Power Operation, EcoStruxure Building Operation, EcoStruxure Facility Expert
Mounting support DIN rail
Maximum power consumption in W 3.5 W 110...277 V
Standards ANSI C63.10, IEC 62311, EN 62311, FCC CFR 47 part 15 class A, IEEE 802.3 af/at, IEEE 802.11a/b/g/n, IEEE 802.15.4, ETSI EN 300 328, CISPR 11, EN 55032, EN 301-893, ETSI EN 301 489-17, ETSI EN 301 489-1, EN 61326-1, IEC 61326-1, IEC 62443-4-1, IEC 62974-1, CAN/CSA C22.2 No. 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, EN 61010-2-201, EN 61010-1, UL 61010-2-201, UL 61010-1, UL 61010, IEC 61010-2-201, IEC 61010-1, IEC 61010
Data retention time 1 month(s)
Product certifications IACS E10, ANSI RF, DNV Marine, IC, FCC, UKCA, RCM, CB, cULus, CE
Environment
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 (casing), IP40 (front face)
Pollution degree 2
Ambient air temperature for operation -25-60 °C
Operating altitude 0...2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.3 cm
Package 1 Width 5.9 cm
Package 1 Length 9.5 cm
Package 1 Weight 238 g
Unit Type of Package 2 2
Number of Units in Package 2 45
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 11.151 kg
Unit Type of Package 3 3
Number of Units in Package 3 360
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 95.68 kg
