PAS600L

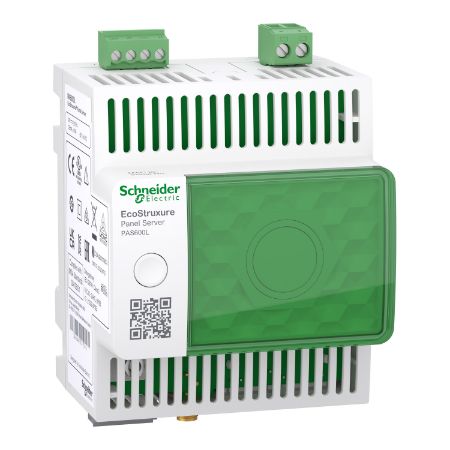

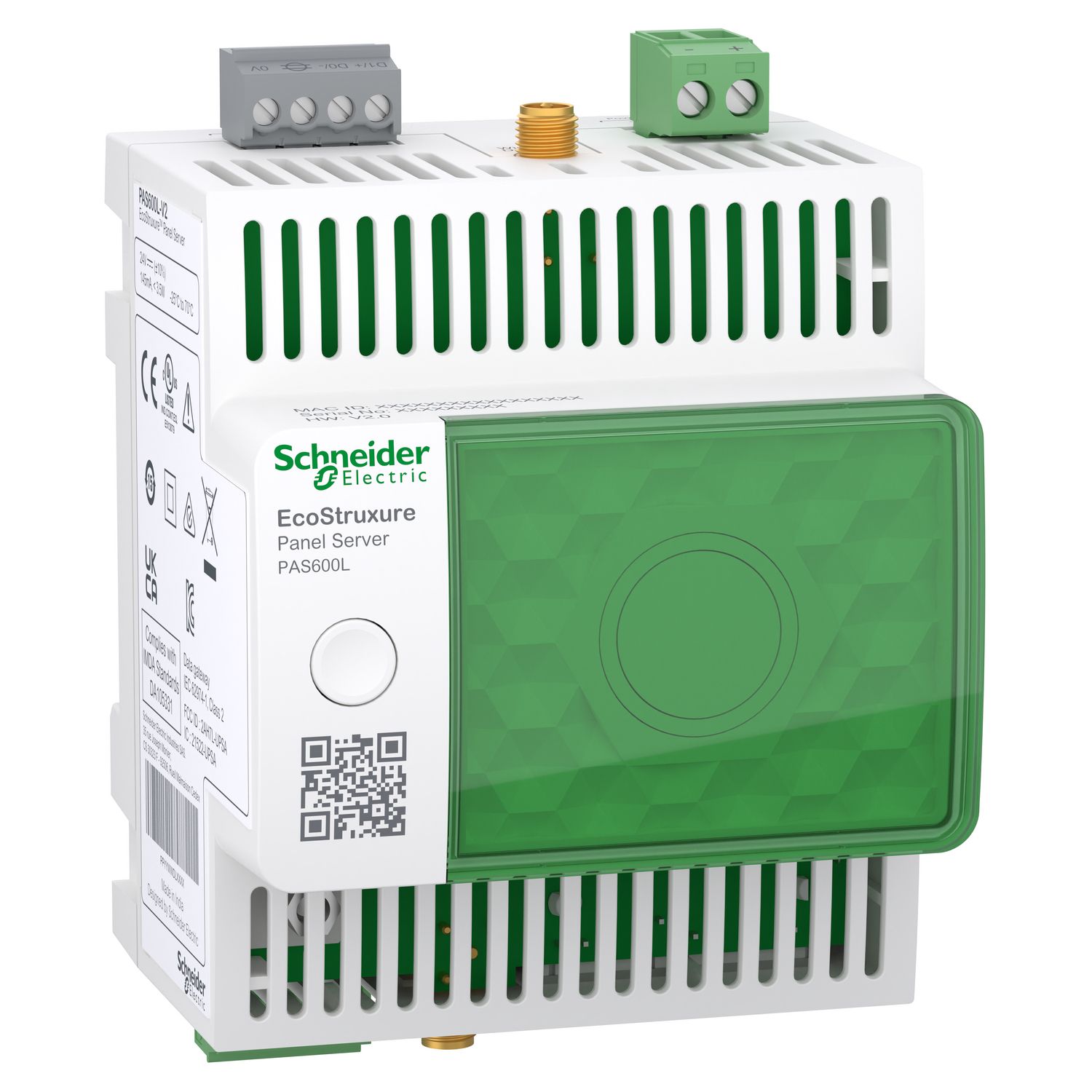

EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC

Please Contact Sales to buy this Product. click here
Product Selector
EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC
  • Compact data concentrator for integration of wireless smart IoT, and modbus devices in energy monitoring systems
  • Easy configuration and maintenance through user friendly embedded webpages
  • Seamless commissioning with EcoStruxure Power Commission reports and configuration exports
  • Operation efficiency for energy data transfer to local scada or cloud application
  • Enhanced cybersecurity with IEC 62443-4-1 Secure Development Lifecycle
  • Simple system troubleshooting with advanced diagnostic informations and logs
  • Open device and system integration with Modbus/RS485 and Modbus/TCP support
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Technical illustration
Declaration of conformity
Instruction sheet
Catalogue
User guide
Brochure
Product environmental
End of life manual
Product Page Link
Product Data Sheet
EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. User friendly web-pages offer first-lelvel of monitoring of measurements of all the conected devices including log of all alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. 24VDC Power Supply 3W Max. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. One connector for external Wi-Fi/Bluetooth antenna. Connector for two Digital Inputs for dry contact or WAGES. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.

Products specifications

Attribute nameAttribute value
Main
Device short namePAS600L
Device applicationgateway
[Us] rated supply voltage24 V DC
RangeEcoStruxure
Communication gatewayEthernet/serial, Ethernet TCP/IP to wireless devices
Product namePanel Server Universal
Product or component typegateway
Complementary
Number of slave40 slave(s)IEEE 802.15.4, 128 slave(s)Modbus TCP, 128 slave(s)Modbus RTU - with repeater, 32 slave(s)Modbus RTU - without repeater
Tightening torquecommunication: 0.25-0.25 N.m, power supply: 0.6-0.6 N.m, discrete I/O: 0.25-0.25 N.m
Web servicesHTTPS server
Realtime clockwithout any user calibration, with RTC-battery set
Commissioning interfaceweb page, EcoStruxure Power Commission
Mounting modeclip-on
Function availableEvent Logger, configurable event, backup/restore configuration, firmware update, with integrated web server, energy management, diagnostics on communication, diagnostic report, diagnosis capabilities, embedded web page for configuration and upgrade
Topologyswitched Ethernet network, separated Ethernet network
Memory capacity512 MB NAND
Wire stripping lengthdiscrete I/O: 7 mm, communication: 7 mm, power supply: 7 mm
Communication network typeModbus RTU, Modbus RTU client even/odd or none parity, at 1.2...115.2 kbit/s, wireless, IEEE 802.15.4, Wi-Fi2.4 GHz, Ethernet, 10/100BASE-T
Number of inputs2-2 dry-contact/pulse
Communication serviceDHCP server, DHCP client, SNTP client, Modbus TCP server, Modbus TCP client, Device Profile for Web Services (DPWS)
Communication port protocolTCP/IP, IPv6, IPv4, NTP/SNTP, HTTPS, DHCP, Modbus TCP
Height93 mm
Communication port supportscrew terminal block: RS485, 2 RJ45: ETHERNET
Depth70.2 mm
Width72 mm
Product specific applicationWireless Schneider Electric devices ecosystem
Time synchronisation protocolSNTP, NTP
Connector typeRP-SMA antenna
Connections - terminalscommunication: screw terminal block (bottom) 0.14-1.5 mm² cable(s) , power supply: screw terminal block (top) 1.5-2.5 mm² cable(s) , discrete I/O: screw terminal block (top) 0.14-1.5 mm² cable(s)
Net weight181 g
Range compatibilityEcoStruxure Resource Advisor, EcoStruxure Energy Hub, EcoStruxure Asset Advisor, EcoStruxure Power Monitoring Expert, EcoStruxure Power Operation, EcoStruxure Building Operation, EcoStruxure Facility Expert
Mounting supportDIN rail
Maximum power consumption in W3 W 24 V
StandardsANSI C63.10, IEC 62311, EN 62311, FCC CFR 47 part 15 class A, IEEE 802.3 af/at, IEEE 802.11a/b/g/n, IEEE 802.15.4, ETSI EN 300 328, CISPR 11, EN 55032, ETSI EN 301 489-17, ETSI EN 301 489-1, EN 61326-1, IEC 61326-1, IEC 62443-4-1, IEC 62974-1, CAN/CSA C22.2 No. 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, EN 61010-2-201, EN 61010-1, UL 61010-2-201, UL 61010-1, UL 61010, IEC 61010-2-201, IEC 61010-1, IEC 61010
Data retention time1 month(s)
Product certificationsIACS E10, ANSI RF, DNV Marine, IC, FCC, UKCA, RCM, CB, cULus, CE
