SKU:

PAS600

EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 110-277 VAC/DC

$891.61

Qty:

Available for Shipping : 12-Nov-2024

Product Selector

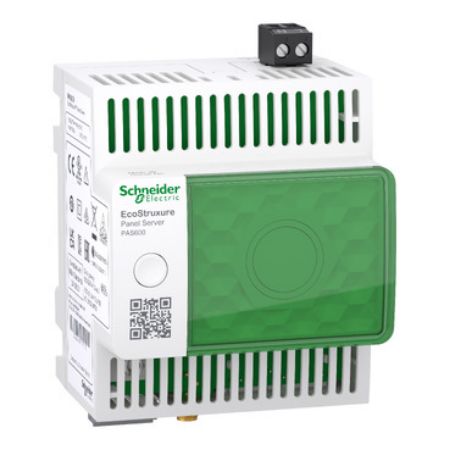

EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 110-277 VAC/DC

Easy integration of wireless smart IoT devices with edge control sotware or cloud applications.

Easy connection of Modbus/RS485 and modbus/TCP devices with monitoring sotware or cloud advisors

Reduced footprint with all-in-one device connecting Mobus/RS485, Modbus/TCP and wireless devices

Easy configuration with embbeded web-pages

Foster system integration with EcoStruxure Power Commission reports and configuration export

Operation efficiency with user-friendly web-pages for measurement and alarm monitoring

Enhanced cybersecurity with IEC 62443-4-1 Secure Development Lifecycle

Simple system troubleshooting with advanced diagnostic informations and logs

Open device and system integration with Modbus/RS485 and Modbus/TCP support

Be the first to review this product

Manufacturer: Schneider Electric

Technical illustration

Declaration of conformity

Instruction sheet

Catalogue

User guide

Brochure

Product environmental

End of life manual

Product Page Link

Product Data Sheet

EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. User friendly web-pages offer first-lelvel of monitoring of measurements of all the conected devices including log of all alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. From 110 to 277 VAC/DC 50-60Hz 3W/10VA Max Power Supply. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. One connector for external Wi-Fi/Bluetooth antenna. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.

Products specifications

Attribute name	Attribute value
Main
Device short name	PAS600
Device application	gateway
[Us] rated supply voltage	110...277 V DC, 110...277 V AC 50/60 Hz
Range	EcoStruxure
Communication gateway	Ethernet/serial, Ethernet TCP/IP to wireless devices
Product name	Panel Server Universal
Product or component type	gateway
Complementary
Number of slave	40 slave(s)IEEE 802.15.4, 128 slave(s)Modbus TCP, 128 slave(s)Modbus RTU - with repeater, 32 slave(s)Modbus RTU - without repeater
Tightening torque	communication: 0.25-0.25 N.m, power supply: 0.6-0.6 N.m
Web services	HTTPS server
Realtime clock	without any user calibration, with RTC-battery set
Commissioning interface	web page, EcoStruxure Power Commission
Mounting mode	clip-on
Function available	Event Logger, configurable event, backup/restore configuration, firmware update, with integrated web server, energy management, diagnostics on communication, diagnostic report, diagnosis capabilities, embedded web page for configuration and upgrade
Topology	switched Ethernet network, separated Ethernet network
Memory capacity	512 MB NAND
Wire stripping length	discrete I/O: 7 mm, communication: 7 mm, power supply: 7 mm
Communication network type	Modbus RTU, Modbus RTU client even/odd or none parity, at 1.2...115.2 kbit/s, wireless, IEEE 802.15.4, Wi-Fi2.4 GHz, Ethernet, 10/100BASE-T
Number of inputs	0-0
Communication service	DHCP server, DHCP client, SNTP client, Modbus TCP server, Modbus TCP client, Device Profile for Web Services (DPWS)
Communication port protocol	TCP/IP, IPv6, IPv4, NTP/SNTP, HTTPS, DHCP, Modbus TCP
Height	93 mm
Communication port support	screw terminal block: RS485, 2 RJ45: ETHERNET
Depth	70.2 mm
Width	72 mm
Product specific application	Wireless Schneider Electric devices ecosystem
Time synchronisation protocol	SNTP, NTP
Connector type	RP-SMA antenna
Connections - terminals	communication: screw terminal block (bottom) 0.14-1.5 mm² cable(s) , power supply: screw terminal block (top) 1.5-2.5 mm² cable(s)
Net weight	201 g
Range compatibility	EcoStruxure Resource Advisor, EcoStruxure Energy Hub, EcoStruxure Asset Advisor, EcoStruxure Power Monitoring Expert, EcoStruxure Power Operation, EcoStruxure Building Operation, EcoStruxure Facility Expert
Mounting support	DIN rail
Maximum power consumption in W	3 W 110...277 V
Standards	ANSI C63.10, IEC 62311, EN 62311, FCC CFR 47 part 15 class A, IEEE 802.3 af/at, IEEE 802.11a/b/g/n, IEEE 802.15.4, ETSI EN 300 328, CISPR 11, EN 55032, ETSI EN 301 489-17, ETSI EN 301 489-1, EN 61326-1, IEC 61326-1, IEC 62443-4-1, IEC 62974-1, CAN/CSA C22.2 No. 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, EN 61010-2-201, EN 61010-1, UL 61010-2-201, UL 61010-1, UL 61010, IEC 61010-2-201, IEC 61010-1, IEC 61010
Data retention time	1 month(s)
Product certifications	IACS E10, ANSI RF, DNV Marine, IC, FCC, UKCA, RCM, CB, cULus, CE
Environment
Relative humidity	0-93 %
Ambient air temperature for storage	-40-85 °C
IP degree of protection	IP20 (casing), IP40 (front face)
Pollution degree	2
Ambient air temperature for operation	-25-70 °C
Operating altitude	< 2300 m
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	9.000 cm
Package 1 Width	9.000 cm
Package 1 Length	11.000 cm
Package 1 Weight	282.000 g
Unit Type of Package 2	2
Number of Units in Package 2	27
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	8.275 kg
