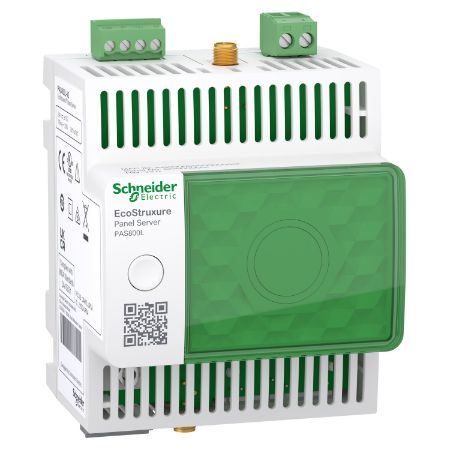

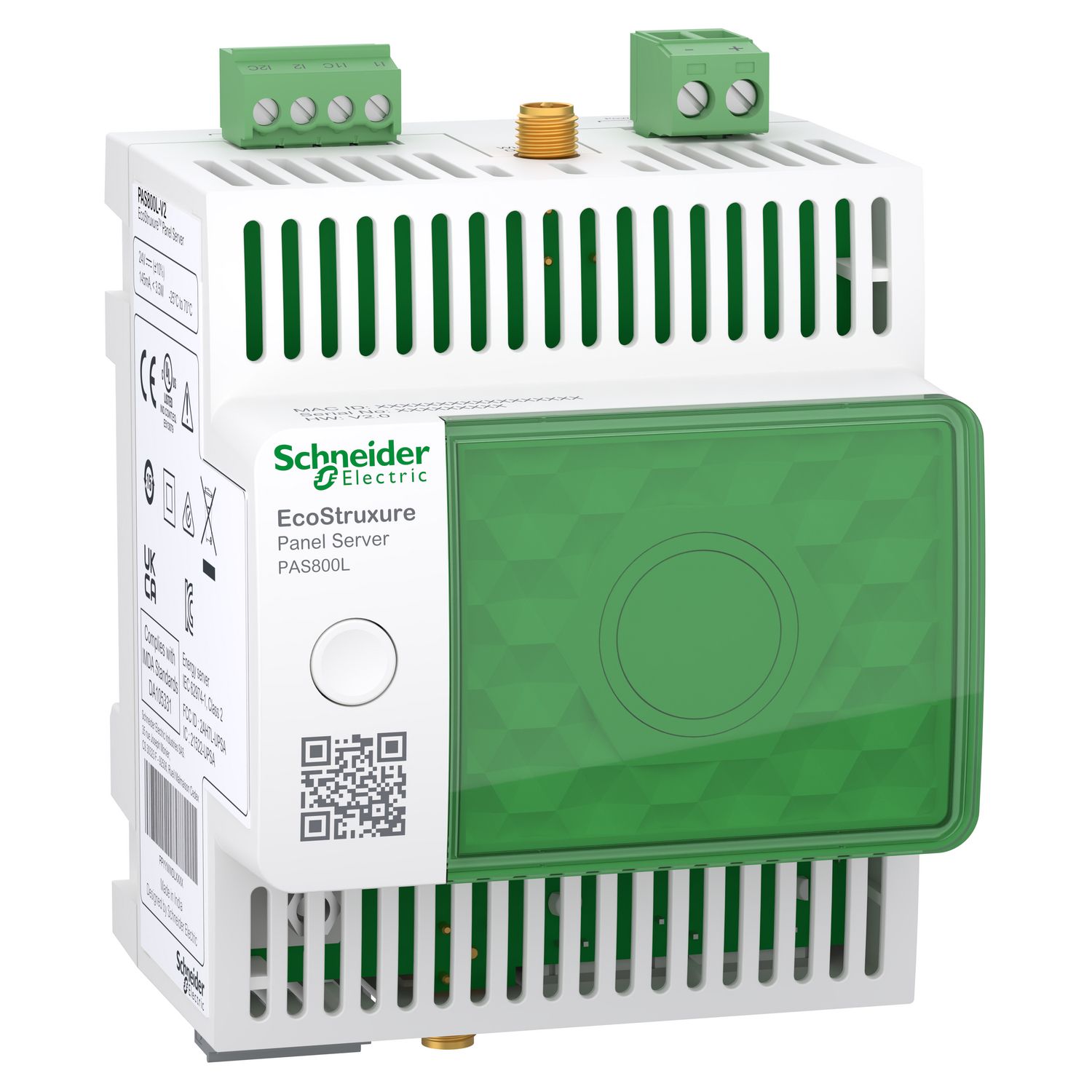

Picture of EcoStruxure Panel Server - advanced datalogger, energy server, 24 VDC
SKU:

PAS800L

EcoStruxure Panel Server - advanced datalogger, energy server, 24 VDC

$2,104.78
Available for Shipping : 12-Nov-2024
EcoStruxure Panel Server - advanced datalogger, energy server, 24 VDC
  • Easy integration of wireless smart IoT devices with edge control software or cloud applications
  • Easy connection of Modbus/RS485 and Modbus/TCP devices with monitoring software or cloud advisors
  • Reduced footprint with all-in-one device connecting Modbus/RS485, Modbus/TCP and wireless devices
  • Easy configuration with embedded web-pages, local energy dashboarding and analysis
  • Faster system integration with EcoStruxure Power Commission reports and configuration exports
  • Operation efficiency with user-friendly web-pages with historical data analysis and alarm log
  • Master energy consumption with three yers data loging and abnalysis
  • Enhanced cybersecurity with IEC 62443-4-1 Secure Development Lifecycle
  • Simple system troubleshooting with advanced diagnostic informations and logs
  • Open device and system integration with Modbus/RS485 and Modbus/TCP support
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Instruction sheet
Declaration of conformity
Catalogue
User guide
Brochure
Product environmental
End of life manual
Product Page Link
Product Data Sheet
EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. Three years data-logger with user friendly web-pages offering energy dahsboarding, trending analysis of the measurements and view of logged alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. 24VDC Power Supply 3W Max. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. Connector for external Wi-Fi/Bluetoth antenna. Connector for external antenna for wireless devices. Two connectors for Wi-Fi/Bluetooth external antenna and wireless devices external antenna. Connector for two Digital Inputs for dry contact or WAGES. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.
