SKU:

PAS800P

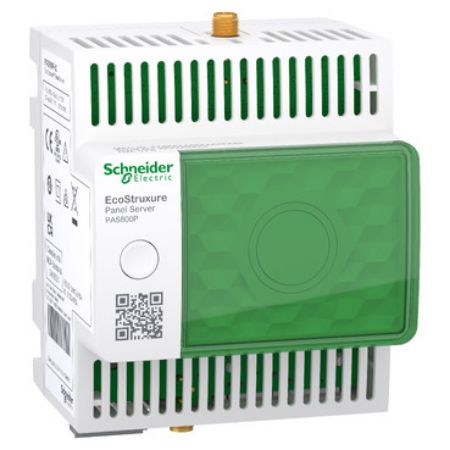

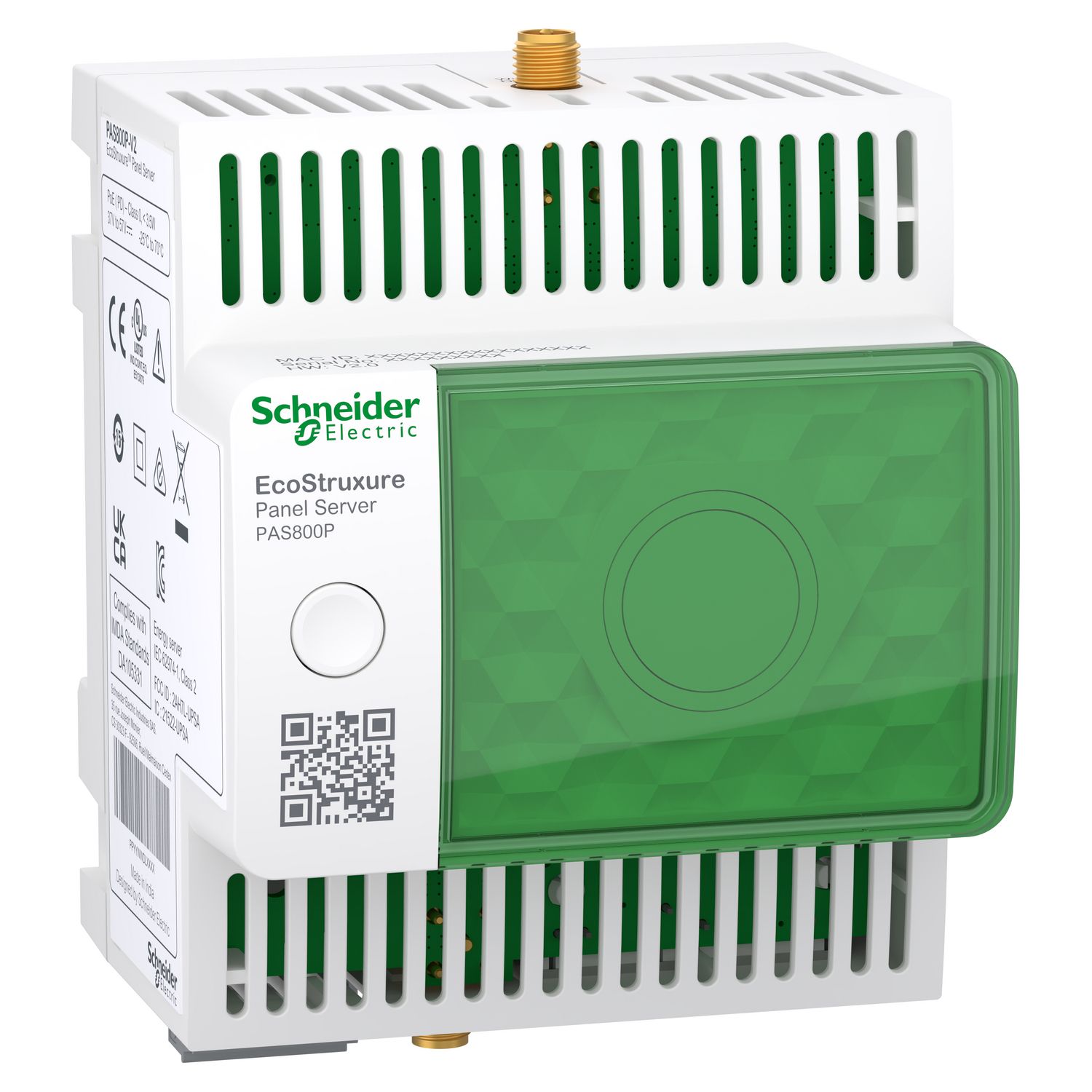

EcoStruxure Panel Server - advanced datalogger, energy server, POE

Please Contact Sales to buy this Product. click here

EcoStruxure Panel Server - advanced datalogger, energy server, POE

Easy integration of wireless smart IoT devices with edge control software or cloud applications

Easy connection of Modbus/RS485 and Modbus/TCP devices with monitoring software or cloud advisors

Reduced footprint with all-in-one device connecting Modbus/RS485, Modbus/TCP and wireless devices

Easy configuration with embedded web-pages, local energy dashboarding and analysis

Faster system integration with EcoStruxure Power Commission reports and configuration exports

Operation efficiency with user-friendly web-pages with historical data analysis and alarm log

Master energy consumption with three yers data loging and abnalysis

Enhanced cybersecurity with IEC 62443-4-1 Secure Development Lifecycle

Simple system troubleshooting with advanced diagnostic informations and logs

Open device and system integration with Modbus/RS485 and Modbus/TCP support

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Instruction sheet

Declaration of conformity

Catalogue

User guide

Brochure

Product environmental

Technical illustration

End of life manual

Product Page Link

Product Data Sheet

EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. Three years data-logger with user friendly web-pages offering energy dahsboarding, trending analysis of the measurements and view of logged alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. PoE Power Supply. -25°C to +70°C Operating temperature. -5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. Connector for external Wi-Fi/Bluetoth antenna. Two connectors for Wi-Fi/Bluetooth external antenna and wireless devices external antenna. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.
