SKU:

SMT10020

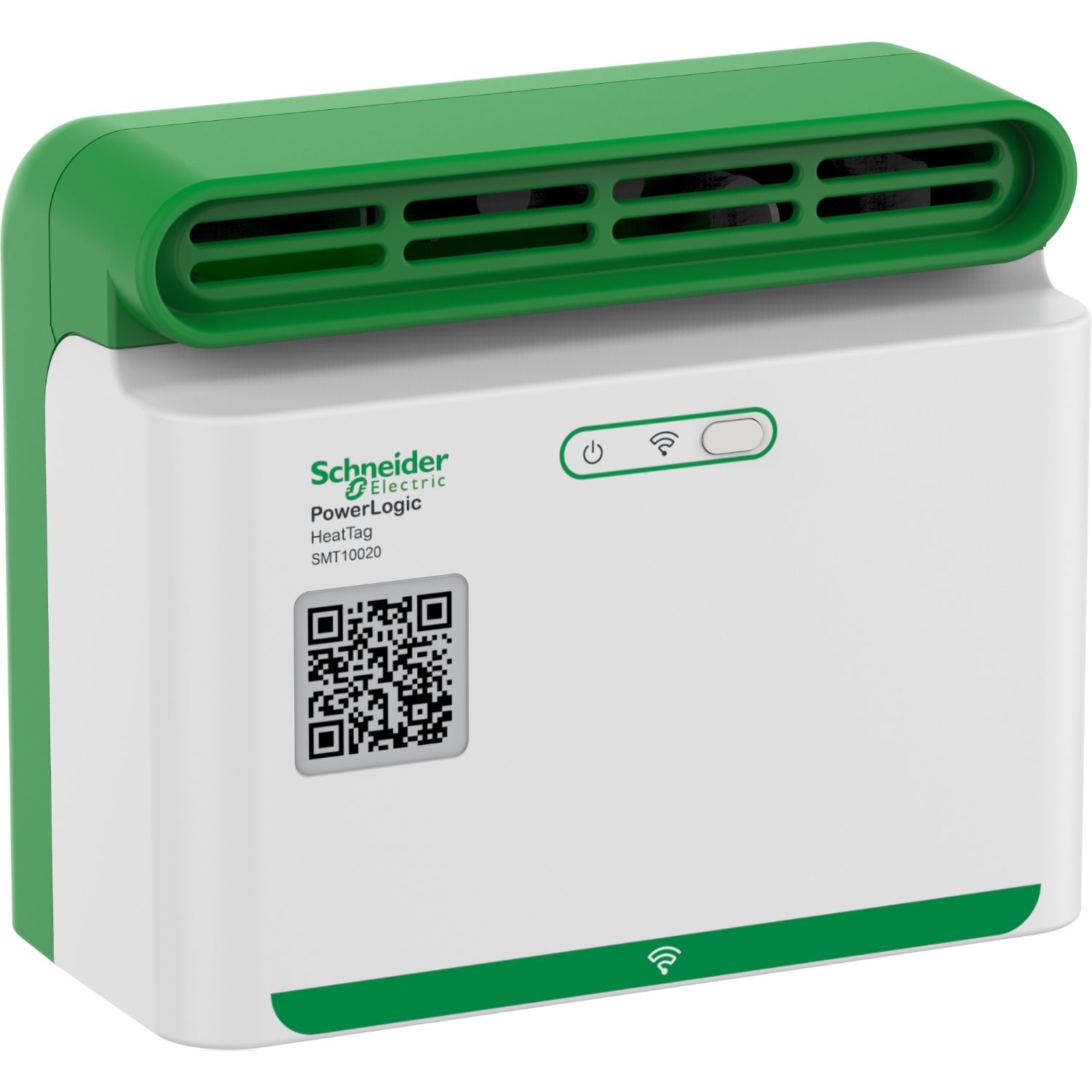

PowerLogic HeatTag, smart sensor for cable overheating detection

$1,221.53

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

PowerLogic HeatTag, smart sensor for cable overheating detection

PowerLogic HeatTag wireless smart sensor, for early detection of cables and connections overheating.

Overheating detection is based on the analyze of gas and particles in the air.

Three levels of alert are provided according to the severity of the situation.

DIN rail mounting, to be installed on top of a non forced air switchboard.

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Brochure

End of life manual

Catalogue

Product environmental

Instruction sheet

User guide

Product Page Link

Product Data Sheet

PowerLogic HeatTag wireless smart sensor, for early detection of cables and connections overheating. Overheating detection is based on the analyze of gas and particles in the air. It reports detection alerts, air quality index, temperature, humidity, self diagnosis status. Three levels of alert are provided according to the severity of the situation. Wireless sensor compatible with all EcoStruxure concentrators and with PrismaSeT Wireless Panel Server. On front side it provides 2 signalling LEDs for communication status and operation status, a pushbutton for pairing and acknowledging alerts. DIN rail mounting, to be installed on top of a non forced air switchboard. Multi standards certified (IEC, EN, UL, CSA, FCC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device application	electrical switchboard
Range compatibility	PowerLogic PowerTag, EcoStruxure data concentrator, PrismaSeT wireless panel server
Function available	wireless communication with all EcoStruxure data concentrators, environment auto-learning to avoid false alerts, 3 levels of alert according to the severity of the situation, overheating detection based on the analyse of gas and particles in the air, overheating detection of cables and wire connections
Range	PowerLogic
Time delay range	> 30 s (high data traffic), 30 s (by default)
Type of measurement	air quality index, range: 0...10 AQI, humidity, range: 15...90 % RH, accuracy: +/- 9 %, temperature, range: - 15...70 °c, accuracy: +/- 1.1 °C
Standards	CSA C22.2 No 61010-1, UL 61010-1, FCC part 15 Subpart C, FCC part 15 Subpart B, IEEE 802.15.4, ETSI EN 301 489-17, ETSI EN 301 489-1, ETSI EN 300 328, IEC 61326-1, IEC 61010-2-201, IEC 61010-1
Range of product	PowerLogic HeatTag
Communication network type	wireless - 2.4 GHz
Technology type	electronic
Alarm threshold	air quality index >= 10
Product or component type	heat detector
Complementary
Supply voltage limits	110-277 V (+/- 15 %)
Maximum supply current	0.1 A
Local signalling	operating: 1 LED (green, orange and red), network status: 1 LED (green, orange and red)
Protection type	circuit breaker 2 A curve C
Control type	1 push-button (sensor pairing/alert acknowledgement)
Height	107 mm
Depth	55 mm
Overvoltage category	III
Width	108 mm
Electrical connection	2 pin(s)removable spring terminal block 2.5 mm² rigid or flexible
Net weight	0.27 kg
Device location in system	non forced air ventilated switchboard, top of the switchboard
Mounting support	DIN rail
[Us] rated supply voltage	110...277 V AC at 50/60 Hz, single phase
Environment
IP degree of protection	IP20
Relative humidity	15-90 %
Ambient air temperature for storage	-20-85 °C
IK degree of protection	IK06
Electromagnetic compatibility	EMC immunity conforming to IEC 61326-1
Pollution degree	3
Ambient air temperature for operation	-15-70 °C
Operating altitude	0...2000 m
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	11.4 cm
Package 1 Width	7 cm
Package 1 Length	11.4 cm
Package 1 Weight	270 g
Unit Type of Package 2	2
Number of Units in Package 2	14
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	4.13 kg
