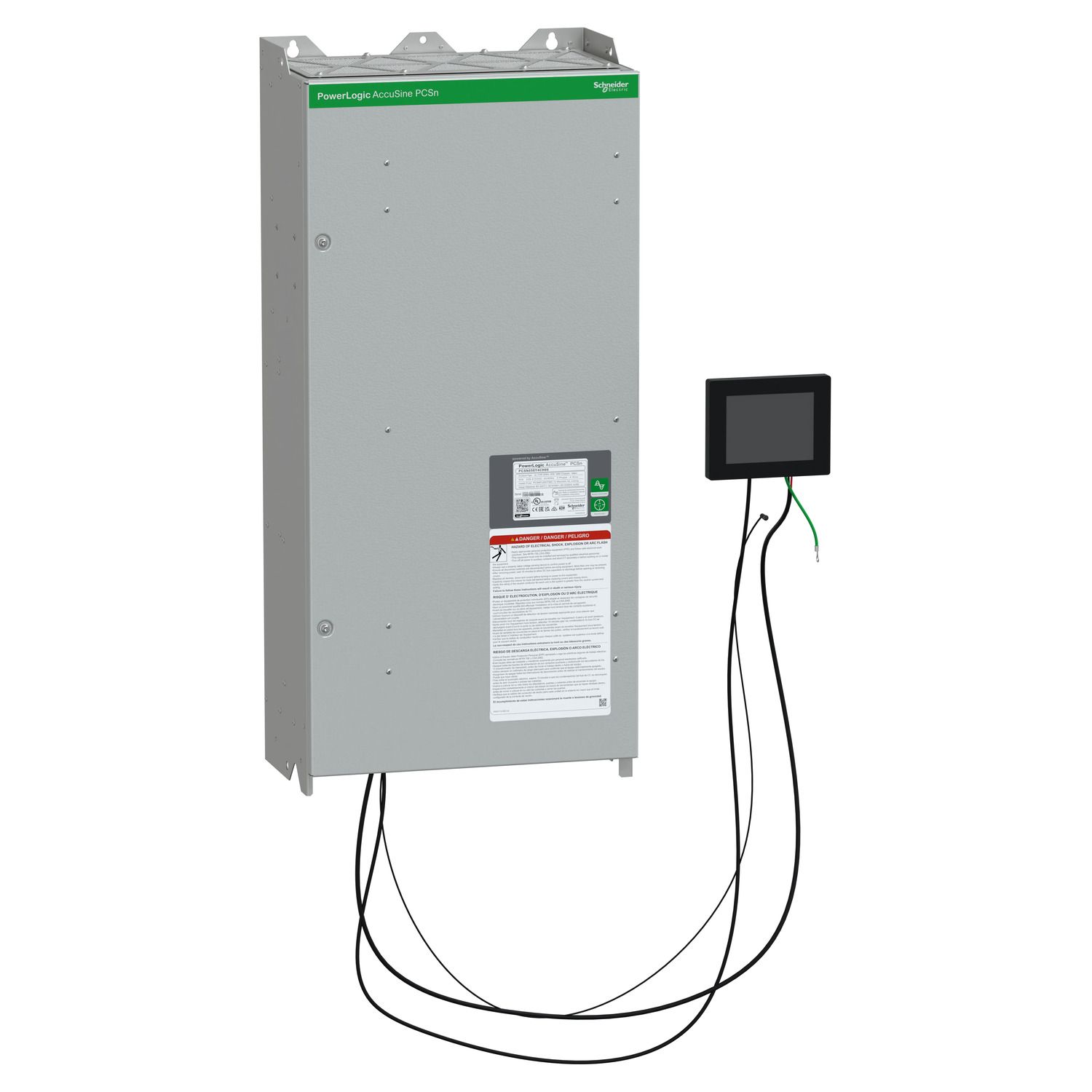

Picture of PCSN active harmonic filter 50 amp 208-415 VAC - wall-mounted, IP00 enclosure
SKU:

PCSN050Y4CH00

PCSN active harmonic filter 50 amp 208-415 VAC - wall-mounted, IP00 enclosure

Please Contact Sales to buy this Product. click here
PCSN active harmonic filter 50 amp 208-415 VAC - wall-mounted, IP00 enclosure
  • Active harmonic filtering solution for office loads
  • Suitable for application such as lights, lifts and healthcare equipements
  • Compensate neutral harmonic current from single-phase non-linear loads
  • Improve system reliability, operational efficiency and uptime
  • The hardware are tested to handle sismic environment
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 02-Jan-2025
CAD
End of life manual
User guide
Declaration of conformity
Instruction sheet
Technical illustration
Product environmental
Product Page Link
Product Data Sheet
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. In addition to 3-phase mitigation, it has the ability to compensate for neutral harmonic currents. This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 208 Volt to 415 Volt. It is specified for a standard Root Mean Square output current rating of 50 Amps, 150 Amps neutral. The chassis is floor standing, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, IBC 2015, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1 and IEEE 519-2014. Up to 12 units in parallel per set of CT; any size unit combination possible (subject to network characteristics). Master capable. Frame exterior dimensions are 440 millimetres in width, 265 millimetres in depth, 960 millimetres in height and product weight 75 kg.

Products specifications

Attribute nameAttribute value
Main
RangeAccuSine
Product nameAccuSine PCSn
Product or component typeactive harmonic filter
Range of productAccuSine
Complementary
Wiring mode3 or 4 wires
Maximum permissible voltage1.1 x Un
Location of connectionbottom
Protection typewithout protection
Poles description3P, 3P + N
Nominal output current50 A
Mounting modechassis
Network frequency50/60 Hz
Function availablerear plenum with forced ventilation for high heat flow
Electromagnetic compatibilityelectromagnetic immunity conforming to EN 61000-6-2, electromagnetic emission, class A conforming to EN 61000-6-4
Mounting locationindoor
Operating modepower factor correction, mains current balancing, neutral harmonic correction, phase harmonic correction
Network rated voltage208-415 V AC
Reactive power rating36 kvar 415 V AC 50/60 Hz
Accessibility for operationfront
Environment
IP degree of protectionIP00
Depth265 mm
Width440 mm
Colourlight grey (RAL 7035)
Operating altitude0...4800 m, <= 1000 m 1 % per 100 m
Relative humidity0-95 % non-condensing
Ambient air temperature for storage-20-60 °C
Impregnation materialconformal coated
Net weight68.6 kg
Environmental characteristicstorage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation0-50 °C maximum with current derating of 2 % per °C above 40 °C, 0-40 °C
StandardsUL 508, IEEE 519-2014, ISO 9001, EN 61000-6-4, EN 61000-6-2, IEC 61439-1, IEC 62477-1
Height960 mm
Product certificationscULus, ICC-ES AC156, IBC 2015 (Seismic), ABS, CE, EAC, RCM
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height26.4 cm
Package 1 Width46.5 cm
Package 1 Length96.0 cm
Package 1 Weight68.492 kg
