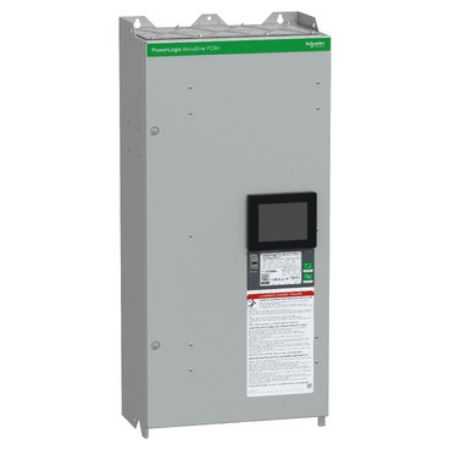

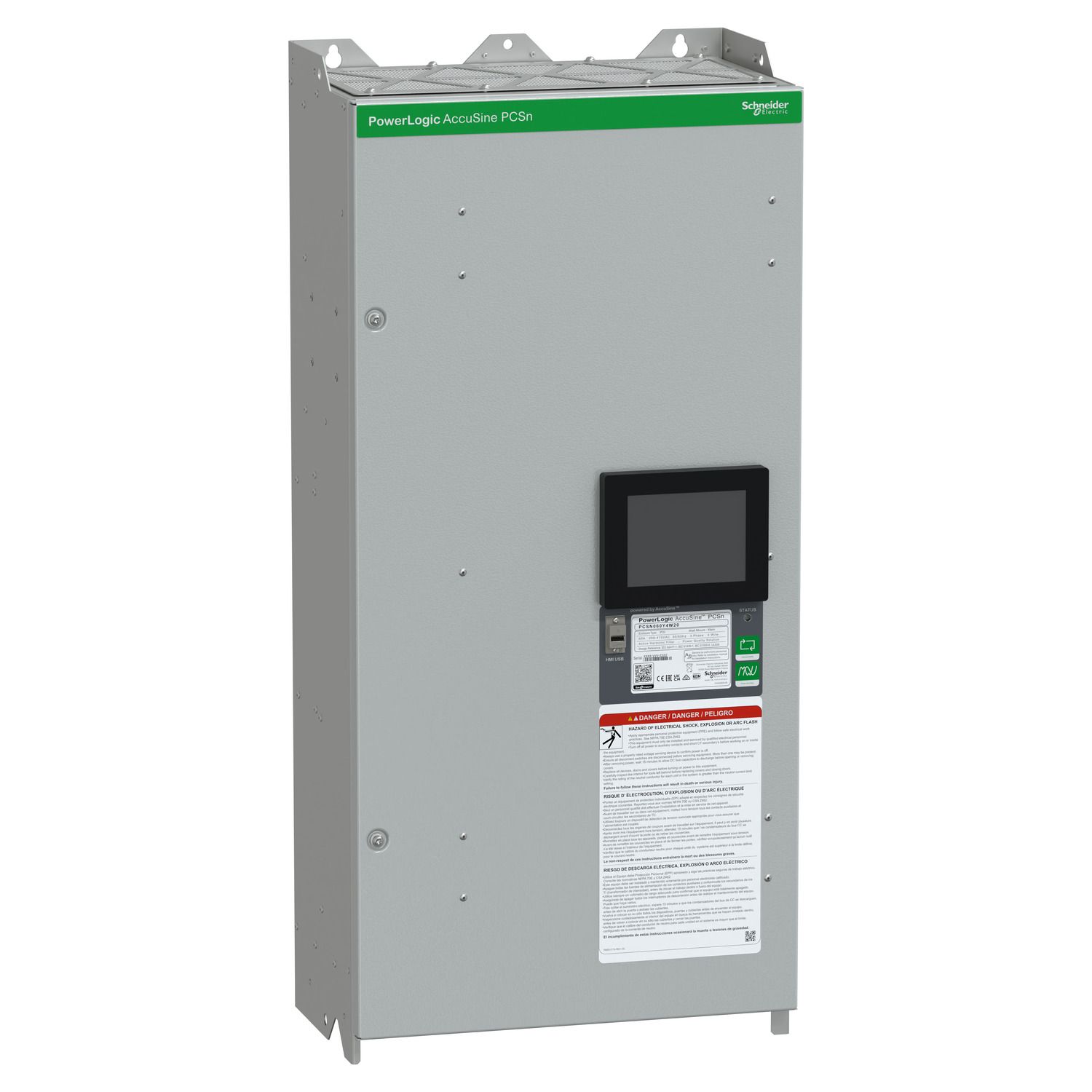

Picture of PCSN active harmonic filter 60 amp 208-415 VAC - wall-mounted, IP20 enclosure
SKU:

PCSN060Y4W20

PCSN active harmonic filter 60 amp 208-415 VAC - wall-mounted, IP20 enclosure

$28,565.83
Available for Shipping : 24-Nov-2024
PCSN active harmonic filter 60 amp 208-415 VAC - wall-mounted, IP20 enclosure
  • Active harmonic filtering solution for office loads
  • Suitable for application such as lights, lifts and healthcare equipements
  • Compensate neutral harmonic current from single-phase non-linear loads
  • Improve system reliability, operational efficiency and uptime
  • The hardware are tested to handle sismic environment
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Instruction sheet
CAD
Technical illustration
Product environmental
End of life manual
Product Page Link
Product Data Sheet
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. In addition to 3-phase mitigation, it has the ability to compensate for neutral harmonic currents. This version is ingress protection IP20 and can be connected on Low Voltage networks rated 208 Volt to 415 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps, 180 Amps neutral. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, IBC 2015, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1 and IEEE 519-2014. Up to 12 units in parallel per set of CT; any size unit combination possible (subject to network characteristics). Master capable. Frame exterior dimensions are 440 millimetres in width, 265 millimetres in depth, 960 millimetres in height and product weight 75 kg.

Products specifications

Attribute name Attribute value
Main
Range AccuSine
Product name AccuSine PCSn
Product or component type active harmonic filter
Range of product AccuSine
Complementary
Wiring mode 3 or 4 wires
Maximum permissible voltage 1.1 x Un
Location of connection bottom
Protection type without protection
Poles description 3P, 3P + N
Nominal output current 60 A
Mounting mode wall-mounted
Network frequency 50/60 Hz
Function available rear plenum with forced ventilation for high heat flow
Electromagnetic compatibility electromagnetic immunity conforming to EN 61000-6-2, electromagnetic emission, class A conforming to EN 61000-6-4
Mounting location indoor
Operating mode power factor correction, mains current balancing, neutral harmonic correction, phase harmonic correction
Network rated voltage 208-415 V AC
Reactive power rating 43.2 kvar 415 V AC 50/60 Hz
Accessibility for operation front
Environment
IP degree of protection IP20
Depth 265 mm
Width 440 mm
Colour light grey (RAL 7035)
Operating altitude 0...4800 m, <= 1000 m 1 % per 100 m
Relative humidity 0-95 % non-condensing
Ambient air temperature for storage -20-60 °C
Impregnation material conformal coated
Net weight 68.6 kg
Environmental characteristic storage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation 0-50 °C maximum with current derating of 2 % per °C above 40 °C, 0-40 °C
Standards IEEE 519-2014, ISO 9001, EN 61000-6-4, EN 61000-6-2, IEC 61439-1, IEC 62477-1
Height 960 mm
Product certifications ICC-ES AC156, IBC 2015 (Seismic), ABS, CE, EAC, RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.4 cm
Package 1 Width 46.5 cm
Package 1 Length 96.0 cm
Package 1 Weight 68.492 kg
