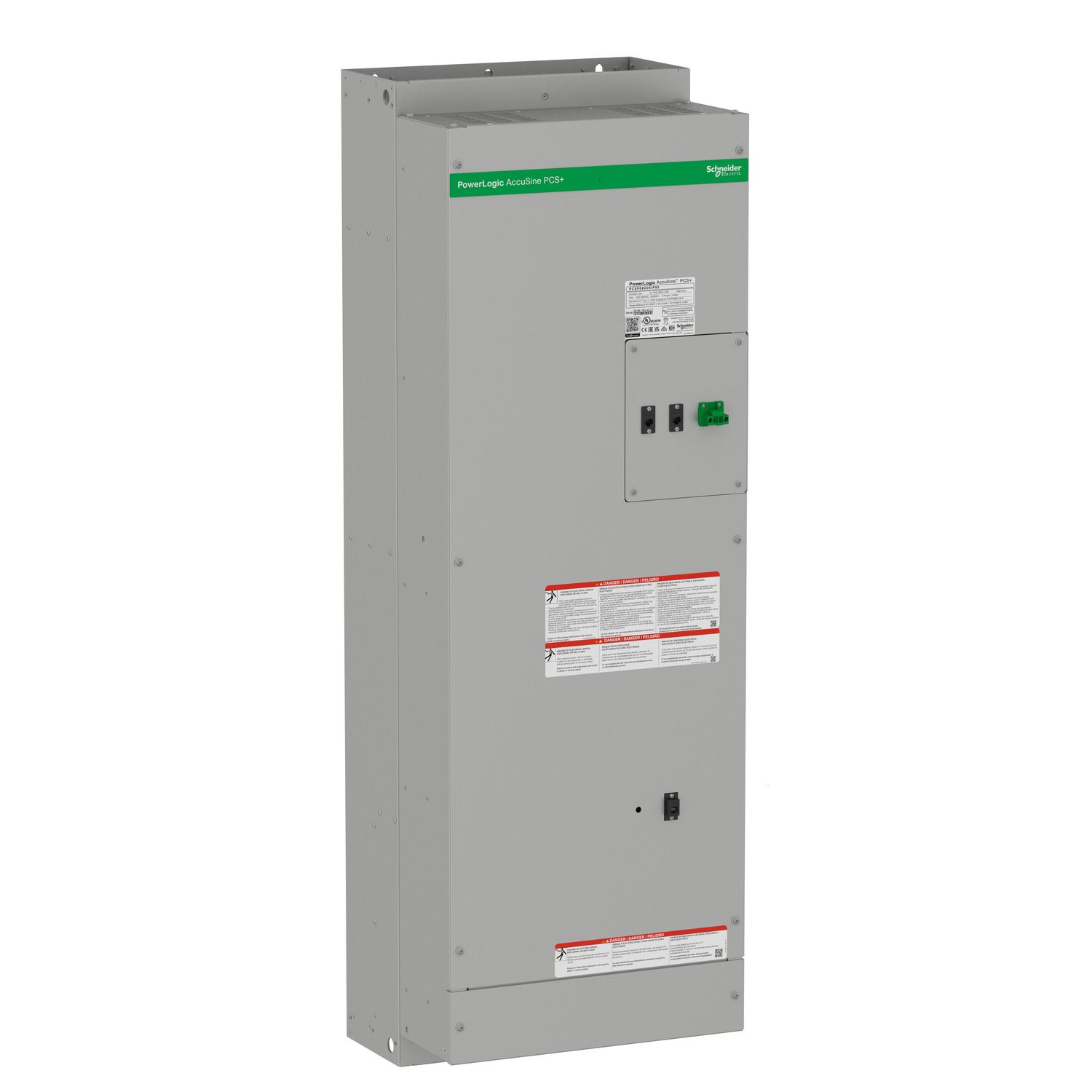

Active harmonic filter - 60 A 380..480 V AC - IP00 enclosure

Please Contact Sales to buy this Product. click here
Active harmonic filter - 60 A 380..480 V AC - IP00 enclosure
  • Active harmonic filtering solution for industrial and heavy-duty applications
  • Wide range of application, from paper processing to oil platforms.
  • Harmonic cancellation up to the 51st rank will prolong your equipment life
  • Power factor correction for better uptime and reduce penality / maintenance cost
Be the first to review this product
Manufacturer: Square D
Estimated Delivery Date: 02-Mar-2025
Instruction sheet
CAD
User guide
Product Page Link
Product Data Sheet
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 421 millimetres in width, 349 millimetres in depth, 1300 millimetres in height and product weight 88 kg.

Products specifications

Attribute nameAttribute value
Main
RangeAccuSine
Product nameAccuSine PCS+
Product or component typeactive harmonic filter
Range of productAccuSine
Complementary
Wiring mode3 or 4 wires
Maximum permissible voltage1.1 x Un
Location of connectionbottom
Protection typewithout protection
Poles description3P
Nominal output current60 A
Enclosure mountingwall mounted
Neutral protection settingnot provided
Network frequency50/60 Hz +/- 3 Hz auto sensing
Function availablerear plenum with forced ventilation for high heat flow
Electromagnetic compatibilityconducted EMC, class A conforming to EN 61000-6-4
Mounting locationindoor
Operating modepower factor correction, mains current balancing, harmonic cancellation
Network rated voltage380-480 V AC
Reactive power rating50 kvar 480 V AC 50/60 Hz
Accessibility for operationfront
Environment
IP degree of protectionIP00
Depth349 mm
Width421 mm
Colourlight grey (RAL 7035)
Operating altitude<= 1000 m 1 % per 100 m
Relative humidity0-95 %
Ambient air temperature for storage-20-60 °C
Impregnation materialconformal coated
Net weight90 kg
Environmental characteristicstorage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation0-50 °C maximum with current derating of 2 % per °C, 0-40 °C
StandardsCSA C22.2 No 14, EN 60439-1, EN 61000-6-4, UL 60947-1, CSA C22.2 No 60947-1-07, UL 508
Height1300 mm
Product certificationscULus, CE, RCM, ABS, DNV-GL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height70.5 cm
Package 1 Width73.7 cm
Package 1 Length173.3 cm
Package 1 Weight143.0 kg
