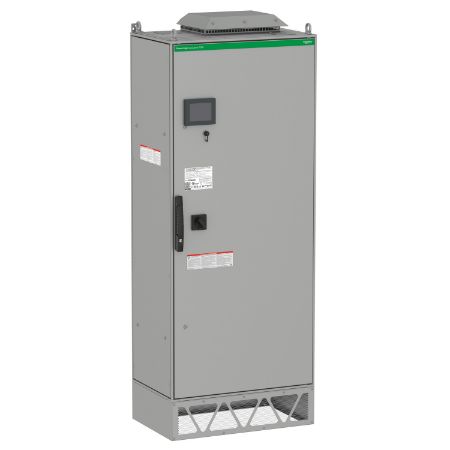

Active harmonic filter - 60 A 380..480 V AC - IP31 enclosure

$44,800.94
Available for Shipping : 27-Feb-2025
Active harmonic filter - 60 A 380..480 V AC - IP31 enclosure
  • Active harmonic filtering solution for industrial and heavy-duty applications
  • Wide range of application, from paper processing to oil platforms.
  • Harmonic cancellation up to the 51st rank will prolong your equipment life
  • Power factor correction for better uptime and reduce penality / maintenance cost
Be the first to review this product
Manufacturer: Square D
CAD
User guide
Instruction sheet
Product Page Link
Product Data Sheet

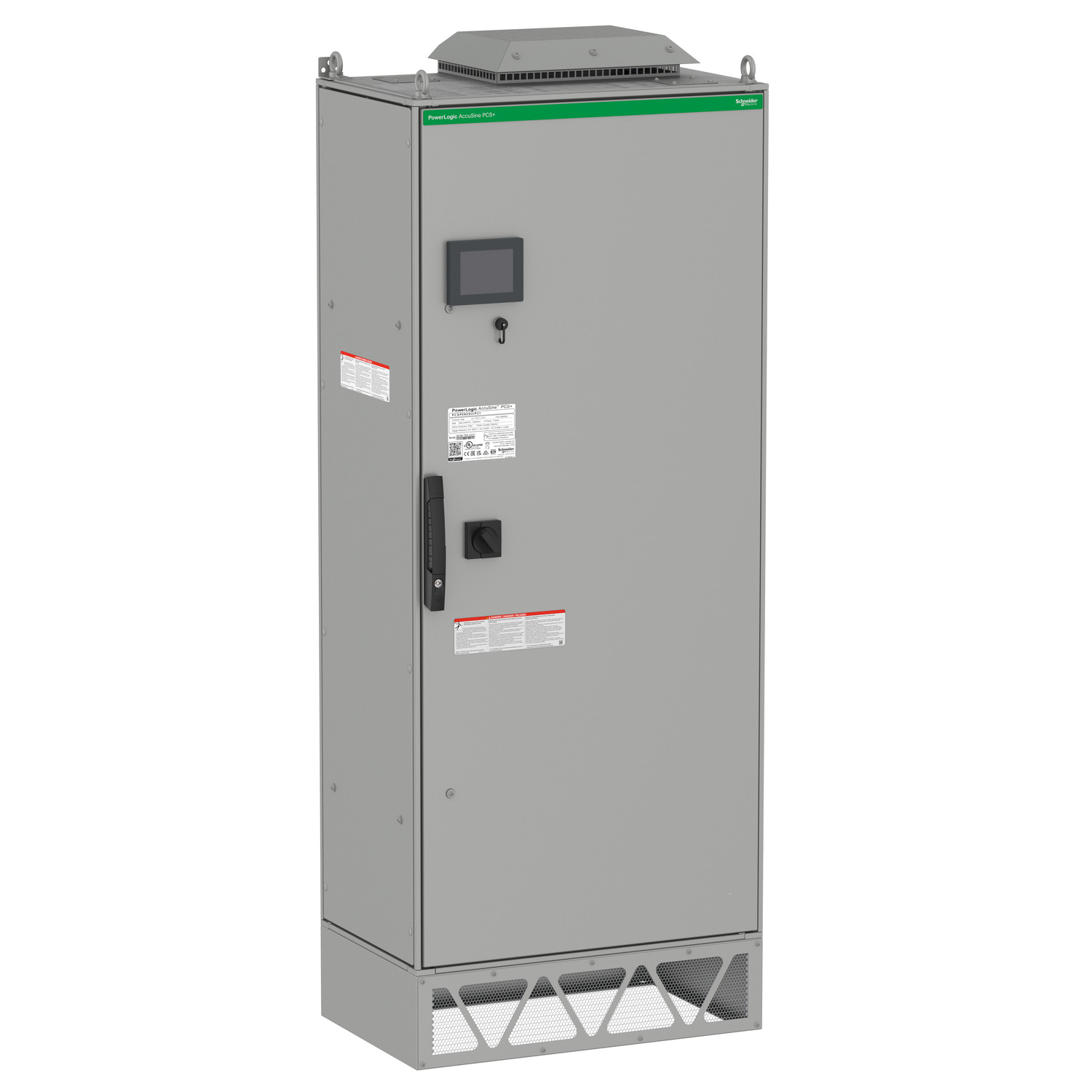

This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP31 and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 800 millimetres in width, 500 millimetres in depth, 2100 millimetres in height and product weight 277 kg.

Products specifications

Attribute name Attribute value
Main
Range AccuSine
Product name AccuSine PCS+
Product or component type active harmonic filter
Range of product AccuSine
Complementary
Wiring mode 3 or 4 wires
Maximum permissible voltage 1.1 x Un
Location of connection top or bottom
Protection type circuit breaker protection
Poles description 3P
Nominal output current 60 A
Enclosure mounting floor-standing
Neutral protection setting not provided
Network frequency 50/60 Hz +/- 3 Hz auto sensing
Function available rear plenum with forced ventilation for high heat flow
Electromagnetic compatibility conducted EMC, class A conforming to EN 61000-6-4
Control type door-interlocked with rotary handle
Mounting location indoor
Operating mode harmonic cancellation, mains current balancing, power factor correction
Network rated voltage 380-480 V AC
Breaking capacity 200 kA
Reactive power rating 50 kvar 480 V AC 50/60 Hz
Accessibility for operation front
Environment
IP degree of protection IP31
Depth 500 mm
Width 800 mm
Colour light grey (RAL 7035)
Operating altitude <= 1000 m 1 % per 100 m
Relative humidity 0-95 %
Ambient air temperature for storage -20-60 °C
Impregnation material conformal coated
Net weight 234 kg
Environmental characteristic storage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation 0-50 °C maximum with current derating of 2 % per °C, 0-40 °C
Standards UL 60947-1, UL 508, CSA C22.2 No 60947-1-07, EN 60439-1, EN 61000-6-4, CSA C22.2 No 14
Height 2100 mm
Product certifications ABS, cULus, CE, RCM
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 233.1 cm
Package 1 Width 119.4 cm
Package 1 Length 119.4 cm
Package 1 Weight 362.0 kg
