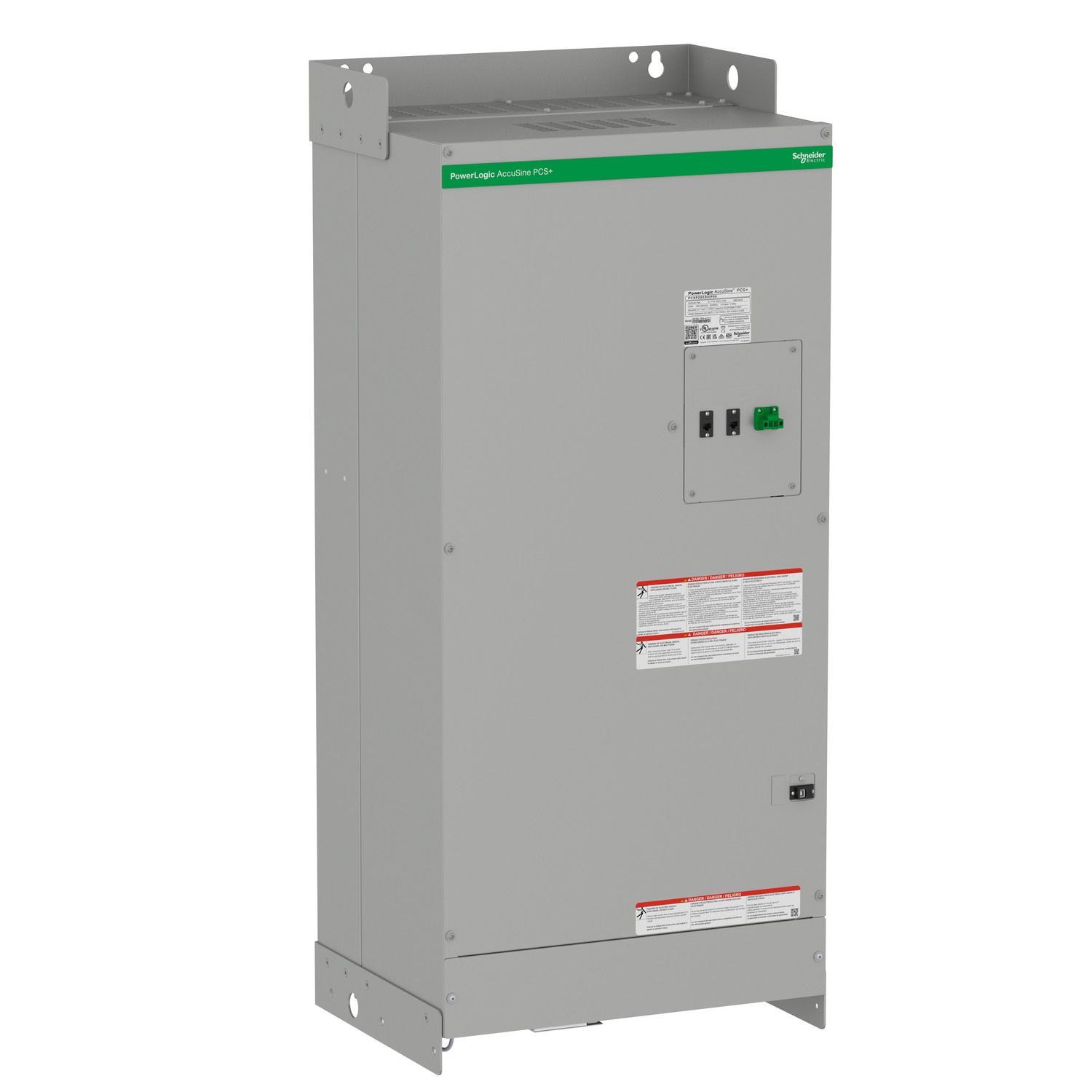

Active harmonic filter - 200 A 380..480 V AC - IP00 enclosure

$60,357.77
Available for Shipping : 16-Apr-2025
Active harmonic filter - 200 A 380..480 V AC - IP00 enclosure
  • Active harmonic filtering solution for industrial and heavy-duty applications
  • Wide range of application, from paper processing to oil platforms.
  • Harmonic cancellation up to the 51st rank will prolong your equipment life
  • Power factor correction for better uptime and reduce penality / maintenance cost
Be the first to review this product
Manufacturer: Square D
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 200 Amps. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 582 millimetres in width, 438 millimetres in depth, 1323 millimetres in height and product weight 171 kg.

Products specifications

Attribute name Attribute value
Main
Range AccuSine
Product name AccuSine PCS+
Product or component type active harmonic filter
Range of product AccuSine
Complementary
Wiring mode 3 or 4 wires
Maximum permissible voltage 1.1 x Un
Location of connection bottom
Protection type without protection
Poles description 3P
Nominal output current 200 A
Enclosure mounting wall mounted
Neutral protection setting not provided
Network frequency 50/60 Hz +/- 3 Hz auto sensing
Function available rear plenum with forced ventilation for high heat flow
Electromagnetic compatibility conducted EMC, class A conforming to EN 61000-6-4
Mounting location indoor
Operating mode mains current balancing, power factor correction, harmonic cancellation
Network rated voltage 380-480 V AC
Reactive power rating 166 kvar 480 V AC 50/60 Hz
Accessibility for operation front
Environment
IP degree of protection IP00
Depth 438 mm
Width 582 mm
Colour light grey (RAL 7035)
Operating altitude <= 1000 m 1 % per 100 m
Relative humidity 0-95 %
Ambient air temperature for storage -20-60 °C
Impregnation material conformal coated
Net weight 175 kg
Environmental characteristic storage: 3S3 conforming to IEC 60721-3-3, storage: 3C3 conforming to IEC 60721-3-3, operating: 3S2 conforming to IEC 60721-3-3, operating: 3C2 conforming to IEC 60721-3-3
Ambient air temperature for operation 0-50 °C maximum with current derating of 2 % per °C, 0-40 °C
Standards UL 508, UL 60947-1, EN 60439-1, CSA C22.2 No 14, CSA C22.2 No 60947-1-07, EN 61000-6-4
Height 1323 mm
Product certifications ABS, RCM, DNV-GL, CE, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 70.700 cm
Package 1 Width 73.800 cm
Package 1 Length 174.200 cm
Package 1 Weight 235.000 kg
