SKU:

PFXGP4501TADC

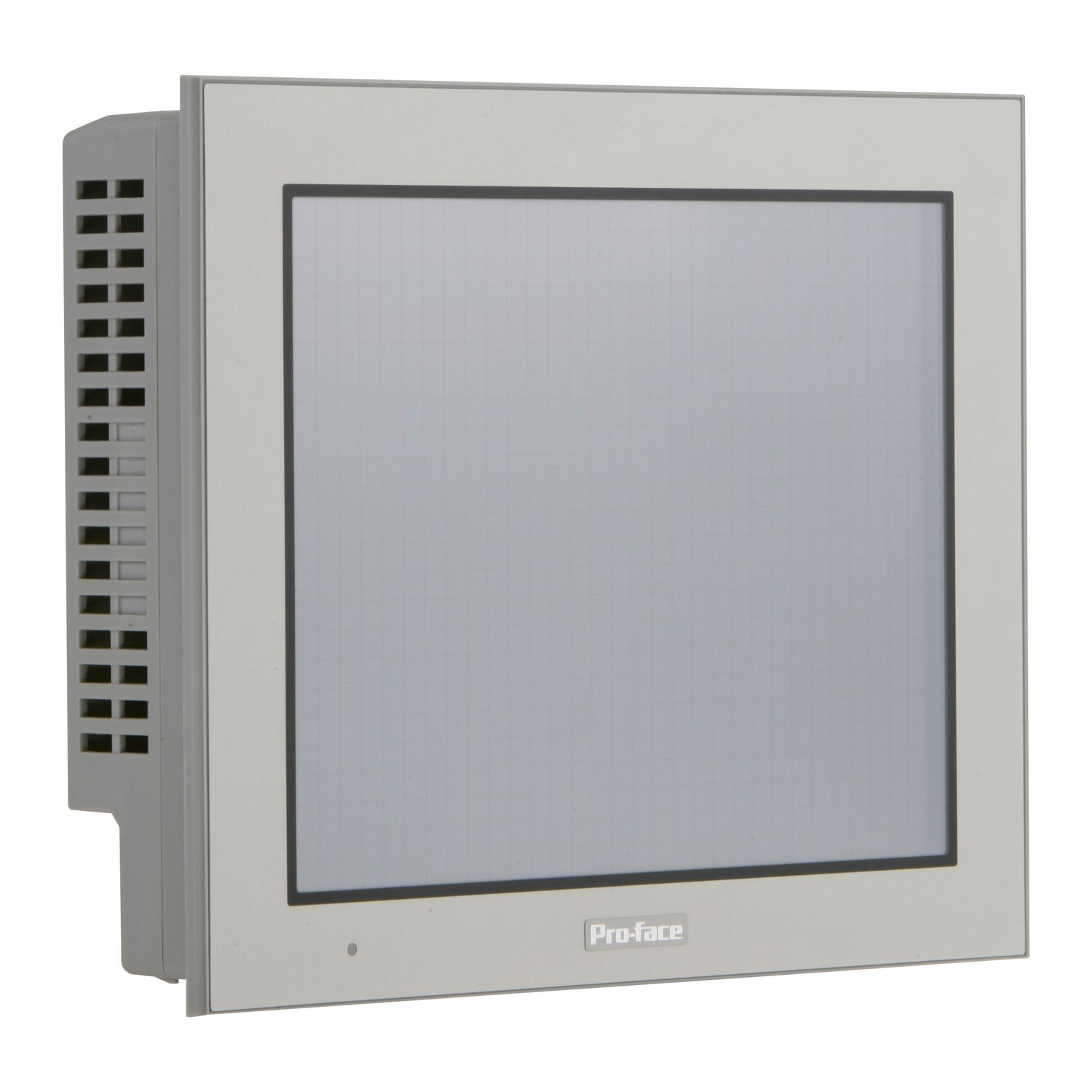

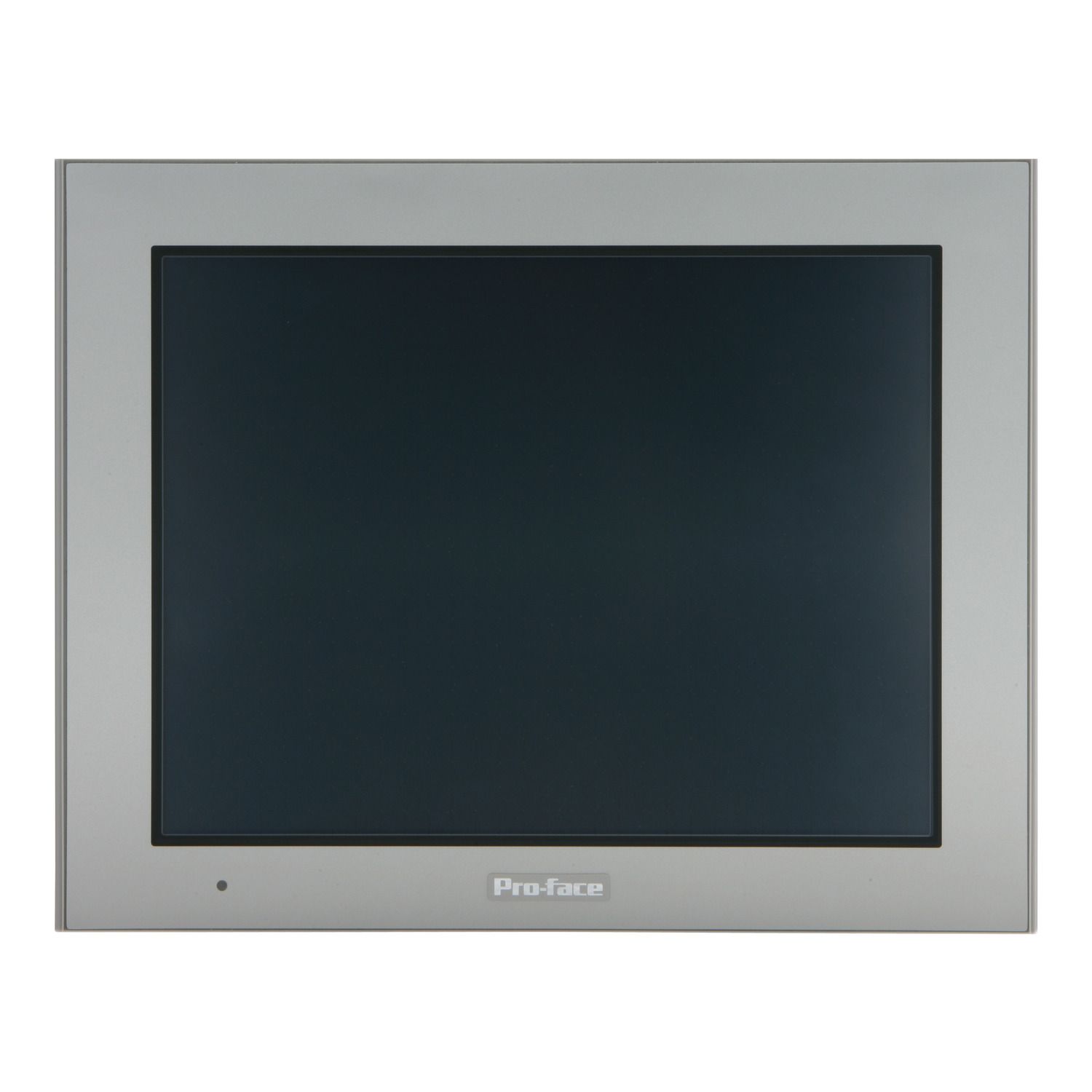

10.4 touch panel display, VGA, Analog-Single, 2xCOM, ETH, USB A & mini-B, SD, 24VDC, Coated

$7,514.69 INC GST
Available for Shipping : 02-Apr-2025
10.4 touch panel display, VGA, Analog-Single, 2xCOM, ETH, USB A & mini-B, SD, 24VDC, Coated
Manufacturer: ProFace
This product belongs to Pro-face Standard HMI, GP4000 Series. The GP4000 series has high connectivity with a wide range of industrial controllers and provides a variety of lineups in different sizes. It has a 10.4" color TFT LCD with 640 x 480 pixels (VGA) and 65,536 colors. The touch panel type is a resistive film (analog). It is equipped with 32MB application memory and 320KB backup memory. This can be easily programmed with GP-Pro EX software, with almost no coding. It also has 1x RS-232C/RS-422/RS-485 port, 1x host port, 1x mini-B USB port, 1x Ethernet port, and 1x SD card slot. Its dimensions are 272.5mm (width) x 214.5mm (height) x 57mm (depth) and weighs 2.0kg. This product works at a power consumption of 17W and a rated voltage of 24V DC. The screen displays text messages and graphic objects and mimics diagrams, control, and configuration of data. It is ideal for industry and infrastructure such as compact machines, handling systems, food & beverage machines, and the pharmaceutical industry. It conforms to standards like CE, UKCA, UL, cUL, KC, RCM, EAC, IECEx, ATEX, UK Ex, CCC Ex, KCs. It also conforms to Marine standards like ABS, BV, CCS, DNV, LR, RINA, KRS and Class NK.

Products specifications

Attribute name Attribute value
Main
Range of product Pro-face GP4000
Software designation GP-Pro EX
Product or component type touch panel screen
Complementary
Memory description backup memory 320 kB, user data memory 32 MB
Character font Thai, Cyrillic, Korean, Chinese (traditional Chinese), Chinese (simplified Chinese), ASCII, Japanese
Display type colour TFT LCD
Display colour 65536 colours
Display size 10.4 inch
Type of cooling AN (air natural)
Input voltage limits 19.2...28.8 V DC
Backlight lifespan 50000 hours with white
Fixing mode by 4 screws, mounting on 1.6...5 mm thick panel
Electrical connection cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Height 214.5 mm
Maximum power consumption in W 8 W backlight dimmed (brightness: 20%), 7 W backlight off (standby mode), 12 W when power is not supplied to external devices, 17 W
Depth 57 mm
Width 272.5 mm
Integrated connection type Ethernet 1 RJ45, interface: 10BASE-T/100BASE-TX, USB 2.0 type mini B, USB 2.0 type A, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with MPI, COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps, COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
Local signalling status LED red, flashing for ERR (Error), status LED red, steady for power ON, status LED orange, flashing for software starting up, status LED green, flashing for logic stop, status LED green, steady for operating status (RUN), status LED green, steady for offline
Touch panel single touch analogue resistive
Rated short-duration power frequency withstand voltage 1000 V AC during 1 min
Net weight 2 kg
Display resolution 640 x 480 pixels VGA
Inrush current 30 A
Brightness 16 levels by software, 16 levels via touch panel
[Us] rated supply voltage 24 V DC
Environment
Environmental characteristic corrosive gas free
Directives 2015/863/EU - RoHS directive, 2011/65/EU - RoHS, 2012/19/EU - WEEE directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65f (front panel (in enclosure))
Electromagnetic compatibility electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Pollution degree 2
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA 4X front panel (in enclosure)
Shock resistance 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance > 10 MOhm
Standards CSA C22.2 No 213 Class I Division 2, ANSI/ISA 12.12.01, CSA C22.2 No 142, UL 508, IEC 61000-6-2, EN 61000-6-4
Product certifications NK, CCS, RINA, BV, LR, ABS, DNV, EAC, RCM, CCC Ex, KC, UKEX, UKCA, CE, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.3 cm
Package 1 Width 30.4 cm
Package 1 Length 35.8 cm
Package 1 Weight 2.622 kg
Unit Type of Package 2 2
Number of Units in Package 2 1
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 3.445 kg
