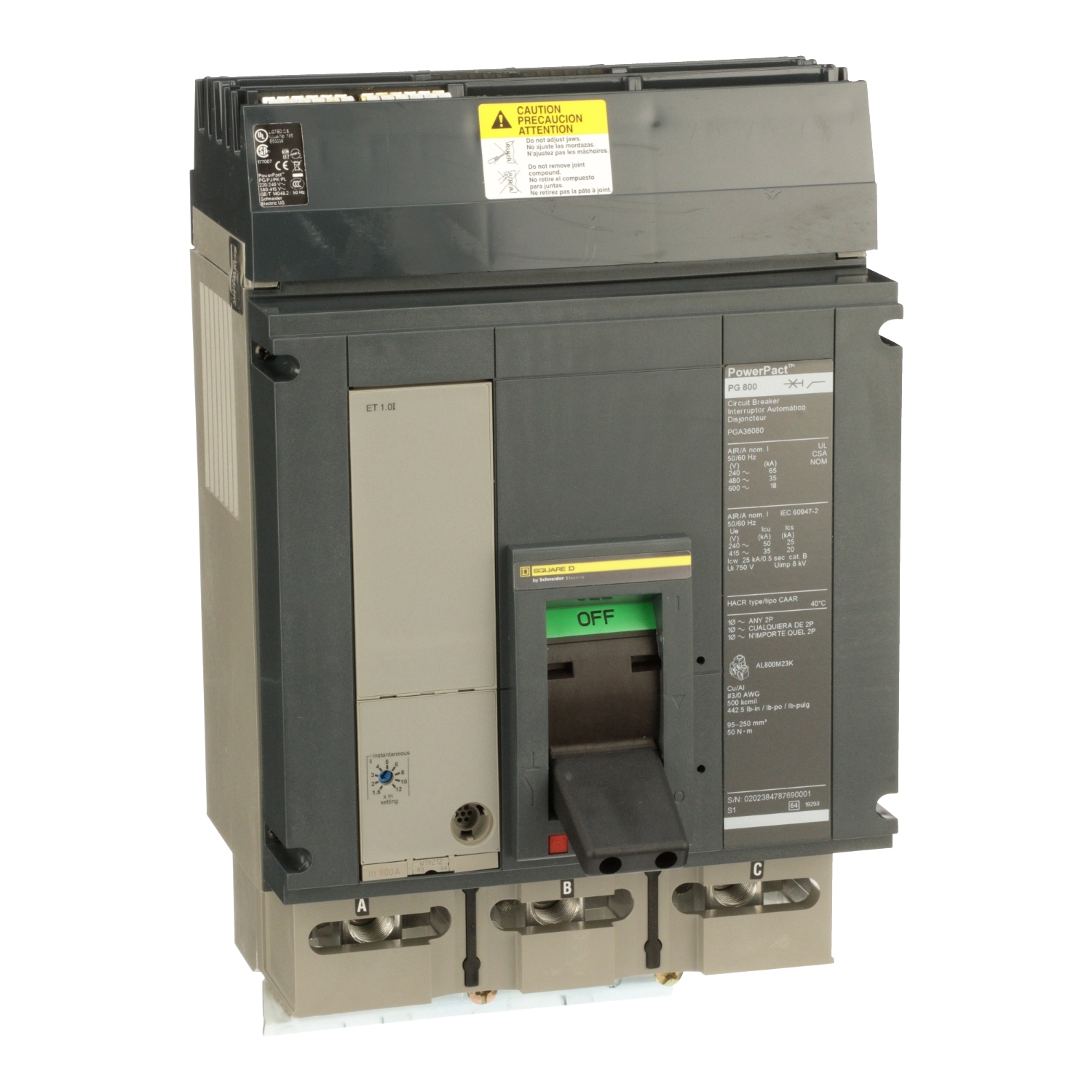

Picture of Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 18kA, I-Line, ET1.0l, 80%, ABC
SKU:

PGA36080

Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 18kA, I-Line, ET1.0l, 80%, ABC

$40,418.40 INC GST
Available for Shipping : 07-Apr-2025
Circuit breaker, PowerPacT P, 800A, 3 pole, 600VAC, 18kA, I-Line, ET1.0l, 80%, ABC
  • Available in 2, 3, 4 pole design
  • Common mounting holes, handle locations and trim dimensions for design standardization
  • Common accessories across the range
  • Used as main panel disconnect for control panel
  • UL 489 Listed, CSA NMX, IEC certified for world wide applications
Be the first to review this product
Manufacturer: Square D
End of life manual
CAD
Technical illustration
Product environmental
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
Providing unparalleled performance and control, the P-frame circuit breakers features the exclusive Micrologic electronic trip units, which allow for a range of sophisticated applications for metering and monitoring. In addition, trip units can be interchanged in the field to allow for maximum flexibility. The compact size and small footprint of the P-frame circuit breaker permits high density installations in I-Line panelboards and switchboards. These circuit breakers are available in 100% rated construction for all unit-mount circuit breakers and up to 800A in I-Line circuit breakers to meet a broad range of commercial and industrial application needs. The P-frame circuit breakers with K interrupting rating are recommended for applications having high inrush and/or non-linear loads such as large motors, transformers, motors with soft starts, etc. Most field-installable accessories are common to all frame sizes for easier stocking and installation. Selection of four interchangeable Micrologic trip units available, with Powerlogic power metering and monitoring capabilities available in advanced trip units. This PowerPact P, circuit breaker has a rated currrent of 800A and a rated operational current of 600VAC with a breaking capacity of 18 kA@600VAC. This I-Lineed breaker is a 3-pole and has a continuous current rating of 80 %. This breaker has an electronic trip unit technology and a ET 1.0I trip unit. Dimensions for this product are 12.86 in (H), 8.05 in (W), 8.27 in (D). This product comes with an 18 month warranty.
