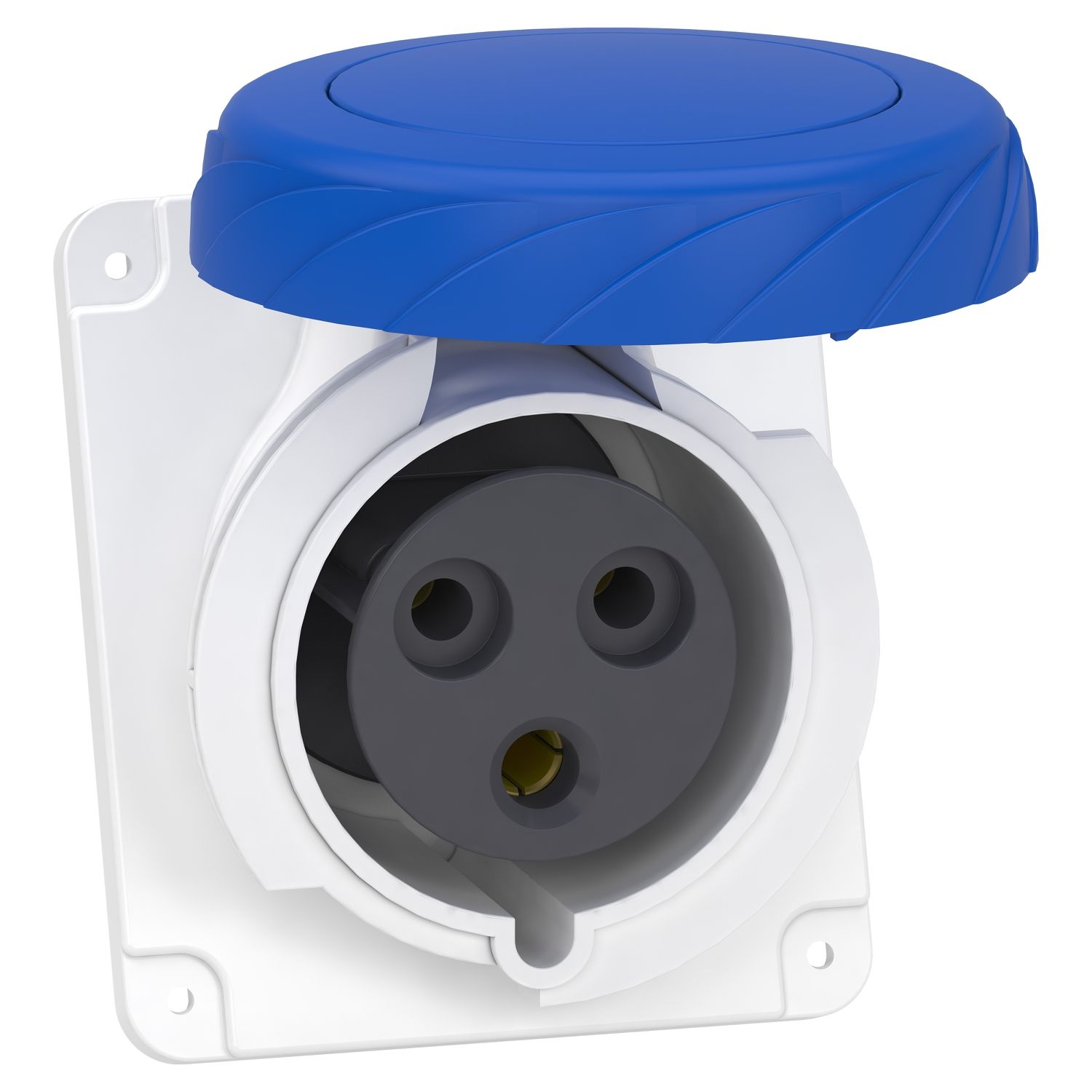

Picture of Socket, Mureva PK, panel-mounted, fast connection, 32A, 2P+E, 220V, IP67
SKU:

PKY32F723

Socket, Mureva PK, panel-mounted, fast connection, 32A, 2P+E, 220V, IP67

Please Contact Sales to buy this Product. click here
Socket, Mureva PK, panel-mounted, fast connection, 32A, 2P+E, 220V, IP67
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This Pratika industrial socket with fast connection connection is angled panel mounted. It has 2P+E poles, rated current is 32A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 95mm x (H) 100mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 6mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Products specifications

Attribute nameAttribute value
Main
Device short nameMureva socket
Plug, socket categorylow voltage
Outlet standardindustrial
RangeMureva
Poles description2P + E
Product nameMureva Industrial Socket
Product or component typesocket
Network typeAC
Complementary
Colourgrey (RAL 7035)
Compatibility codeMureva socket
Cable cross section2.5-6 mm²
Mounting modepanel-mounted
Plug, socket materialhousing: self-extinguishing engineering polymer
Base dimension90 x 100 mm
Plug, socket, control station shapeangled
Contacts materialsleeves: brass
Height100 mm
[Ue] rated operational voltage200...250 V
Depth118 mm
Market segmentsmall commercial
Width95 mm
[In] rated current32 A
Voltage colourblue
Net weight0.24 kg
Ground lug clockwise position6 h
Connections - terminalsfast connection
Network frequency50/60 Hz
Environment
Fire resistance850 °C conforming to IEC 60695-2-1
Relative humidity90-90 % at 20-20 °C, 70-70 % at 30-30 °C, 50-50 % at 40-40 °C
IP degree of protectionIP67 conforming to IEC 60529
Ambient air temperature for operation35-35 °C ( 86400 s )
IK degree of protectionIK08 conforming to EN 62262
StandardsIEC 60309-2, IEC 60309-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height10 cm
Package 1 Width9.9 cm
Package 1 Length7 cm
Package 1 Weight222 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height18.2 cm
Package 2 Width26.4 cm
Package 2 Length26.8 cm
Package 2 Weight1.776 kg
Unit Type of Package 33
Number of Units in Package 316
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight3.99 kg
