SKU:

RE17LCBM

Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, off delay, solid state output, 24...240V AC

Old price: $175.89 INC GST
$167.10 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, off delay, solid state output, 24...240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Instruction sheet
Environmental Disclosure
Declaration of conformity
Catalog
Circularity Profile
Image of product in real life situation
Product Page Link
Product Data Sheet

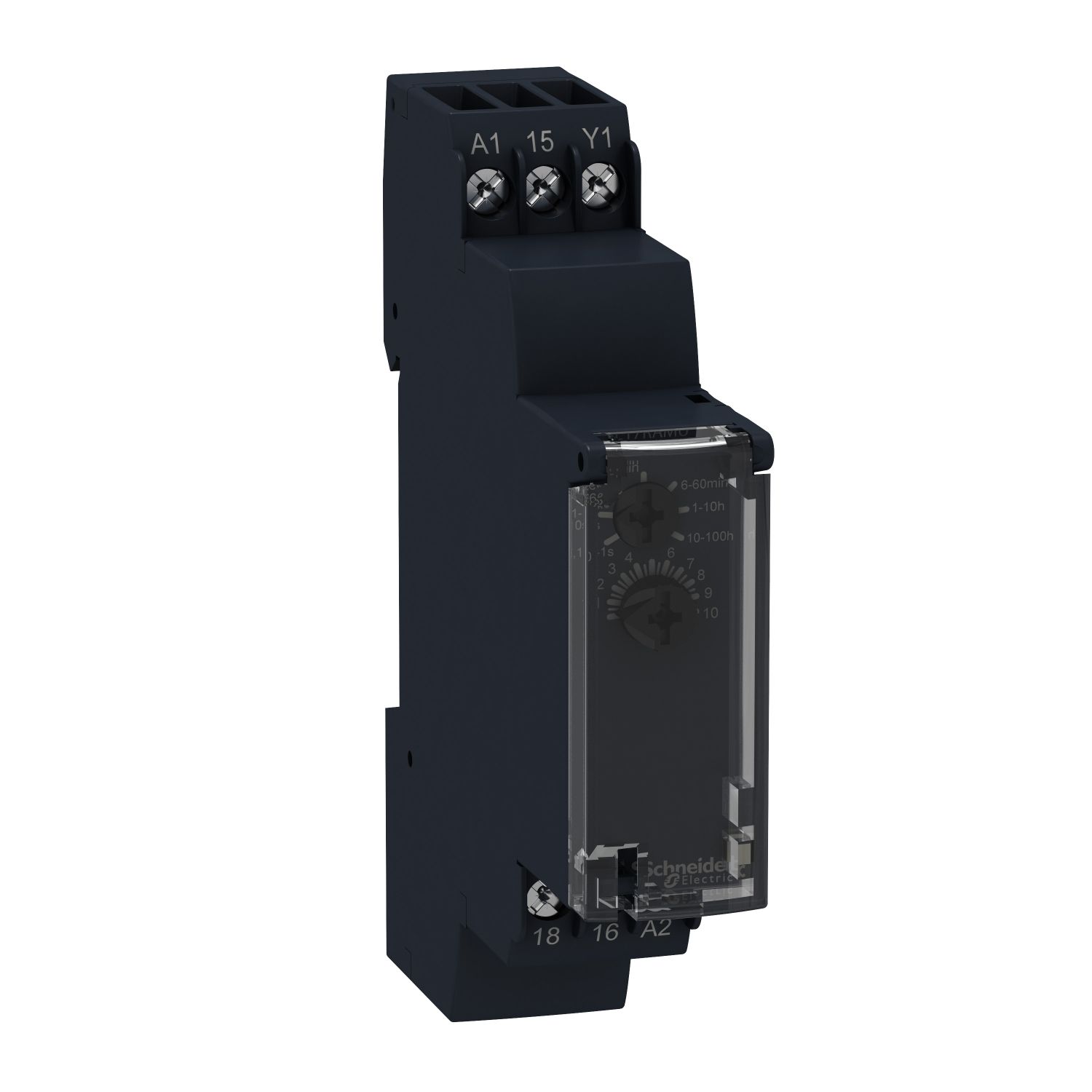

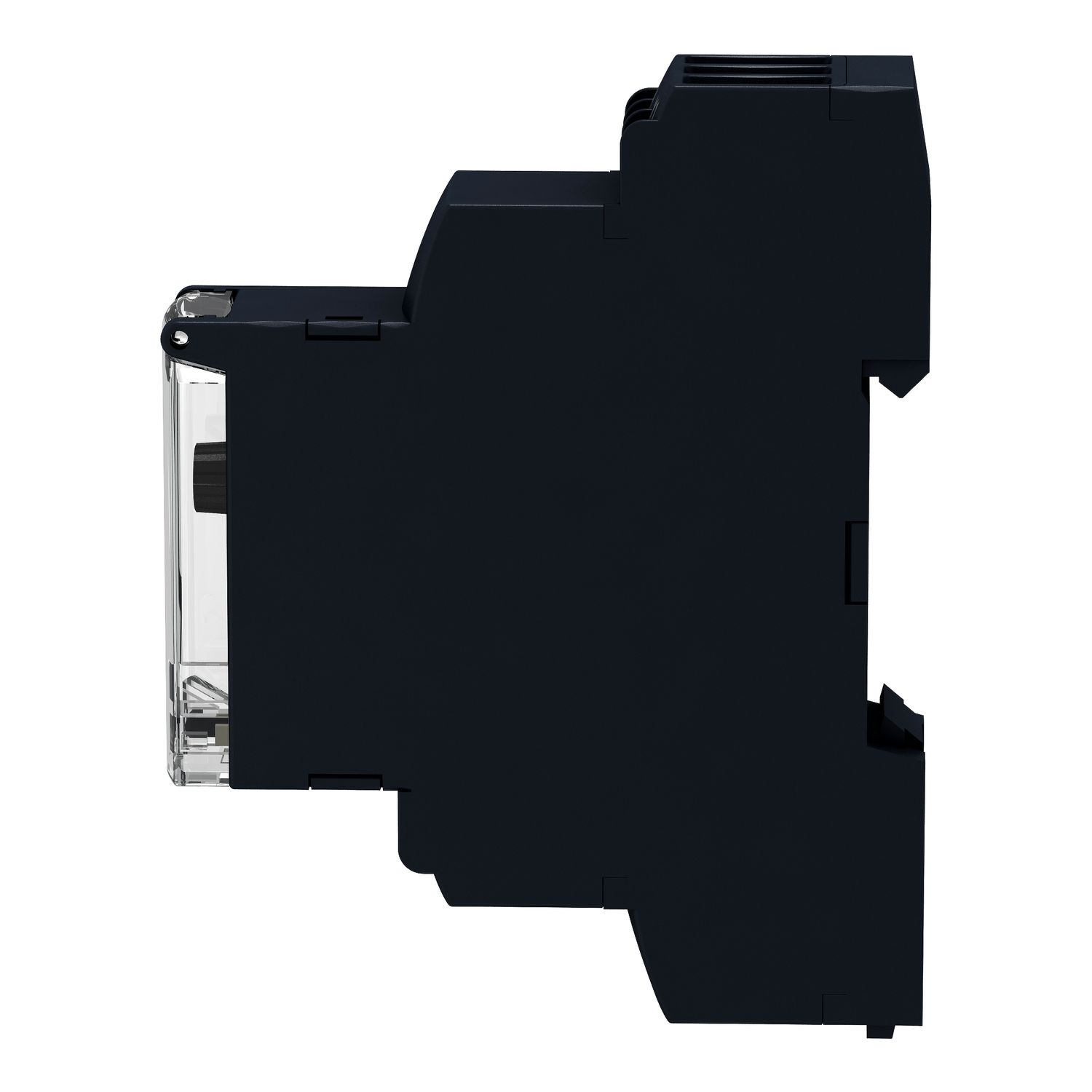

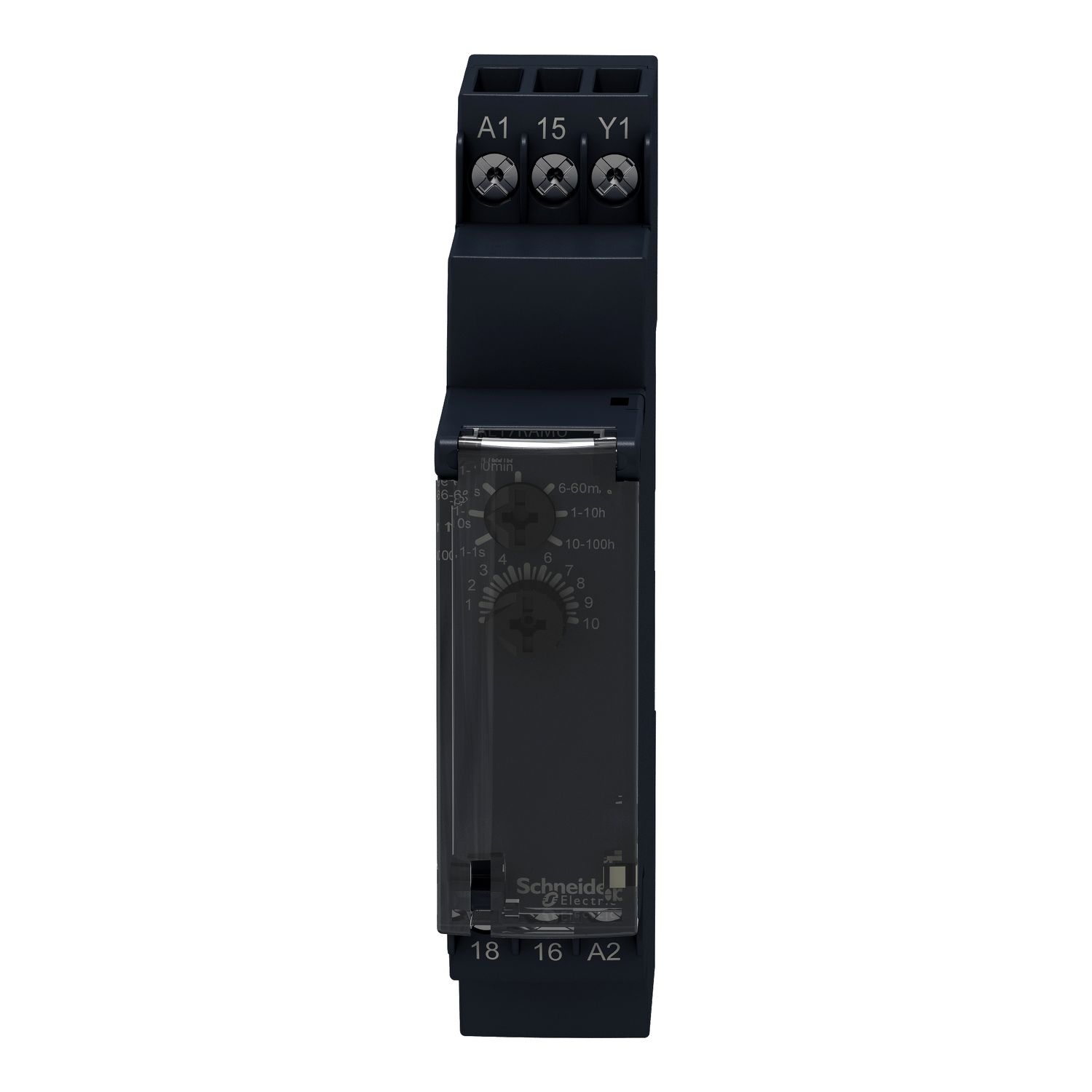

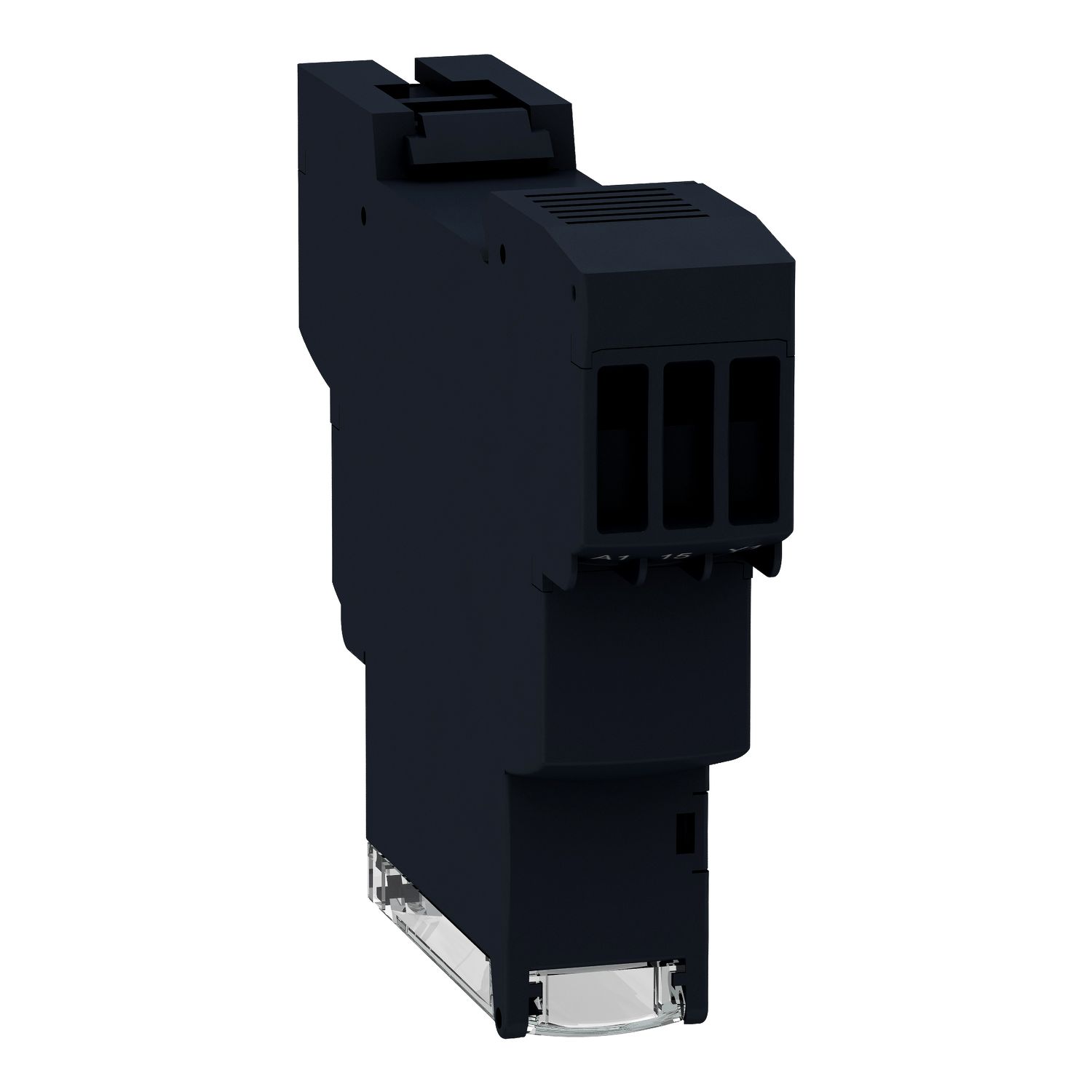

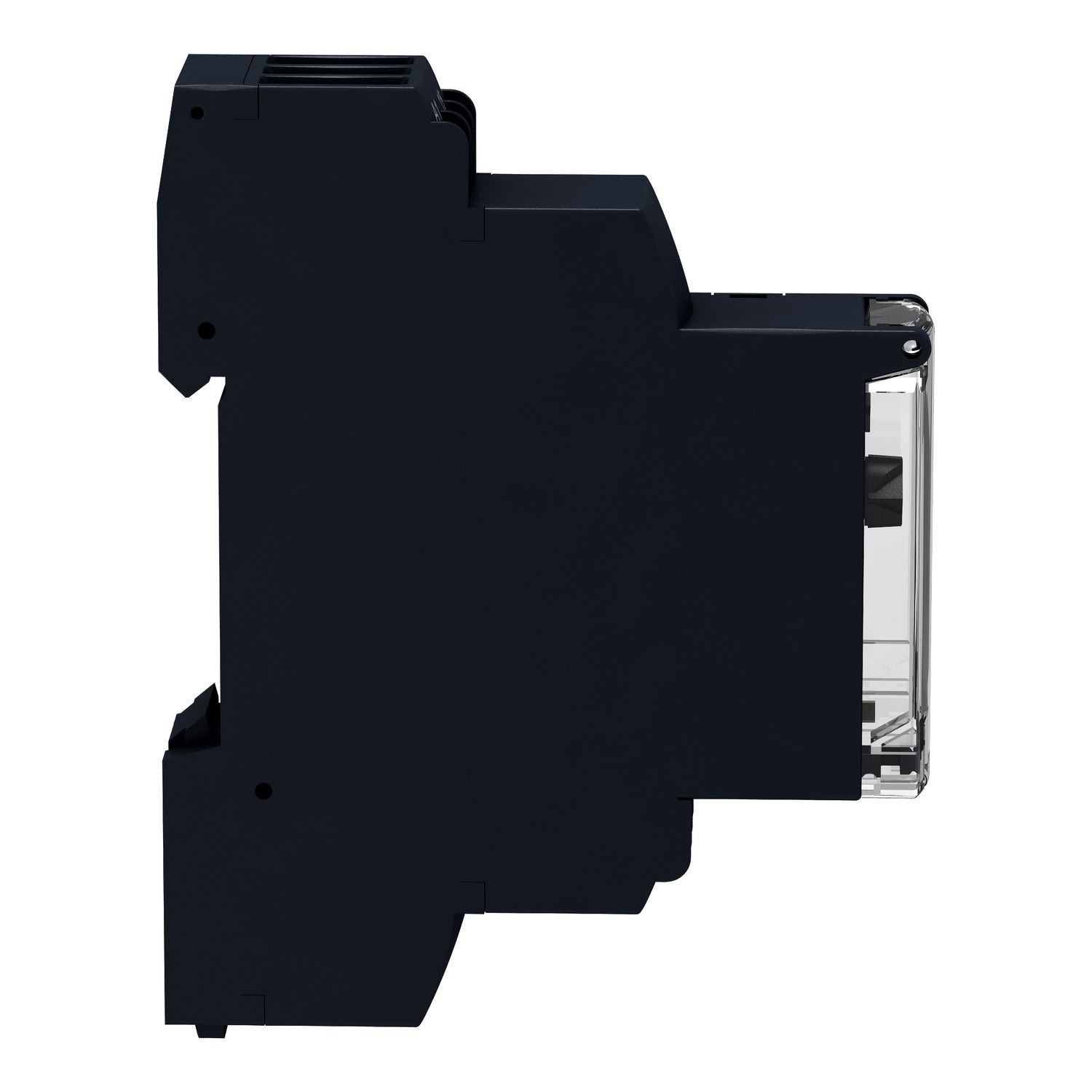

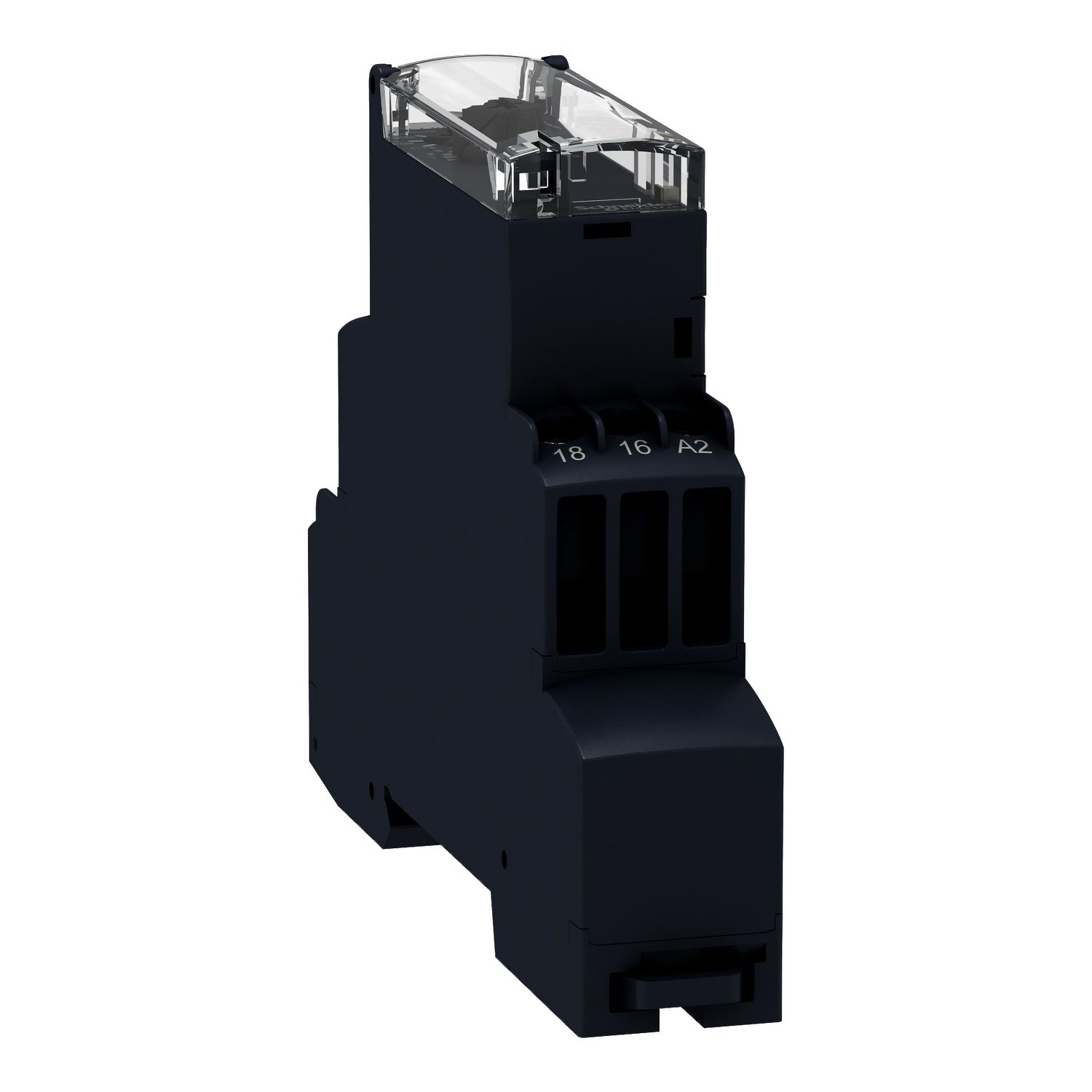

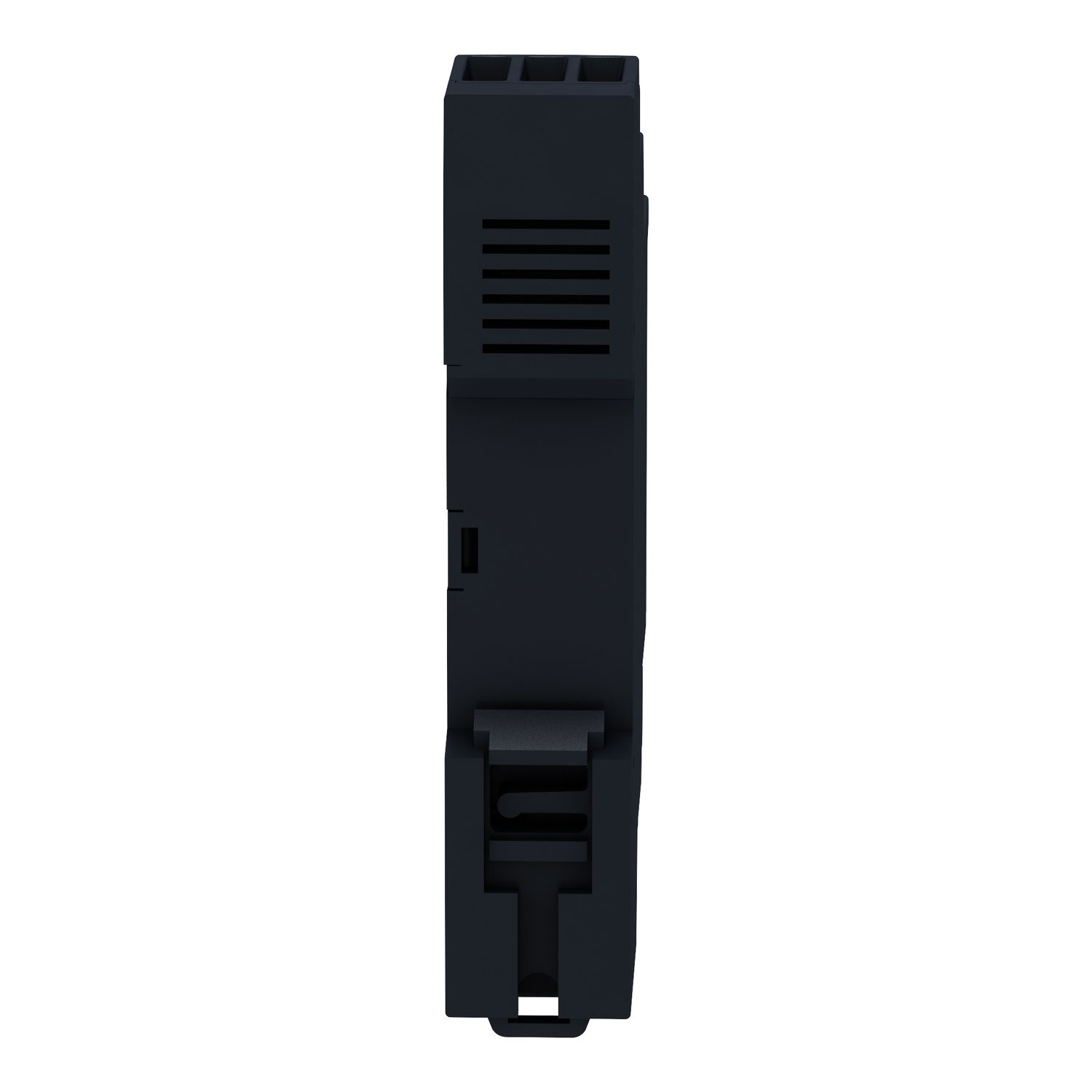

This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Time delay type off-delay
Output type solid state
Nominal output current 0.7 A
Component name RE17L
[Uc] control circuit voltage 24...240 V
Range of product Harmony Timer Relays
Discrete output type solid state
Width 17.5 mm
[In] rated current 0.7 A
Time delay range 0.1...1 s, 1...10 min, 1...10 s, 1...10 h, 6...60 min, 6...60 s, 10...100 h
Product or component type single function relay
Connections - terminals screw connectors
Complementary
[Uimp] rated impulse withstand voltage 5 kV during 1.2/50 µs
On-load factor 100 %
Compatibility code RE17
Maximum output current 20 A
[Us] rated supply voltage 24...240 V AC 50/60 Hz
Temperature drift +/- 0.05 %/°C
Functionality off-delay timing
Maximum switching voltage 250 V AC
Voltage range 0.85...1.1 Us
Insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Safety reliability data B10d = 320000, MTTFd = 353.8 years
Repeat accuracy +/- 0.5 % conforming to IEC 61812-1
Electrical durability 100000000 cycles
Maximum leakage current 5 mA
Impulse duration 0.05 s typical
Housing material self-extinguishing
Mounting support 35 mm DIN rail conforming to IEC 60715
Minimum switching current 10 mA
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Mounting position any position in relation to normal vertical mounting plane
Maximum voltage drop <8 V 2-wire,  <4 V 3-wire
Net weight 0.068 kg
Operating rate in Hz 10 Hz
Reset time 350 ms on de-energisation typical
Creepage distance 4 kV/3 conforming to IEC 60664-1
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Marking CE
Power consumption in VA 0-3 VA at 240 V AC
Control type selector switch front panel
Maximum delay response 100 ms
Supply frequency 50...60 Hz +/- 5 %
Breaking capacity 0.7 A AC at 20 °C, 0.5 A AC conforming to UL
Time delay type C
Input voltage 7 V
Voltage drift +/- 0.2 %/V
Dielectric strength 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
Environment
Ambient air temperature for storage -30-60 °C
Immunity to microbreaks 20 ms
Derating factor 5 mA/°C
Product certifications cULus, GL, CSA
Relative humidity 93-93 % without condensation conforming to IEC 60068-2-30
IP degree of protection IP50 (front panel) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Electromagnetic compatibility conducted and radiated emissions: , class B, conforming to EN 55022, voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11, voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11, conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4, electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3, electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2, electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2
Ambient air temperature for operation -20-60 °C
Vibration resistance 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 61000-6-1, IEC 61000-6-4, IEC 61812-1, IEC 61000-6-2, 2006/95/EC, IEC 61000-6-3, 2004/108/EC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.7 cm
Package 1 Width 7.8 cm
Package 1 Length 9.5 cm
Package 1 Weight 71.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.348 kg
