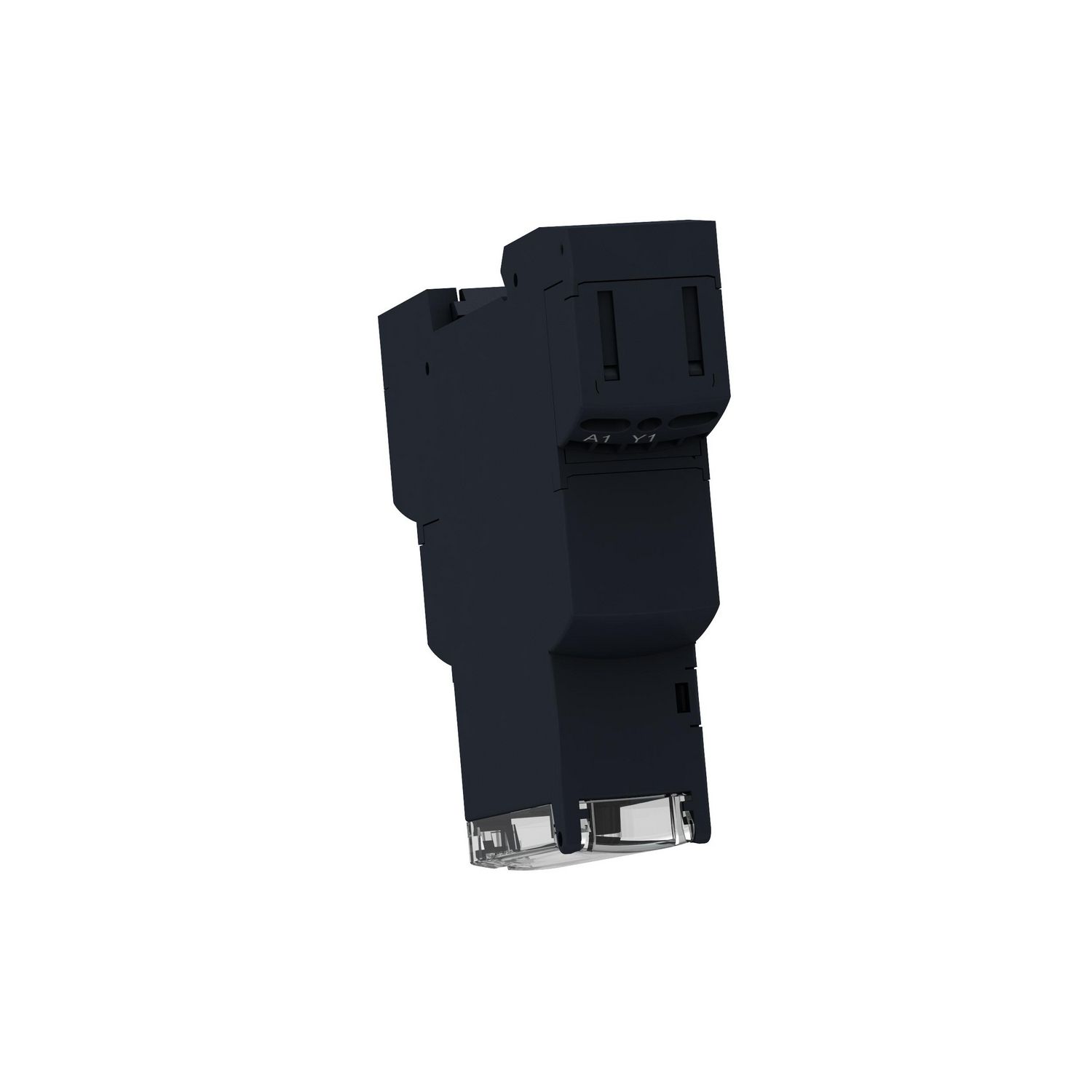

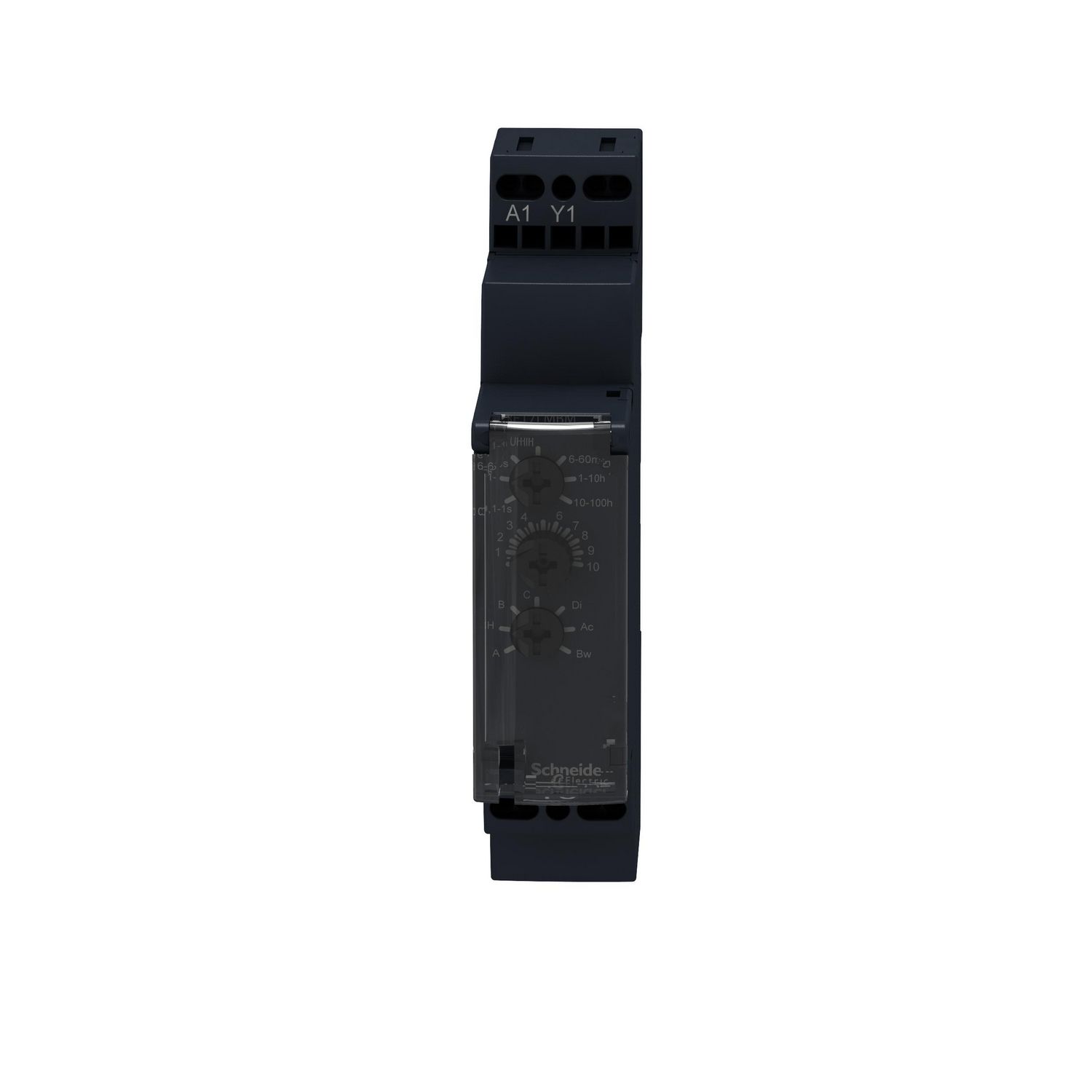

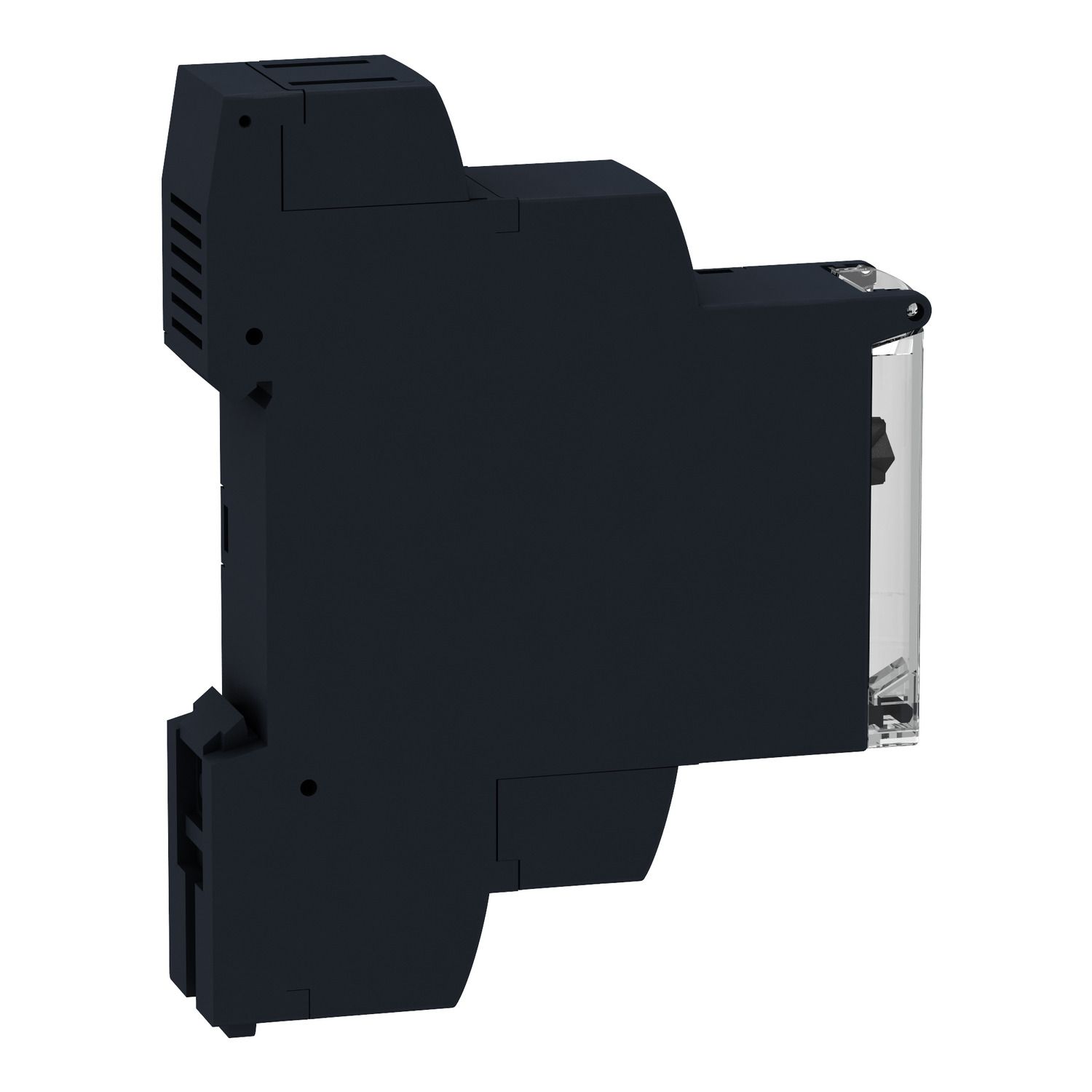

Picture of Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, multifunction, solid state output, 24...240V AC

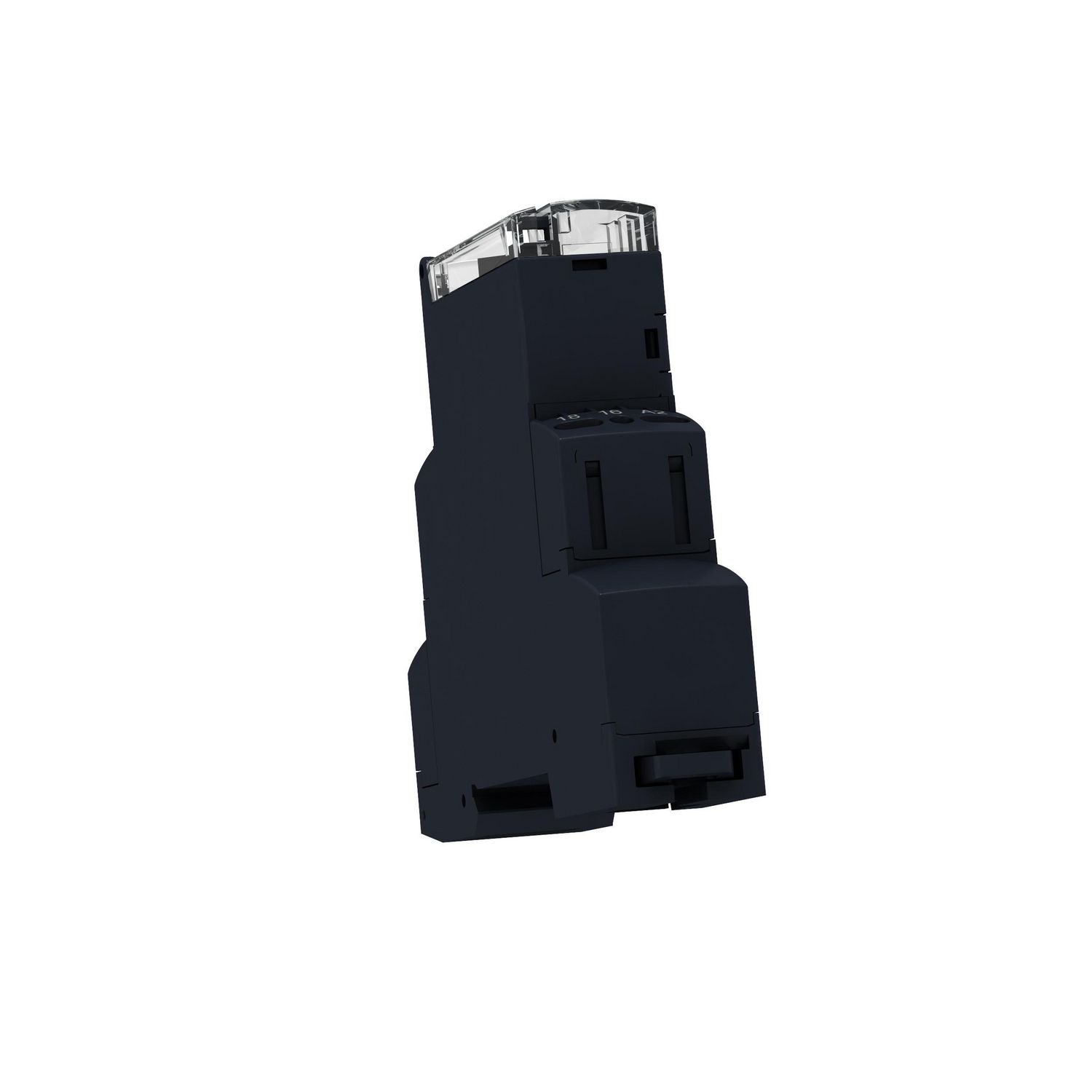

Picture of Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, multifunction, solid state output, 24...240V AC

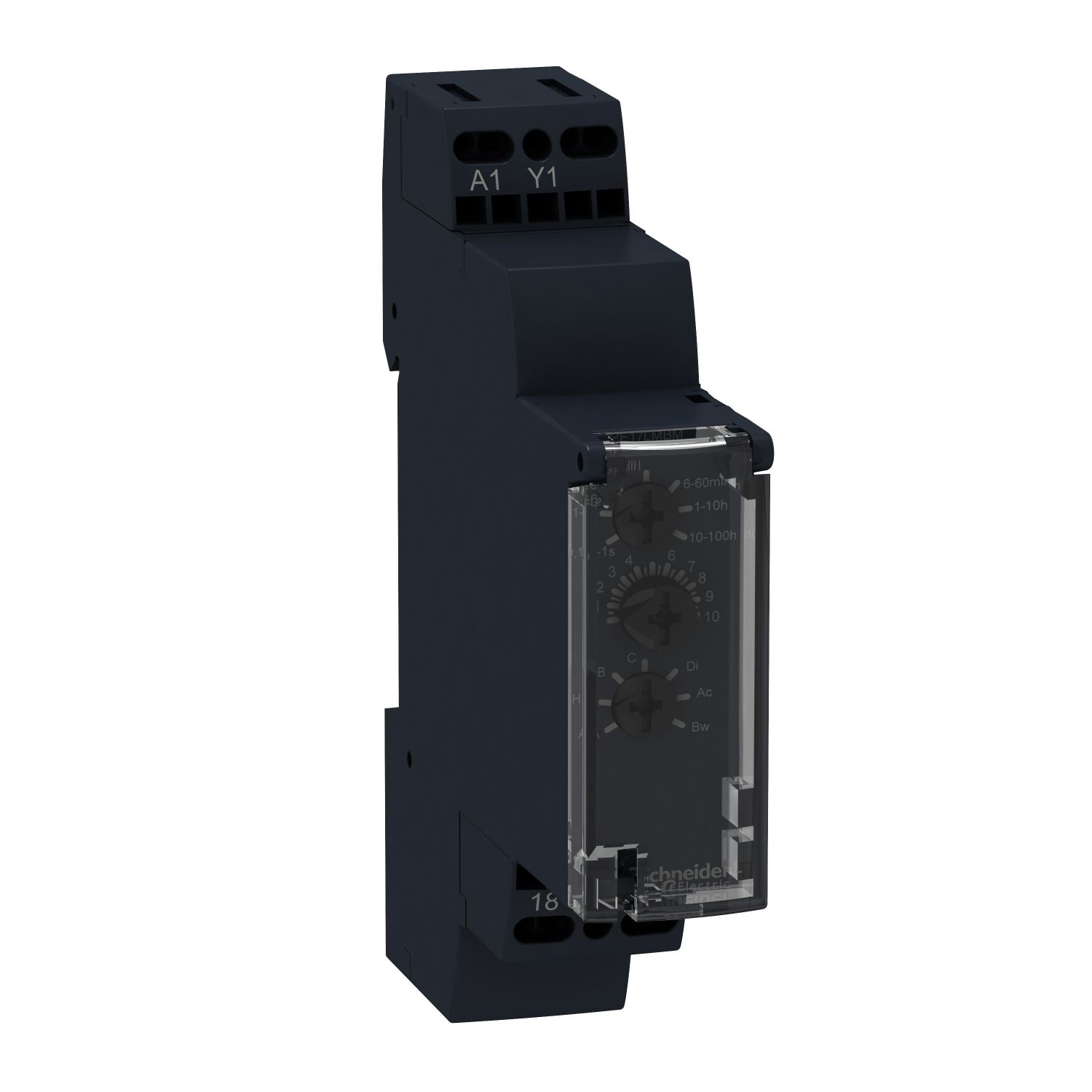

Picture of Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, multifunction, solid state output, 24...240V AC

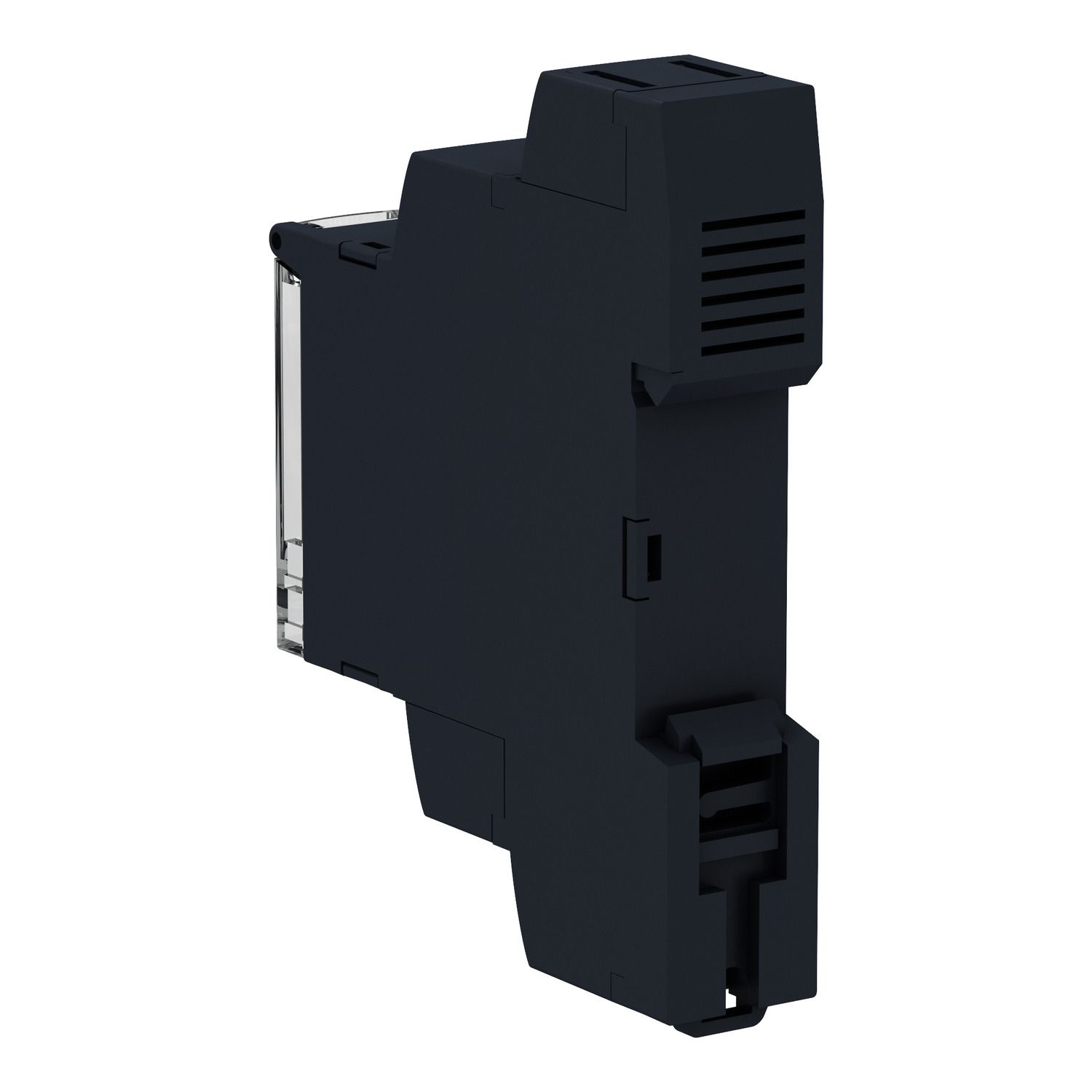

Picture of Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, multifunction, solid state output, 24...240V AC

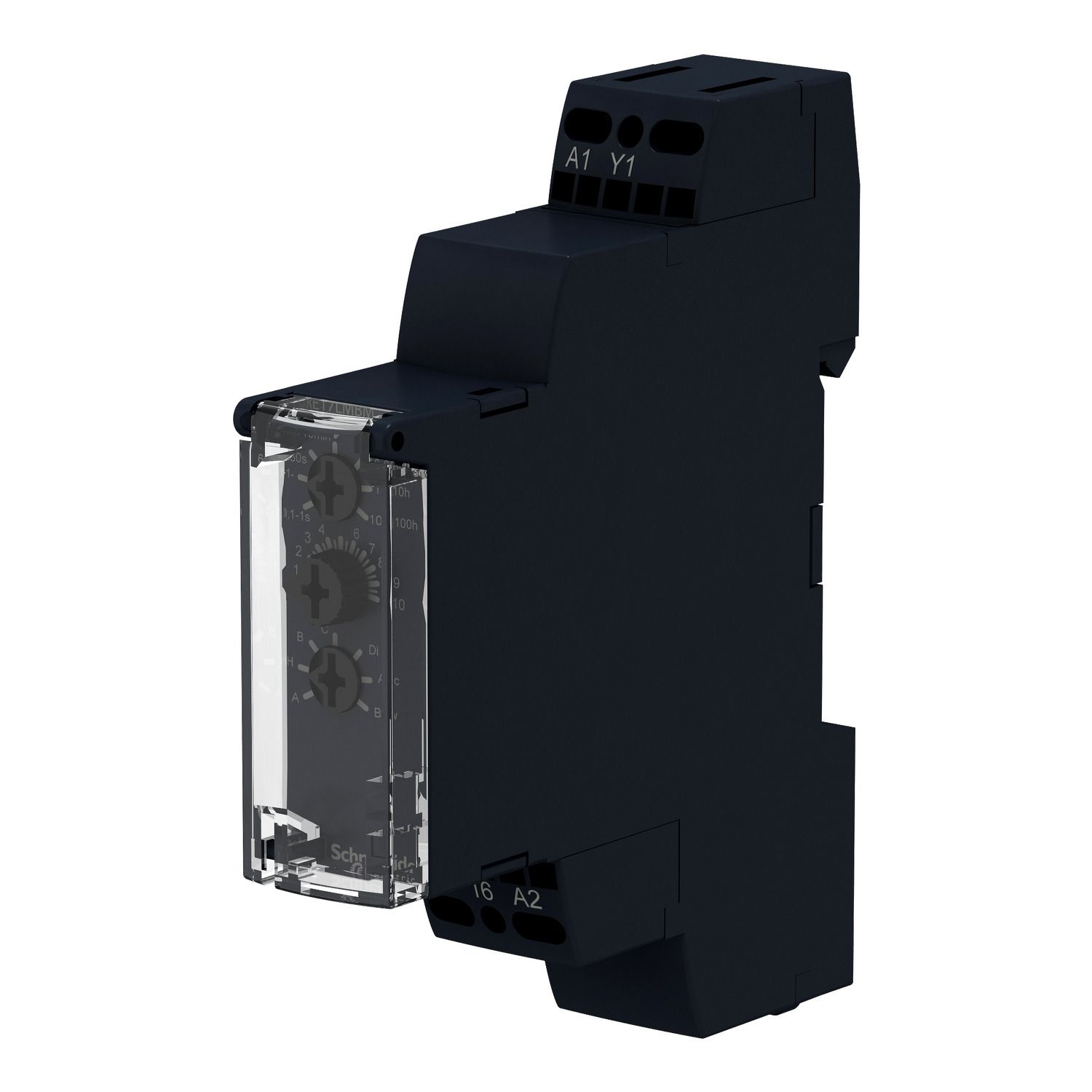

Picture of Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, multifunction, solid state output, 24...240V AC
SKU:

RE17LMBM

Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, multifunction, solid state output, 24...240V AC

$180.10
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Harmony Timer Relays, Modular timing relay, 0.7A, 1s..100h, multifunction, solid state output, 24...240V AC
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Technical illustration
Declaration of conformity
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 24...240 V
Time delay type symmetrical flashing, off-delay, interval, on-delay and off-delay, power on-delay
Range of product Harmony Timer Relays
Discrete output type solid state
Output type solid state
Width 17.5 mm
[In] rated current 0.7 A
Nominal output current 0.7 A
Time delay range 0.1...1 s, 1...10 min, 10...100 h, 1...10 h, 6...60 min, 6...60 s, 1...10 s
Component name RE17L
Product or component type multifunction relay
Connections - terminals screw connectors
Complementary
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 5 kV during 1.2/50 µs
On-load factor 100 %
Compatibility code RE17
Maximum output current 20 A
[Us] rated supply voltage 24...240 V AC 50/60 Hz
Temperature drift +/- 0.05 %/°C
Functionality multifunction
Maximum switching voltage 250 V AC
Voltage range 0.85...1.1 Us
Marking CE
Power consumption in VA 0-3 VA at 240 V AC
Insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
Control type selector switch front panel
Maximum delay response 100 ms
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Safety reliability data B10d = 320000, MTTFd = 353.8 years
Repeat accuracy +/- 0.5 % conforming to IEC 61812-1
Supply frequency 50...60 Hz +/- 5 %
Breaking capacity 0.7 A AC at 20 °C, 0.5 A AC conforming to UL
Electrical durability 100000000 cycles
Time delay type A, Ac, At, B, Bw, C, D, Di, H, Ht
Maximum leakage current 5 mA
Impulse duration 0.05 s typical
Housing material self-extinguishing
Mounting support 35 mm DIN rail conforming to IEC 60715
Minimum switching current 10 mA
Input voltage 8 V
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Voltage drift +/- 0.2 %/V
Mounting position any position in relation to normal vertical mounting plane
Maximum voltage drop <8 V 2-wire,  <4 V 3-wire
Net weight 0.068 kg
Operating rate in Hz 10 Hz
Reset time 350 ms on de-energisation typical
Dielectric strength 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
Maximum power consumption in W 1.5 W at 240 V DC
Creepage distance 4 kV/3 conforming to IEC 60664-1
Environment
Relative humidity 93-93 % without condensation conforming to IEC 60068-2-30
Ambient air temperature for storage -30-60 °C
IP degree of protection IP50 (front panel) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Electromagnetic compatibility conducted and radiated emissions: , class B, conforming to EN 55022, voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11, voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11, conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4, electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3, electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2, electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2
Immunity to microbreaks 20 ms
Ambient air temperature for operation -20-60 °C
Derating factor 5 mA/°C
Vibration resistance 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 61000-6-3, 2006/95/EC, IEC 61000-6-1, IEC 61000-6-4, IEC 61812-1, IEC 61000-6-2, 2004/108/EC
Product certifications CSA, cULus, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.8 cm
Package 1 Width 7.8 cm
Package 1 Length 9.4 cm
Package 1 Weight 72.0 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.222 kg
