SKU:

RE22R1AMR

dual function relay, Harmony Timer Relays, A, 1 CO, 0.05s…300h, power on delay, 24...240V AC DC

$192.29
Product Selector
dual function relay, Harmony Timer Relays, A, 1 CO, 0.05s…300h, power on delay, 24...240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Technical illustration
Image of product
Image of product
Product environmental
Instruction sheet
Catalogue
CAD
Image of product
Declaration of conformity
Image of product
Image of product
End of life manual
Image of product
Product Page Link
Product Data Sheet

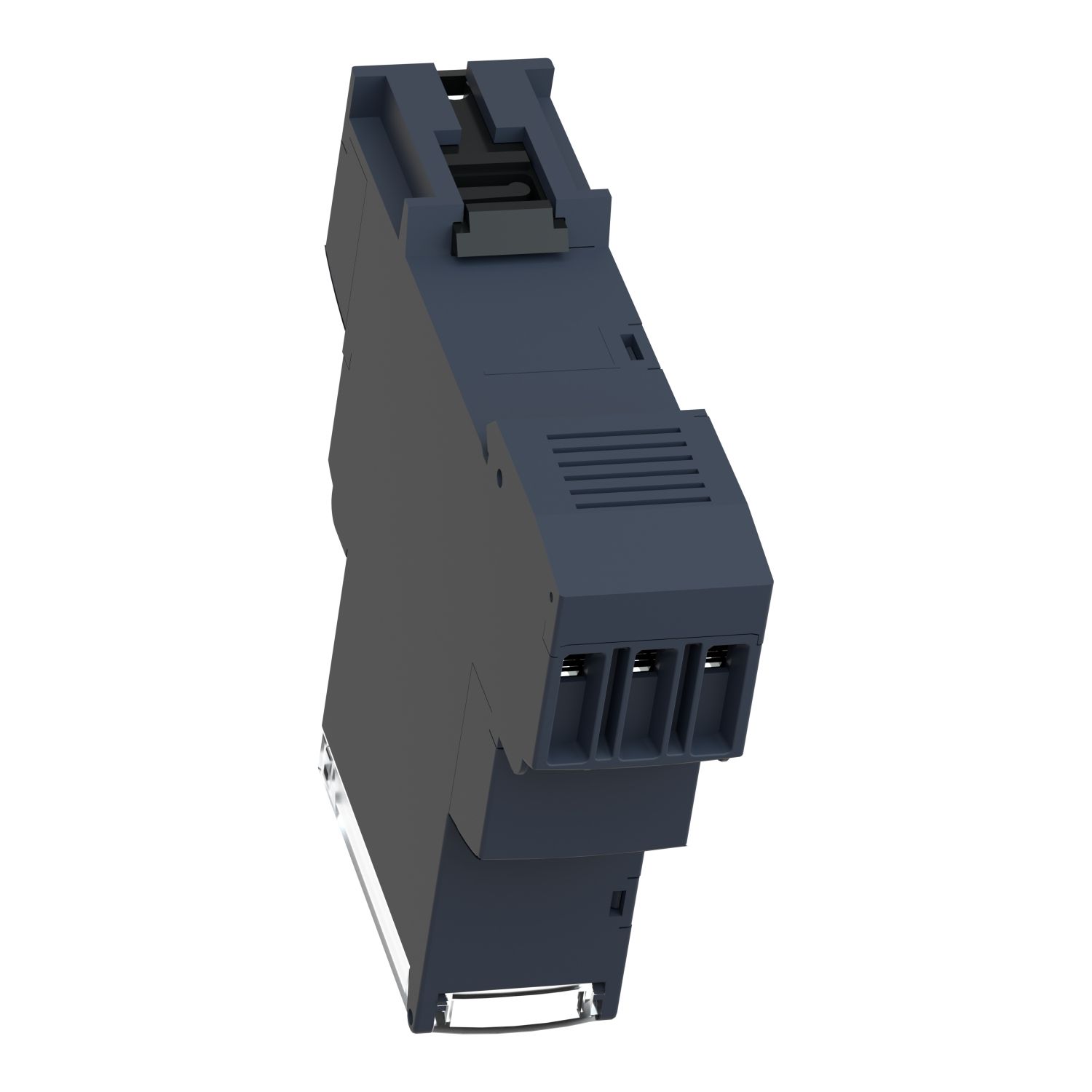

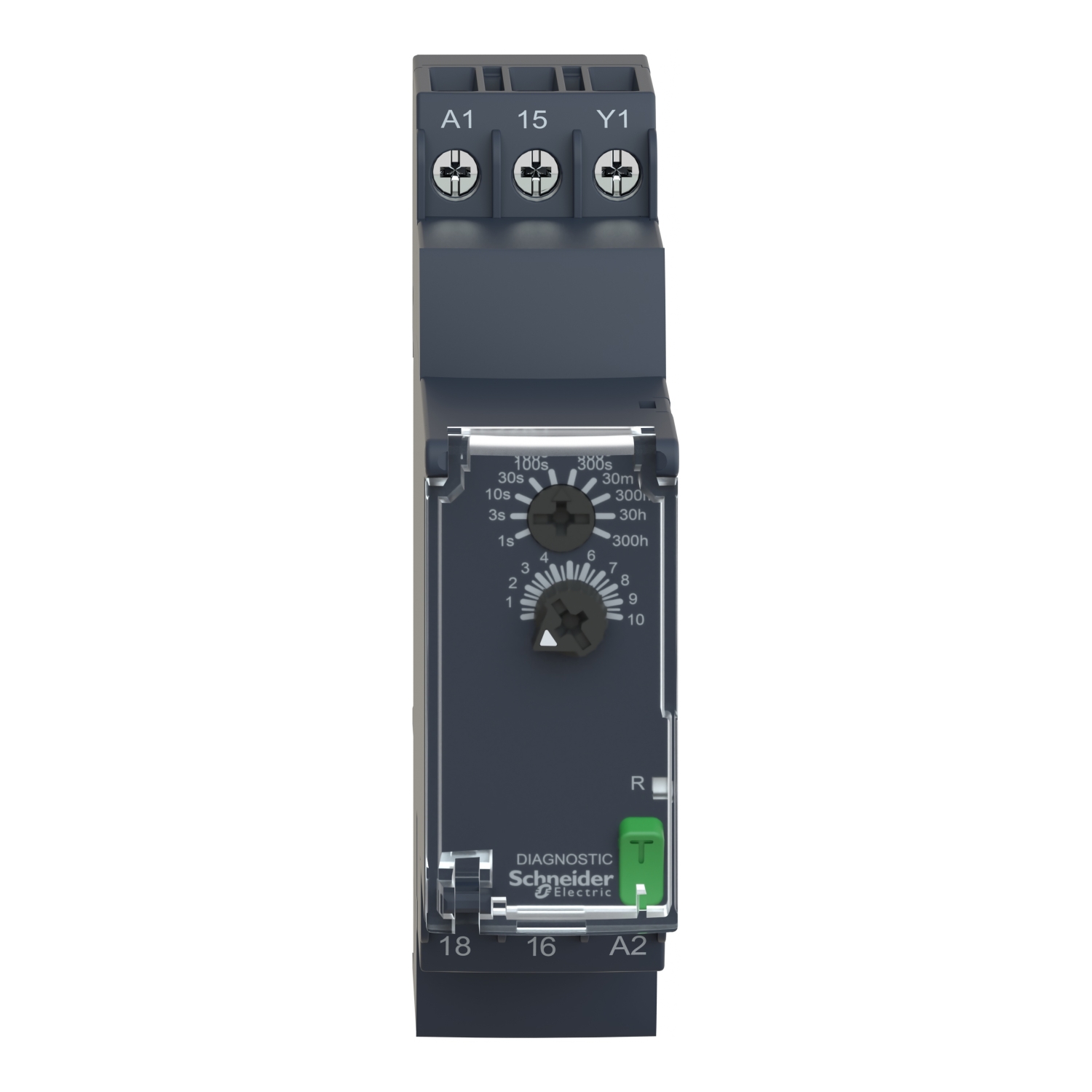

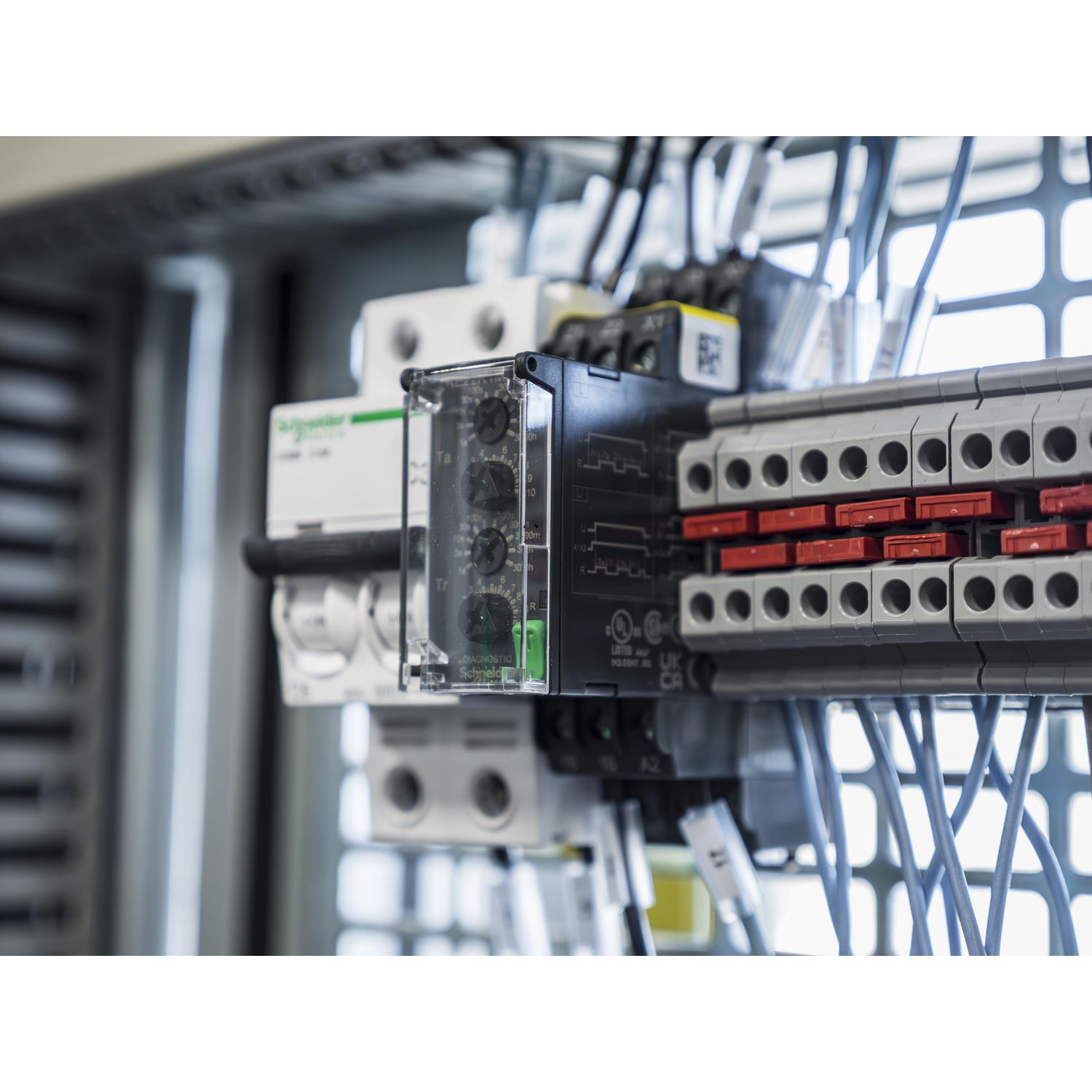

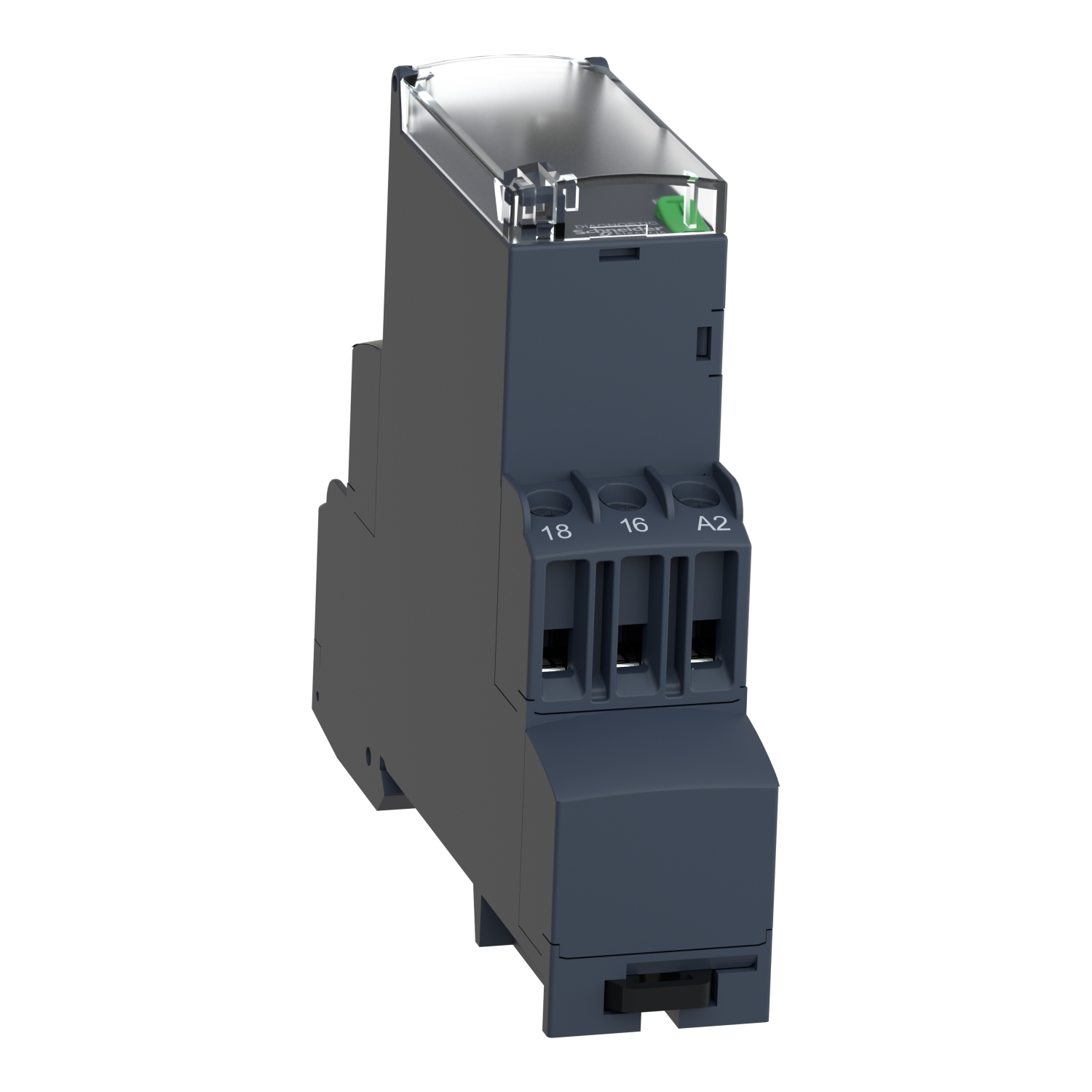

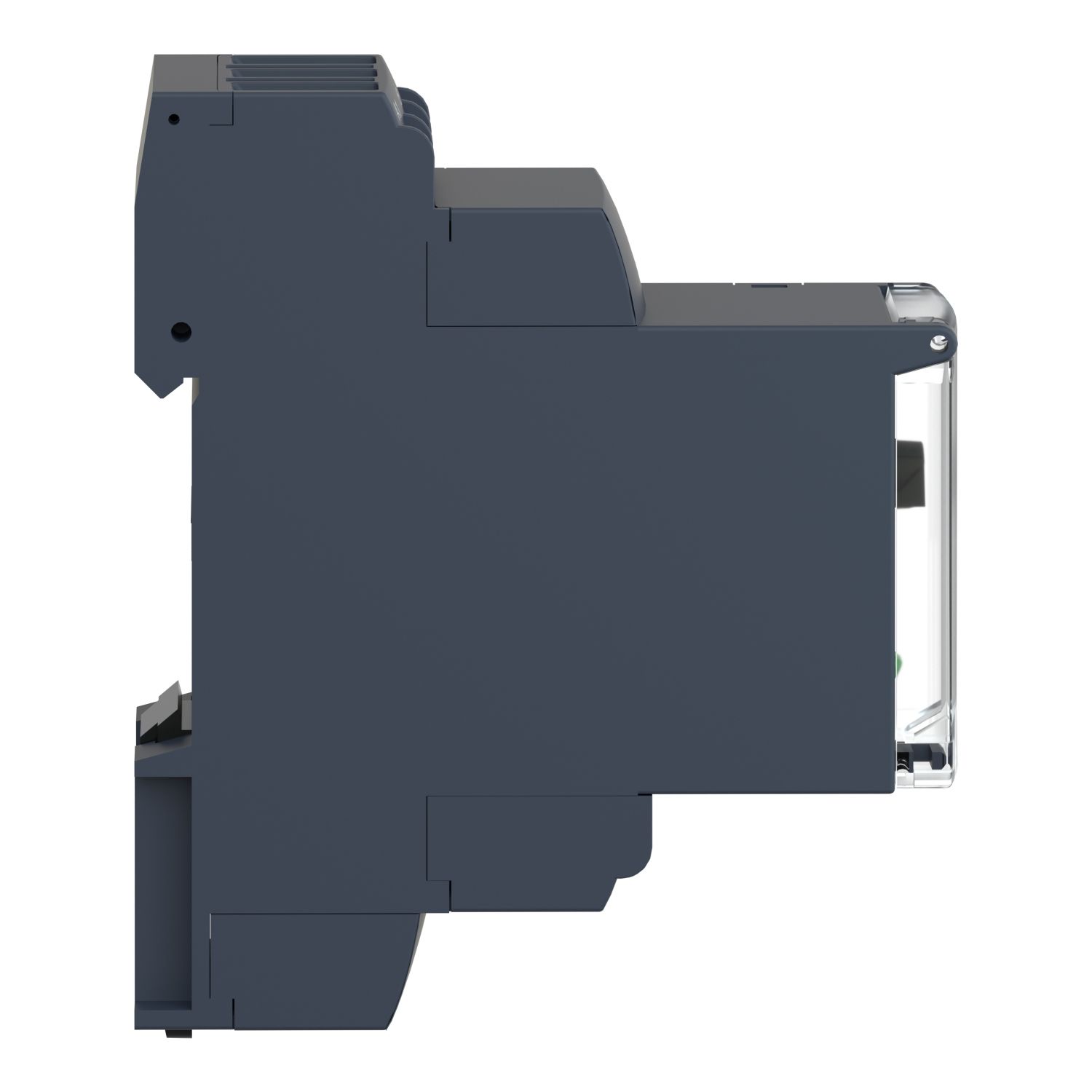

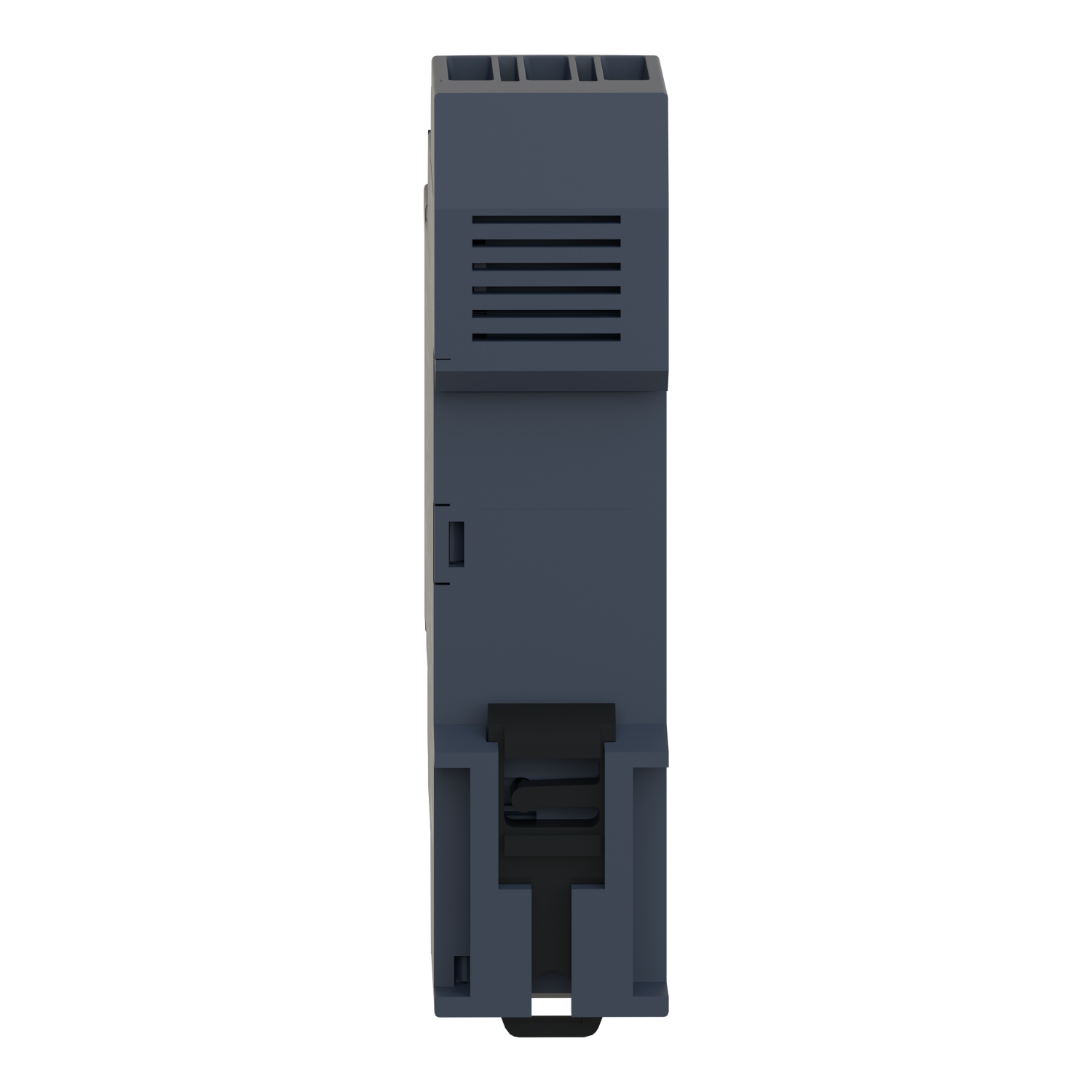

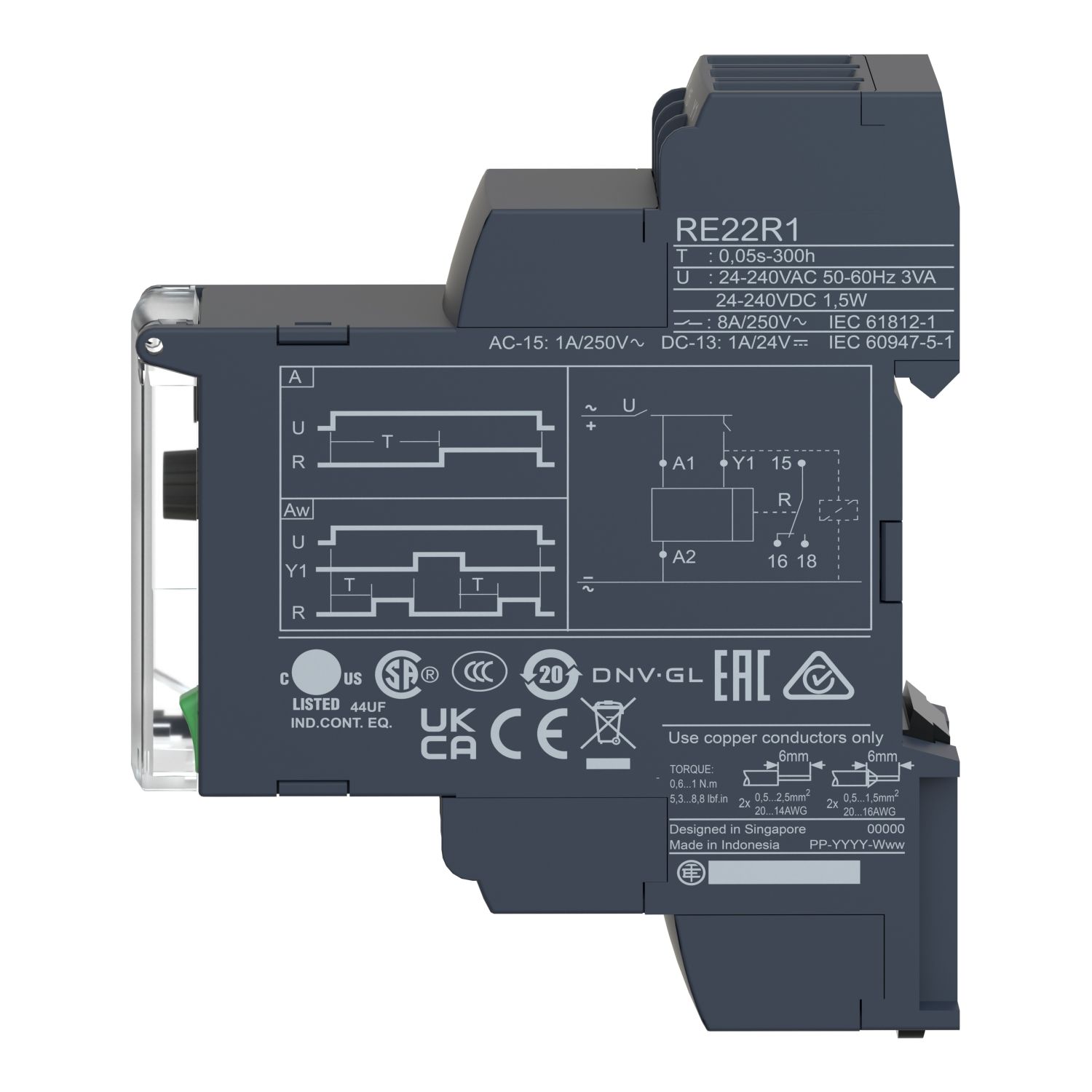

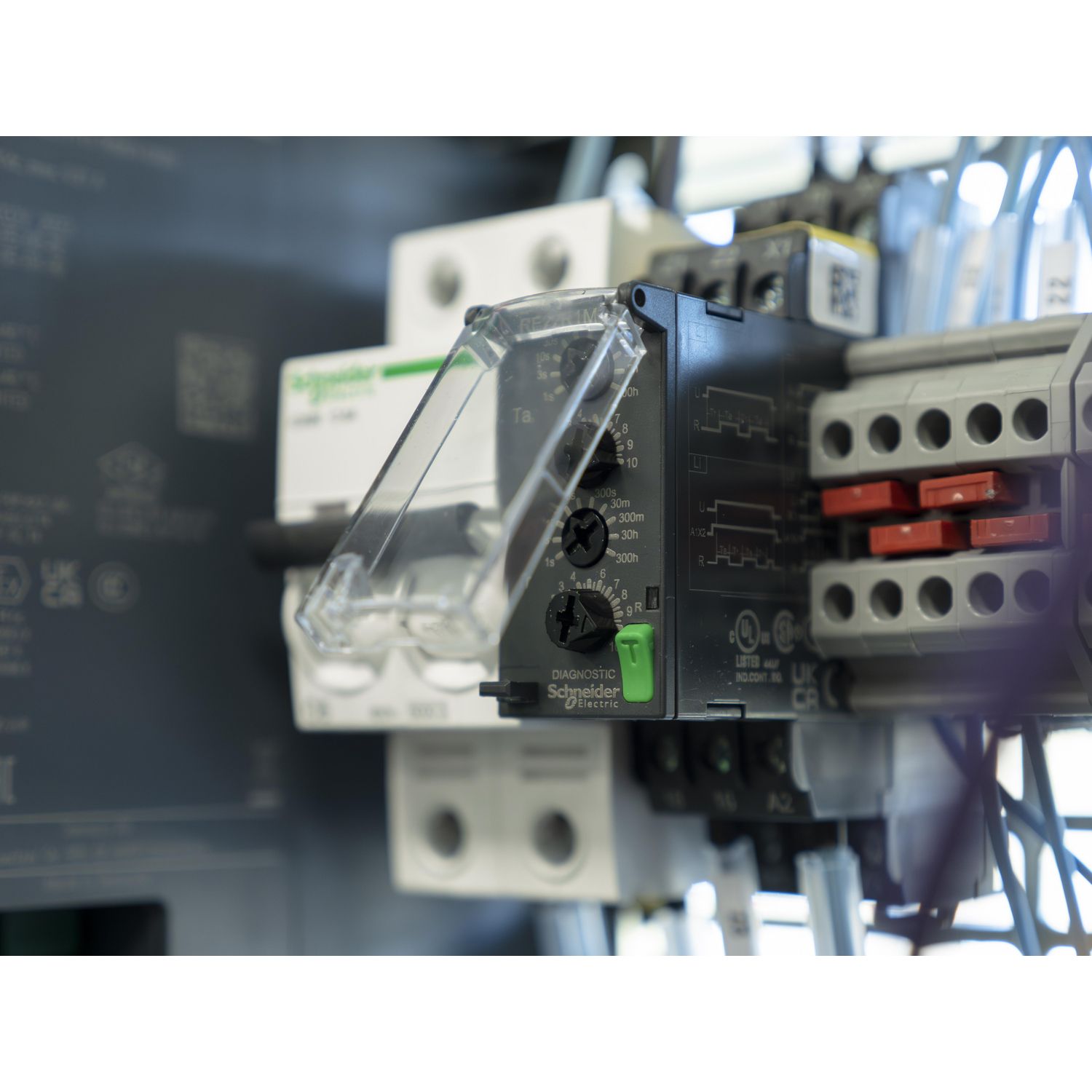

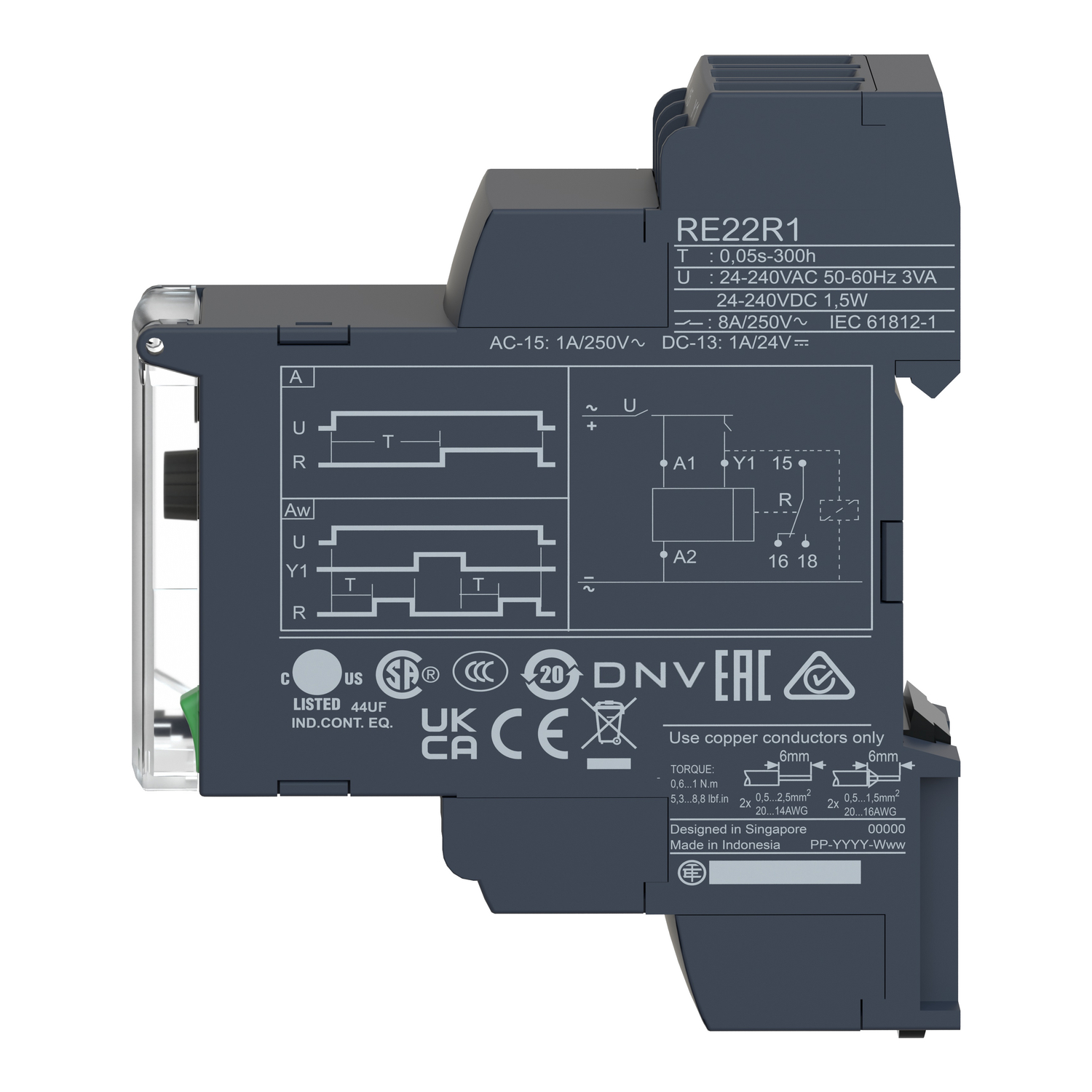

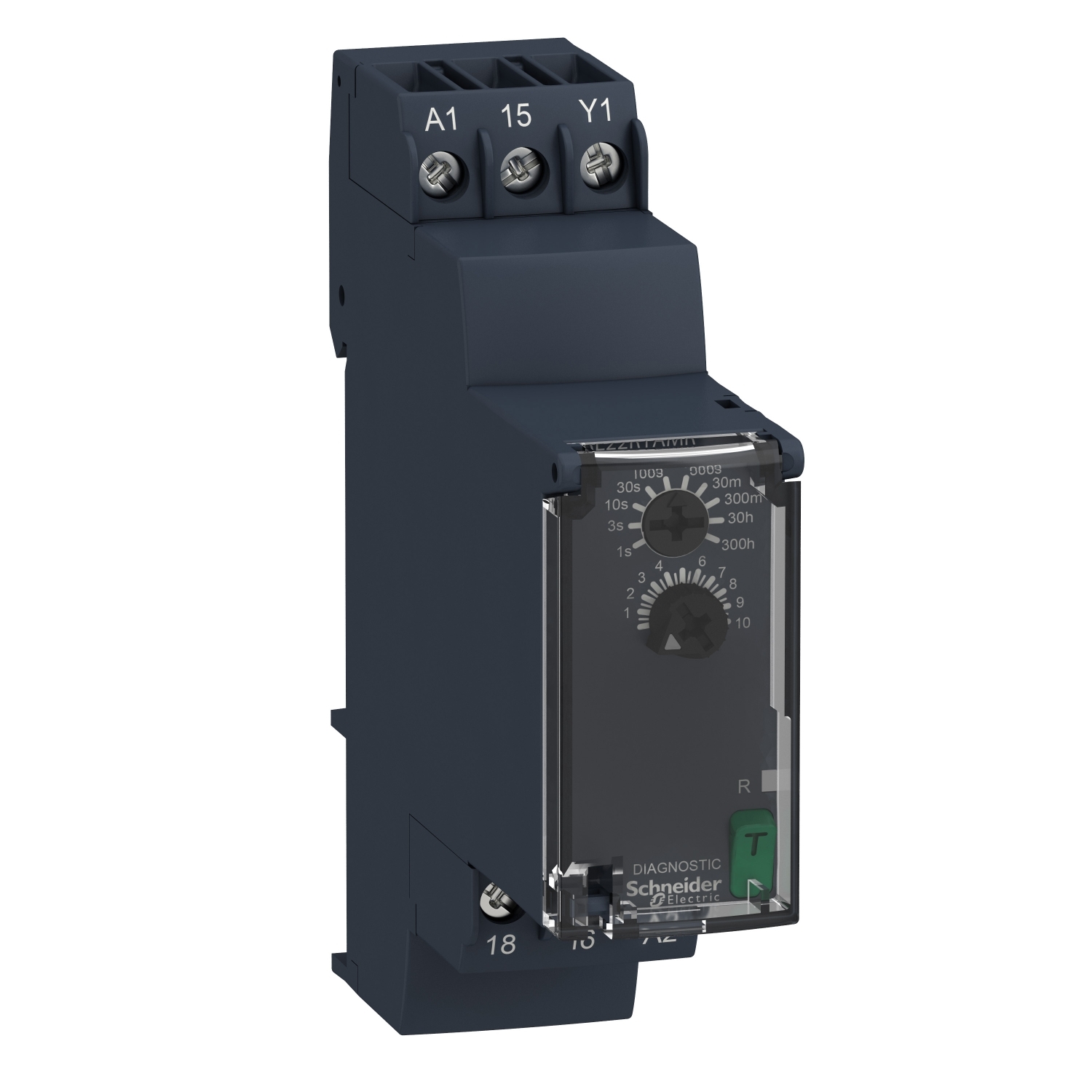

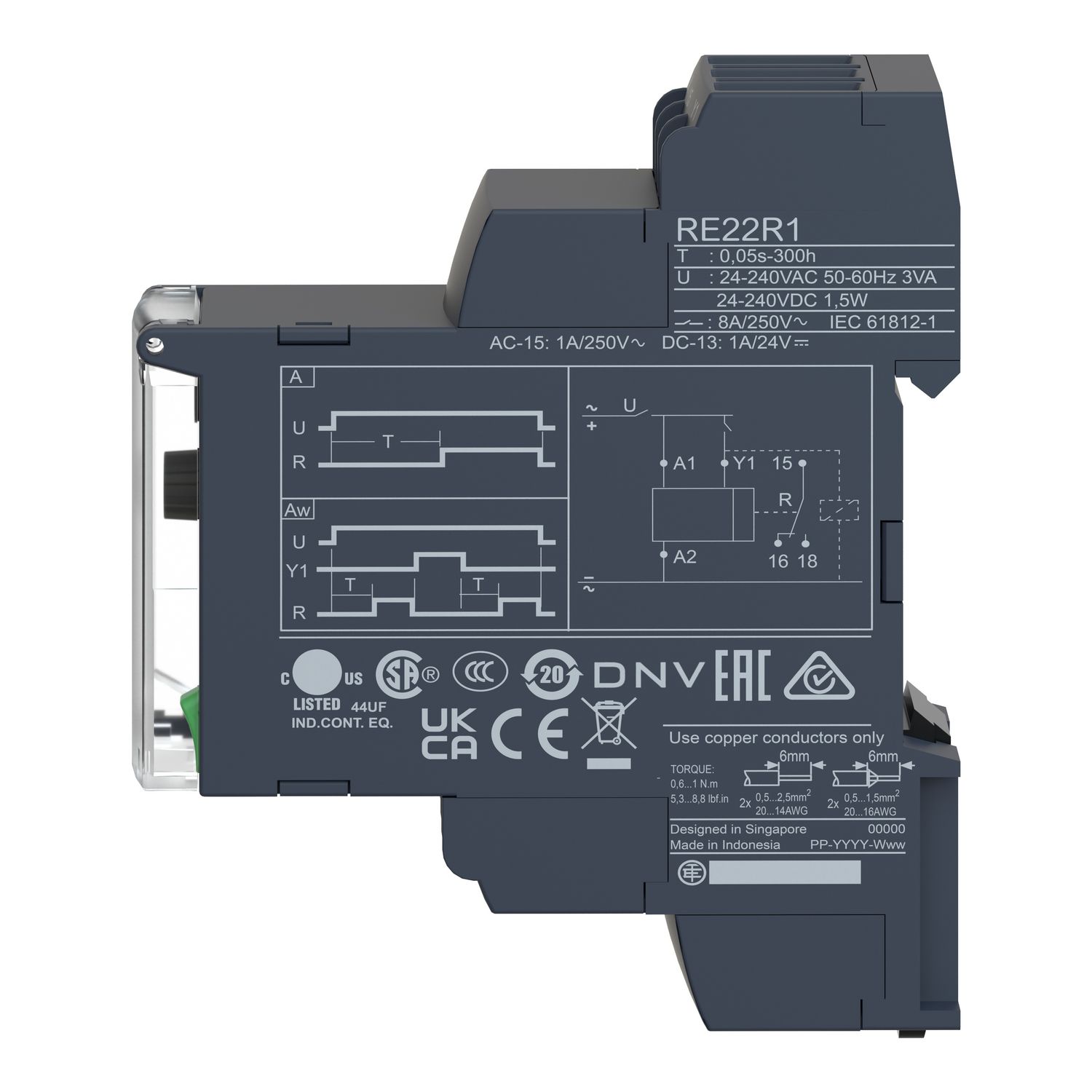

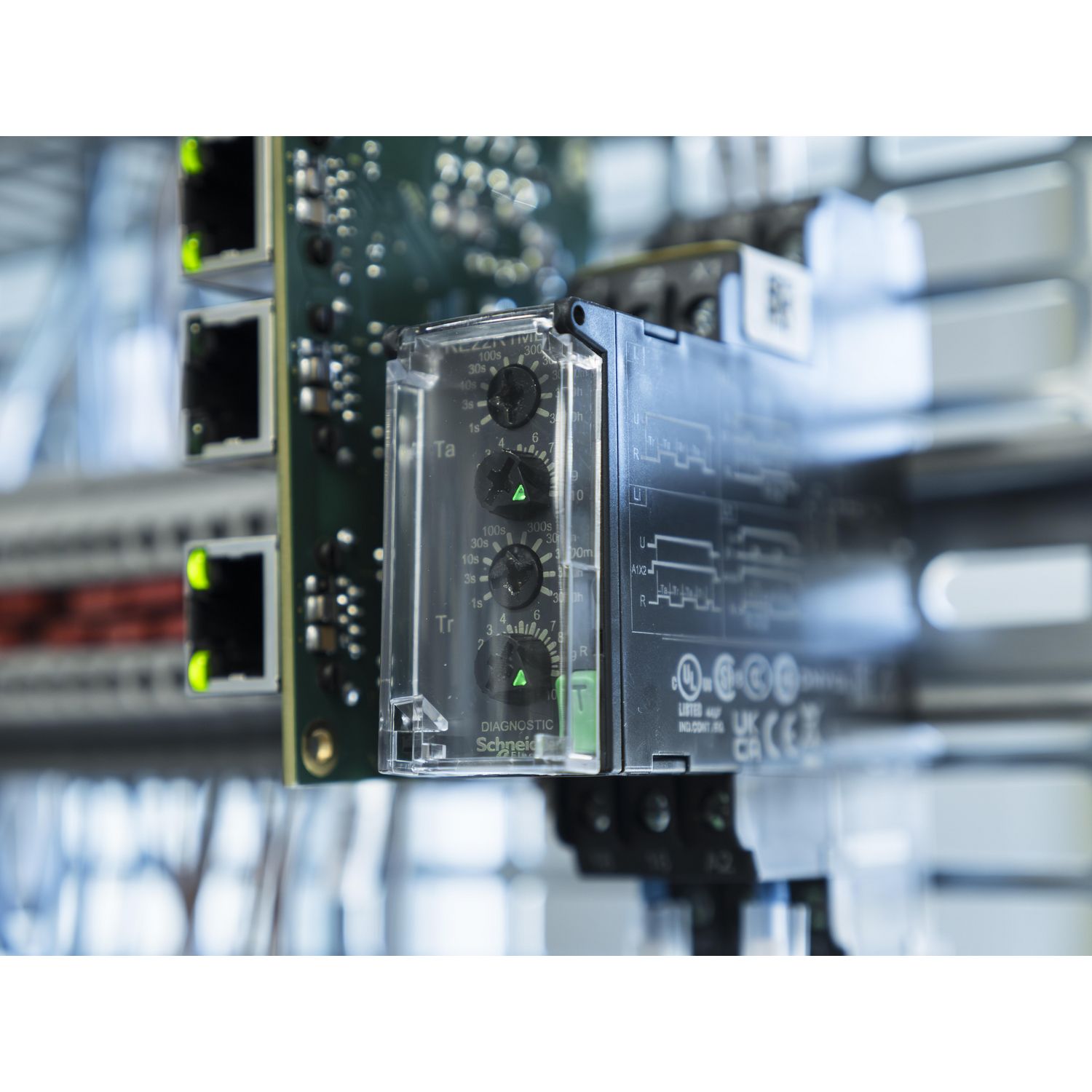

This Harmony RE22 modular dual function timer can be set between 0.05 seconds and 300 hours, has an output rating of 8 amperes and it is 22.5 millimeters wide. It provides function A and function Aw and it is mountable on DIN rail. This modular dual function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Dual function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute nameAttribute value
Main
Device short nameRE22
[Uc] control circuit voltage24...240 V
Range of productHarmony Timer Relays
Discrete output typerelay
Output typerelay
[In] rated current5 A
Nominal output current8 A
Contacts type and composition1 C/O
Product or component typedual function relay
Connections - terminalsscrew connectors
Complementary
Tightening torque0.6-1 N.m conforming to IEC 60947-1
Time delay typepower on-delay, A, Aw
[Uimp] rated impulse withstand voltage5 kV for 1.2-50 µs conforming to IEC 60664-1
Mechanical durability10000000 cycles
Electrical durability100000 cycles, 2 A at 24 V, DC-1, 100000 cycles, 8 A at 250 V, AC-1
Minimum switching current10 mA at 5 V DC
[Us] rated supply voltage24...240 V AC/DC 50/60 Hz
Temperature drift+/- 0.05 %/°C
Functionalityon-delay timing
Contacts type and composition1 C/O, 1 C/O timed contact, cadmium free
Maximum switching voltage250 V AC
Voltage range0.85...1.1 Us
Maximum switching current8 A
Minimum pulse duration30 ms, 100 ms with load in parallel
Power consumption in VA3-3 VA at 240 V AC
Immunity to microbreaks10 ms
Insulation resistance100 MOhm at 500 V DC conforming to IEC 60664-1
Control typediagnostic button, rotary knob
Maximum delay response100 ms
Setting accuracy of time delay+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Safety reliability dataB10d = 280000, MTTFd = 308.2 years
Repeat accuracy+/- 0.5 % conforming to IEC 61812-1
Supply frequency50...60 Hz +/- 5 %
Width22.5 mm
Status LEDLED yellow (slow flashing) for timing in progress and output relay energised, LED yellow (fast flashing) for timing in progress and output relay de-energised, LED yellow (steady) for output relay energised, LED backlight green (steady) for dial pointer indication
Housing materialself-extinguishing
Mounting support35 mm DIN rail conforming to IEC 60715
Input voltage<= 2.4 V
Overvoltage categoryIII conforming to IEC 60664-1
Time delay range3...30 min, 3...30 h, 0.3...3 s, 30...300 min, 30...300 h, 1...10 s, 0.05...1 s, 10...100 s, 30...300 s, 3...30 s
Connections - terminalsscrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Reset time120 ms on de-energisation
Voltage drift+/- 0.2 %/V
Mounting positionany position
Net weight0.1 kg
Switching capacity in VA2000 VA
Creepage distance4 kV/3 conforming to IEC 60664-1
Power consumption in W1.5 W at 240 V DC
Environment
IP degree of protectionIP20 terminals: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP40 housing: conforming to IEC 60529
Relative humidity95-95 % at 25-55 °C
Ambient air temperature for storage-40-70 °C
Directives2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
Pollution degree3 conforming to IEC 60664-1
Electromagnetic compatibilityimmunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4
Ambient air temperature for operation-20-60 °C
Vibration resistance20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance5 gn in operation for 11 ms conforming to IEC 60068-2-27, 15 gn not operating for 11 ms conforming to IEC 60068-2-27
Dielectric strength2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1
StandardsIEC 61812-1, UL 508
Product certificationsCSA, RCM, EAC, CCC, GL, UL, CE
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.6 cm
Package 1 Width8.2 cm
Package 1 Length9.5 cm
Package 1 Weight92.0 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight4.261 kg
Unit Type of Package 33
Number of Units in Package 3640
Package 3 Height75.0 cm
Package 3 Width60.0 cm
Package 3 Length80.0 cm
Package 3 Weight76.676 kg
