SKU:

RM17UAS14

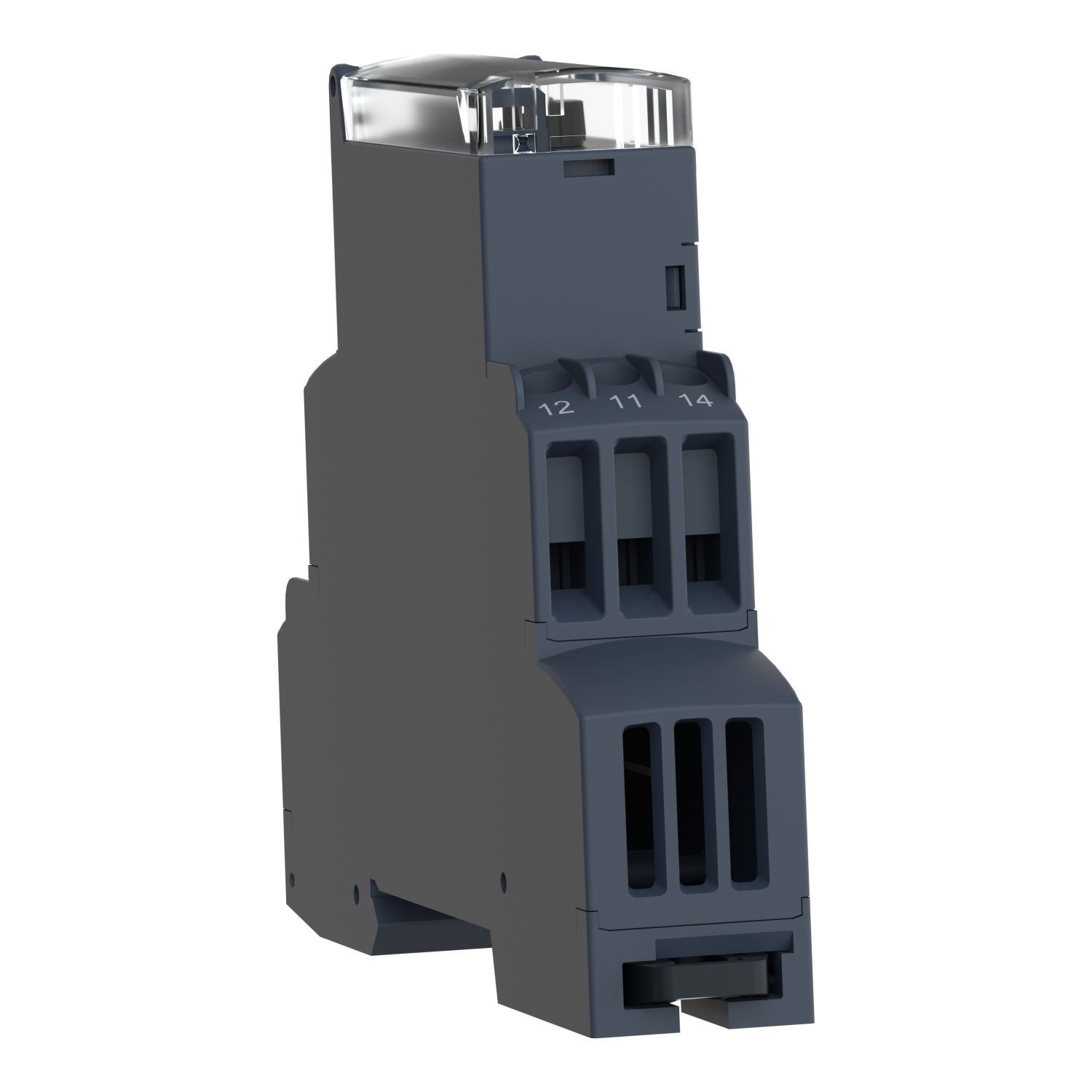

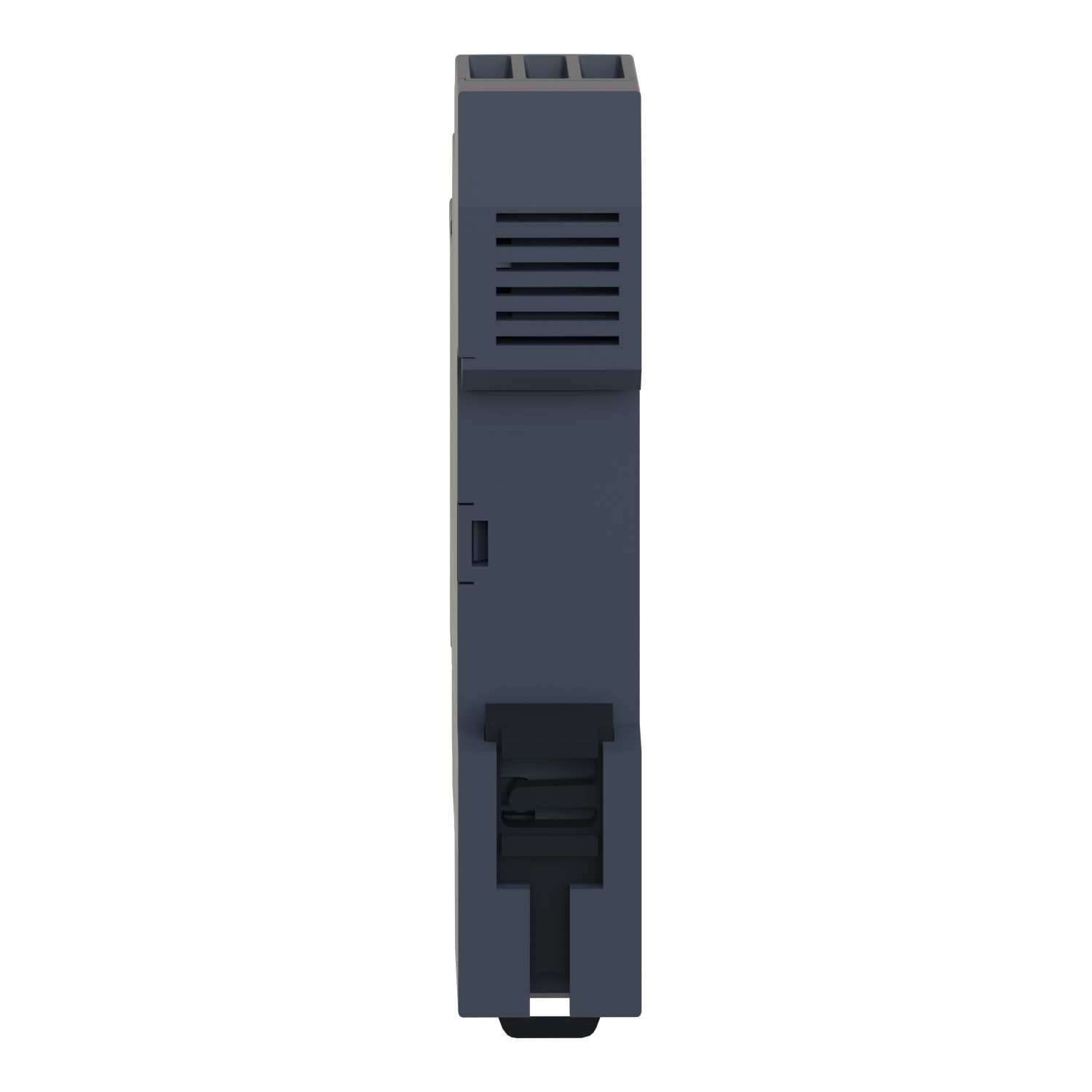

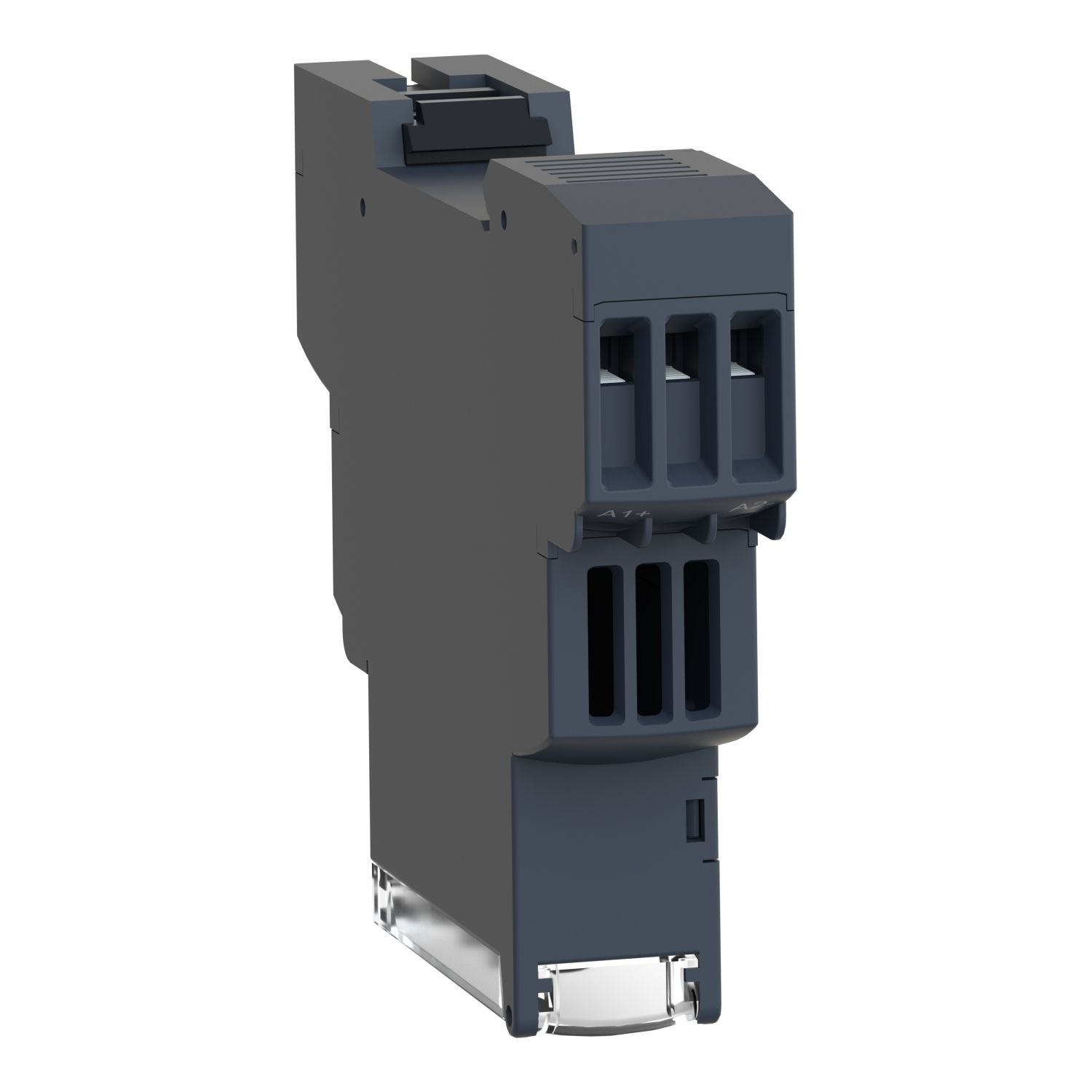

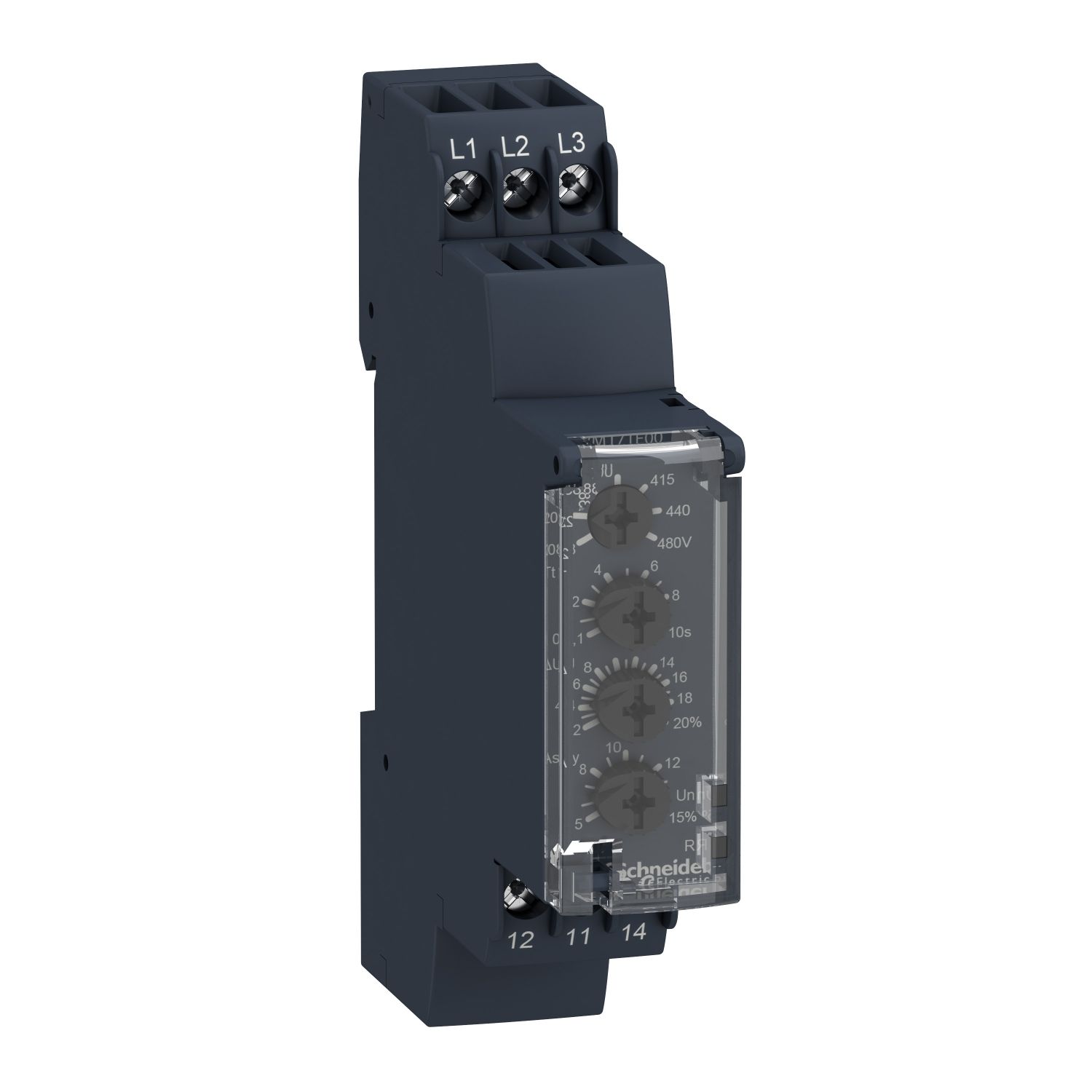

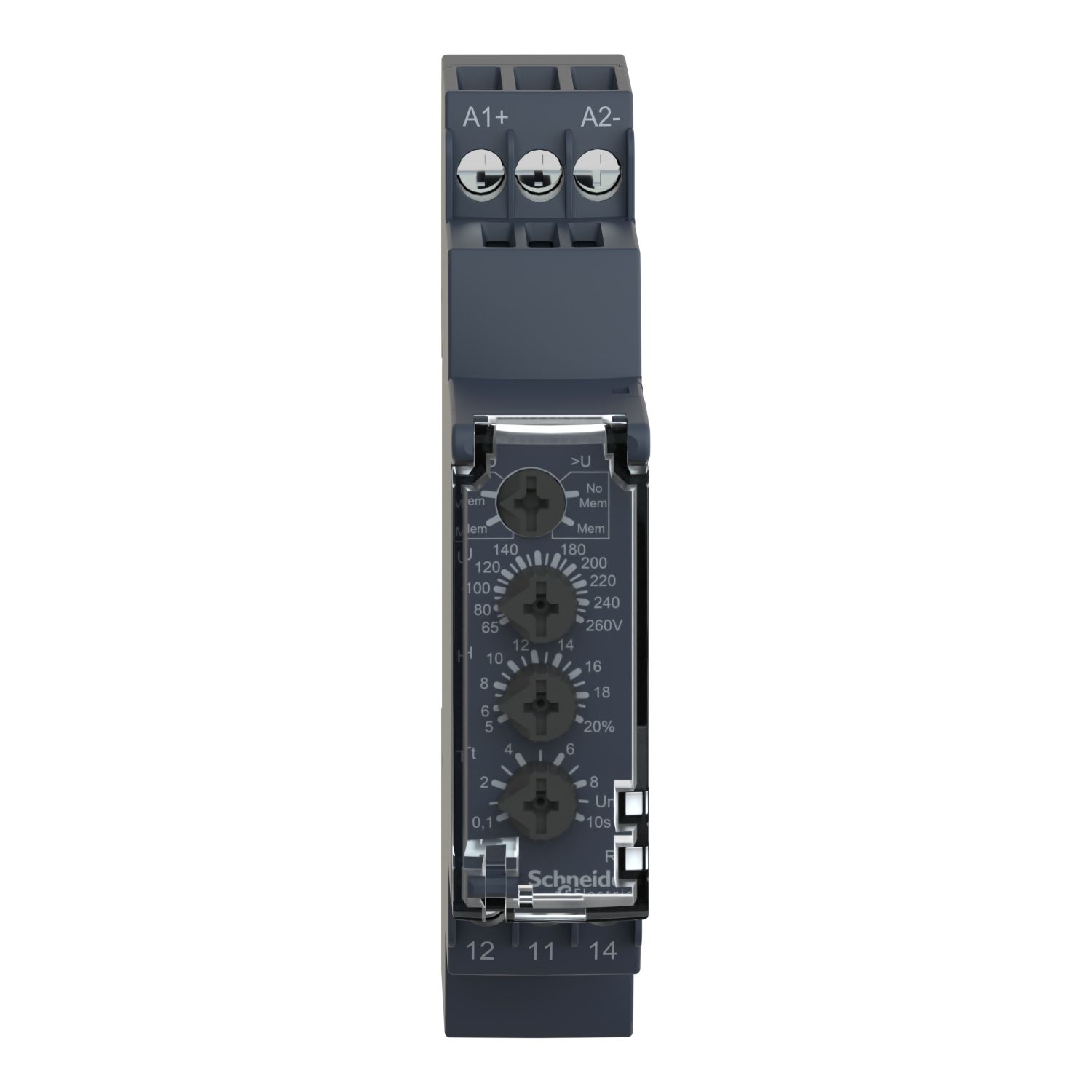

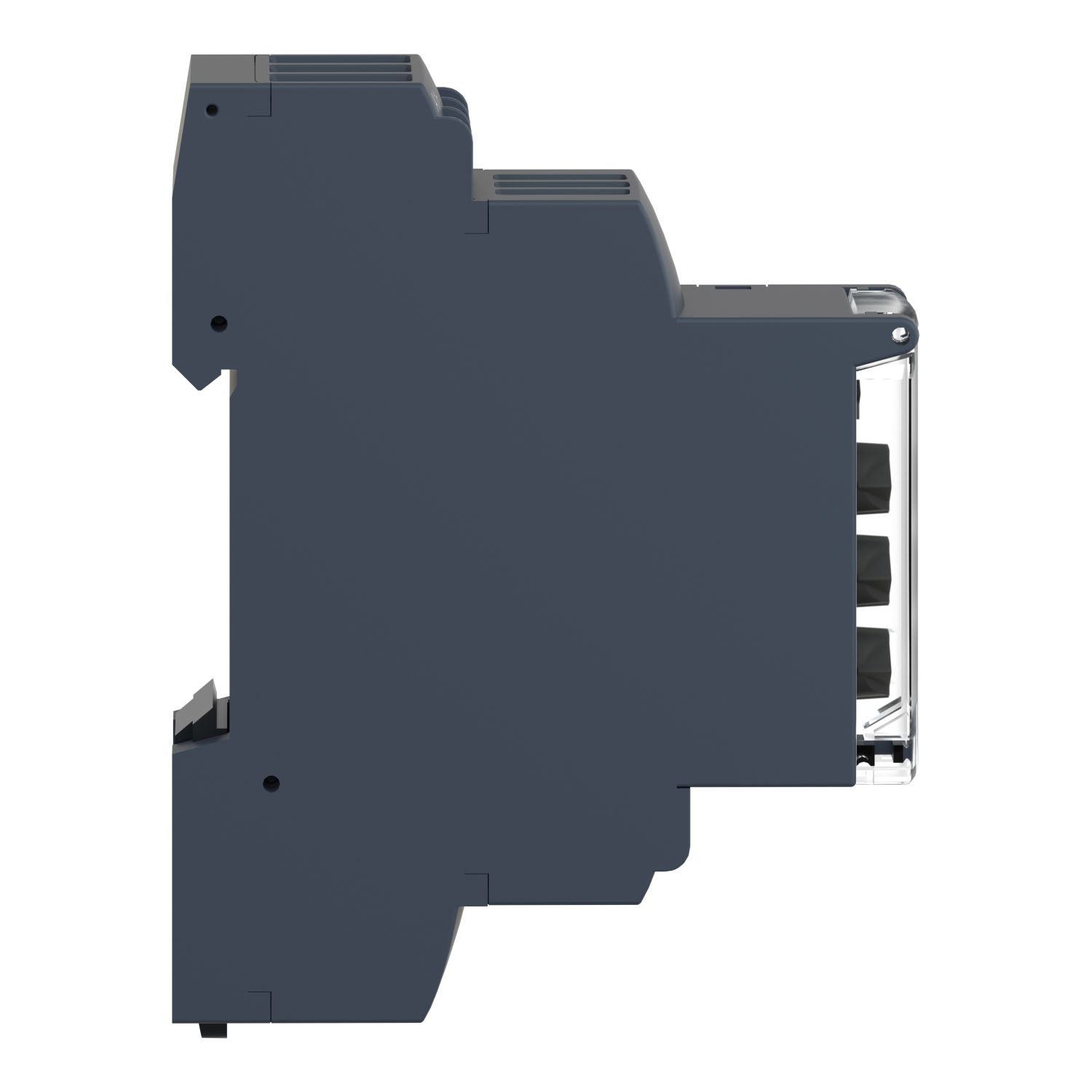

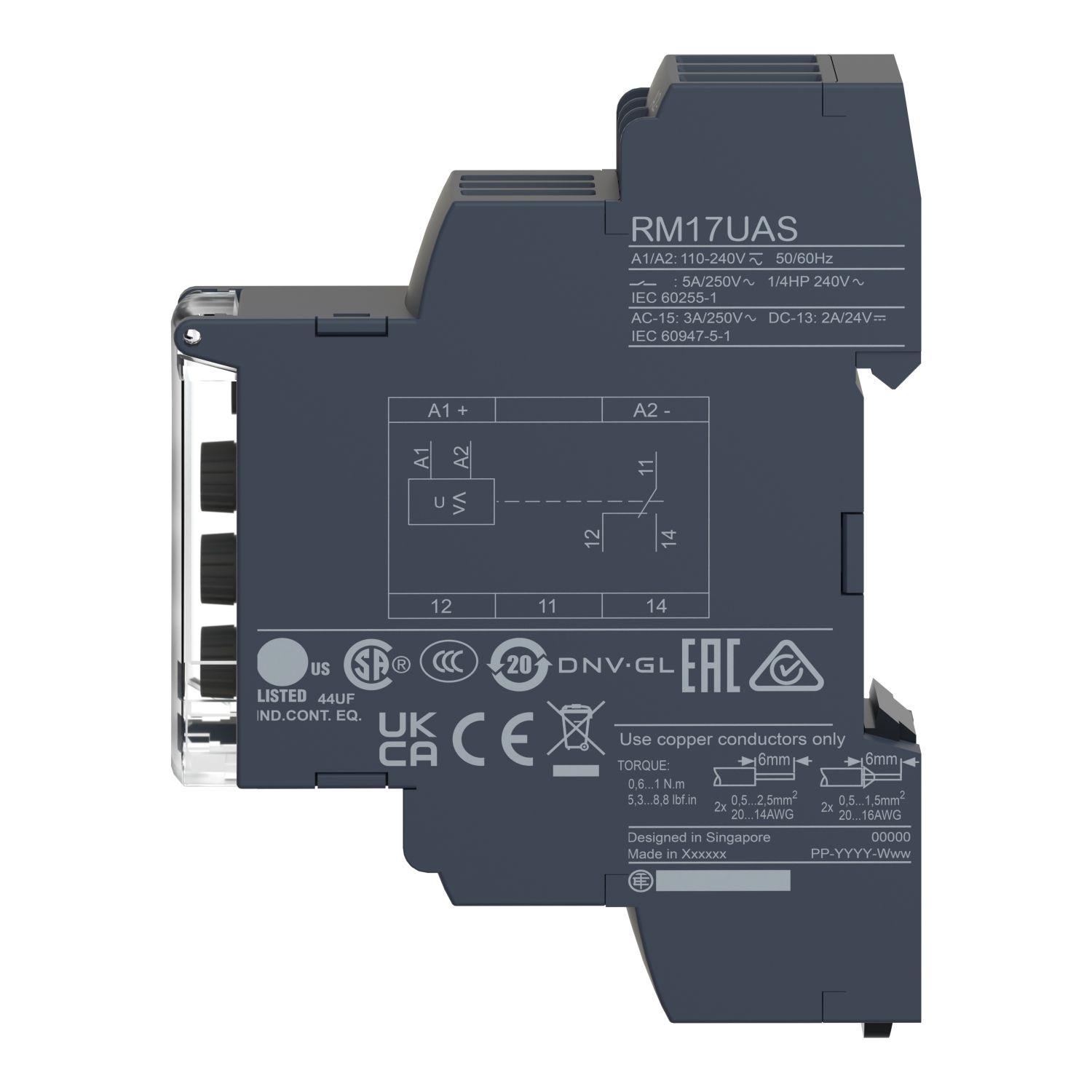

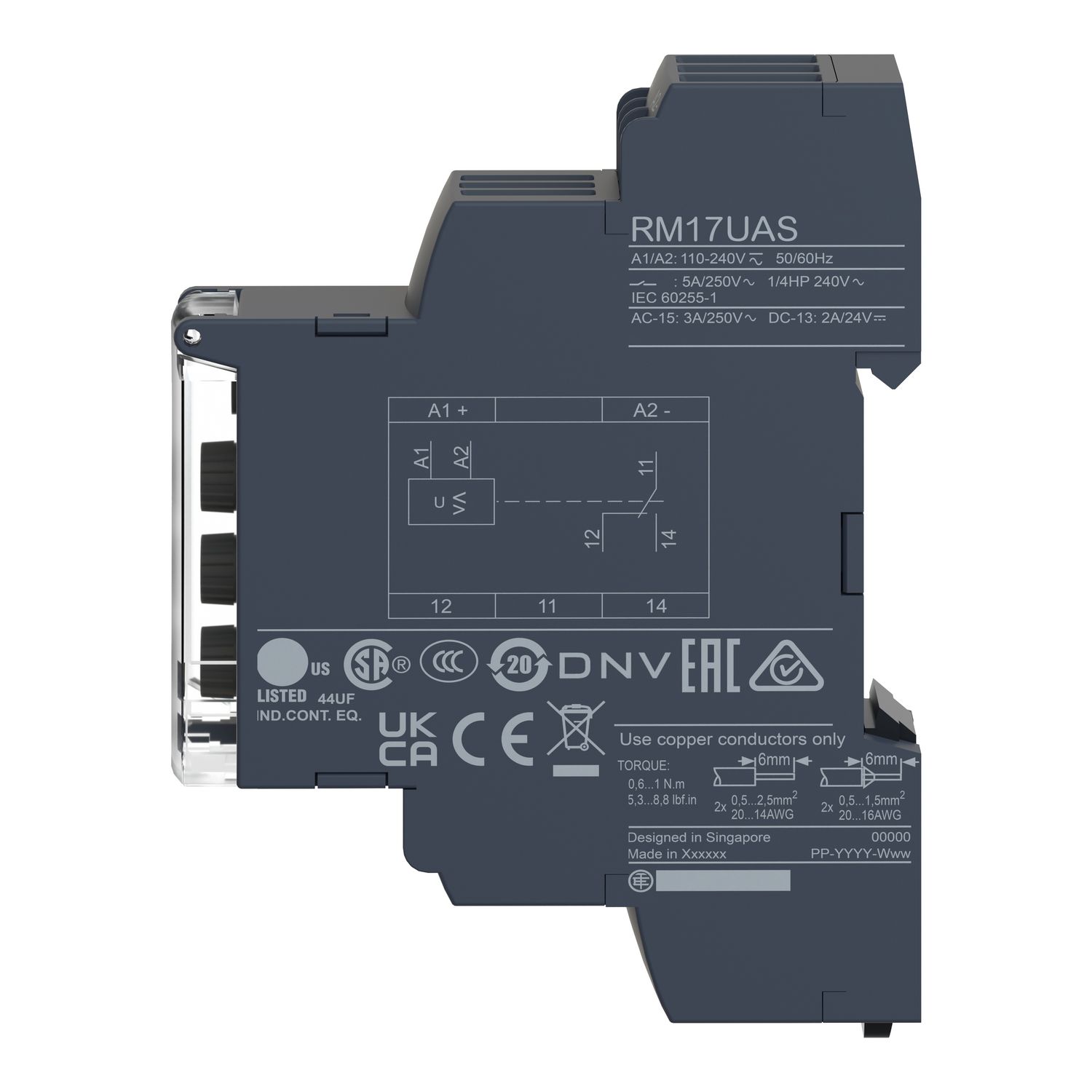

Harmony Control Relays, Modular 1 phaseVoltage control relay, 5A, 1CO, 9…15V DC

$260.76
Product Selector
Harmony Control Relays, Modular 1 phaseVoltage control relay, 5A, 1CO, 9…15V DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 27-Oct-2024
Image of product
Image of product
Image of product
Image of product
Image of product
Product environmental
Technical illustration
End of life manual
Catalogue
Declaration of conformity
Instruction sheet
Image of product
Product Page Link
Product Data Sheet
"This Harmony RM17-U control relay allows monitoring of voltage control." "This modular control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels." "It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water." "It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers." "It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting." "Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute nameAttribute value
Main
Relay typevoltage control relay
Maximum switching current5 A AC/DC
Product specific applicationfor single-phase and DC supply
Contacts type and composition1 C/O
Switching capacity in VA1250 VA
Minimum switching current10 mA at 5 V DC
[Uc] control circuit voltage110...240 V
Relay nameRM17UAS
Measurement range9...15 V voltage DC
Range of productHarmony Control Relays
[In] rated current5 A
Relay monitored parametersself-powered, overvoltage or undervoltage detection
Time delay typeadjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault
Utilisation categoryDC-14 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Product or component typevoltage control relay
Connections - terminalsscrew connectors
Complementary
Compatibility codeRM17
Insulation resistance> 500 MOhm at 500 V DC conforming to IEC 60664-1, > 500 MOhm at 500 V DC conforming to IEC 60255-5
Repeat accuracy+/- 1 % for time delay, +/- 0.5 % for input and measurement circuit
Electrical durability100000 cycles
Measurement accuracy+/- 10 % of the full scale value
Housing materialself-extinguishing plastic
Nominal output current5 A
Mounting support35 mm symmetrical DIN rail conforming to IEC 60715
Quality labelsCE
[Ui] rated insulation voltage400 V conforming to IEC 60664-1, 250 V conforming to IEC 60664-1
Connections - terminalsscrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Reset time1500 ms time delay
Maximum switching voltage250 V AC/DC
Net weight0.08 kg
Polaritynon reversible polarity on DC supply
Immunity to microbreaks20 ms at 12 V
Tightening torque0.6-1 N.m conforming to IEC 60947-1
Mechanical durability30000000 cycles
Supply voltage limits7-20 V DC
Control typewithout test button
Measurement error0.2 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Maximum power consumption in W1 W DC
Width17.5 mm
Local signallingLED (yellow) for relay ON, LED (green) for power ON
Overvoltage categoryIII conforming to IEC 60664-1
Run-up delay at power-up1000 ms DC
Operating positionany position without derating
Output contacts1 C/O
Operating rate<= 360 operations/hour full load
[Us] rated supply voltageDC self-powered
Hysteresis5-20 % of threshold setting
Environment
Relative humidity95-95 % at 55-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage-40-70 °C
Non-dissipating shock wave4 kV conforming to IEC 61000-4-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 60255-5
Dielectric test voltage2 kV, 1 min AC 50 Hz conforming to IEC 60664-1, 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
Product certificationsGOST, UL, GL, C-Tick, CSA
Directives89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Pollution degree3 conforming to IEC 60664-1
IP degree of protectionIP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation-20-50 °C
Electromagnetic compatibilityimmunity for industrial environments conforming to NF EN/IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Vibration resistance1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
Shock resistance5 gn conforming to IEC 60068-2-27
StandardsIEC 60255-6
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.600 cm
Package 1 Width8.000 cm
Package 1 Length9.600 cm
Package 1 Weight85.900 g
Unit Type of Package 22
Number of Units in Package 248
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight4.492 kg
