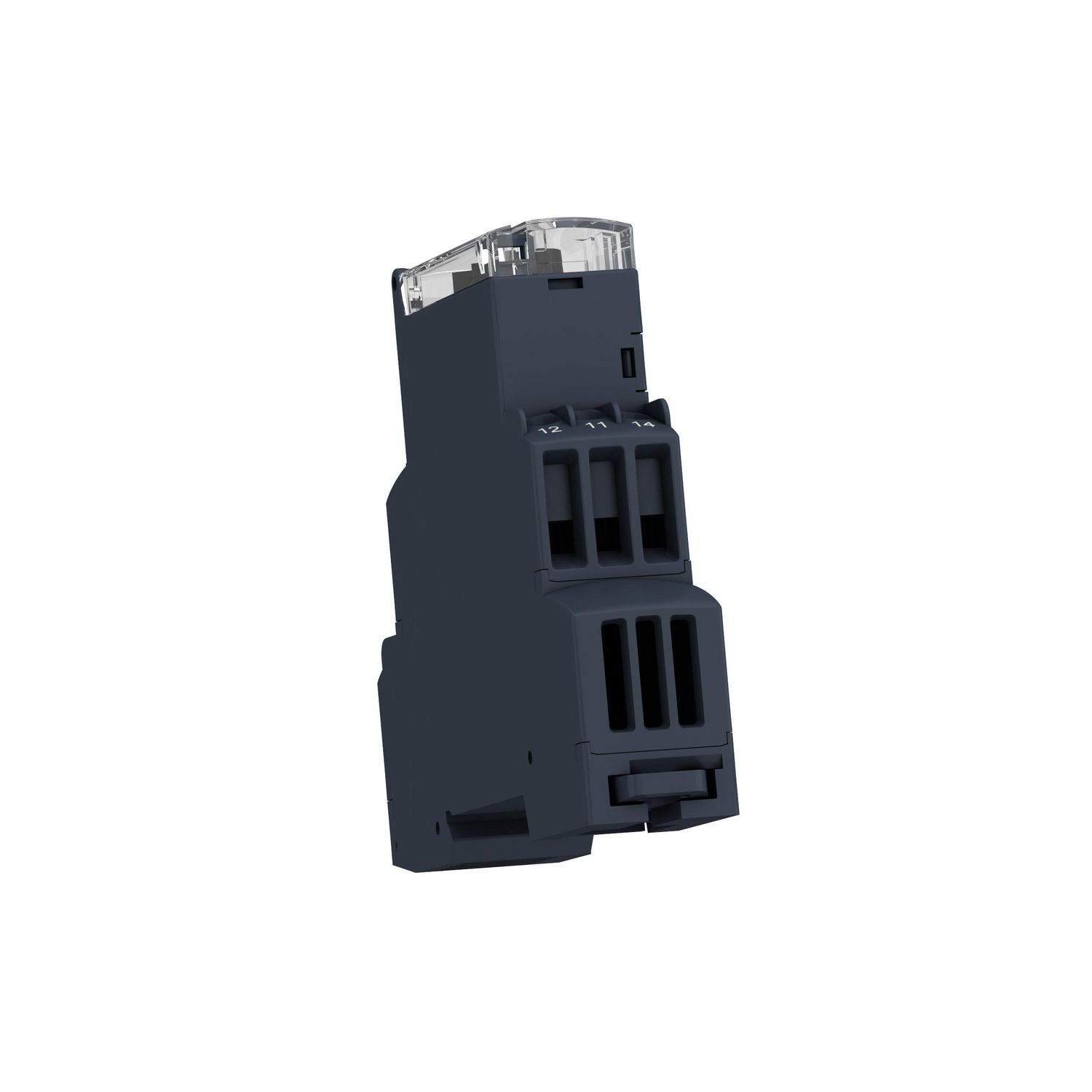

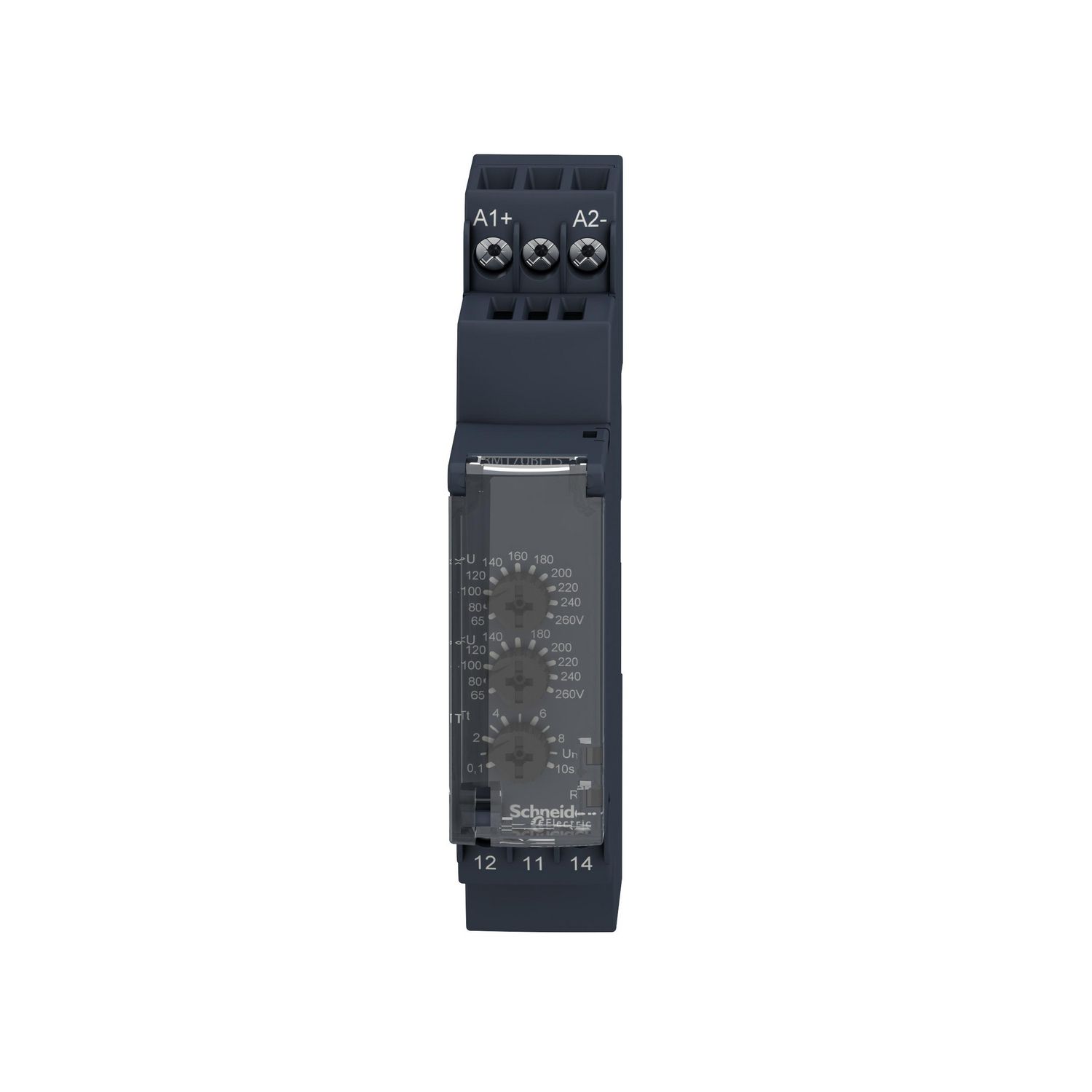

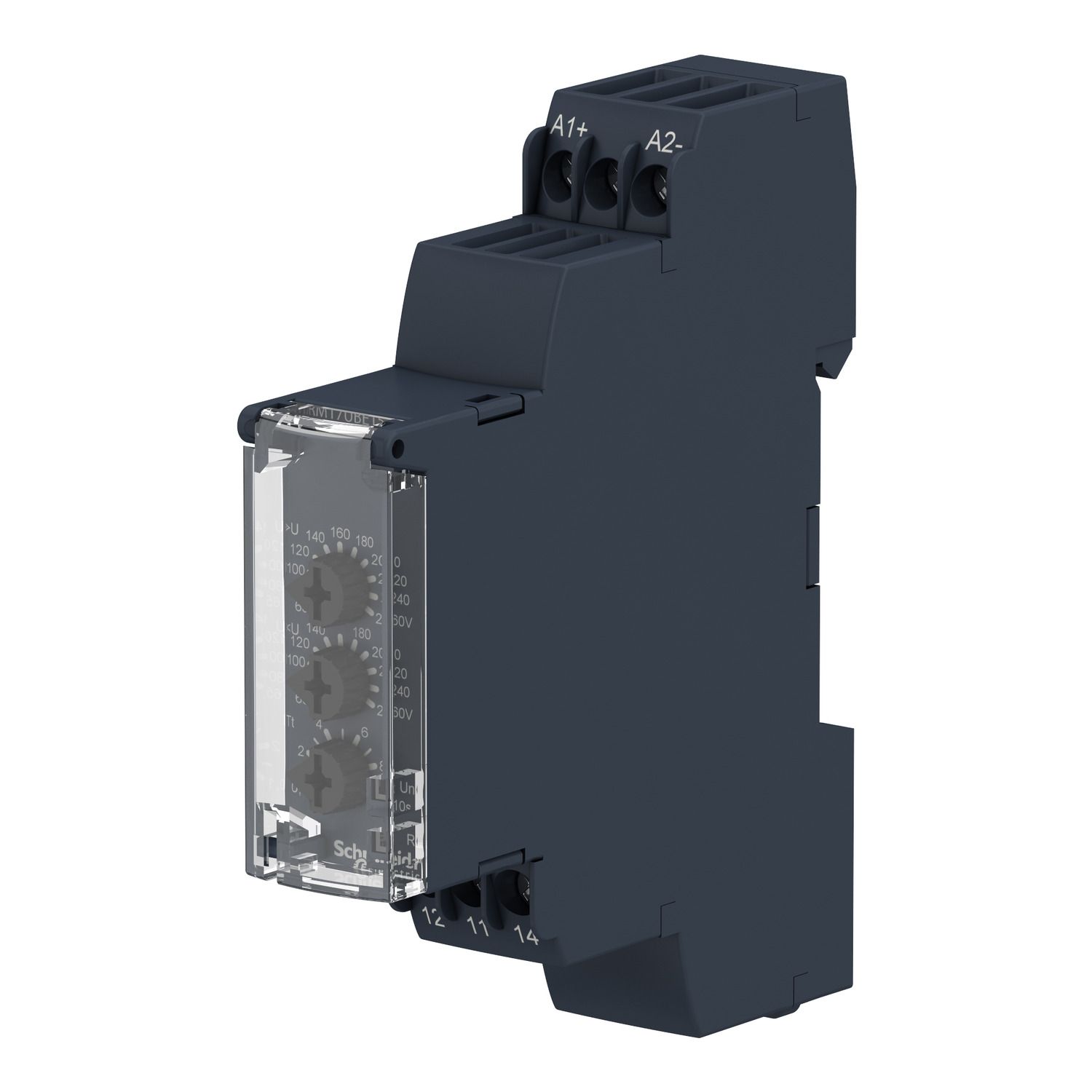

Picture of Harmony Control Relays, Modular 1-phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC

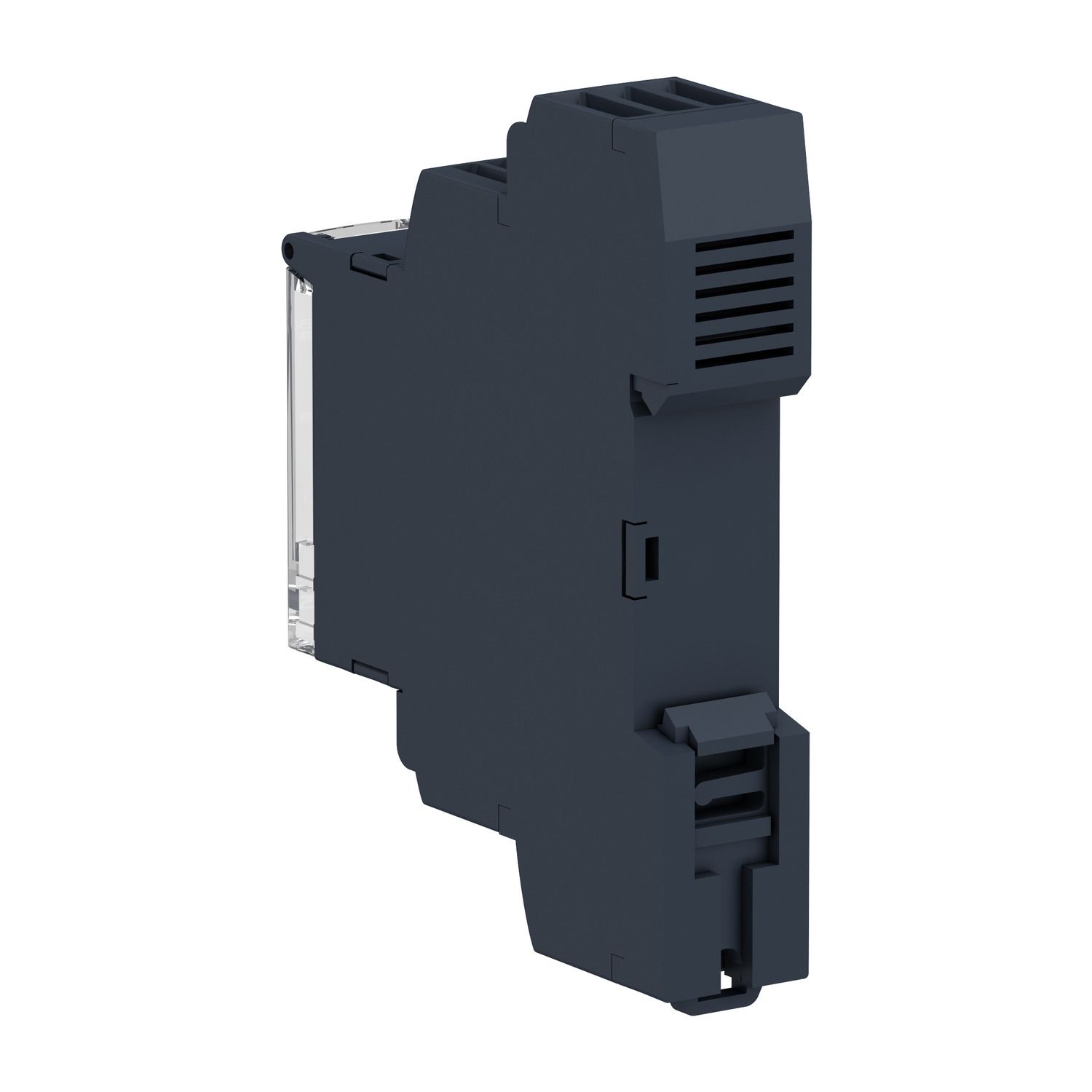

Picture of Harmony Control Relays, Modular 1-phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC

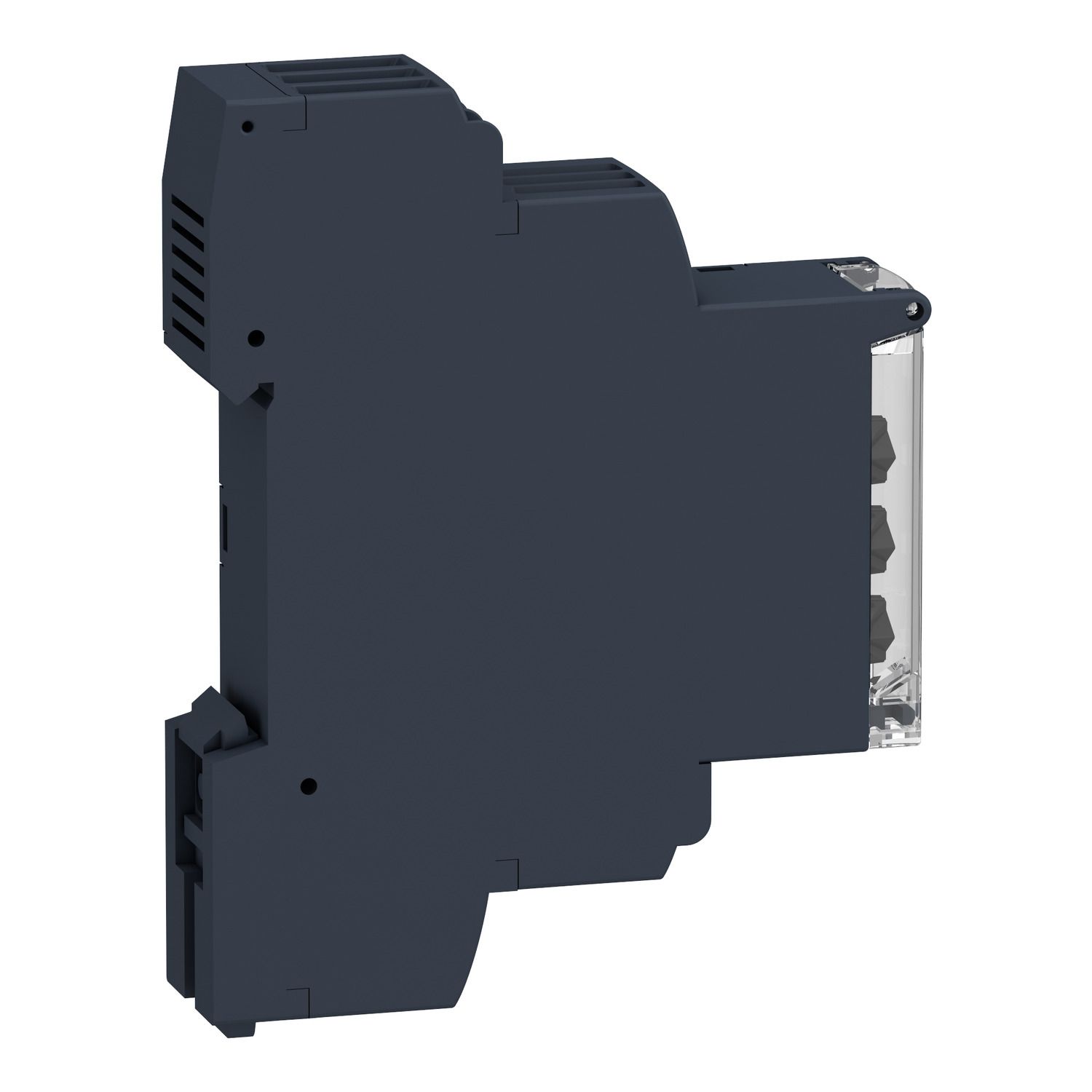

Picture of Harmony Control Relays, Modular 1-phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC

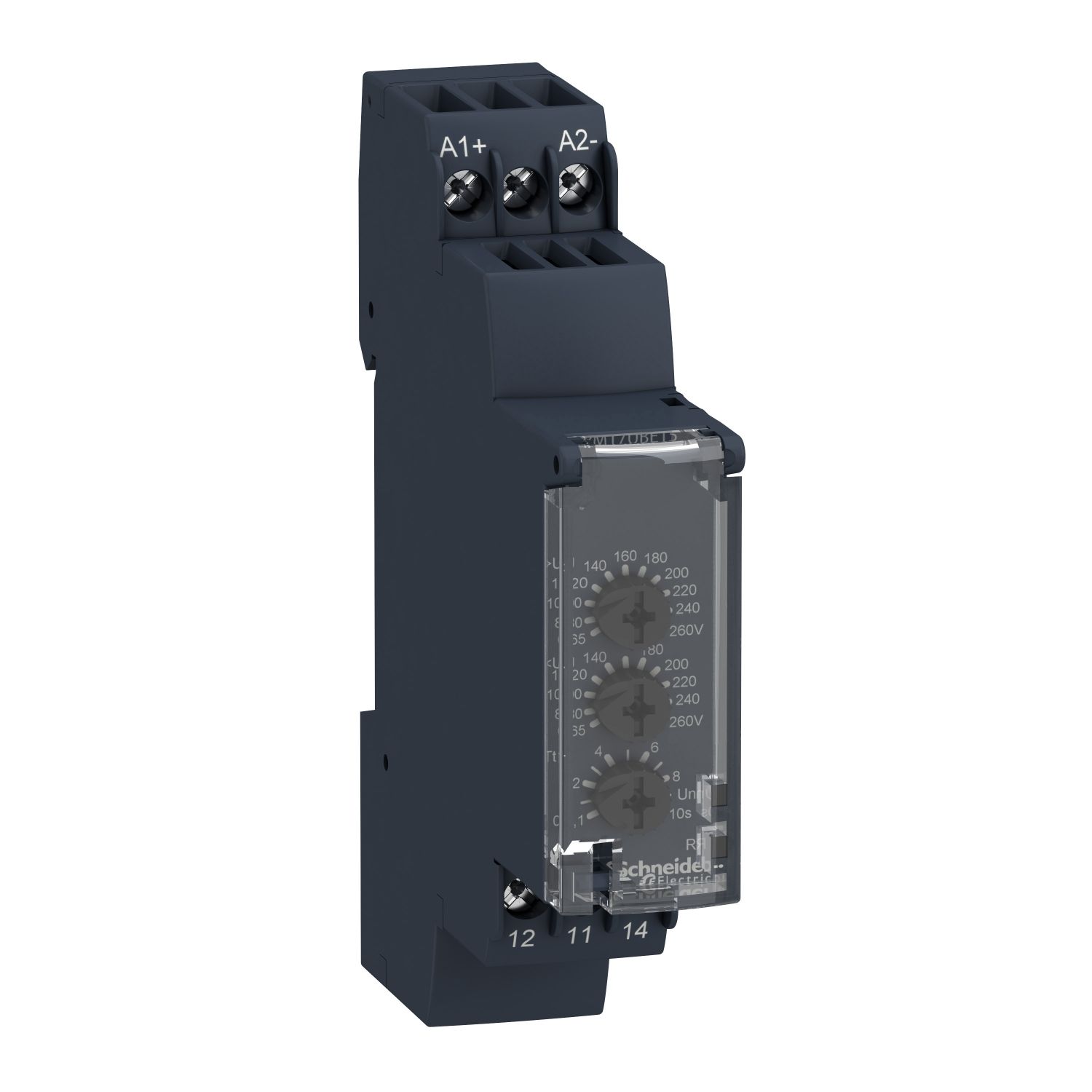

Picture of Harmony Control Relays, Modular 1-phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC

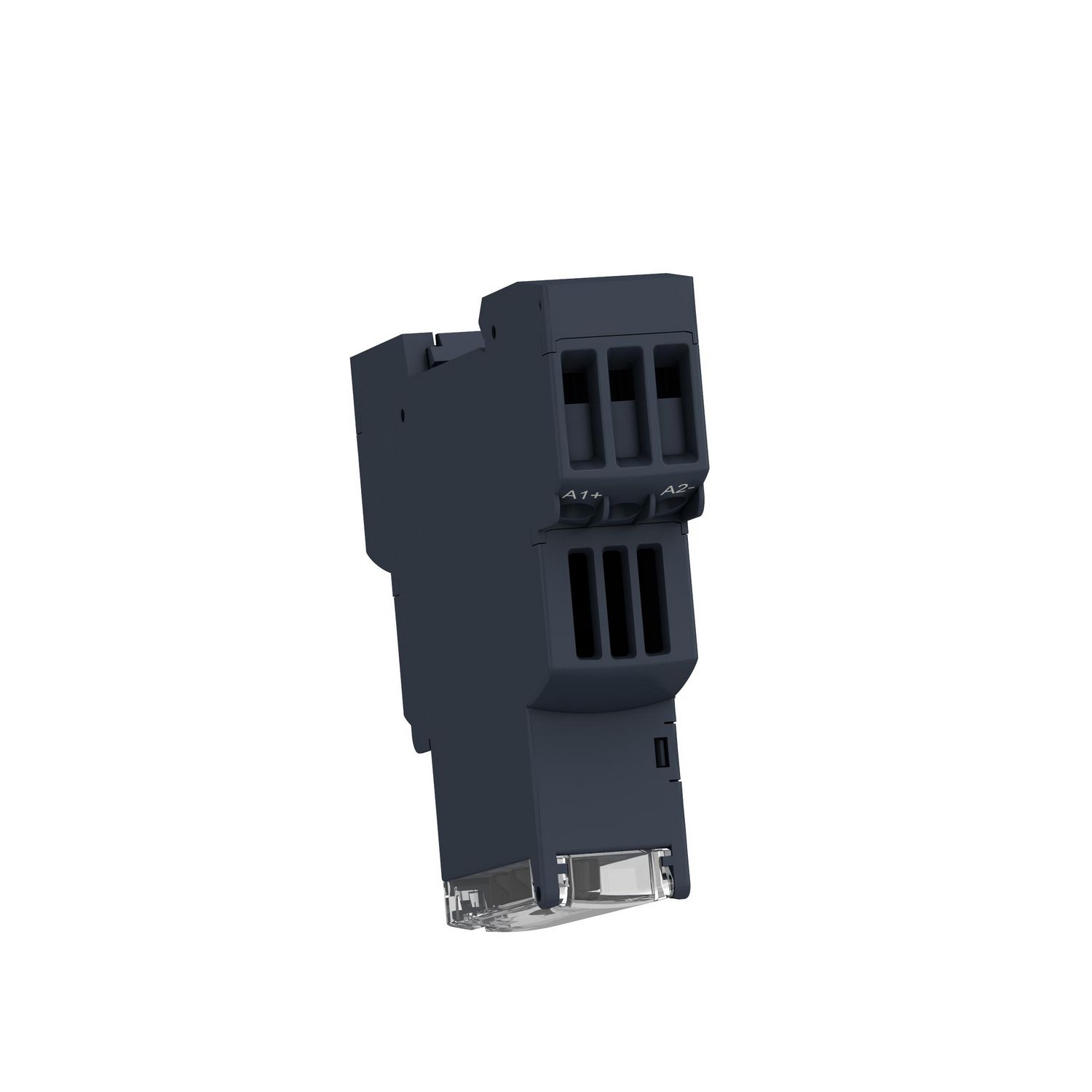

Picture of Harmony Control Relays, Modular 1-phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC
SKU:

RM17UBE16

Harmony Control Relays, Modular 1-phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC

$276.24
Available for Shipping : 24-Nov-2024
Product Selector
Harmony Control Relays, Modular 1-phase voltage control relay, 5 A, 1 CO, 20…80 V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Catalogue
Declaration of conformity
Instruction sheet
Technical illustration
Product Page Link
Product Data Sheet
This Harmony RM17-UB relay allows monitoring of voltage control in single phase networks. This modular multi function single phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Relay type voltage control relay
Maximum switching current 5 A AC/DC
Product specific application for single-phase and DC supply
Contacts type and composition 1 C/O
Switching capacity in VA 1250 VA
Minimum switching current 10 mA at 5 V DC
[Uc] control circuit voltage 24...48 V
Relay name RM17UBE
Power consumption in VA 0-3.9 VA AC
Measurement range 20...80 V voltage AC/DC 50/60 Hz
Range of product Harmony Control Relays
[In] rated current 5 A
Relay monitored parameters overvoltage and undervoltage detection, self-powered
Time delay type adjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault
Utilisation category DC-14 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Product or component type voltage control relay
Connections - terminals screw connectors
Complementary
Compatibility code RM17
Functionality overvoltage and undervoltage detection
Insulation resistance > 500 MOhm at 500 V DC conforming to IEC 60664-1, > 500 MOhm at 500 V DC conforming to IEC 60255-5
Safety reliability data B10d = 470000, MTTFd = 502.2 years
Repeat accuracy +/- 1 % for time delay, +/- 0.5 % for input and measurement circuit
Electrical durability 100000 cycles
Measurement accuracy +/- 10 % of the full scale value
Housing material self-extinguishing plastic
Nominal output current 5 A
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Quality labels CE
[Ui] rated insulation voltage 400 V conforming to IEC 60664-1, 250 V conforming to IEC 60664-1
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Reset time 1500 ms time delay
Maximum switching voltage 250 V AC/DC
Net weight 0.08 kg
Polarity non reversible polarity on DC supply
Immunity to microbreaks 20 ms
Maximum measuring cycle 150 ms measurement cycle as true rms value
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Control circuit frequency 50...60 Hz +/- 10 %
Mechanical durability 30000000 cycles
Supply voltage limits 15-100 V AC/DC
Control type without test button
Measurement error 0.2 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Maximum power consumption in W 1.6 W DC
Width 17.5 mm
Local signalling LED (yellow) for relay ON, LED (green) for power ON
Overvoltage category III conforming to IEC 60664-1
Run-up delay at power-up 500 ms AC, 1000 ms DC
Operating position any position without derating
Output contacts 1 C/O
Operating rate <= 360 operations/hour full load
[Us] rated supply voltage self-powered
Hysteresis 3-3 % fixed of threshold setting
Environment
Relative humidity 95-95 % at 55-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Non-dissipating shock wave 4 kV conforming to IEC 61000-4-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 60255-5
Dielectric test voltage 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1, 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
Product certifications UL, CSA, GL, GOST, C-Tick
Directives 89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Electromagnetic compatibility immunity for industrial environments conforming to NF EN/IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Vibration resistance 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
Shock resistance 5 gn conforming to IEC 60068-2-27
Standards IEC 60255-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 7.800 cm
Package 1 Length 9.600 cm
Package 1 Weight 83.000 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.463 kg
