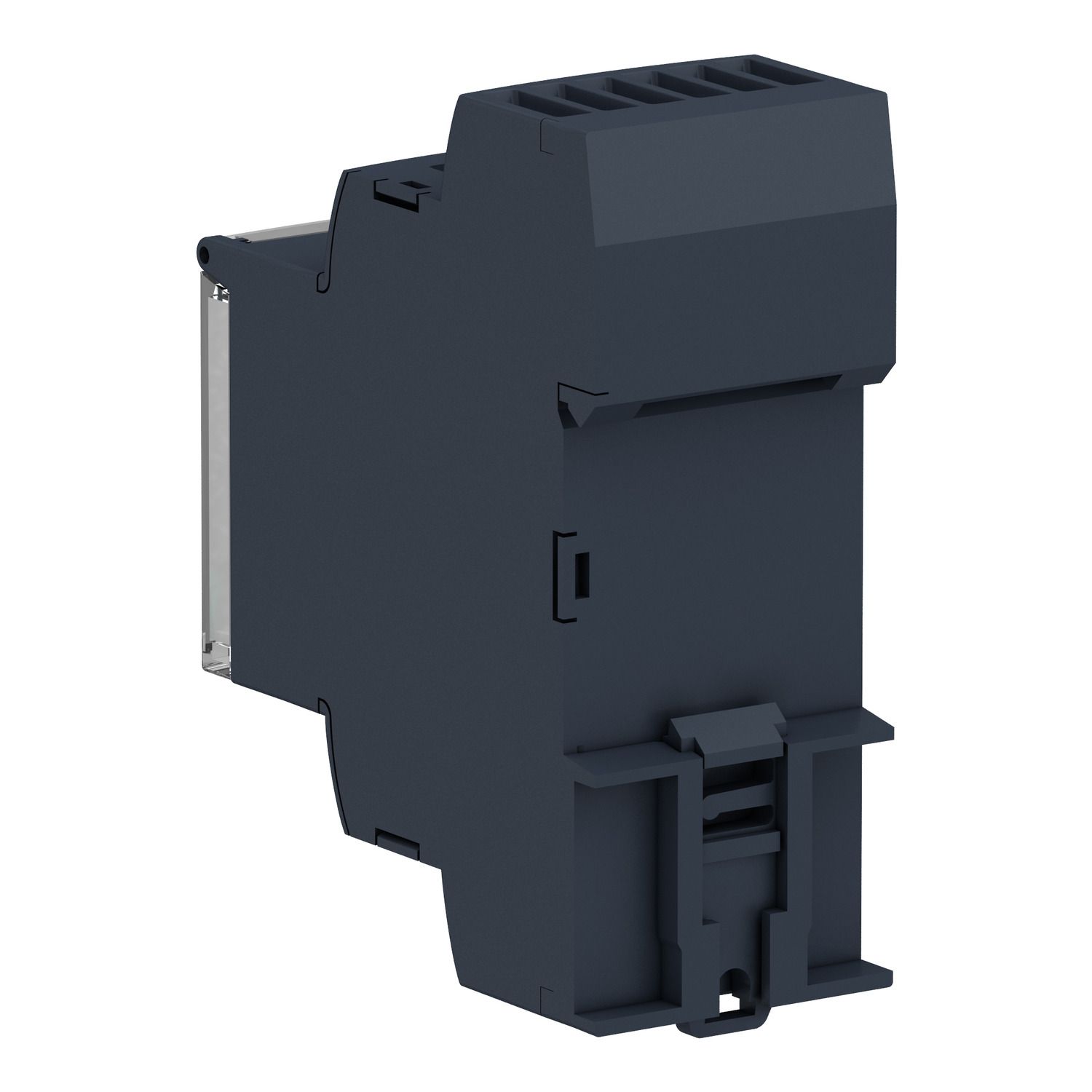

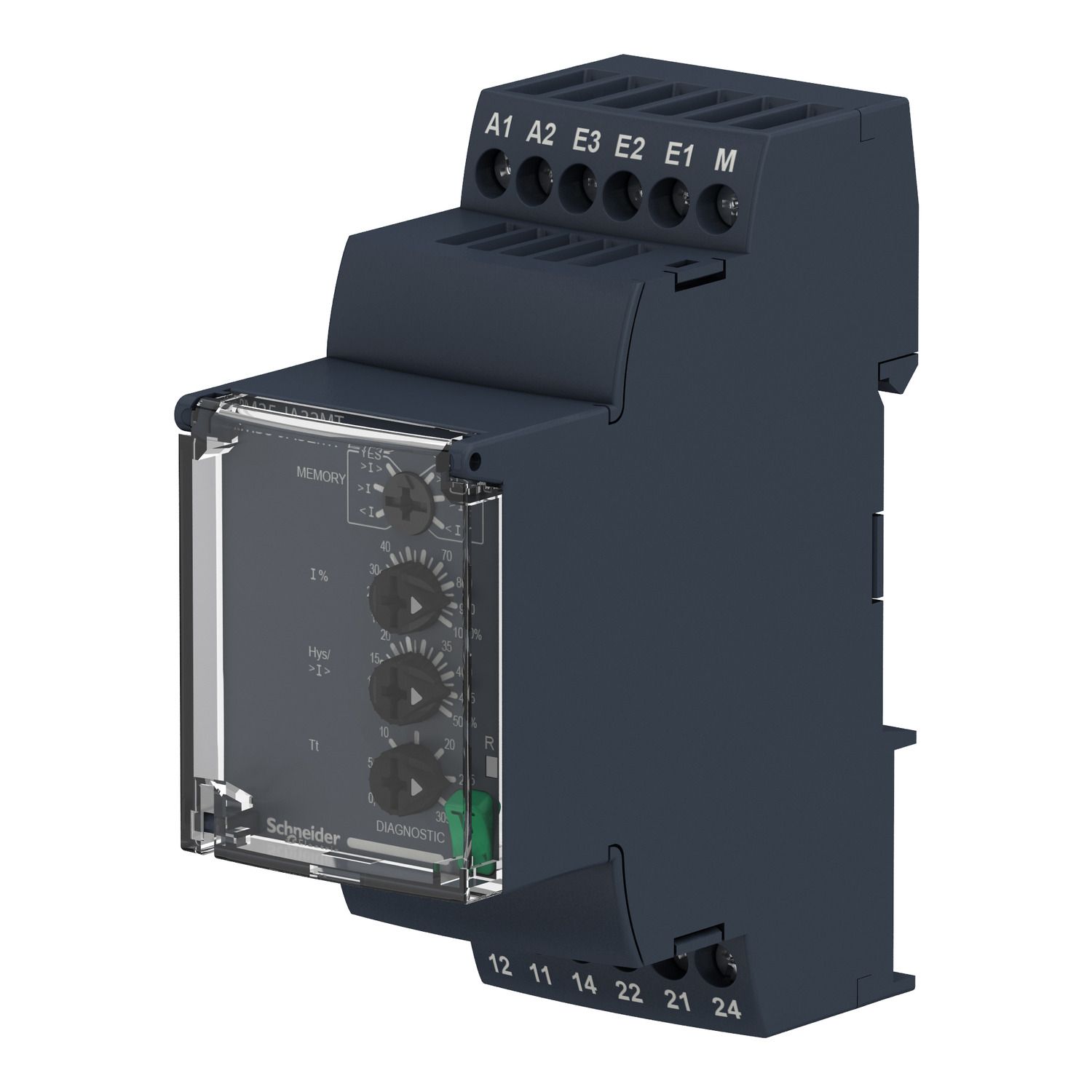

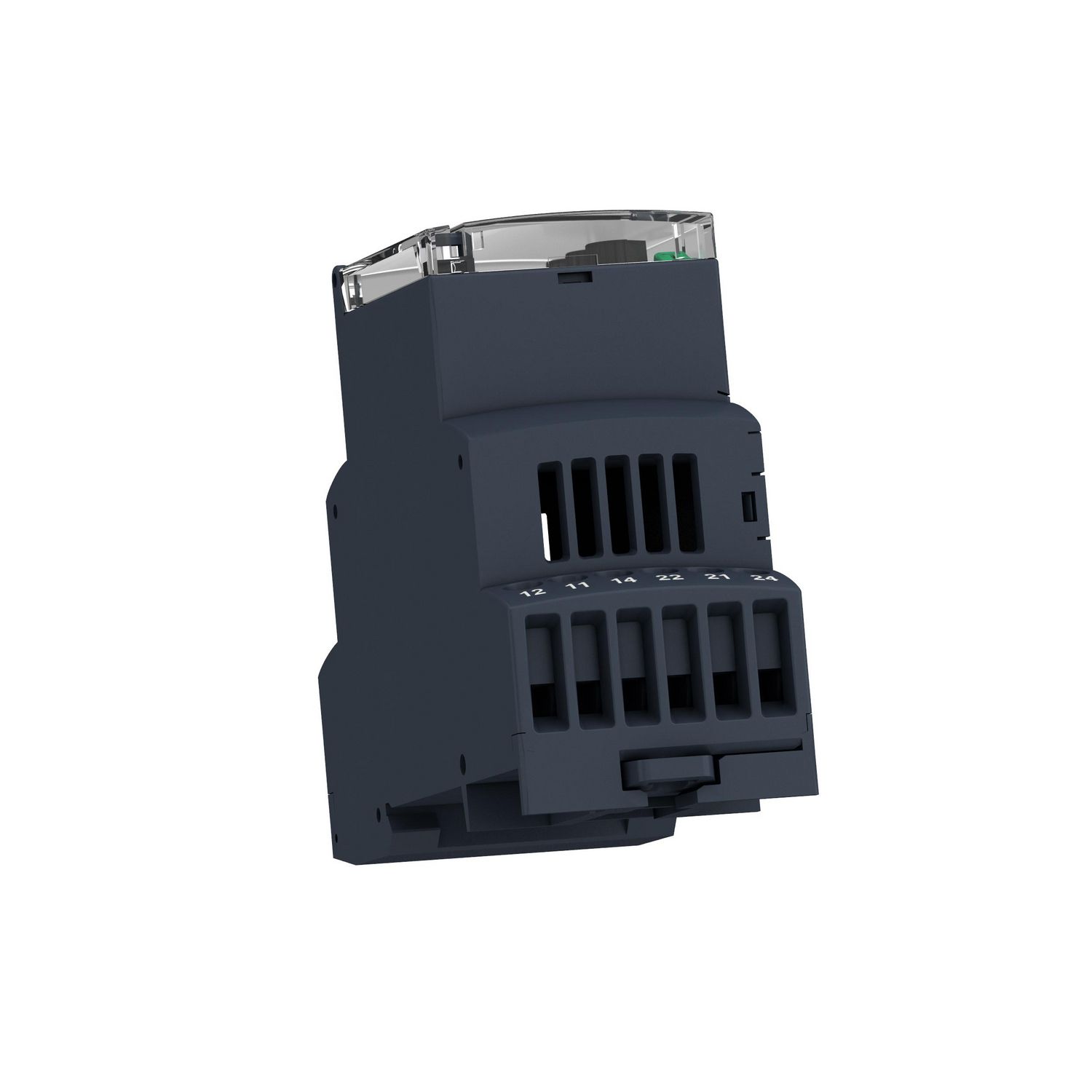

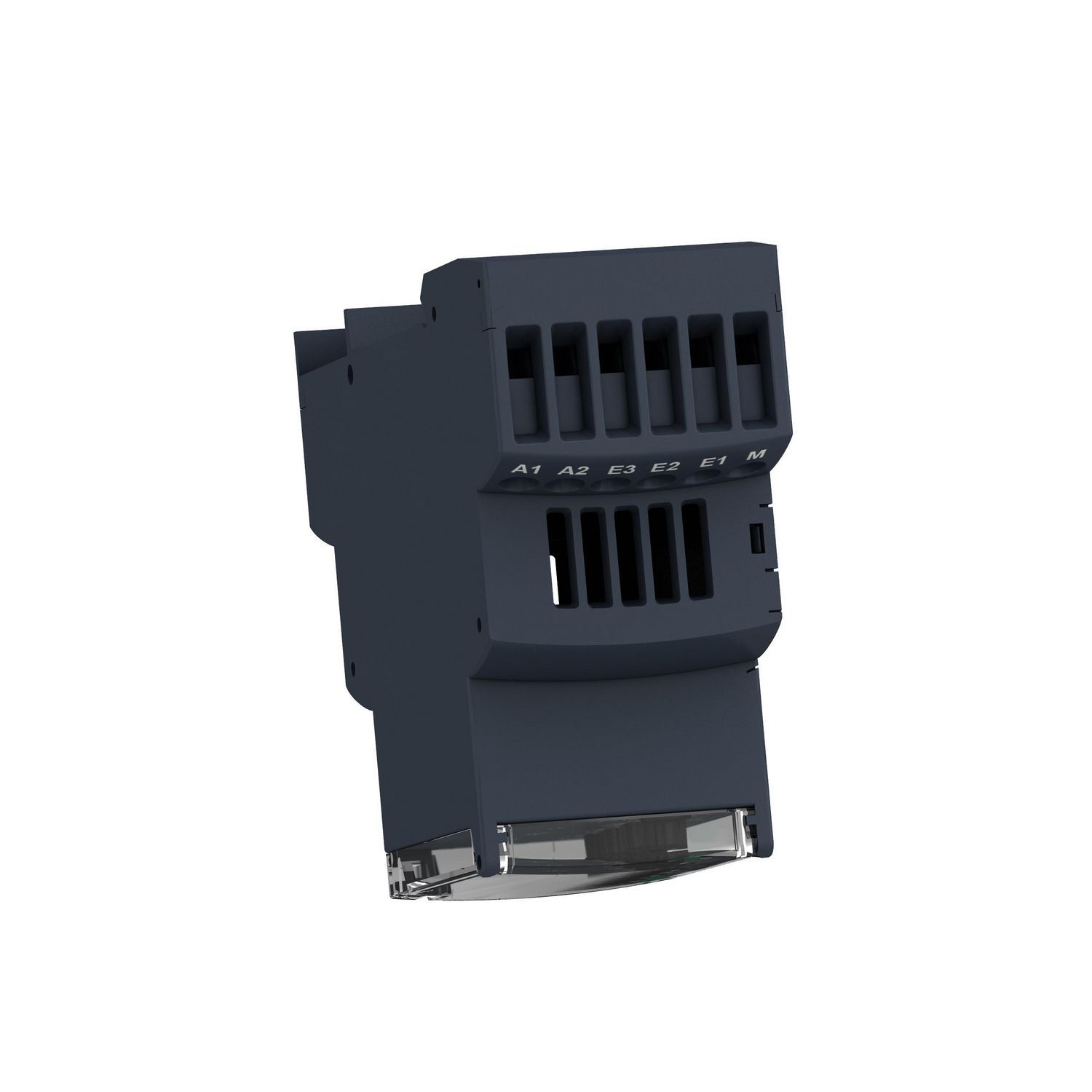

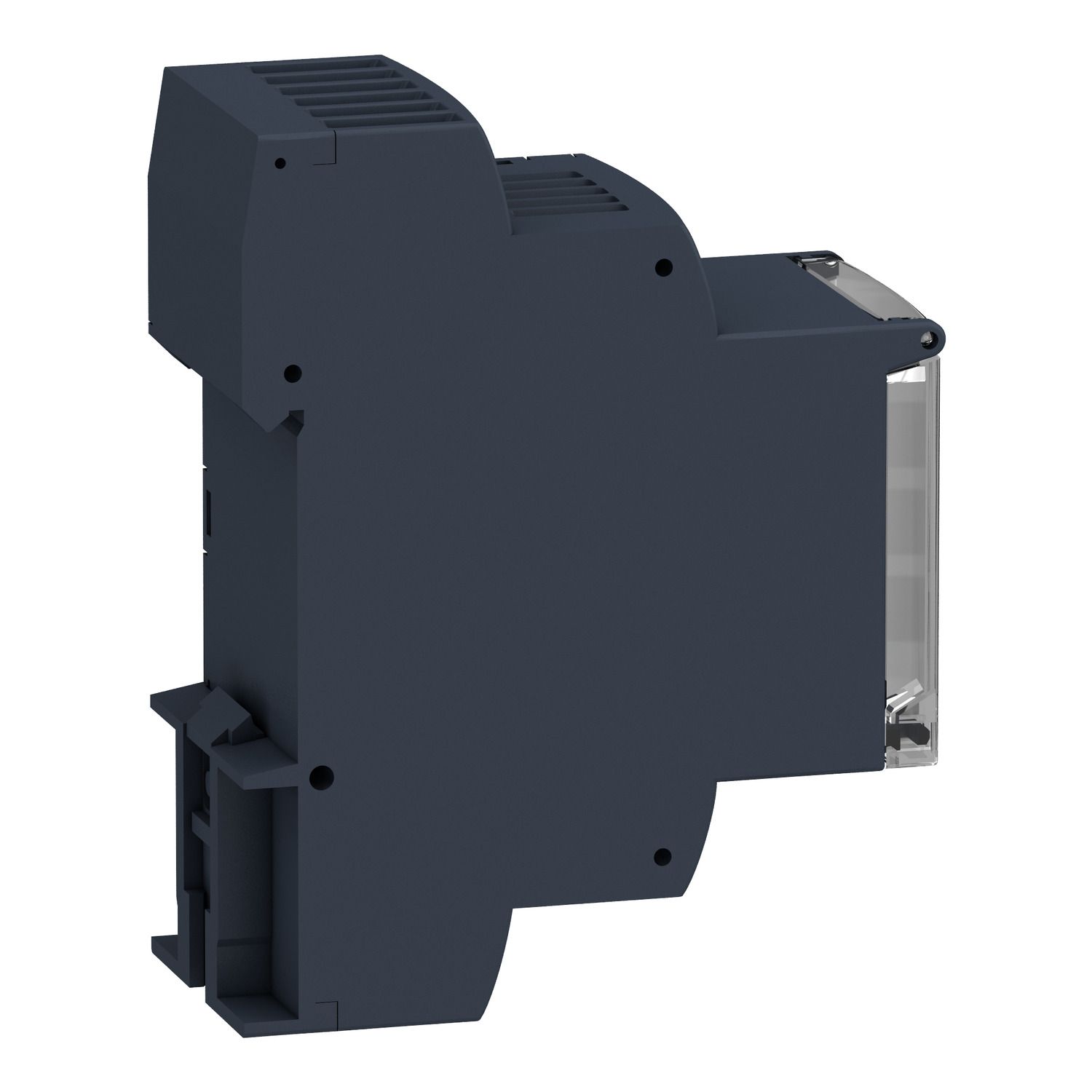

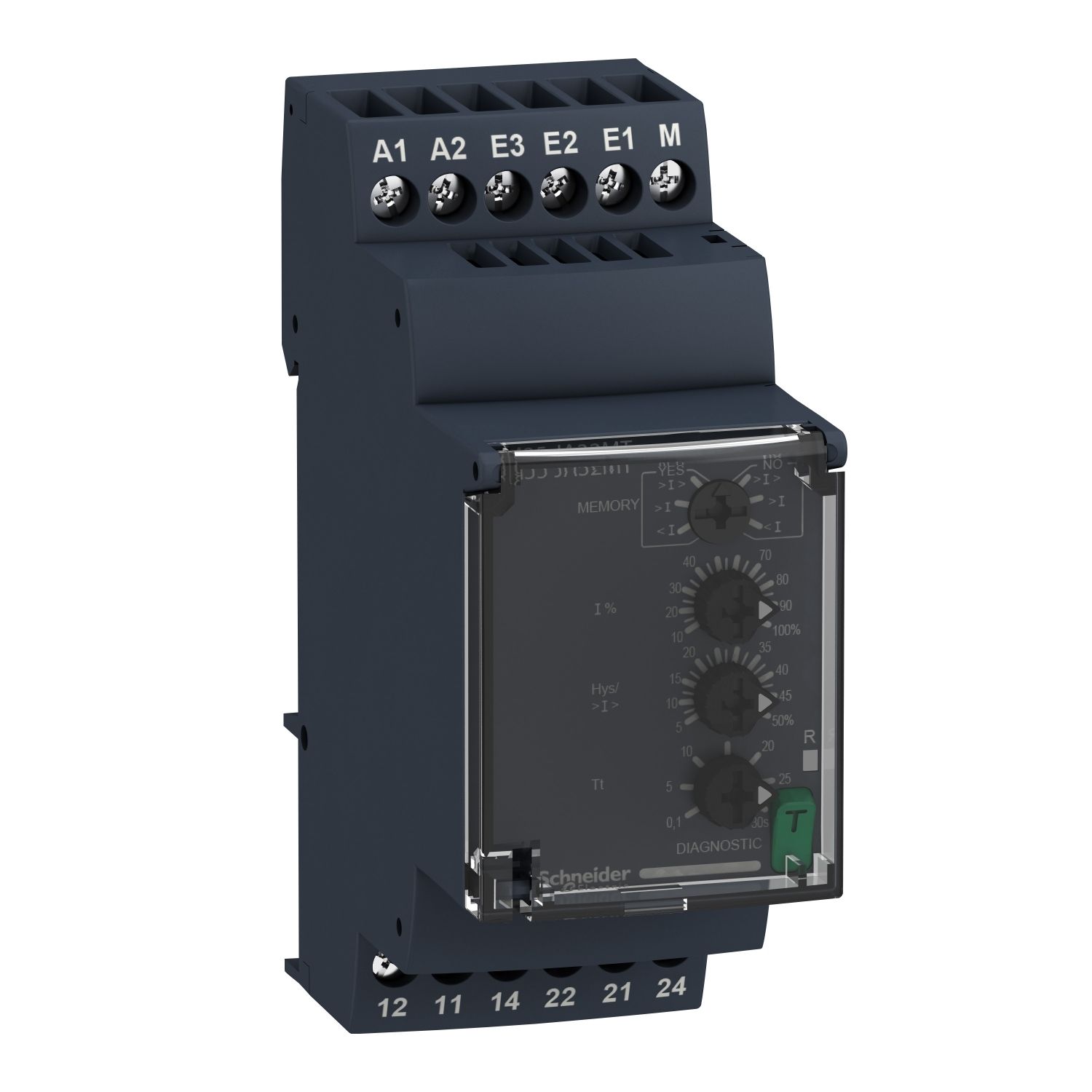

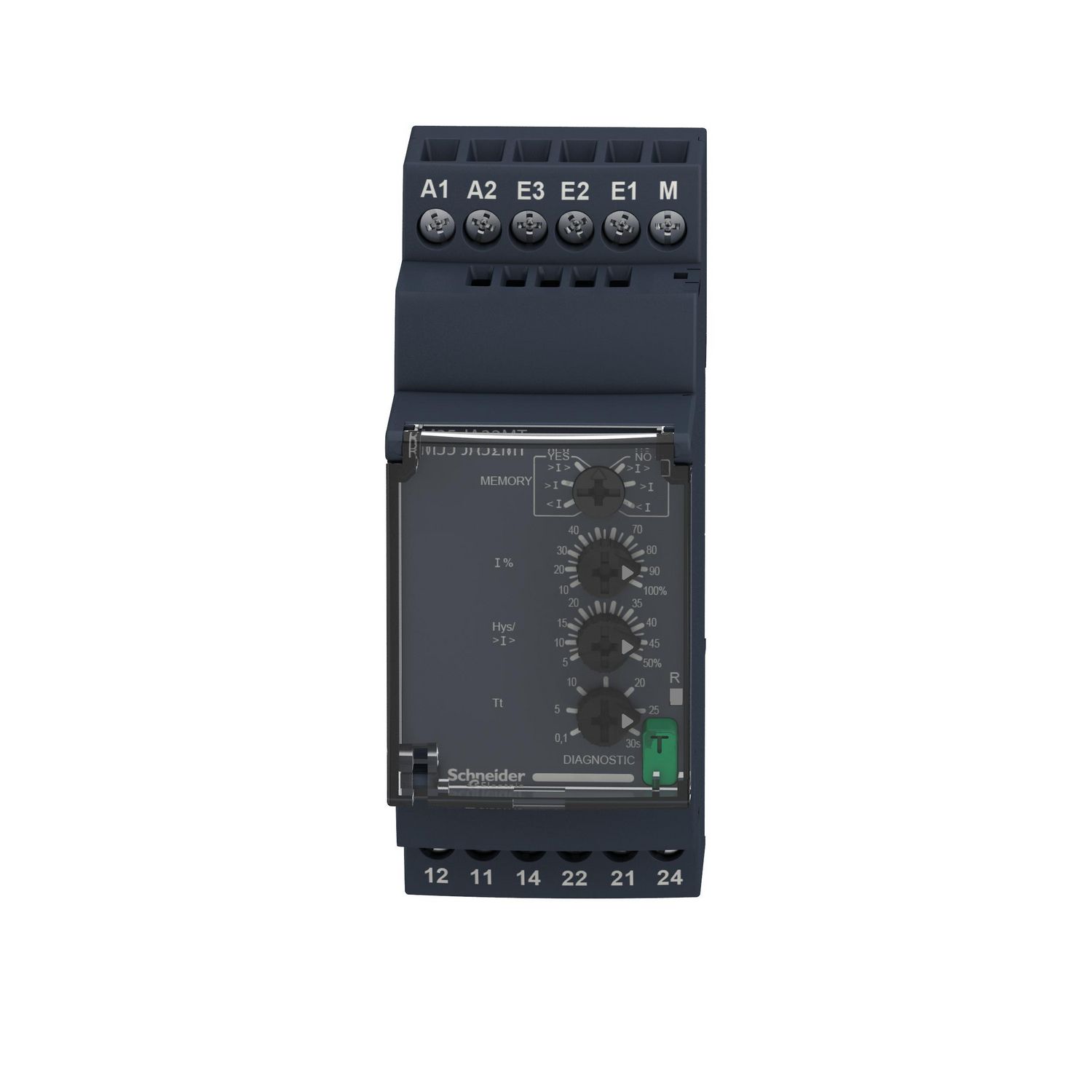

Picture of current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC
Picture of current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC
Picture of current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC
Picture of current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC
Picture of current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC
SKU:

RM35JA32MT

current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC

$356.35 INC GST
Available for Shipping : 20-Feb-2025
Product Selector
current control relay, Harmony Control Relays, 8A, 2CO, 150mA…15A, 380…415V AC
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Catalogue
Instruction sheet
Declaration of conformity
CAD
Technical illustration
Product Page Link
Product Data Sheet

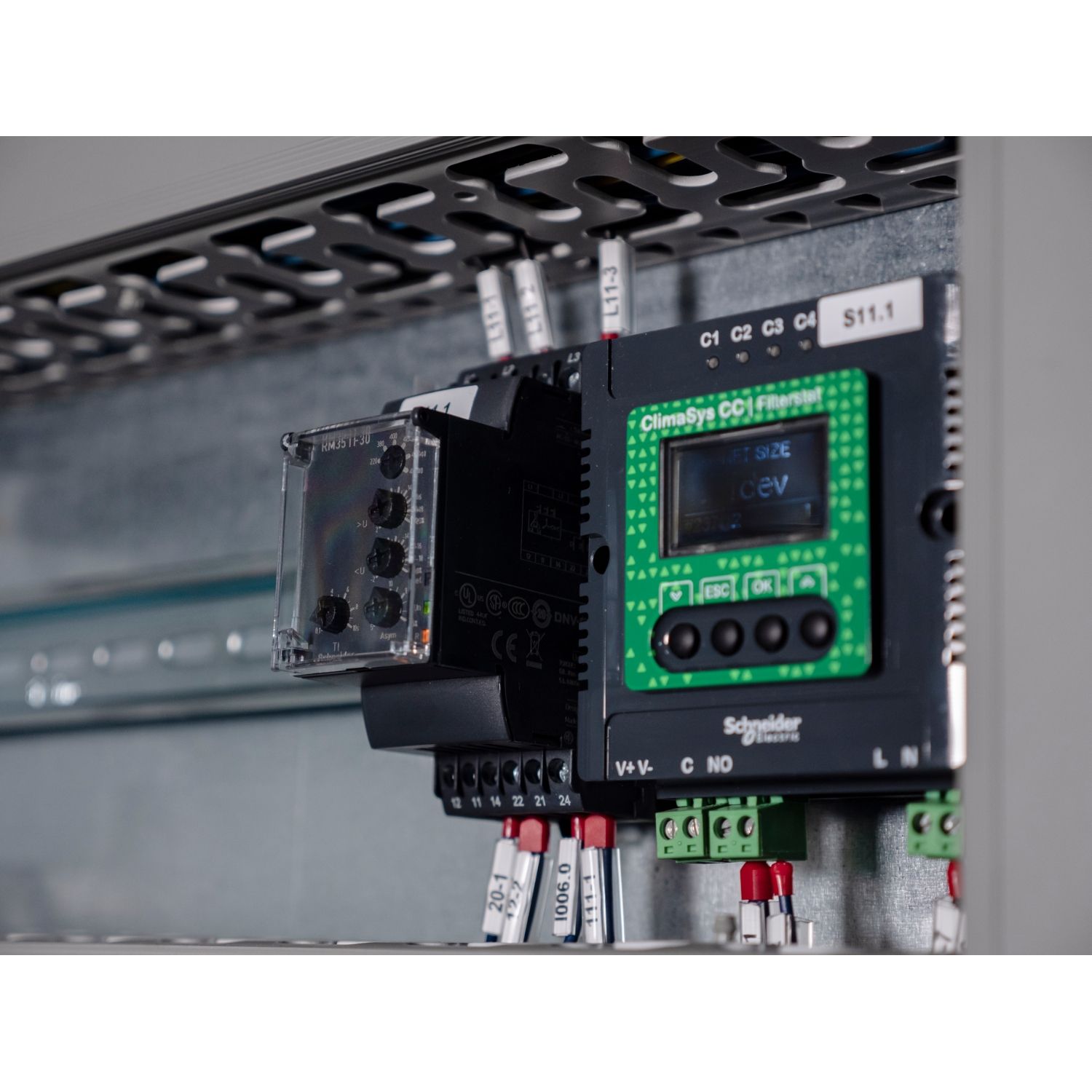

This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 380...415 V
Relay type current control relay
Relay name RM35JA
Measurement range 150 mA...15 A current AC/DC 50/60 Hz, 1.5...15 A E3-M terminals, 0.5...5 A E2-M terminals, 0.15...1.5 A AC/DC E1-M terminals
Range of product Harmony Control Relays
Maximum switching current 8 A AC
Maximum power consumption in VA 8 VA
[In] rated current 8 A
Relay monitored parameters overcurrent or undercurrent in window mode, overcurrent or undercurrent detection
Time delay type adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Contacts type and composition 2 C/O
Utilisation category DC-1 conforming to IEC 60947-4-1, AC-1 conforming to IEC 60947-4-1, DC-13 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1
Product or component type current control relay
Switching capacity in VA 2000 VA
Connections - terminals screw connectors
Minimum switching current 10 mA at 5 V DC
Complementary
Run-up delay at power-up 0.3 s
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Resistance across terminals 0.05 Ohm at E1-M terminals, 0.015 Ohm at E2-M terminals, 0.005 Ohm at E3-M terminals
Compatibility code RM3
Mechanical durability 10000000 cycles
Supply voltage limits 323-456.5 V AC
Time delay drift <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature
Insulation between supply and measurement
Functionality overcurrent or undercurrent detection
Control type with test button
Threshold setting 10...100 %
Contacts material cadmium free
Internal input resistance 0.05 Ohm, 0.015 Ohm, 0.005 Ohm
Measurement error 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Insulation resistance > 100 MOhm at 500 V DC conforming to IEC 60255-27
Switching threshold drift <= 1 % within the supply voltage range, <= 0.05 % per degree centigrade depending permissible ambient air temperature
Control circuit voltage limits - 15 % + 10 % Un
Safety reliability data B10d = 270000, MTTFd = 296.8 years
Setting accuracy of the switching threshold +/- 20 % of the full scale, +/- 10 % of the full scale
Repeat accuracy +/- 2 % for time delay, +/- 0.5 % for input and measurement circuit
Electrical durability 100000 cycles
Width 35 mm
Housing material self-extinguishing plastic
Local signalling LED (green) for power ON, LED (yellow) for relay ON
Nominal output current 8 A
Mounting support 35 mm DIN rail conforming to IEC 60715
Setting accuracy of time delay 10 P
Overvoltage category III conforming to UL 508, III conforming to IEC 60664-1
Connections - terminals screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Reset time 1500 ms at maximum voltage
Maximum switching voltage 250 V AC
Net weight 0.12 kg
Response time <= 500 ms (on crossing the threshold)
Output contacts 2 C/O
[Us] rated supply voltage AC non self-powered
Hysteresis 3-3 % fixed of full scale for window mode, 5-50 % adjustable of threshold setting
Maximum measuring cycle 100 ms measurement cycle as true rms value
Environment
Relative humidity 93-97 % at 25-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Pollution degree 3 conforming to UL 508, 3 conforming to IEC 60664-1
IP degree of protection IP30 (housing) conforming to IEC 60529, IP50 (front panel) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -20-60 °C at 50 Hz, -20-50 °C at 60 Hz
Electromagnetic compatibility emission standard for residential, commercial and light-industrial environments (except radiated emission) conforming to IEC 61000-6-3, conducted and radiated emissions class B conforming to CISPR 22, conducted and radiated emissions class B group 1 conforming to CISPR 11, surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, emission standard for industrial environments conforming to IEC 61000-6-4, immunity for industrial environments conforming to IEC 61000-6-2, immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1
Immunity to microbreaks 50 ms
Environmental characteristic 3K3 C
Vibration resistance 0.5 gn (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 0.035 mm (f= 58.1-150 Hz) in operation conforming to IEC 60068-2-6, 1 gn (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6, 0.075 mm (f= 10-58.1 Hz) not in operation conforming to IEC 60068-2-6
Shock resistance 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27, 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27
Dielectric test voltage 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
Standards IEC 60255-1
Product certifications CE, GL, UL, RCM, CSA, EAC, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.8 cm
Package 1 Width 4.5 cm
Package 1 Length 9.5 cm
Package 1 Weight 129 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.532 kg
Unit Type of Package 3 3
Number of Units in Package 3 640
Package 3 Height 75 cm
Package 3 Width 40 cm
Package 3 Length 80 cm
Package 3 Weight 107.56 kg
