Harmony Control Relays, Modular 1 phaseVoltage control relay, 5A, 2CO, range 1..100V, 24..240V AC DC

$311.89
Available for Shipping : 05-Jan-2025
Product Selector
Harmony Control Relays, Modular 1 phaseVoltage control relay, 5A, 2CO, range 1..100V, 24..240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Declaration of conformity
Technical illustration
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet

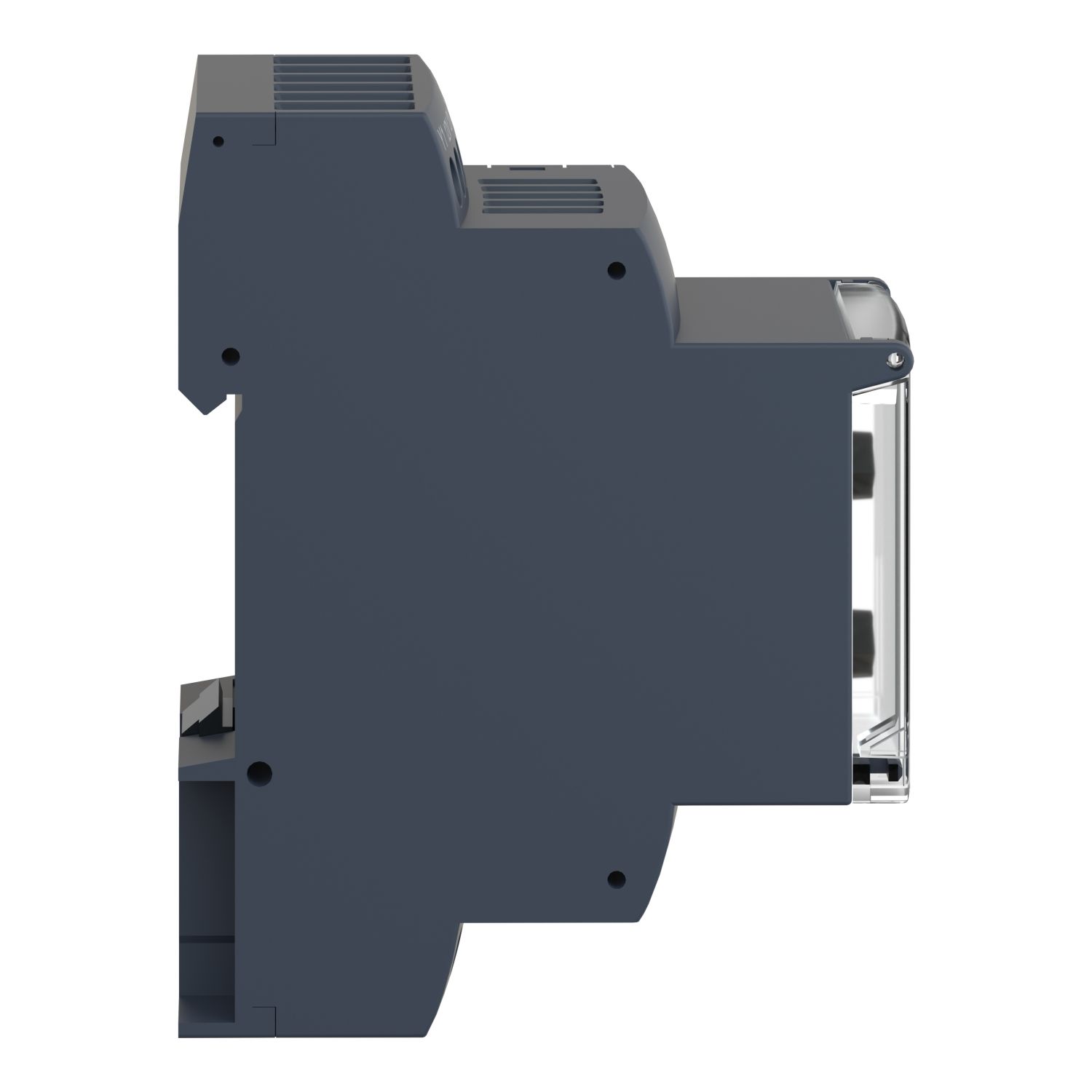

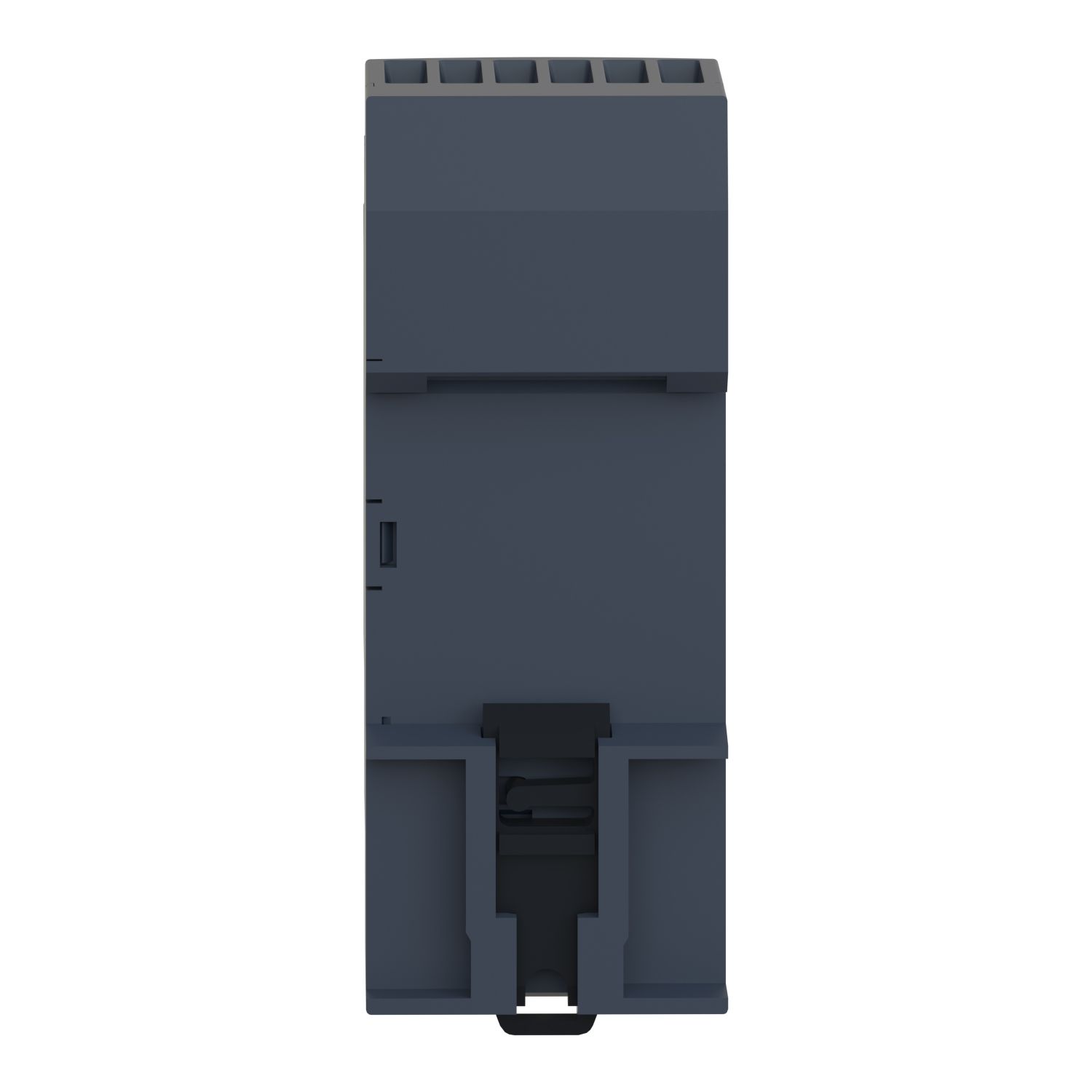

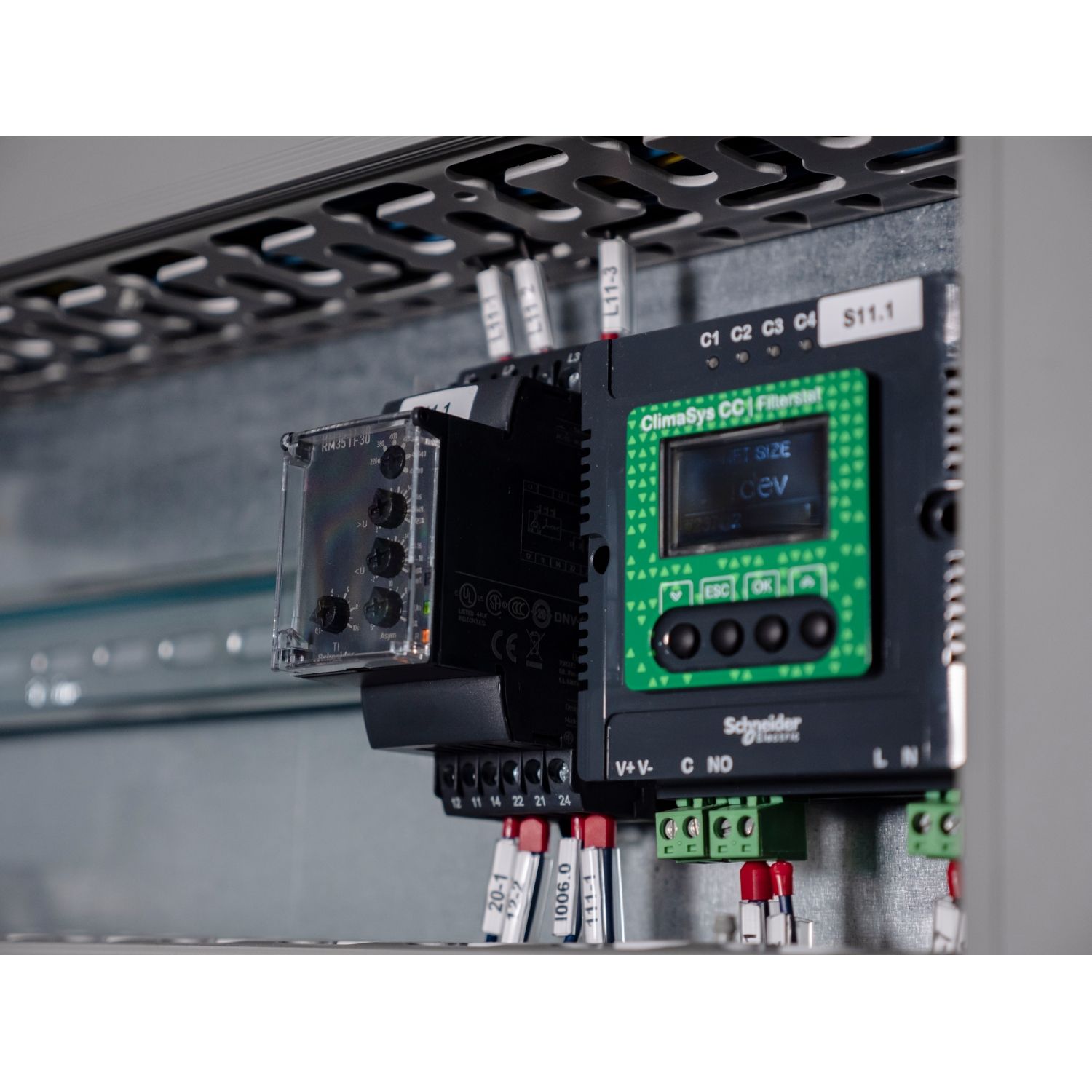

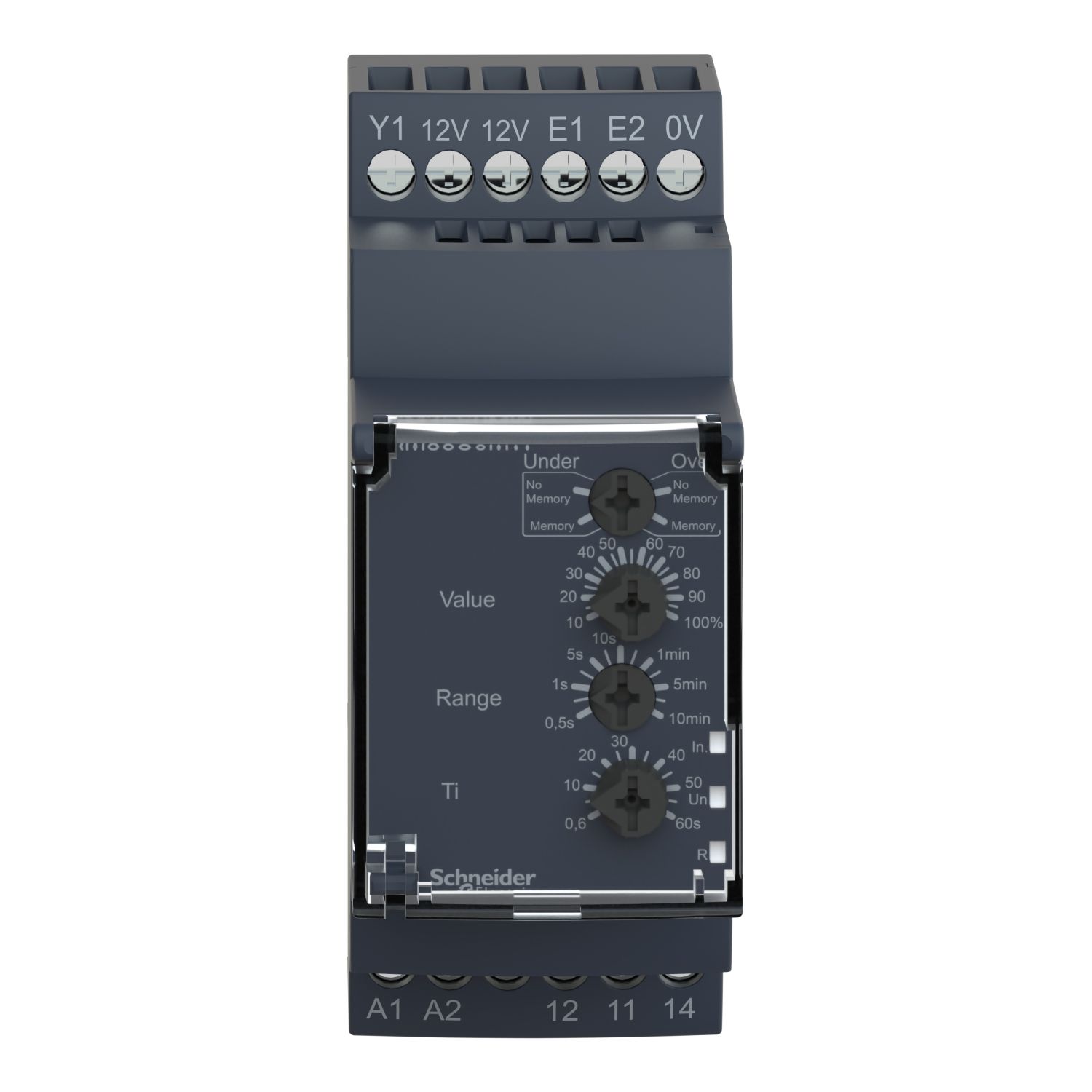

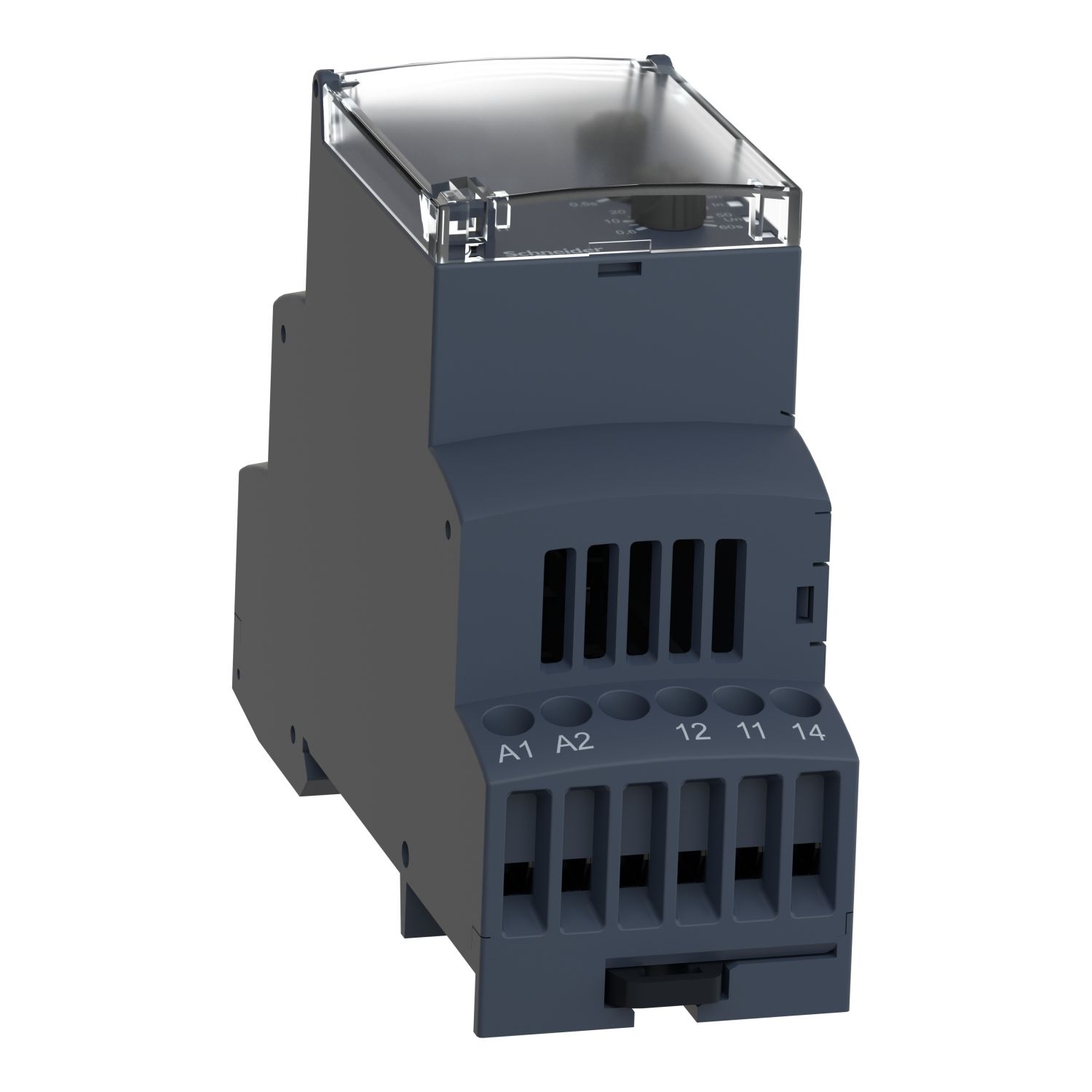

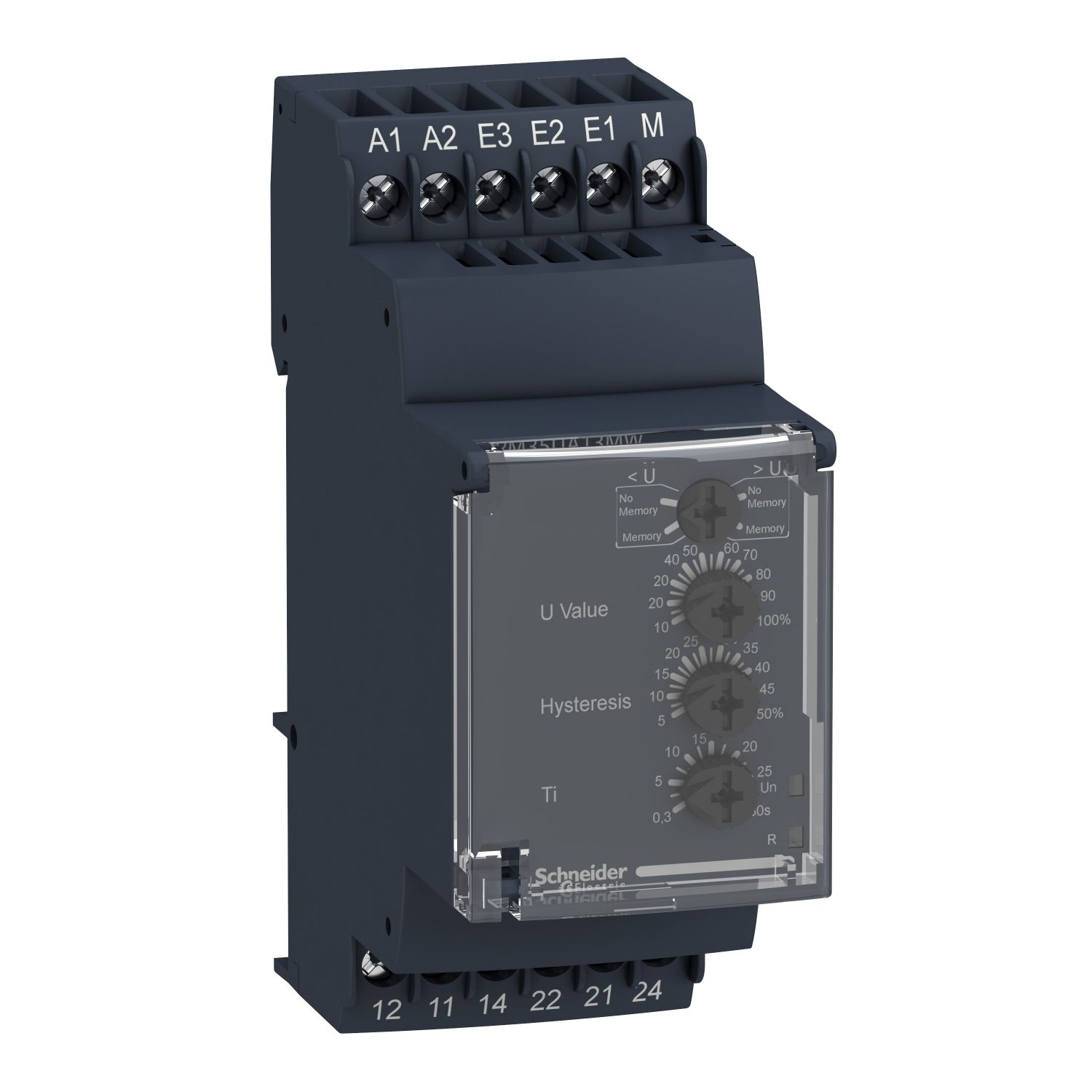

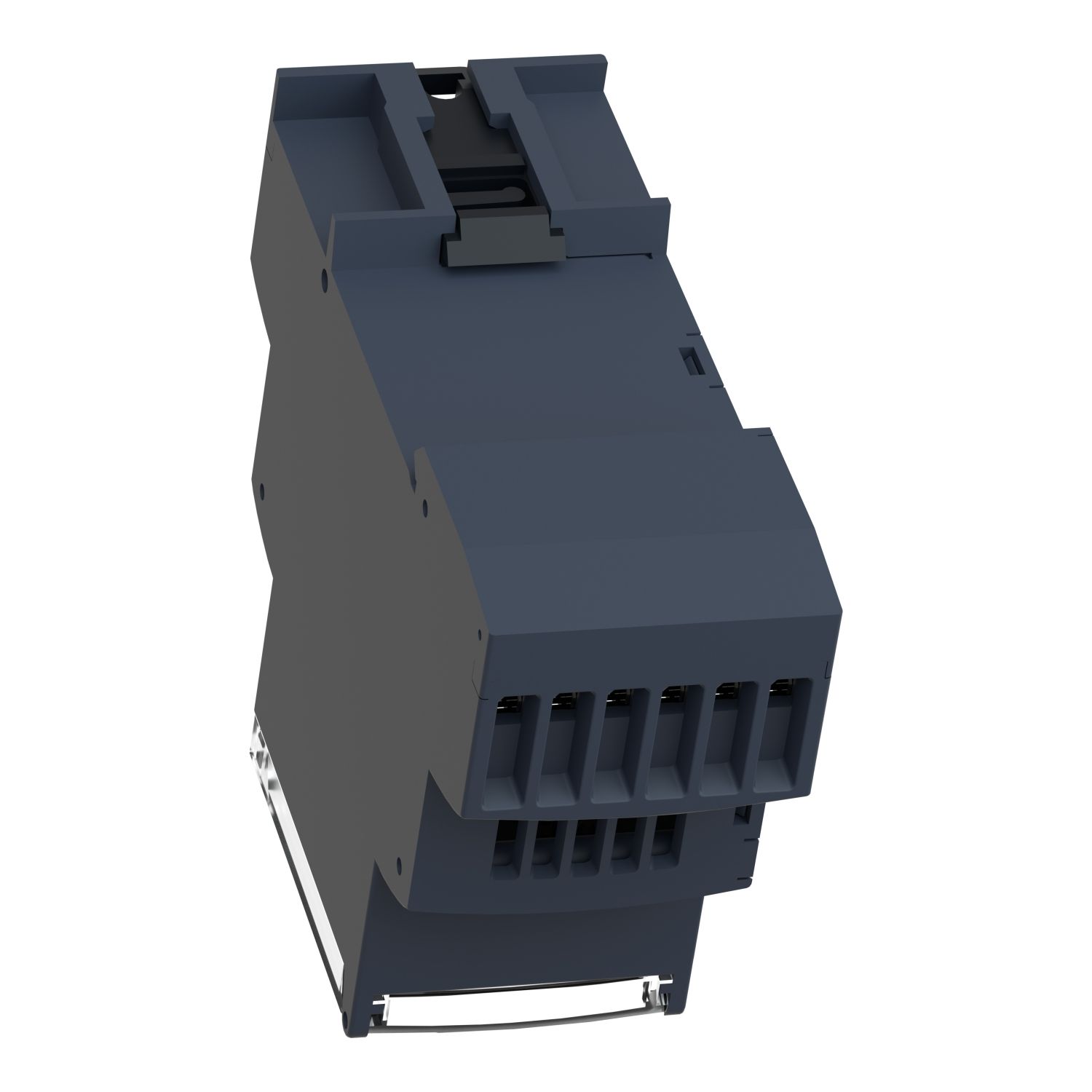

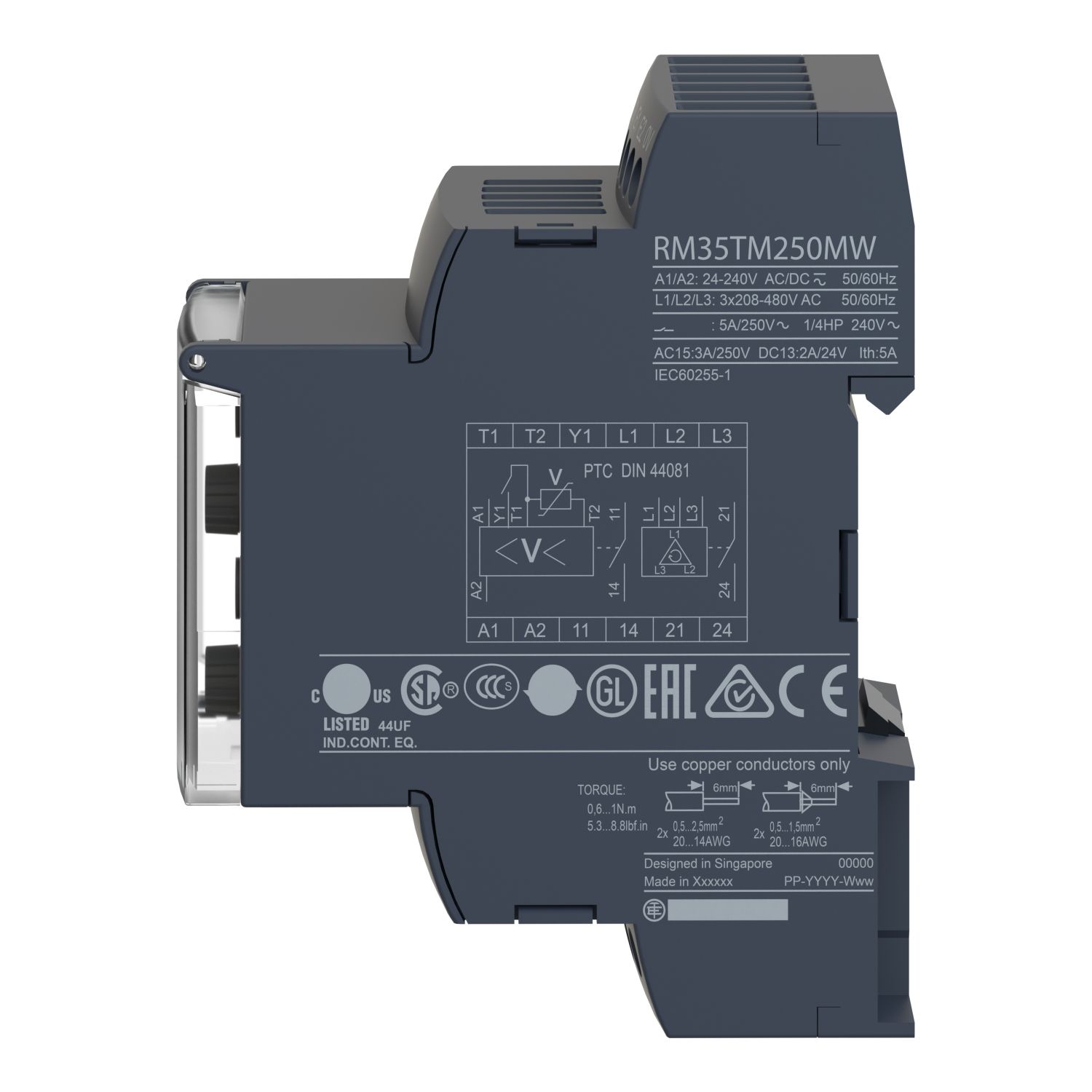

This Harmony RM35-U multi function control relay allows monitoring of voltage control. This modular multi function control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 24...240 V
Relay type multifunction voltage control relay
Relay name RM35UA
Power consumption in VA 0-3.5 VA AC
Measurement range 1...100 V voltage AC/DC
Range of product Harmony Control Relays
Maximum switching current 5 A AC/DC
[In] rated current 5 A
Relay monitored parameters overvoltage or undervoltage detection
Time delay type adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
Contacts type and composition 2 C/O
Utilisation category DC-14 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Product or component type voltage control relay
Switching capacity in VA 1250 VA
Connections - terminals screw connectors
Minimum switching current 10 mA at 5 V DC
Complementary
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Control circuit frequency 40...70 Hz +/- 10 %
Resistance across terminals 220 mOhm at E3-M terminals, 22 mOhm at E1-M terminals, 110 mOhm at E2-M terminals
Compatibility code RM3
Mechanical durability 30000000 cycles
Supply voltage limits 20.4-264 V AC/DC
Control type without test button
Threshold setting 10...100 %
Measurement error < 1 % over the whole range with voltage variation, +/- 0.05 %/°C with temperature variation
Insulation resistance > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
Control circuit voltage limits - 15 % + 10 % Un
Safety reliability data MTTFd = 308.2 years, B10d = 290000
Repeat accuracy +/- 2 % for time delay, +/- 0.5 % for input and measurement circuit
Electrical durability 100000 cycles
Maximum power consumption in W 0.6 W DC
Width 35 mm
Measurement accuracy +/- 10 % of the full scale value
Housing material self-extinguishing plastic
Local signalling LED (yellow) for relay ON, LED (green) for power ON
Nominal output current 5 A
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Quality labels CE
Overvoltage category III conforming to IEC 60664-1
[Ui] rated insulation voltage 600 V conforming to IEC 60664-1, 250 V conforming to IEC 60664-1
Run-up delay at power-up 600 ms
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Reset time 1500 ms time delay
Maximum switching voltage 250 V AC/DC
Net weight 0.08 kg
Sensitivity scale 5...50 V E2-M terminals, 10...100 V E3-M terminals, 1...10 V E1-M terminals
Operating position any position without derating
Polarity non reversible polarity on DC supply
Immunity to microbreaks 10 ms
Output contacts 2 C/O
Operating rate <= 360 operations/hour full load
[Us] rated supply voltage AC/DC non self-powered
Hysteresis 5-50 % of threshold setting
Maximum measuring cycle 30 ms measurement cycle as true rms value
Environment
Relative humidity 95-95 % at 55-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Directives 89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Electromagnetic compatibility immunity for industrial environments conforming to NF EN/IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Non-dissipating shock wave 4 kV conforming to IEC 61000-4-5, 4 kV conforming to IEC 60664-1, 4 kV conforming to IEC 60255-5
Vibration resistance 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
Shock resistance 5 gn conforming to IEC 60068-2-27
Dielectric test voltage 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1, 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
Standards IEC 60255-6
Product certifications CSA, GL, UL, C-Tick, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 7.8 cm
Package 1 Length 9.5 cm
Package 1 Weight 137.0 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.305 kg
