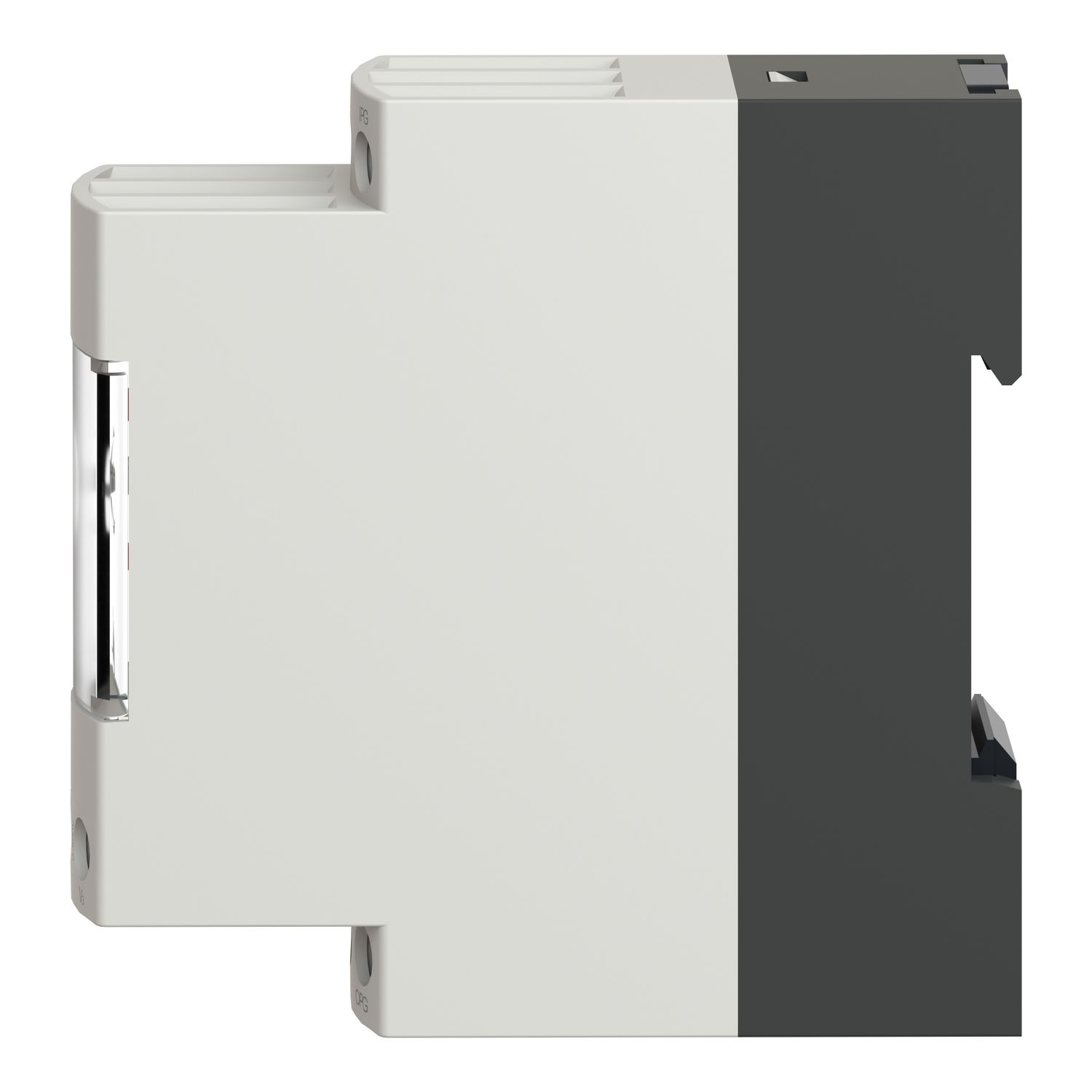

Picture of Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA

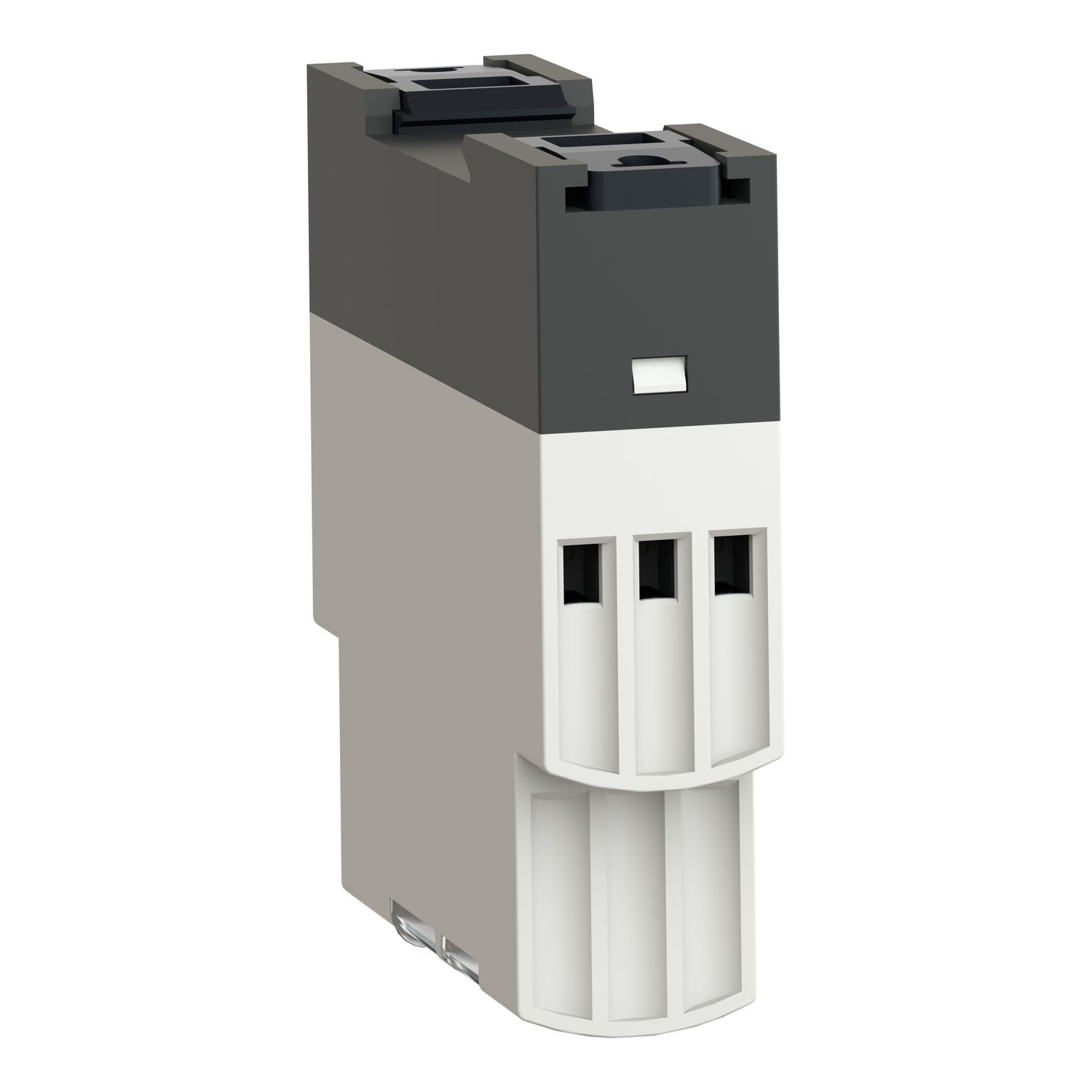

Picture of Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA

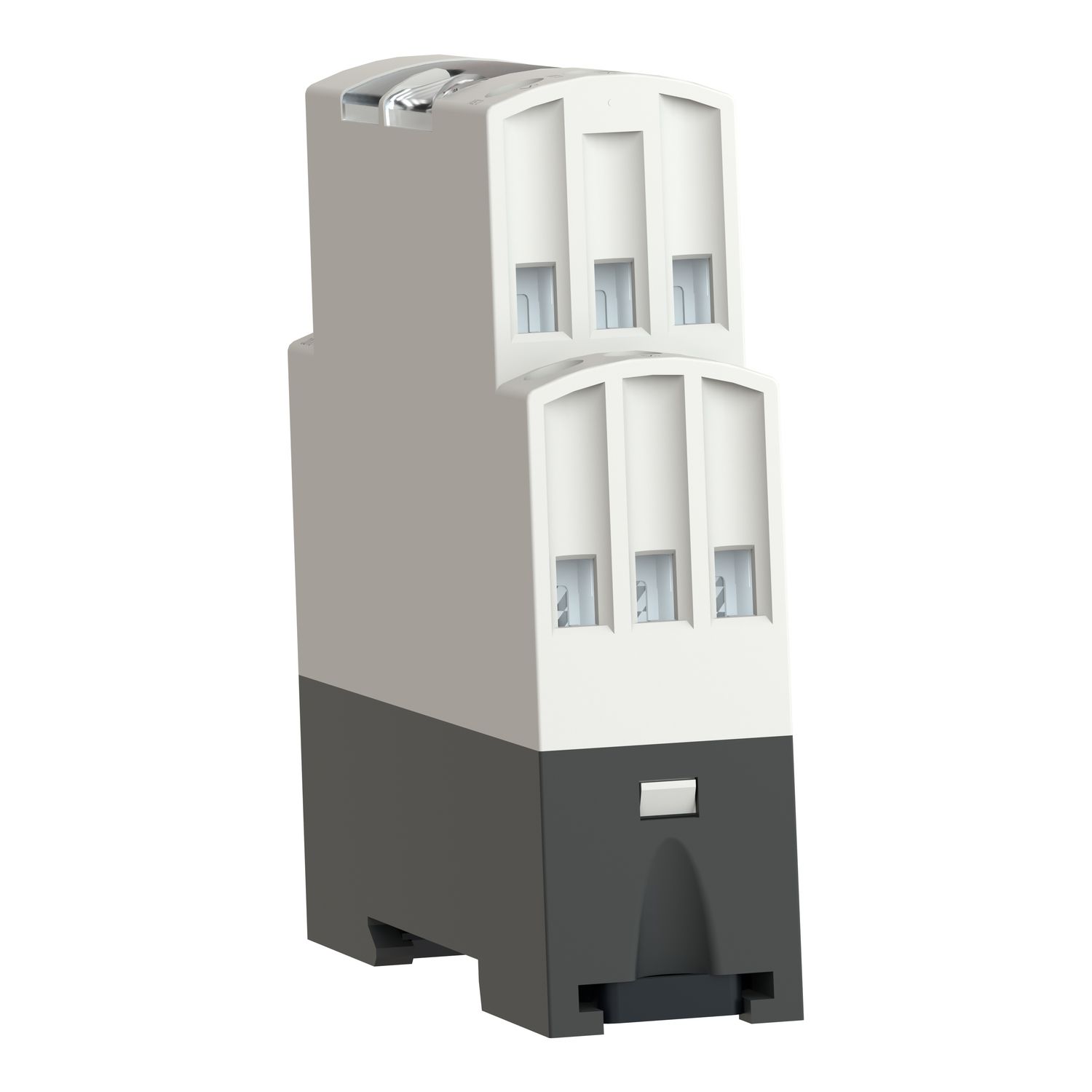

Picture of Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA

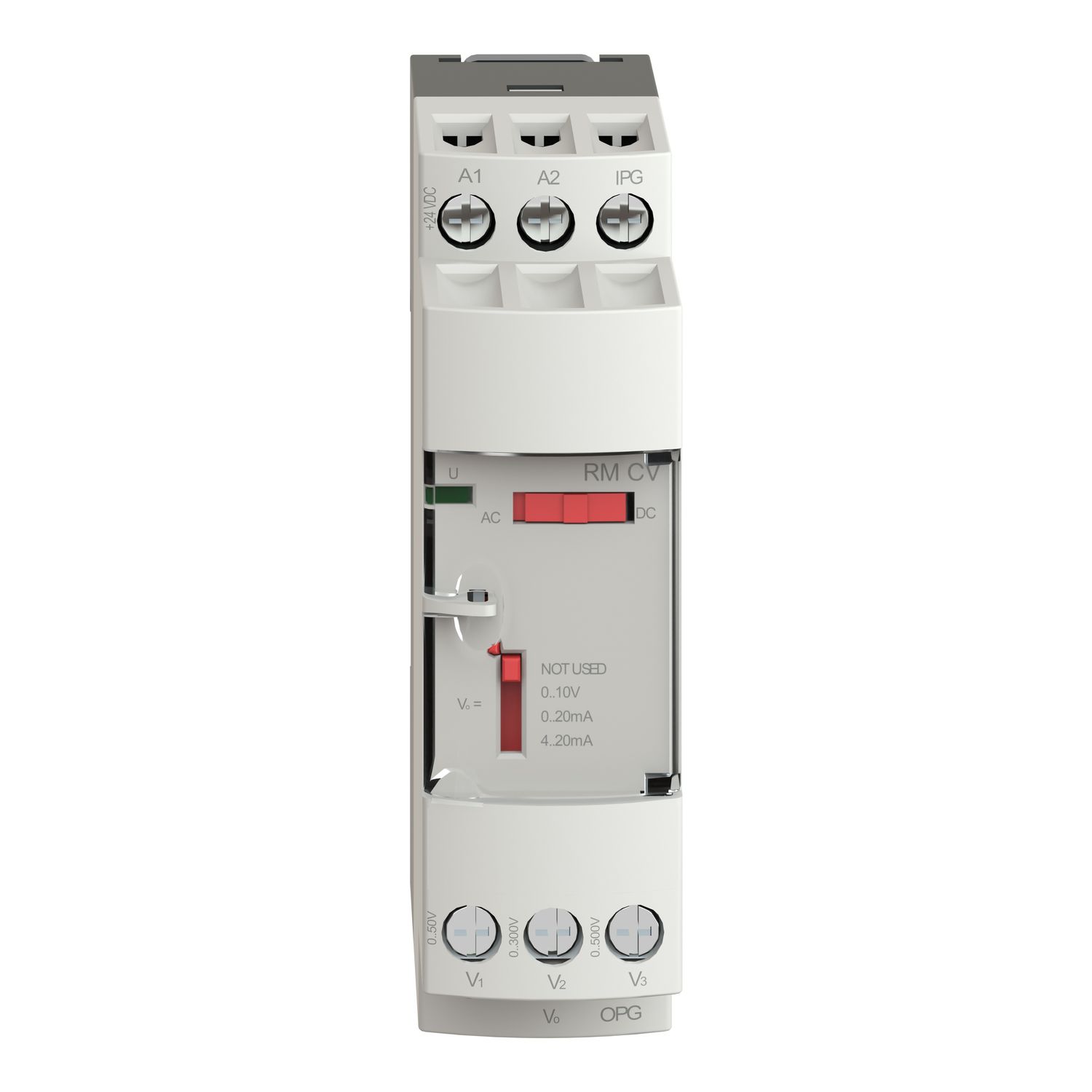

Picture of Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA

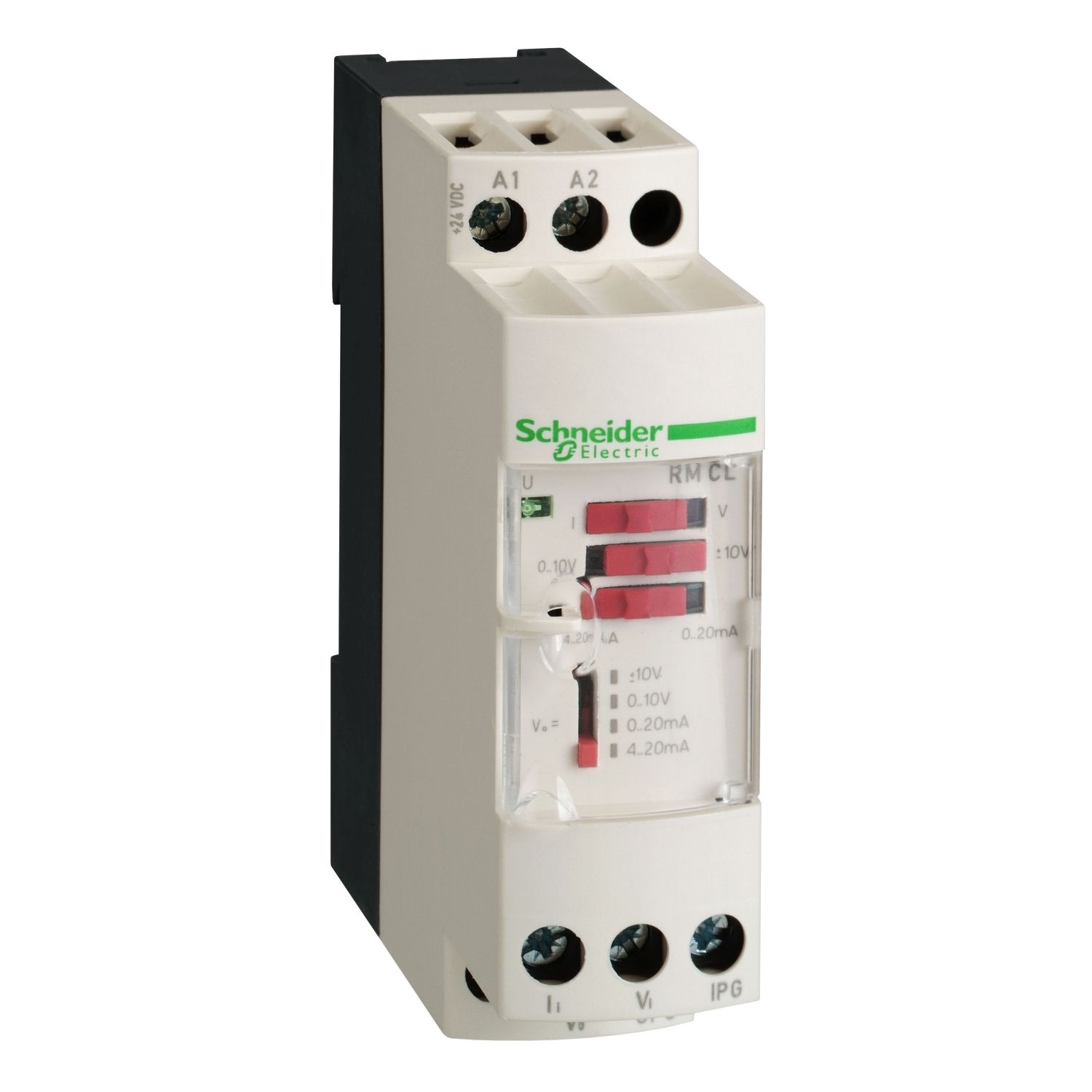

Picture of Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA

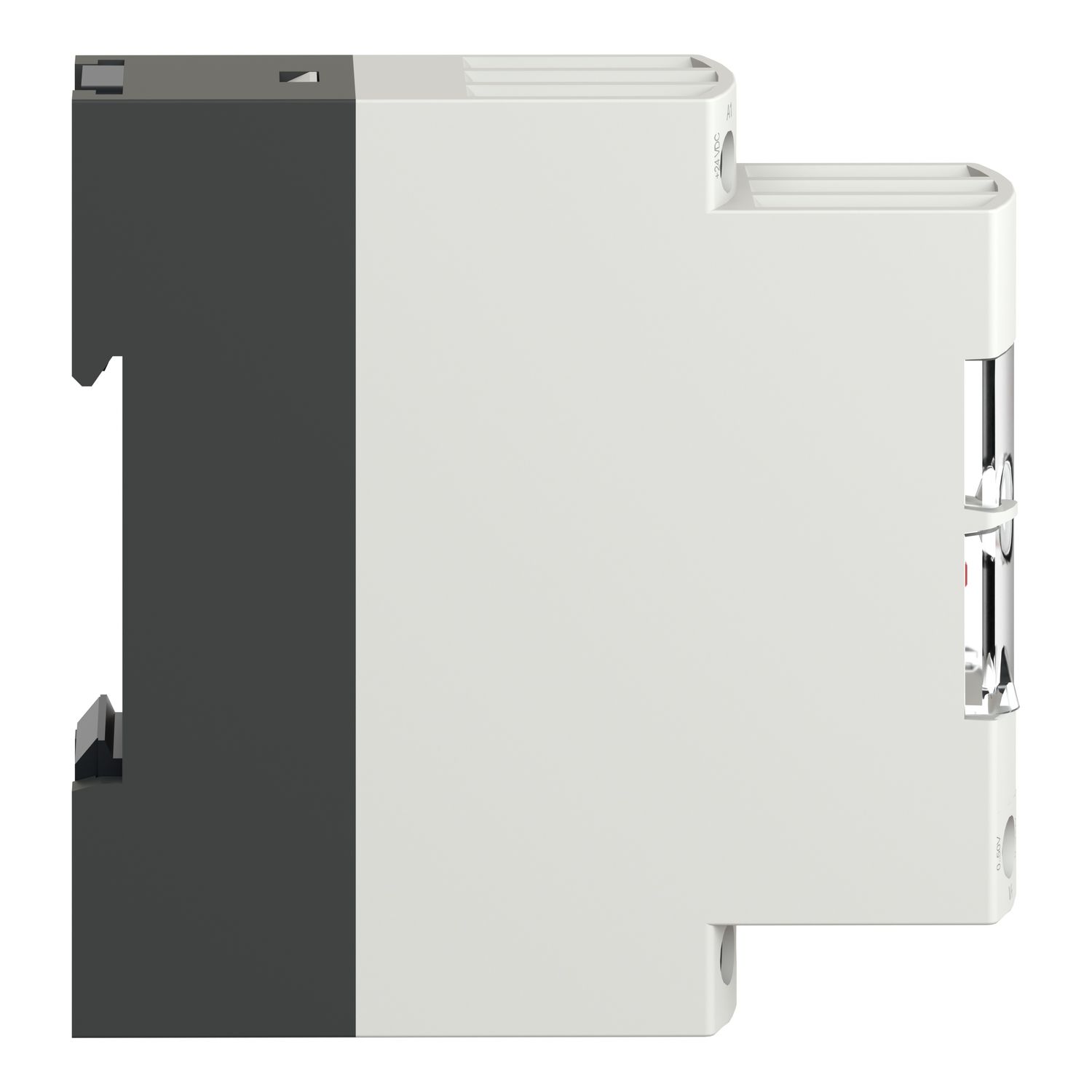

Picture of Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA

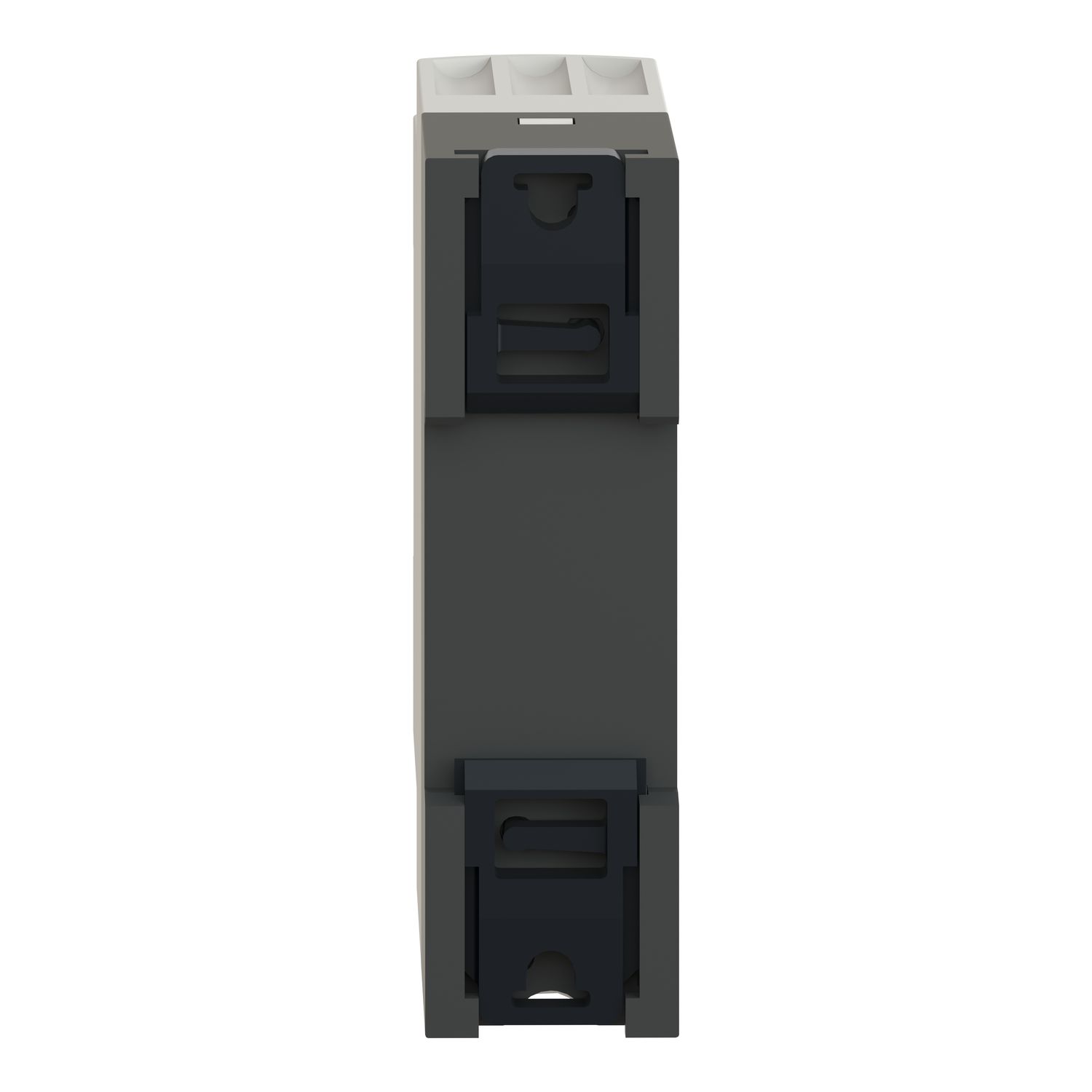

Picture of Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA
Picture of Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA
SKU:

RMCV60BD

Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA

Old price: $591.80 INC GST
$562.21 INC GST
Available for Shipping : 03-Feb-2026
Isolated analog converter, Harmony analog, 0...500V to 0…10V or 4...20mA
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This voltage/current converter is part of the range of interfaces Harmony Analog. This cost effective converter converts a 0…50 V, 0…300 V, 0…500 V AC/DC signal to a switchable 0…10 V, ± 10 V, 0…20 mA or 4…20 mA signal. Its supply voltage is 24V DC, isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 0 It weighs 150g and its dimensions are, 25mm wide, 78mm high, 80mm deep. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 It can be mounted on 35mm DIN rail or fixed by screws on a mounting plate. 0 0 0

Products specifications

Attribute name Attribute value
Main
Range of product Harmony Analog
Analogue input type voltage 0...500 V AC/DC 50/60 Hz, voltage 0...50 V AC/DC 50/60 Hz, voltage 0...300 V AC/DC 50/60 Hz
Product or component type voltage/current converter
Analogue output type voltage 0...10 V >= 100 kOhm switchable, current 4...20 mA <= 500 Ohm switchable, current 0...20 mA <= 500 Ohm switchable
Complementary
Protection type overvoltage protection on output (+/- 30 V), reverse polarity protection on output, short-circuit protection on output
Temperature coefficient 200 ppm/°C
Surge withstand 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5
Fixing mode clip-on (35 mm symmetrical DIN rail), by screws (mounting plate)
Marking CE
Clamping connection capacity 2 x 1.5 mm², 1 x 2.5 mm²
Measurement error +/- 5 % of full scale at 20 °C, +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m)
Safety reliability data B10d = 20000, MTTFd = 21.6 years
[Us] rated supply voltage 24 V DC +/- 20 %, isolated
Repeat accuracy +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C
Analogue output current 4-30 mA, output selected 4...20 mA no input or input wire broken, -30-0 mA, output selected 0...20 mA no input or input wire broken
Tightening torque 0.6-1.1 N.m
Local signalling LED (green) for power ON
Net weight 0.15 kg
Analogue output voltage -15...0 V no input or input wire broken
[Ui] rated insulation voltage 2 kV
Current consumption <= 90 mA for current output, <= 70 mA for voltage output
Environment
Resistance to fast transients 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4
Fire resistance 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1
Resistance to electrostatic discharge 8 kV (in air) conforming to IEC 61000-4-2 level 3, 6 kV (in contact) conforming to IEC 61000-4-2 level 3
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
Disturbance radiated/conducted CISPR 22 group 1 - class B, CISPR 11
IP degree of protection IP50 (housing), IP20 (terminal block)
Ambient air temperature for operation 0-60 °C 2 cm spacing, 0-50 °C mounting side by side
Vibration resistance 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 60947-1, IEC 60584-1
Product certifications CSA, GL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.7 cm
Package 1 Width 8.5 cm
Package 1 Length 8.2 cm
Package 1 Weight 115.0 g
Unit Type of Package 2 2
Number of Units in Package 2 47
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.07 kg
Unit Type of Package 3 3
Number of Units in Package 3 752
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 105 kg
