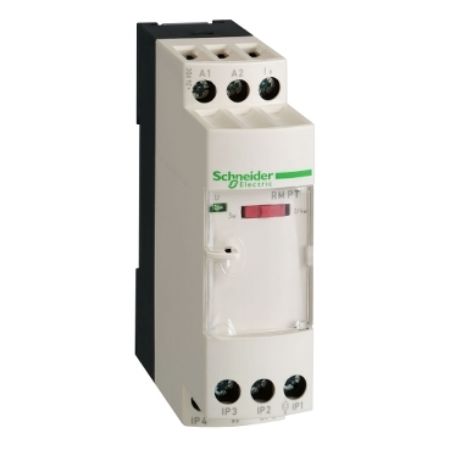

Picture of Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F

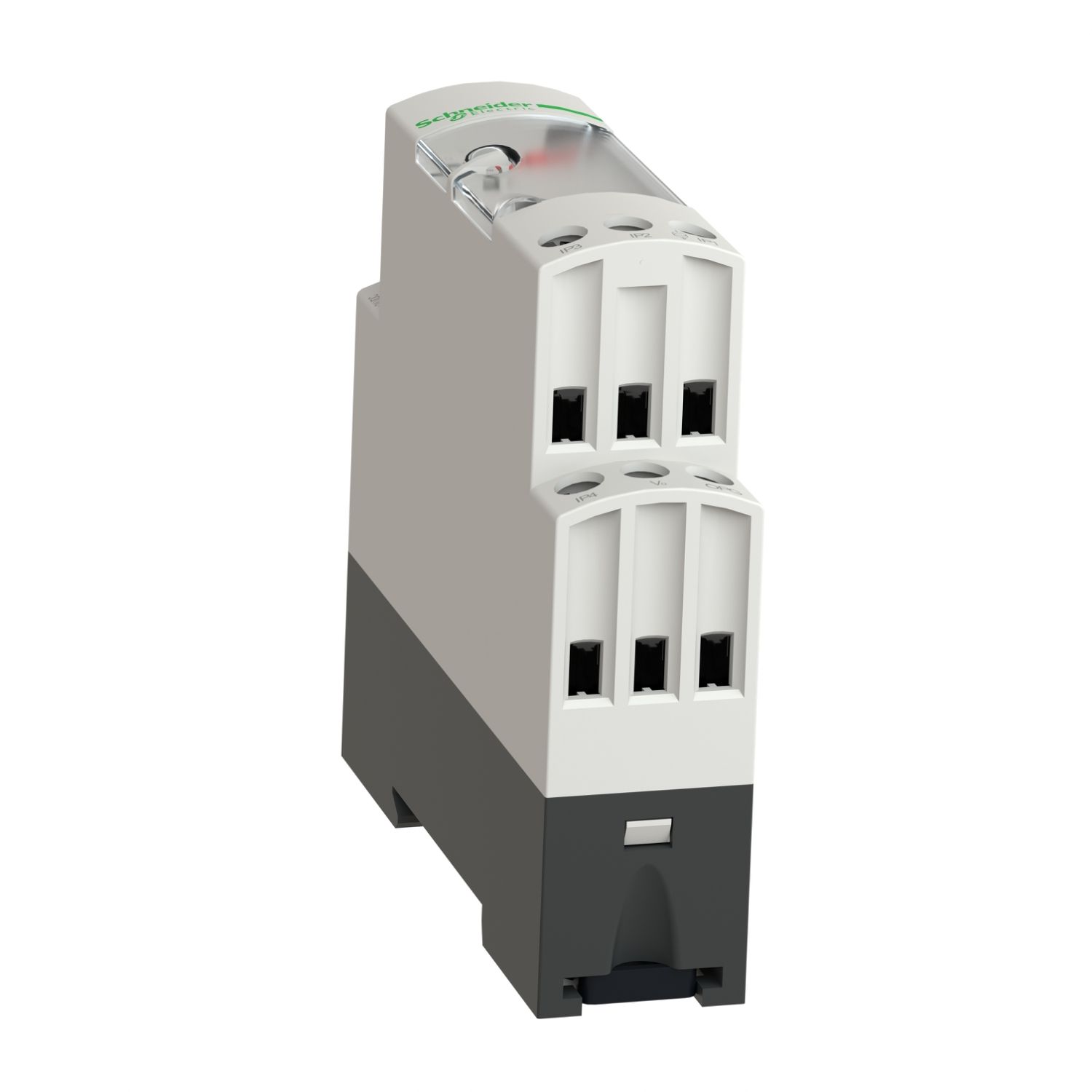

Picture of Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F

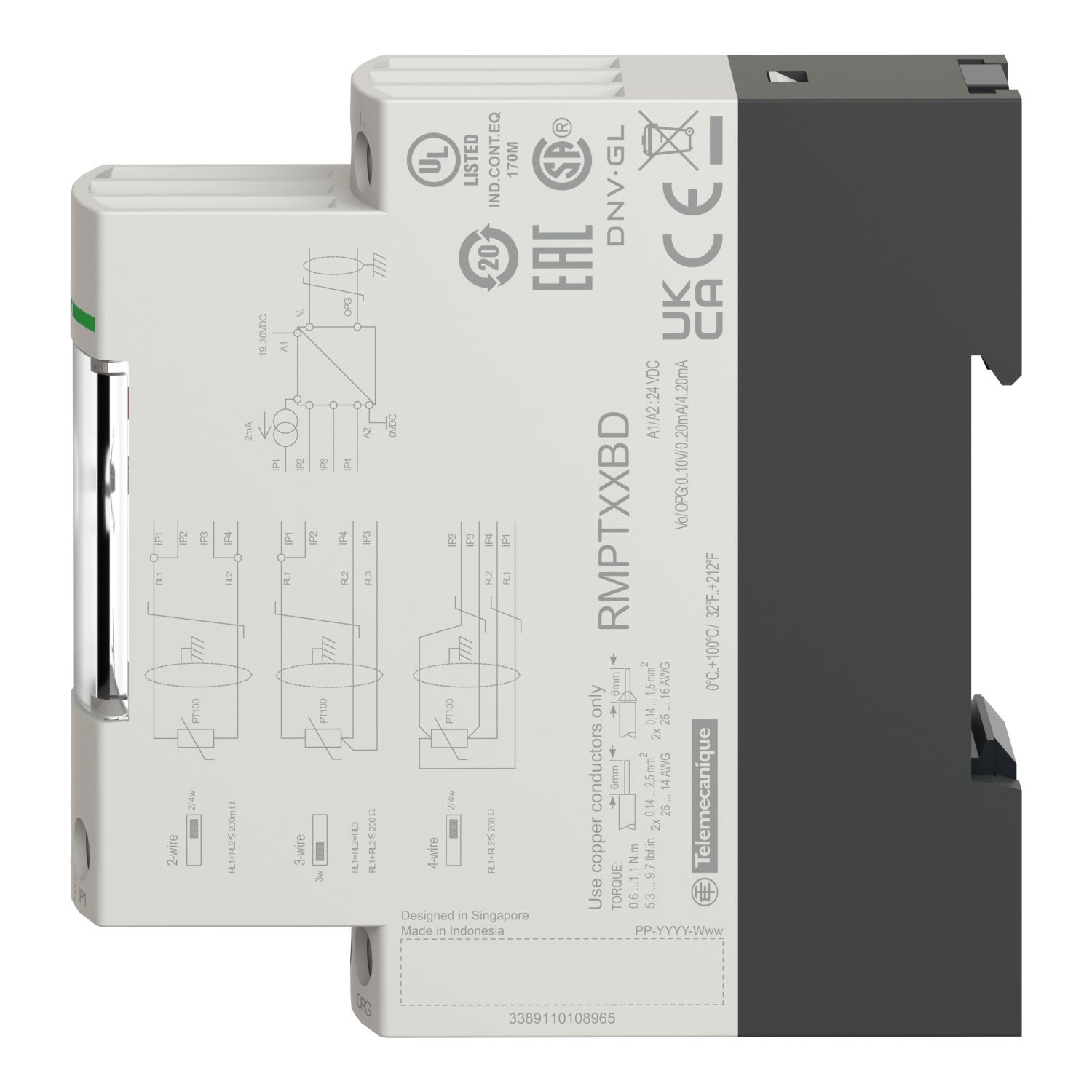

Picture of Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F

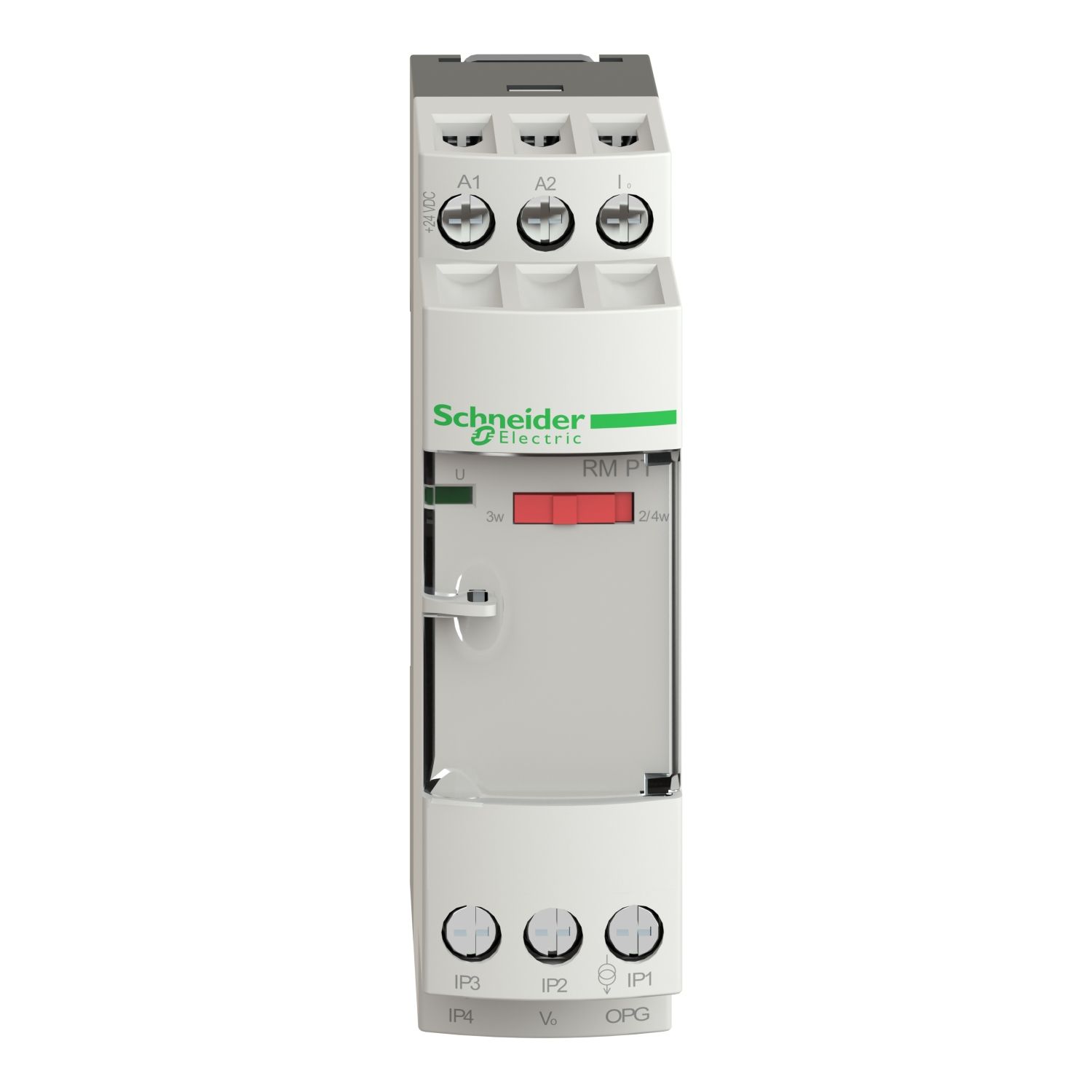

Picture of Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F

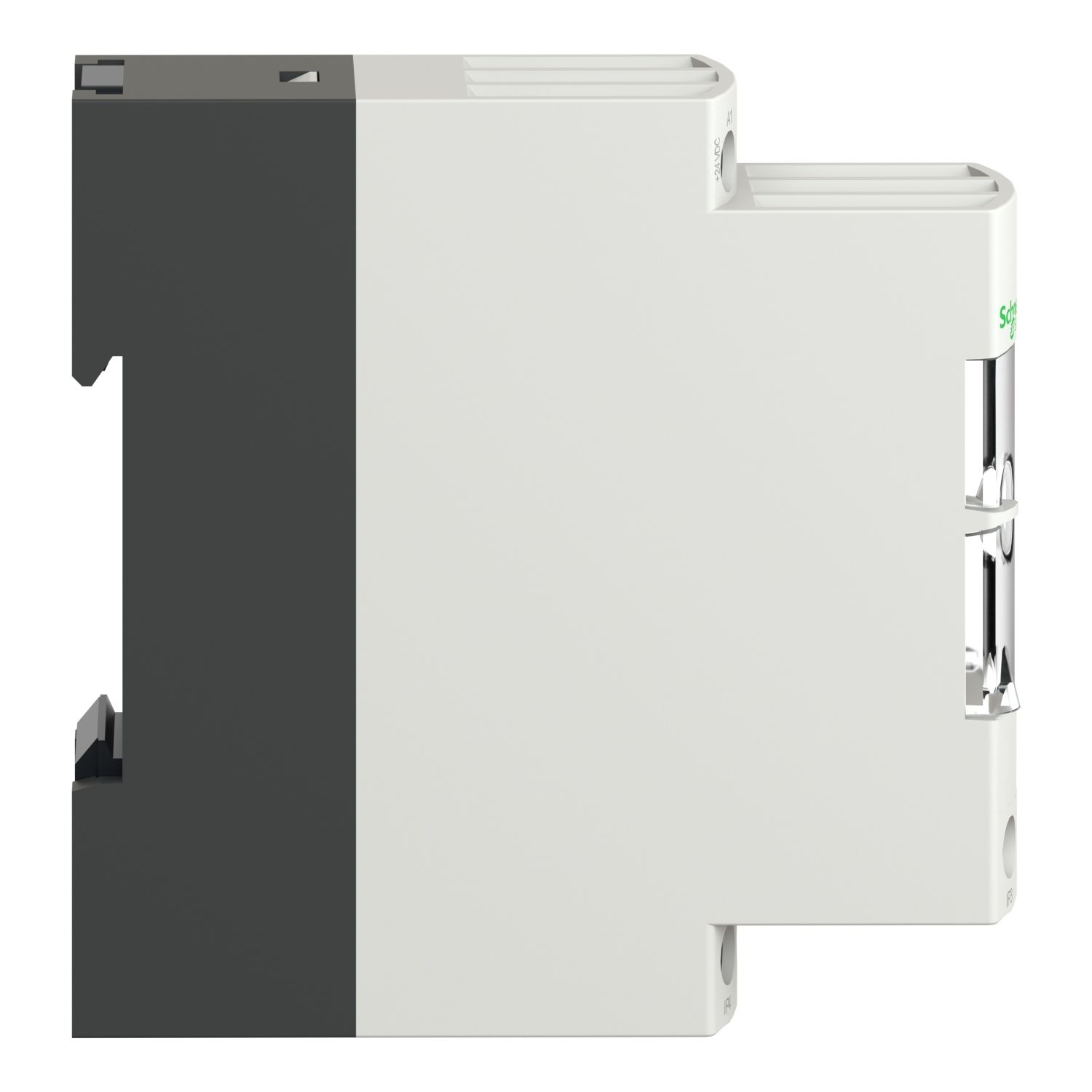

Picture of Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F

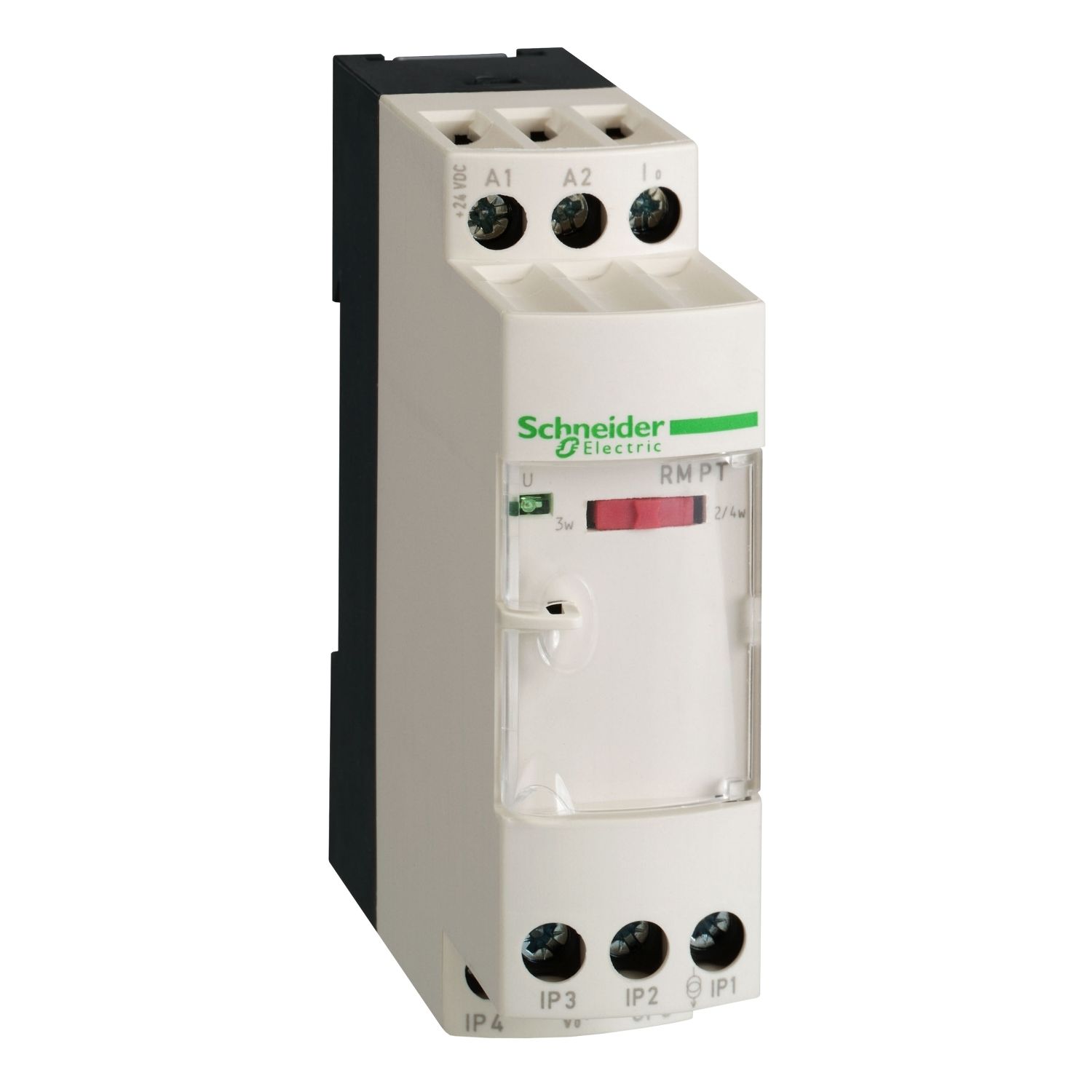

Picture of Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F

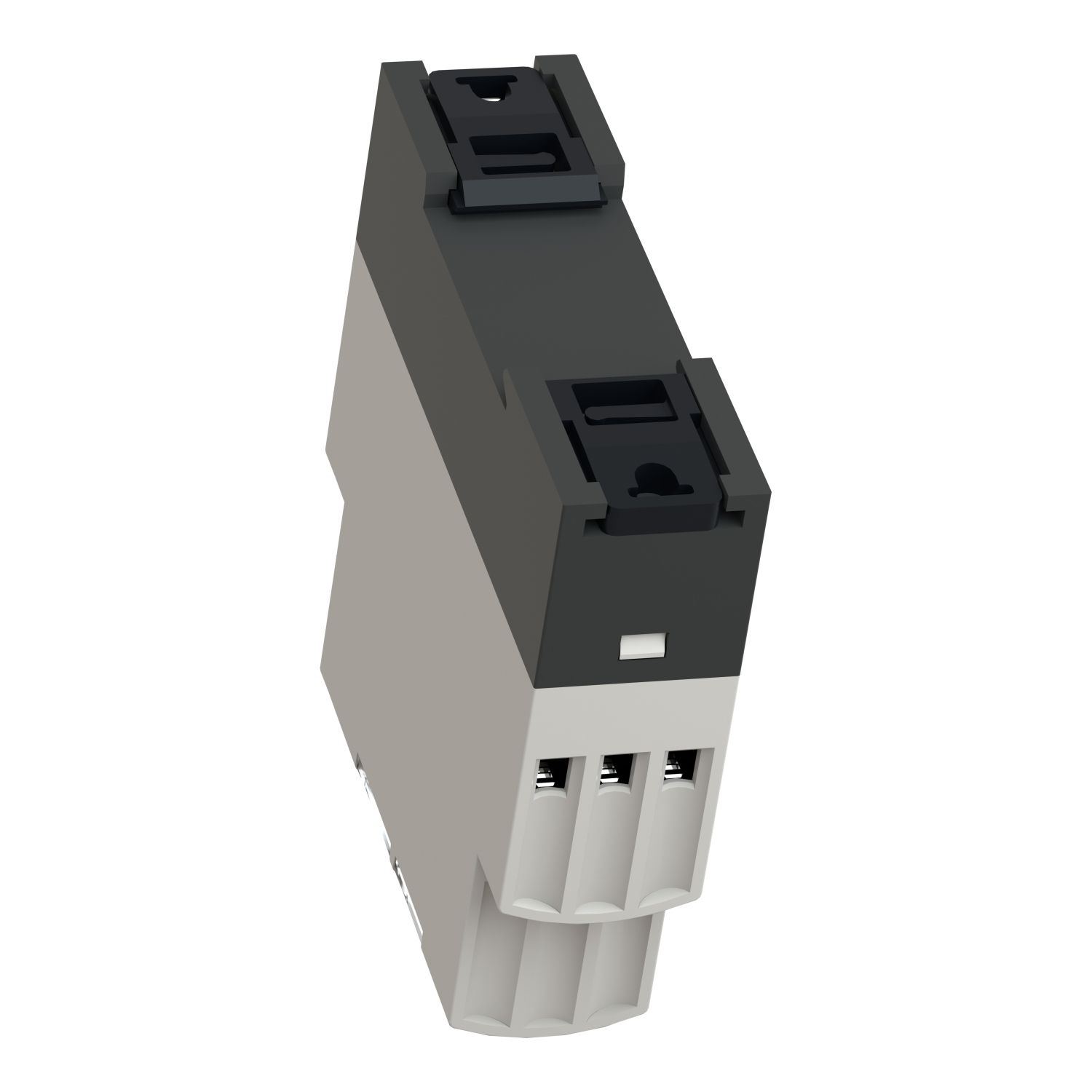

Picture of Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F

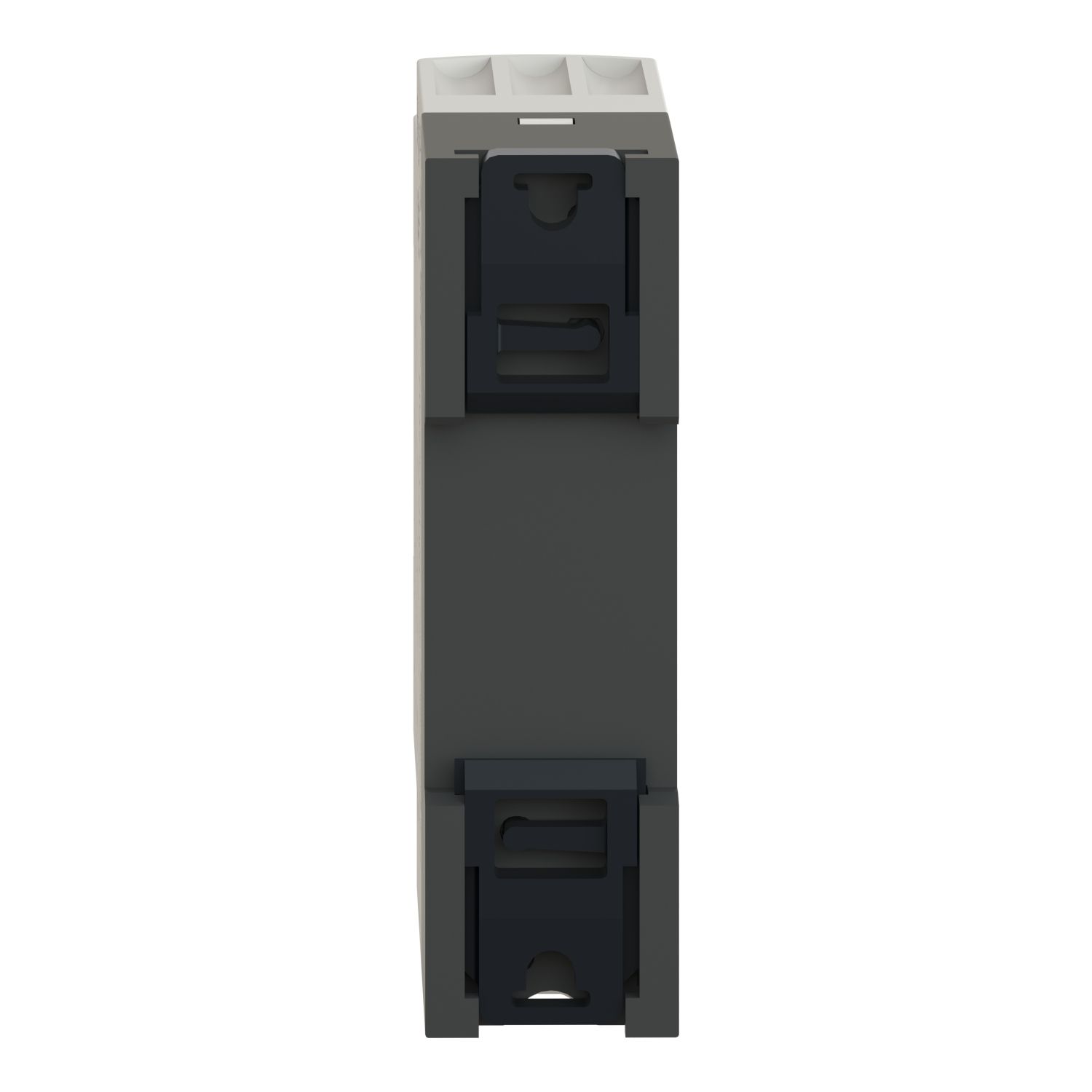

Picture of Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F
SKU:

RMPT53BD

Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F

Old price: $486.20 INC GST
$461.89 INC GST
Available for Shipping : 12-Jan-2026
Converter for Optimum Pt100 probes, Harmony Analog, temperature transmitter, 0...250 degree COr 32...482 degree F
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony Analog temperature transmitter provides a versatile interface for your machines. It has a reverse polarity protection, a short-circuit protection and an overvoltage protection. 0 It is dust resistant, impact resistant and vibration resistant, thanks to its IP20 and IP50, making it ideal for operations in harsh environments. The product is a converter for Universal Pt100 probes with 0-250 °C/32-482 °F analogue input type. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Analogue input type temperature probe 0...250 °C/32...482 °F Pt 100 2, 3 or 4 wires
Product or component type converter for Optimum Pt100 probes
Analogue output type voltage 0...10 V >= 100 kOhm, current 4...20 mA <= 500 Ohm
Range of product Harmony Analog
Complementary
Repeat accuracy +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C
Analogue output current 22-30 mA when no input or input wire broken, -30-0 mA when no input or input wire broken
Tightening torque 0.6-1.1 N.m
Protection type reverse polarity protection on output, overvoltage protection on output (+/- 30 V), reverse polarity protection on power supply, short-circuit protection on output
Temperature coefficient 150 ppm/°C
Local signalling LED (green) for power ON
Maximum wiring resistance 0.2 Ohm connection in 2 wires
Surge withstand 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5
Fixing mode fixed (mounting plate), clip-on (35 mm symmetrical DIN rail)
Net weight 0.12 kg
Analogue output voltage 11...15 V when no input or input wire broken, -15...-11 V when no input or input wire broken
Marking CE
[Ui] rated insulation voltage 2000 V
Clamping connection capacity 2 x 1.5 mm², 1 x 2.5 mm²
Measurement error +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m), +/- 1 % of full scale (2 wires) at 20 °C, +/- 0.5 % of full scale (3 or 4 wires) at 20 °C
Safety reliability data B10d = 40564, MTTFd = 43.9 years
Current consumption <= 60 mA for current output, <= 40 mA for voltage output
[Us] rated supply voltage 24 V DC non isolated +/- 20 %
Environment
Resistance to fast transients 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4
Fire resistance 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
Disturbance radiated/conducted CISPR 11, CISPR 22 group 1 - class B
IP degree of protection IP50 (housing), IP20 (terminal block)
Vibration resistance 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Electromagnetic compatibility electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Ambient air temperature for operation 0-60 °C 2 cm spacing, 0-50 °C mounting side by side
Standards EN/IEC 60584-1, EN/IEC 60947-1, EN/IEC 60751, DIN 43760
Product certifications GL, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 8.200 cm
Package 1 Length 8.500 cm
Package 1 Weight 101.900 g
Unit Type of Package 2 2
Number of Units in Package 2 47
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.250 kg
