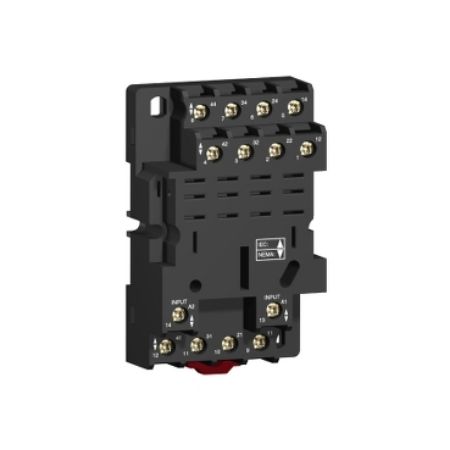

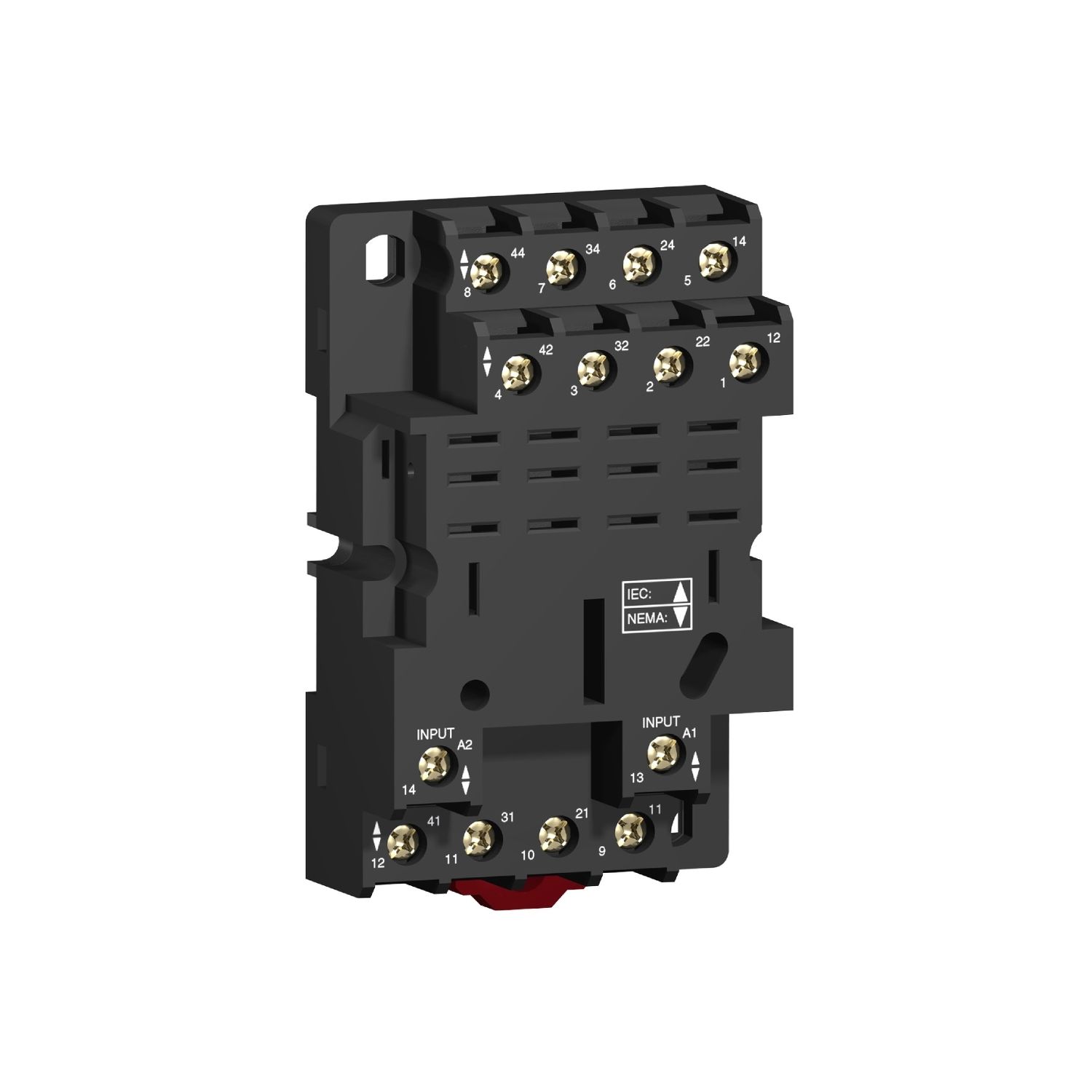

Picture of socket, Harmony Electromechanical Relays, for RPM4 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM4 power relays, 16A screw clamp terminals, mixed contact
Picture of socket, Harmony Electromechanical Relays, for RPM4 power relays, 16A screw clamp terminals, mixed contact
SKU:

RPZF4

socket, Harmony Electromechanical Relays, for RPM4 power relays, 16A screw clamp terminals, mixed contact

Old price: $21.23 INC GST
$20.17 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
socket, Harmony Electromechanical Relays, for RPM4 power relays, 16A screw clamp terminals, mixed contact
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Image of product in real life situation
Environmental Disclosure
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RPZ
Product compatibility plug-in relay RPM with 4 C/O contact
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 16 A
[Ue] rated operational voltage < 250 V
[In] rated current 16 A
Contacts type and composition 4 C/O
Product or component type socket
Complementary
Group of product RPM_4_C/O_SC_TER_MIX_FLAT
Compatibility code RPZ
Sale per indivisible quantity 10
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Contact terminal arrangement mixed
Shape of pin flat
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Overvoltage category III
Width 50 mm
Net weight 0.094 kg
Tightening torque < 1 N.m for M3.5 screw(s)
Connections - terminals screw clamp terminals
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Connections - terminals - screw clamp terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / AWG 20...AWG 16,  - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / AWG 20...AWG 14,  - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / AWG 20...AWG 16,  - screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / AWG 20...AWG 14
Ambient air temperature for operation -40-55 °C
Dielectric strength 2500 V
Standards IEC 61984
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 5.000 cm
Package 1 Length 8.500 cm
Package 1 Weight 96.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.400 cm
Package 2 Width 8.500 cm
Package 2 Length 25.400 cm
Package 2 Weight 1.012 kg
Unit Type of Package 3 3
Number of Units in Package 3 110
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 11.645 kg
Unit Type of Package 4 4
Number of Units in Package 4 440
Package 4 Height 45.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 57.580 kg

Related products

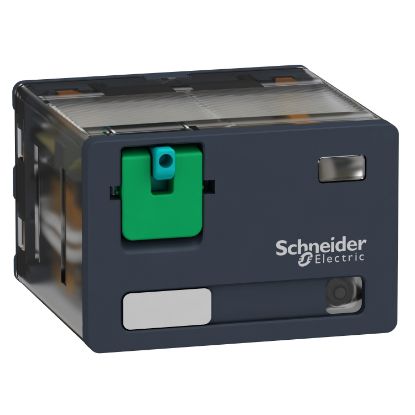

plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 24V DC

RPM42BD
$57.27 INC GST $60.28 INC GST
View Detail

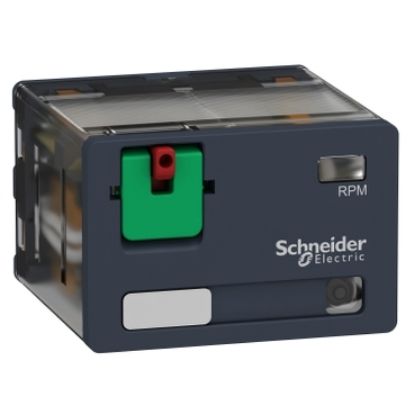

plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 120V AC

RPM42F7
$60.19 INC GST $63.36 INC GST
View Detail

plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 230V AC

RPM42P7
$60.19 INC GST $63.36 INC GST
View Detail

control accessories, Harmony Electromechanical Relays, for all RUM sockets, 24...240V AC DC

RUW101MW
$187.06 INC GST $196.90 INC GST
View Detail

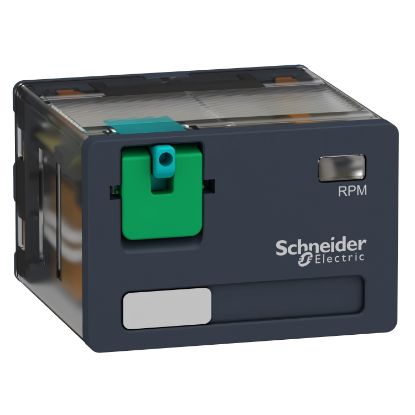

plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 24V DC

RPM41BD
$53.50 INC GST $56.32 INC GST
View Detail

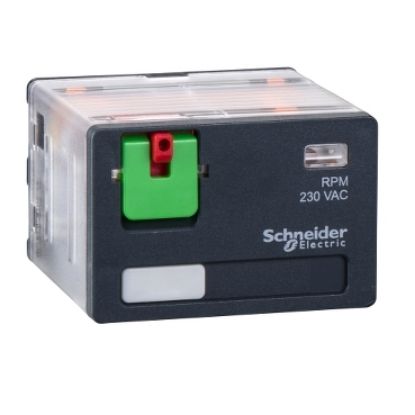

plug-in relay, Harmony electromechanical relays, 15A, 4CO, lockable test button, 230V AC
