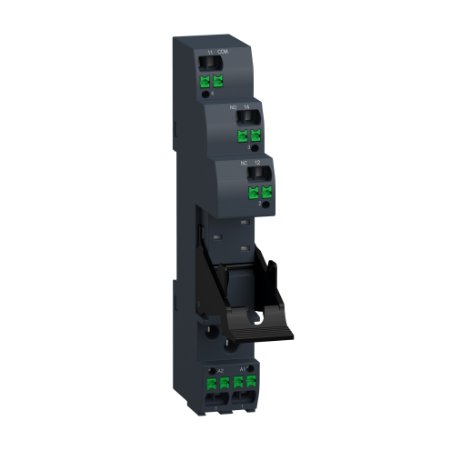

Picture of Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact

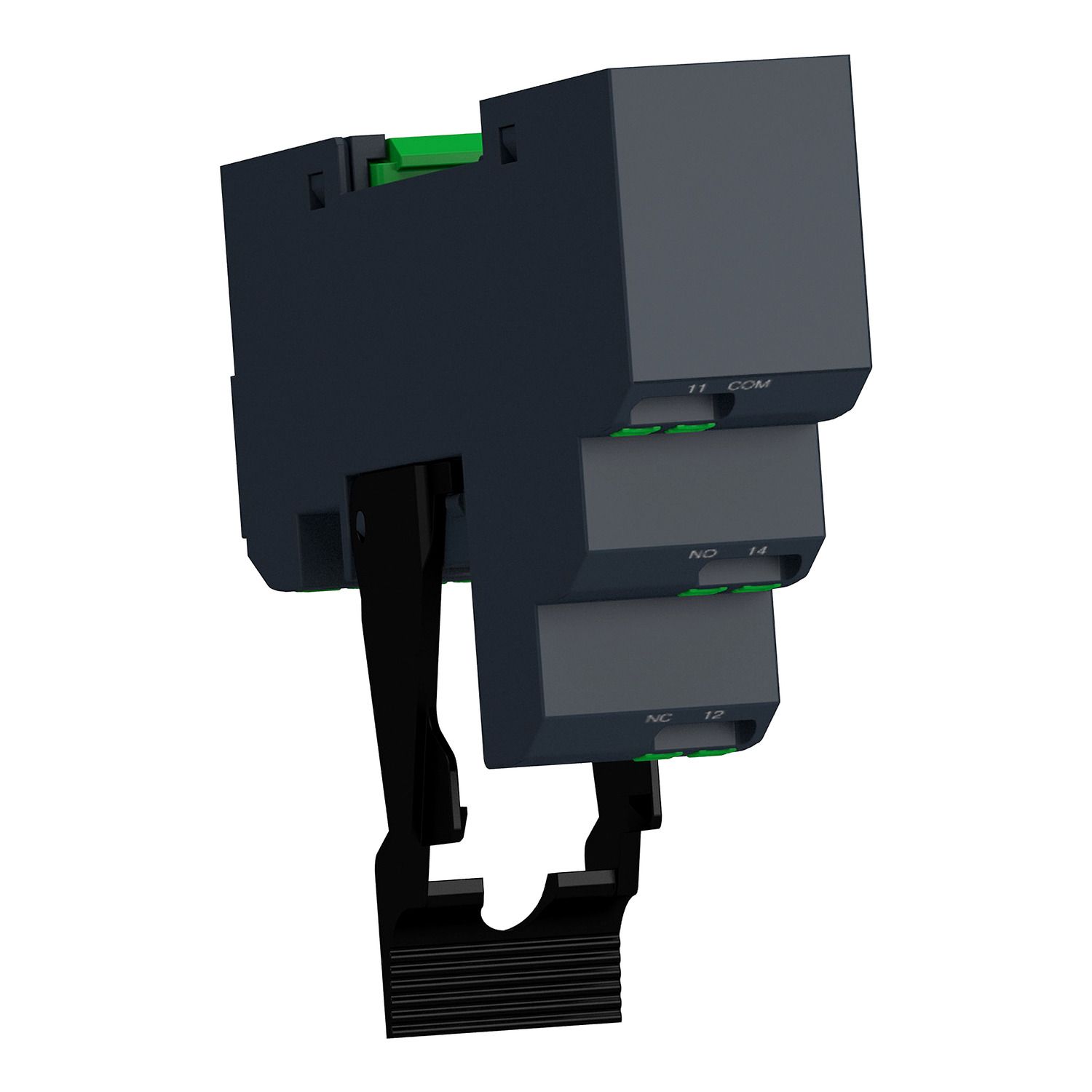

Picture of Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact

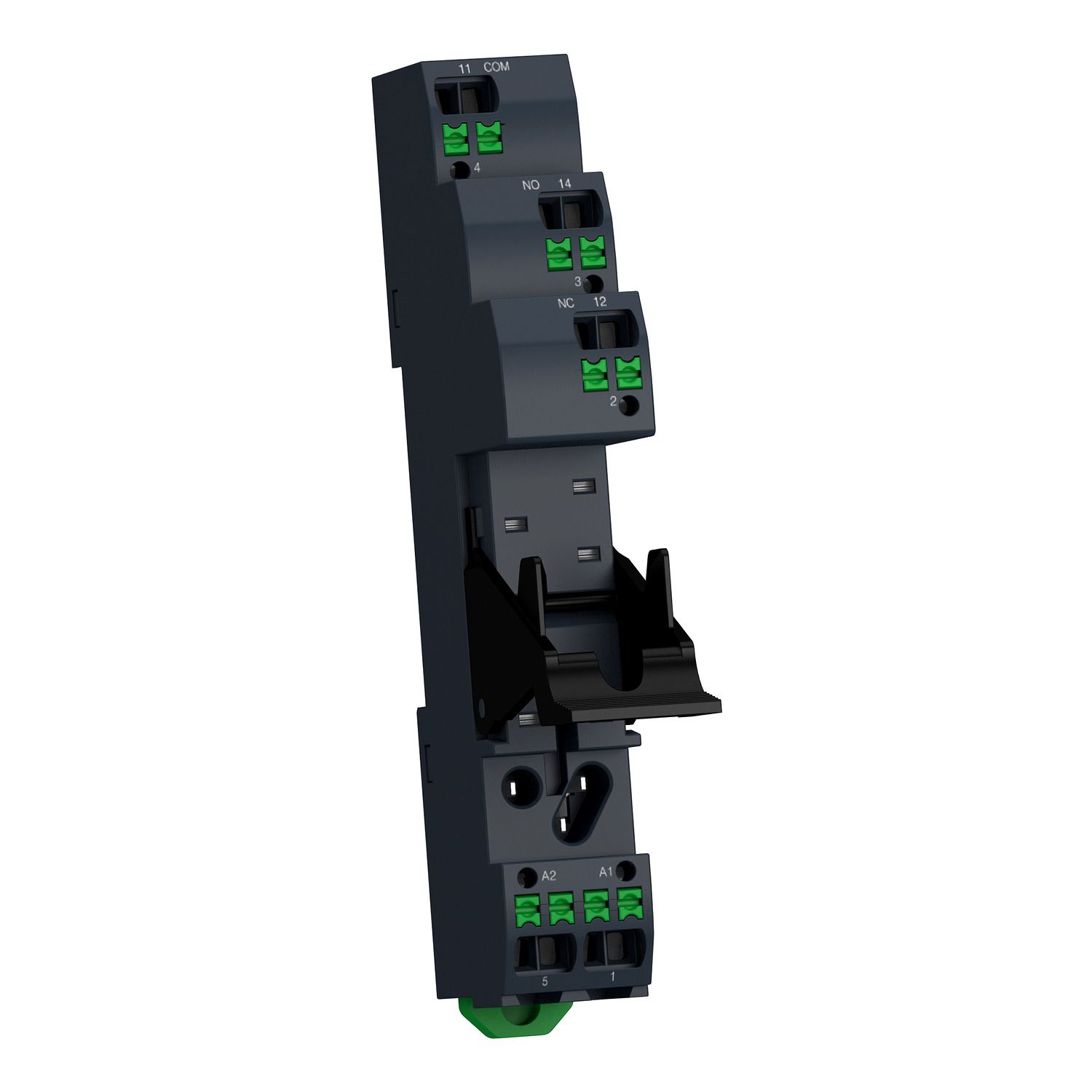

Picture of Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact

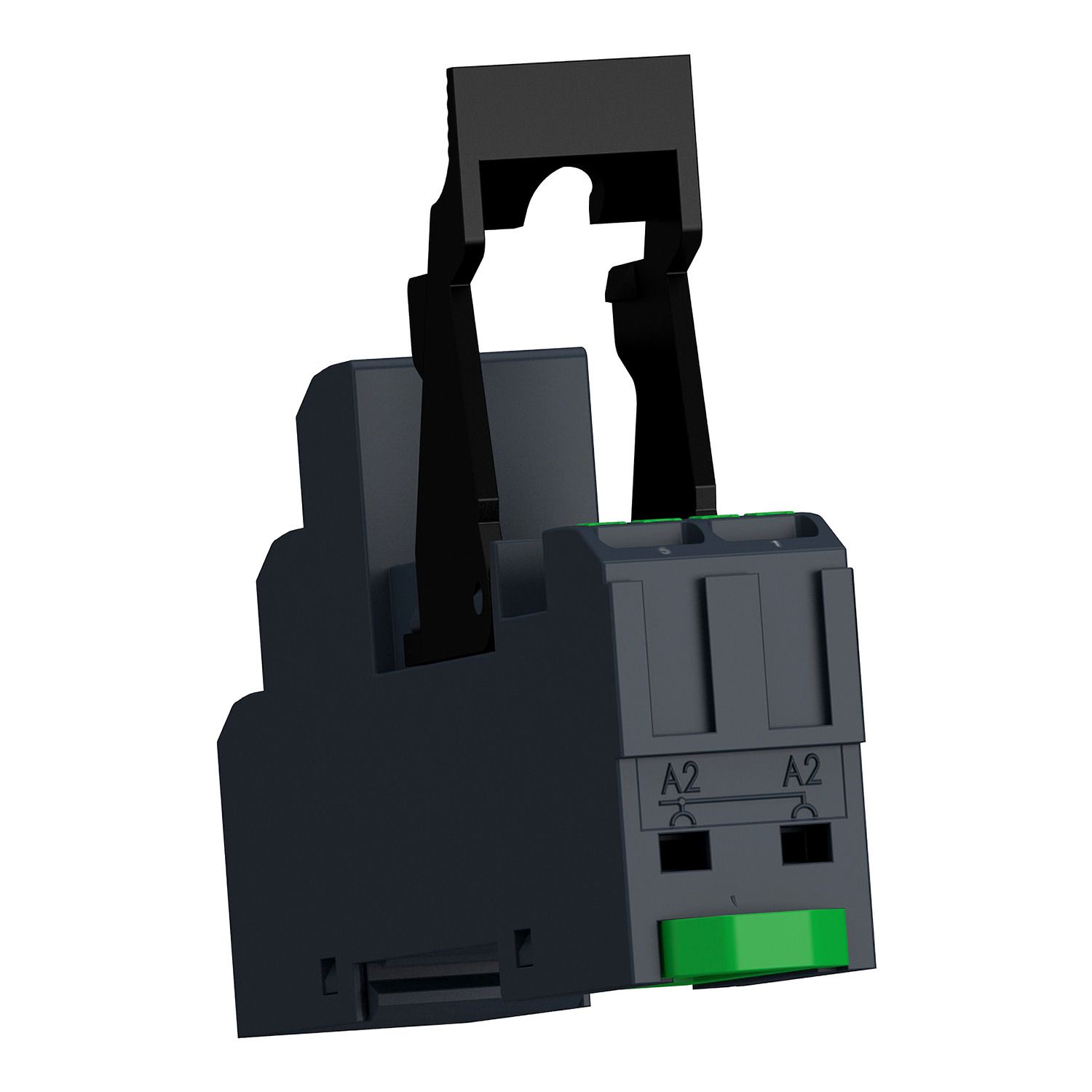

Picture of Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact

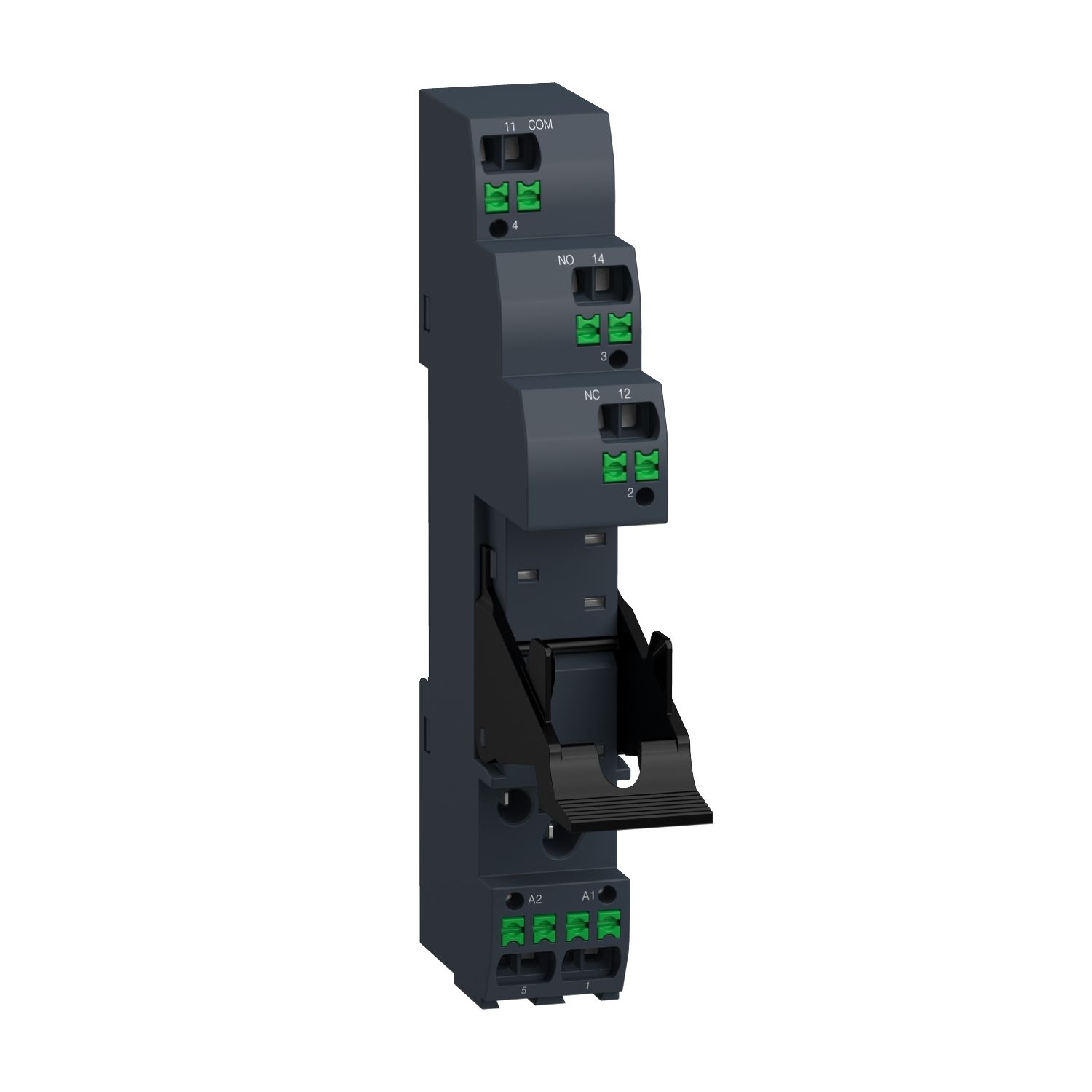

Picture of Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact

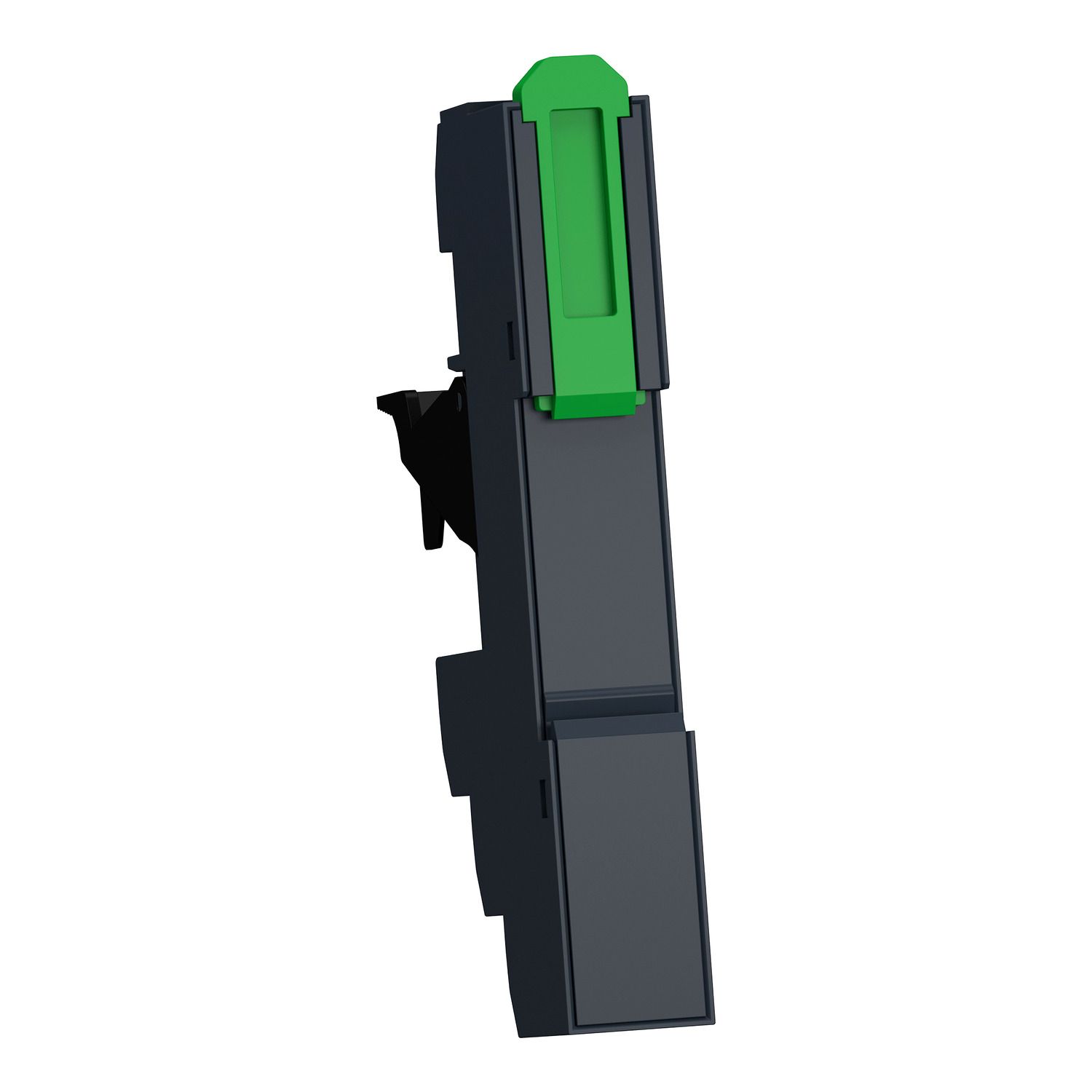

Picture of Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact
SKU:

RSZE05P

Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact

Old price: $19.69 INC GST
$18.71 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A120 relays, 12A, push in terminals, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Image of product in real life situation
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This Harmony RSZ range is a plug-in socket. This plug-in relay socket is compatible with interface plug-in relay RSB range. This product is for RSB1A relays. It is compatible with plug-in relay RSB with 1 C/O contact. It has a rated voltage of 250V AC with an output rating of 12A. It is a green premium product and conforms to international standard and certifications.

Products specifications

Attribute name Attribute value
Main
Device short name RSZ
[In] rated current 12 A
Contacts type and composition 1 C/O
Product or component type socket
[Ui] rated insulation voltage 250 V
Product compatibility plug-in relay RSB with 1 C/O contact at 12 A
Range of product Harmony Electromechanical Relays
[Ith] conventional free air thermal current 12 A
Complementary
Overvoltage category III
Width 16 mm
Compatibility code RSZ
Sale per indivisible quantity 10
Connections - terminals spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, push-in terminals
Fixing mode clip-on (35 mm symmetrical DIN rail)
Net weight 0.037 kg
Contact terminal arrangement separate
Length 98 mm
Shape of pin flat
Pollution degree 3
[Ue] rated operational voltage 300 V conforming to UL, 250 V conforming to IEC
[Uimp] rated impulse withstand voltage 4 kV
Height 60 mm
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20
Marking CE
Standards IEC 61984
Ambient air temperature for operation -40-85 °C
Product certifications EAC, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.500 cm
Package 1 Width 6.000 cm
Package 1 Length 10.000 cm
Package 1 Weight 32.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 7.500 cm
Package 2 Width 10.500 cm
Package 2 Length 16.500 cm
Package 2 Weight 381.000 g
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.668 kg
