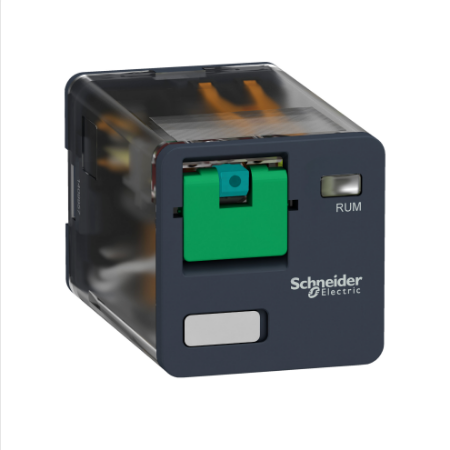

Picture of Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 48 V DC
SKU:

RUMF21ED

Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 48 V DC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Harmony, Universal plug-in relay, 10 A, 2 CO, with lockable test button, flat (faston) terminals, 48 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
"This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 48V DC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Ithe] conventional enclosed thermal current 10 A at -40-55 °C
Device short name RUM
[Uc] control circuit voltage 48 V, 48 V DC
[In] rated current 10 A
Contacts type and composition 2 C/O
Series name Universal
Control type lockable test button
Status LED without
Product or component type plug-in relay
Range of product Harmony Electromechanical Relays
Utilisation coefficient 20 %
Complementary
Minimum switching capacity 170 mW at 10 mA, 17 V
Drop-out voltage threshold >= 0.1 Uc DC
Load current 10 A at 28 V DC, 10 A at 250 V AC
Operating time 20 ms at nominal voltage
Operating position any position
Compatibility code RUM
Mechanical durability 5000000 cycles
[Ui] rated insulation voltage 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
Rated operational voltage limits 38.4...52.8 V DC
Average coil consumption 1.4 W
[Ie] rated operational current 10 A at 277 V AC conforming to CSA, 10 A at 28 V DC (NO) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 5 A at 250 V AC (NC) conforming to IEC, 10 A at 30 V DC conforming to CSA, 10 A at 30 V DC conforming to UL, 10 A at 277 V AC conforming to UL
Device presentation complete product
Average resistance 1800 Ohm at 20 °C +/- 15 %
Maximum switching voltage 250 V conforming to IEC
[Uimp] rated impulse withstand voltage 4 kV (1.2/50 µs)
Net weight 0.086 kg
Reset time 20 ms at nominal voltage
Shape of pin flat
Contacts material AgNi
Electrical durability 100000 cycles for resistive load
Test levels level A group mounting
Protection category RT I
Operating rate <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load
Safety reliability data B10d = 100000
Maximum switching capacity 2500 VA/280 W
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40
Shock resistance 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27, 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
Vibration resistance 4 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength 2000 V AC between poles with basic, 2500 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection
Ambient air temperature for operation -40-55 °C
Pollution degree 3
Standards IEC 61810-1, CSA C22.2 No 14, UL 508
Product certifications EAC, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.7 cm
Package 1 Width 3.8 cm
Package 1 Length 7.2 cm
Package 1 Weight 92.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 4.0 cm
Package 2 Width 13.2 cm
Package 2 Length 19.8 cm
Package 2 Weight 888.0 g
Unit Type of Package 3 3
Number of Units in Package 3 60
Package 3 Height 15.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 5.87 kg
Unit Type of Package 4 4
Number of Units in Package 4 960
Package 4 Height 75.0 cm
Package 4 Width 60.0 cm
Package 4 Length 80.0 cm
Package 4 Weight 92.292 kg
