SKU:

RXM3AB1B7

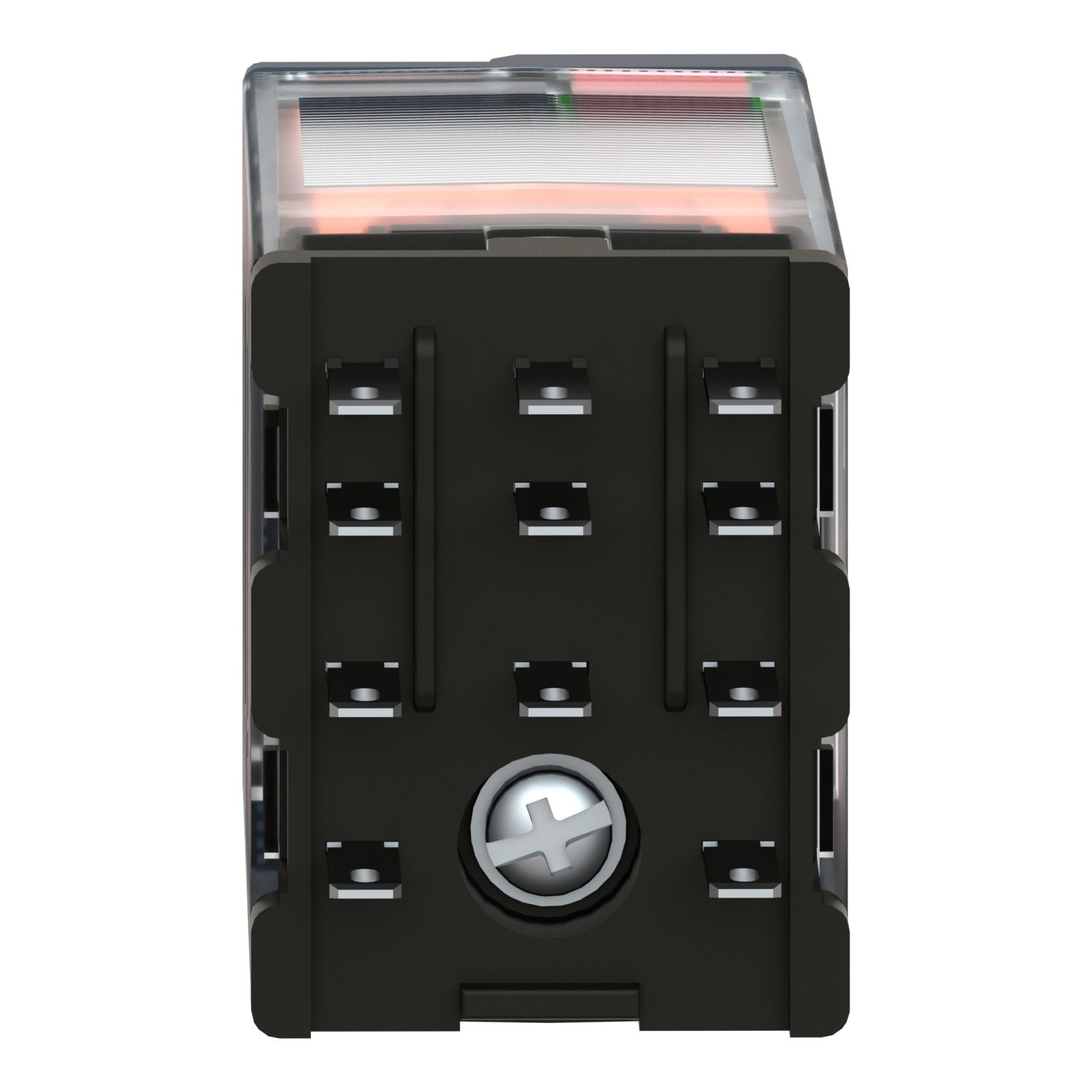

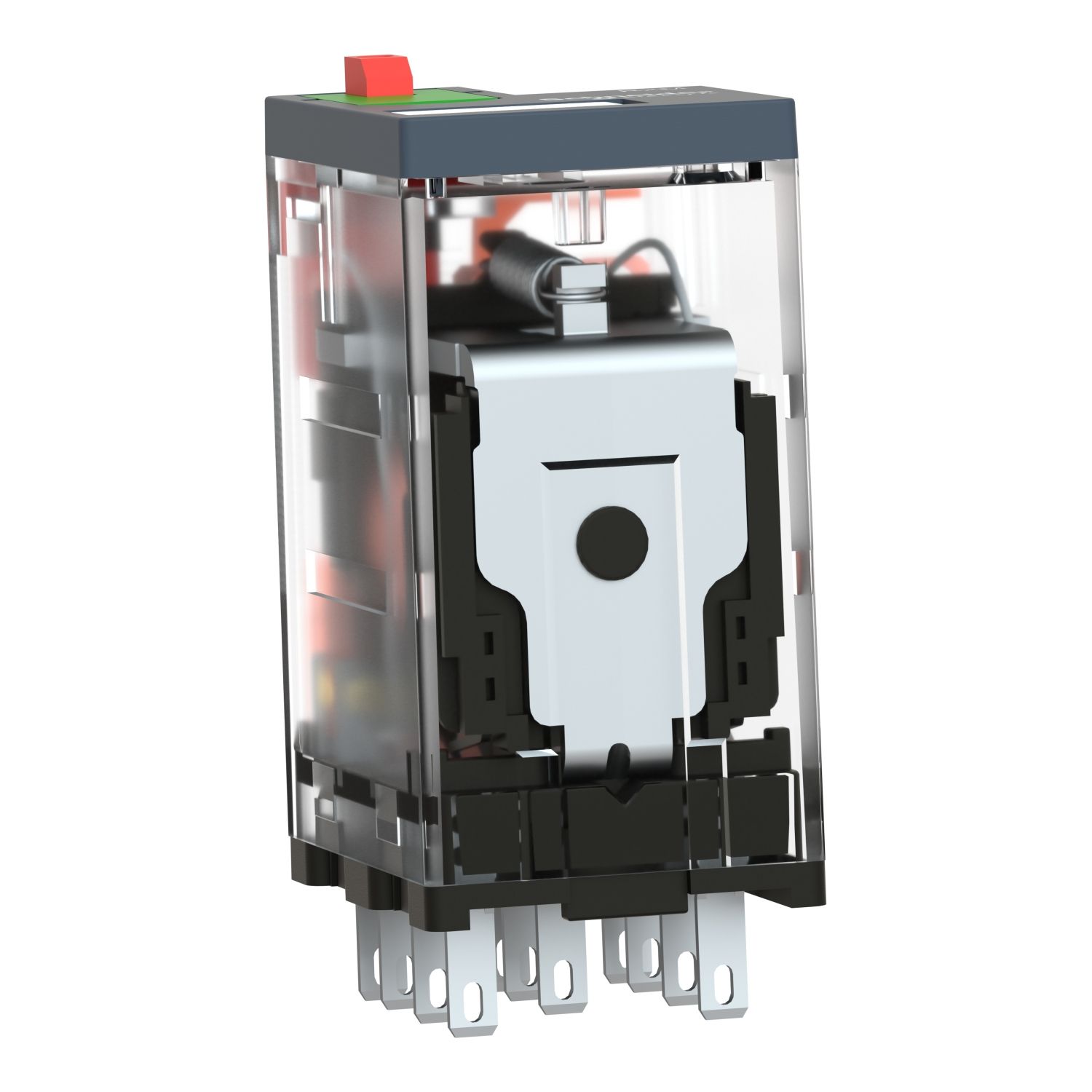

miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 24V AC

$21.48
Available for Shipping : 24-Nov-2024
miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 24V AC
Manufacturer: Schneider Electric

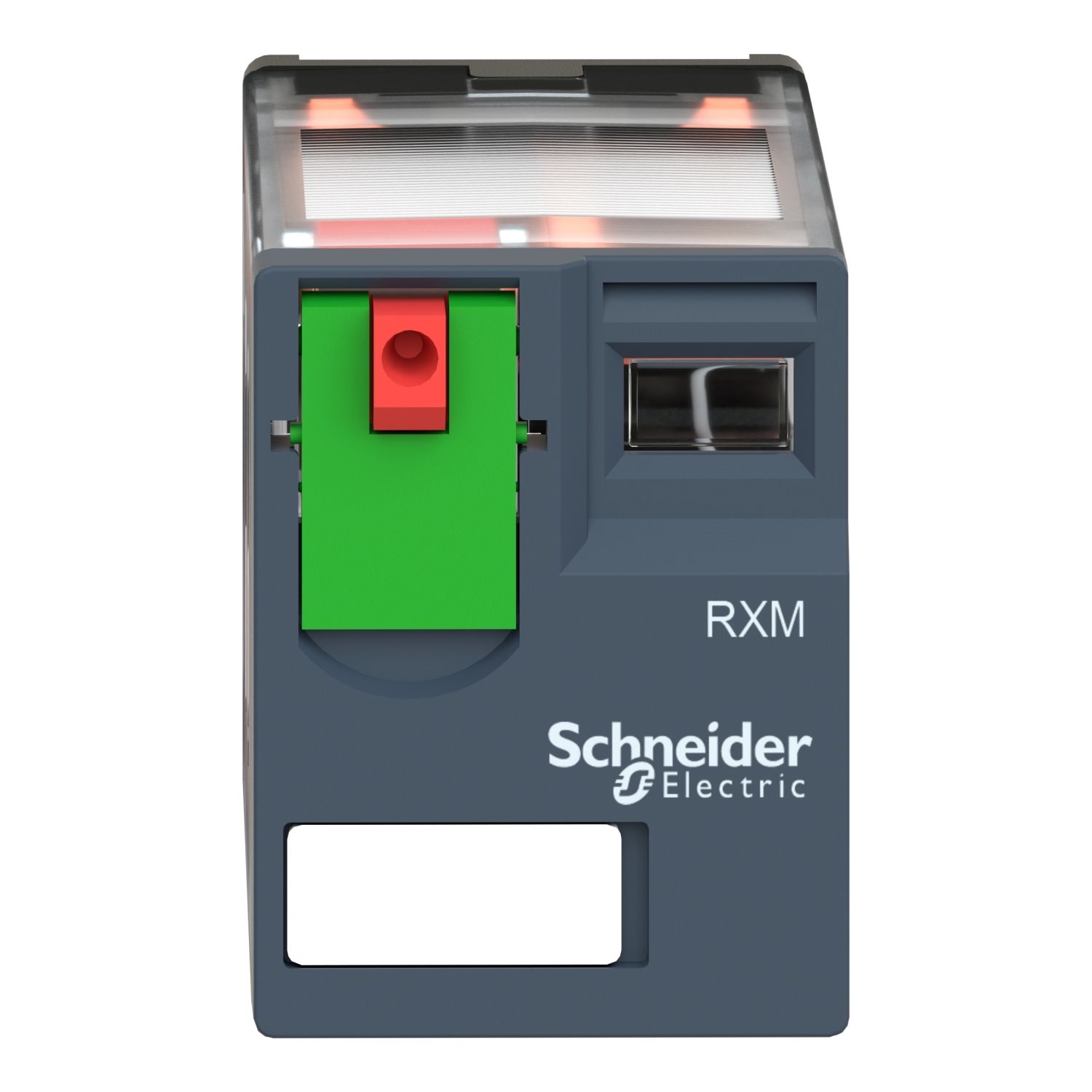

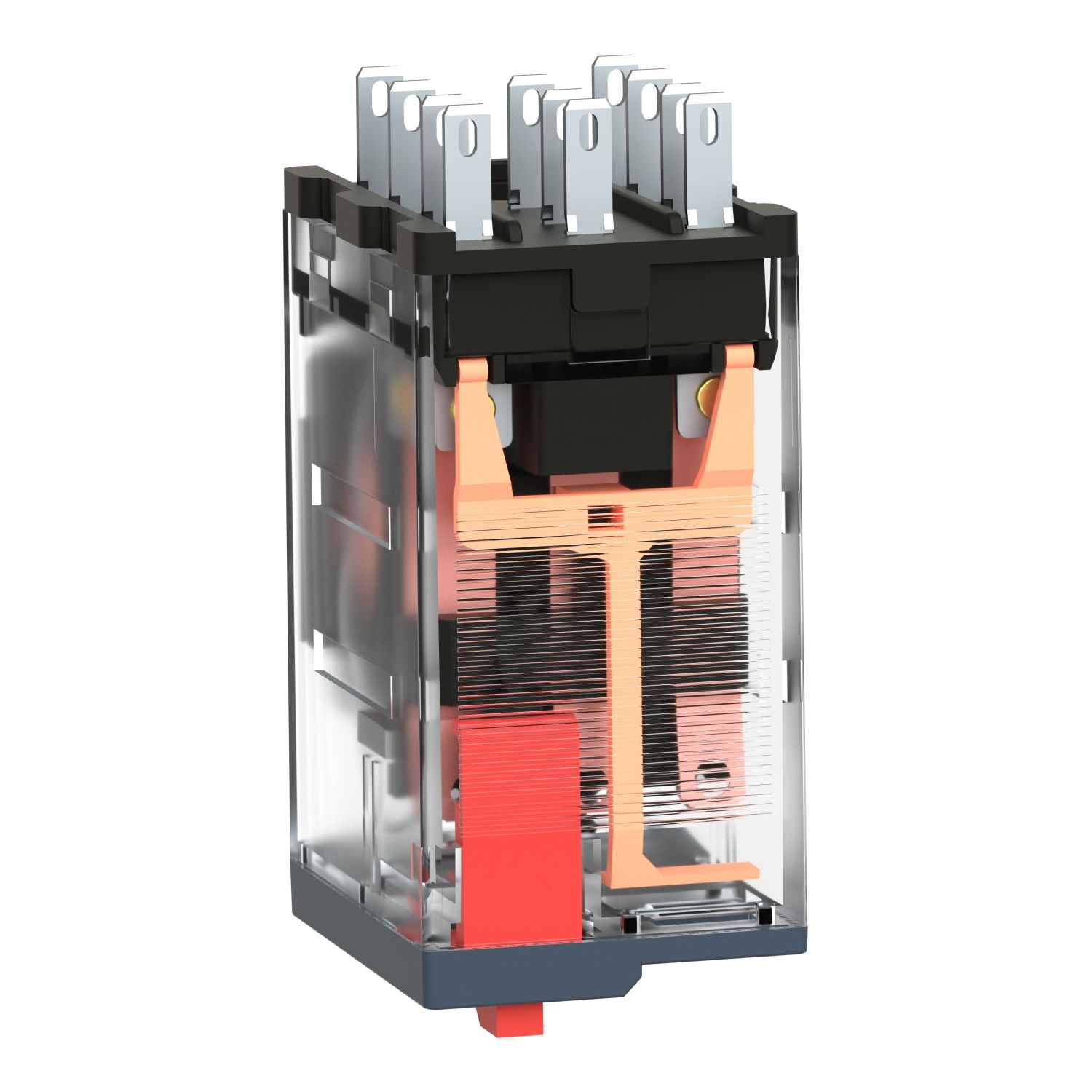

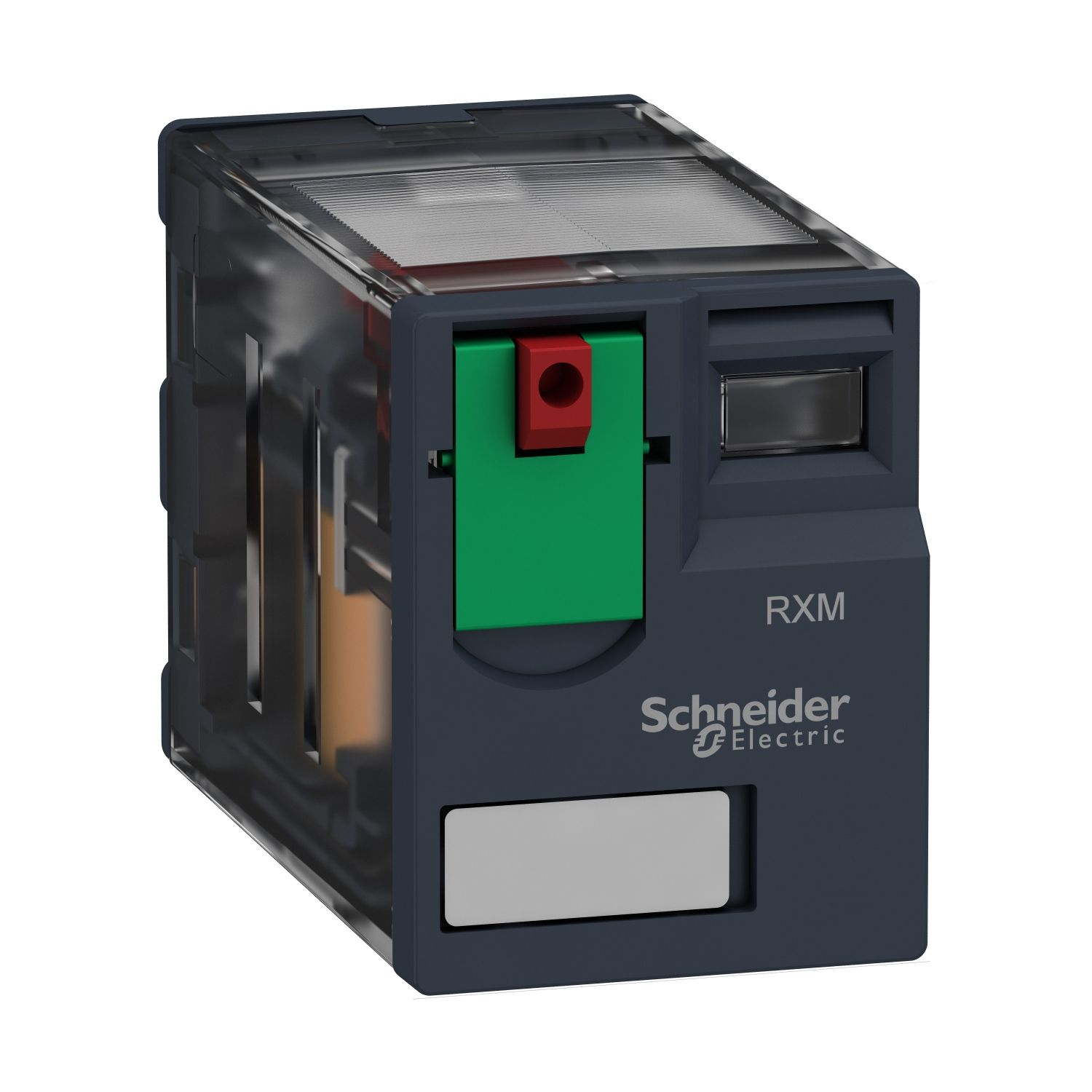

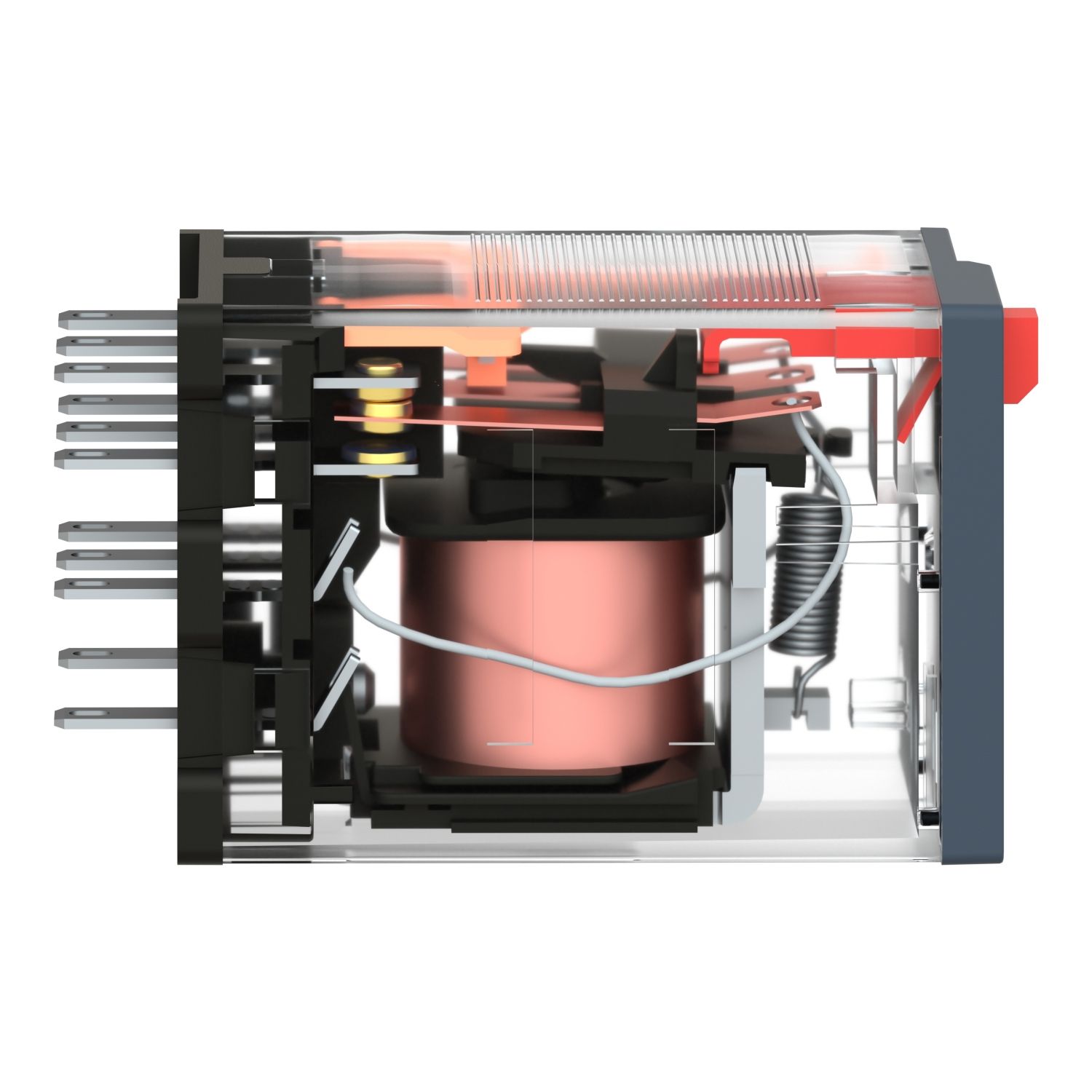

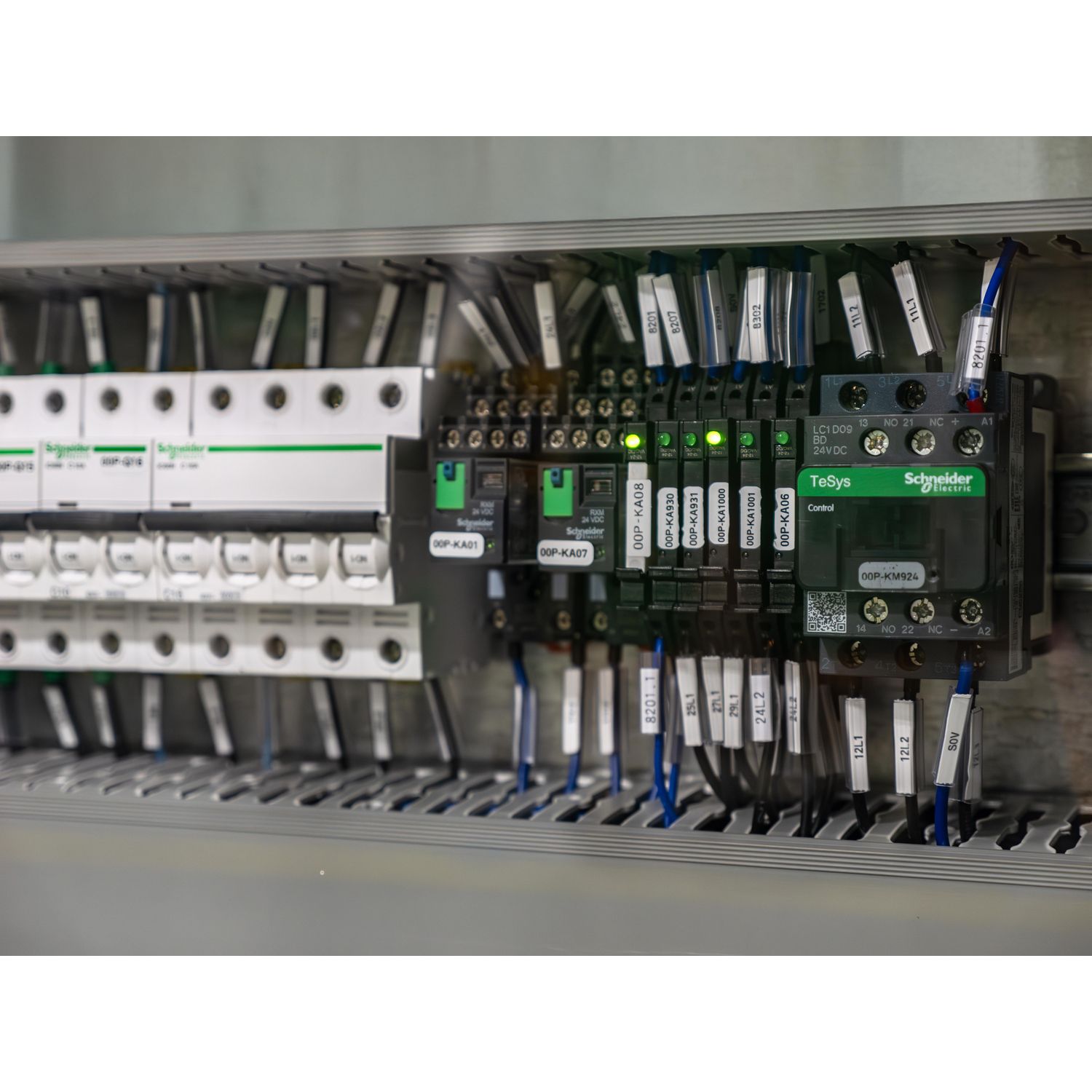

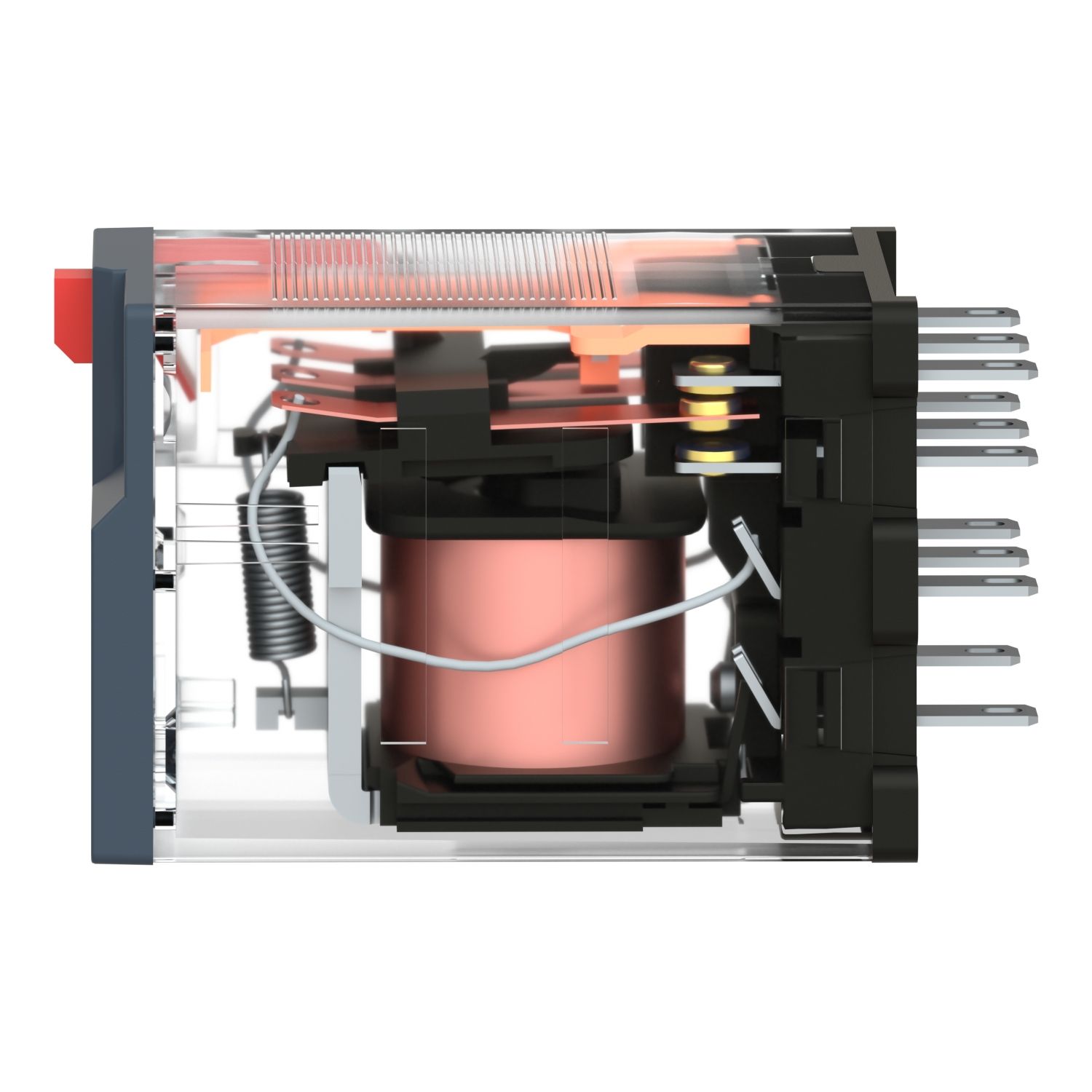

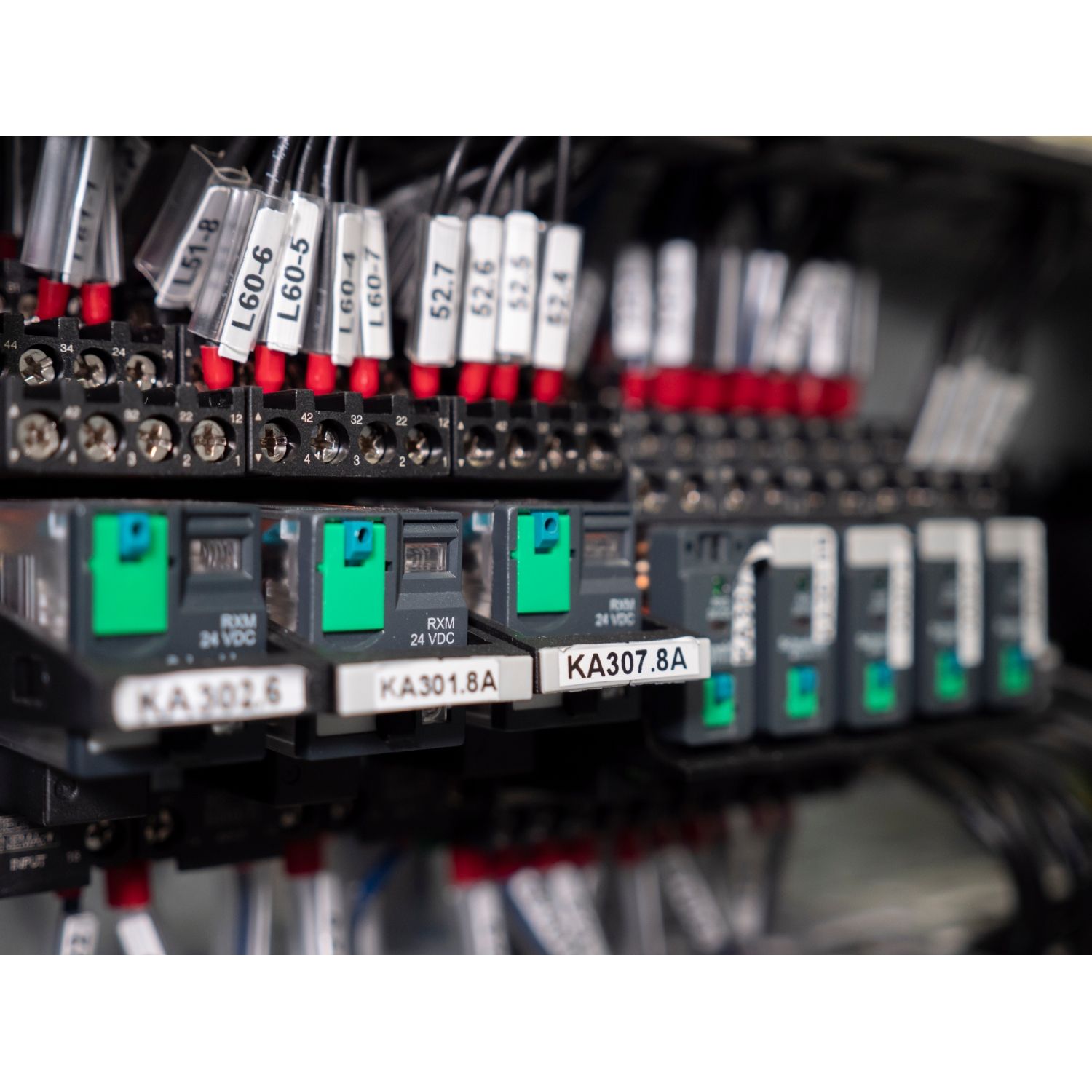

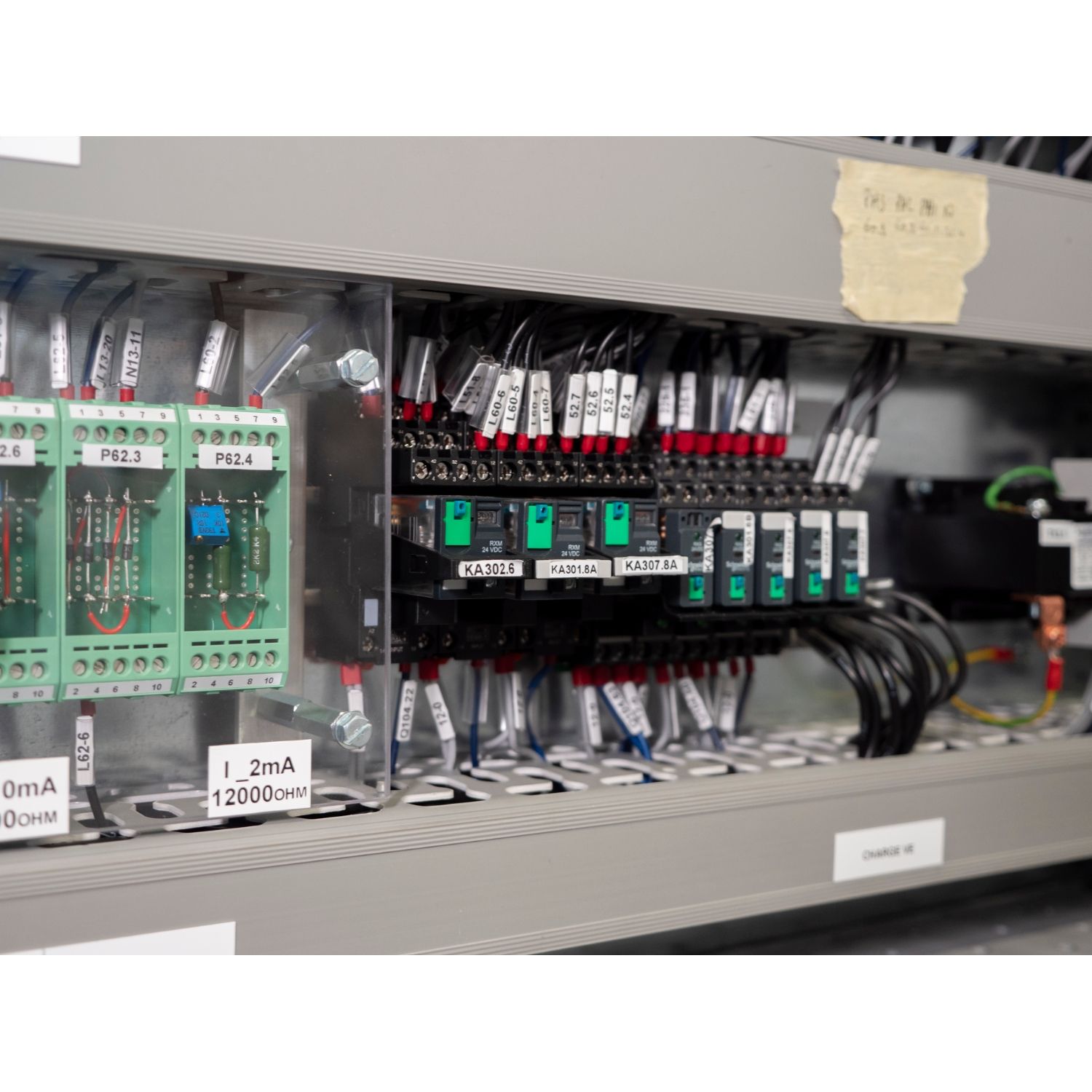

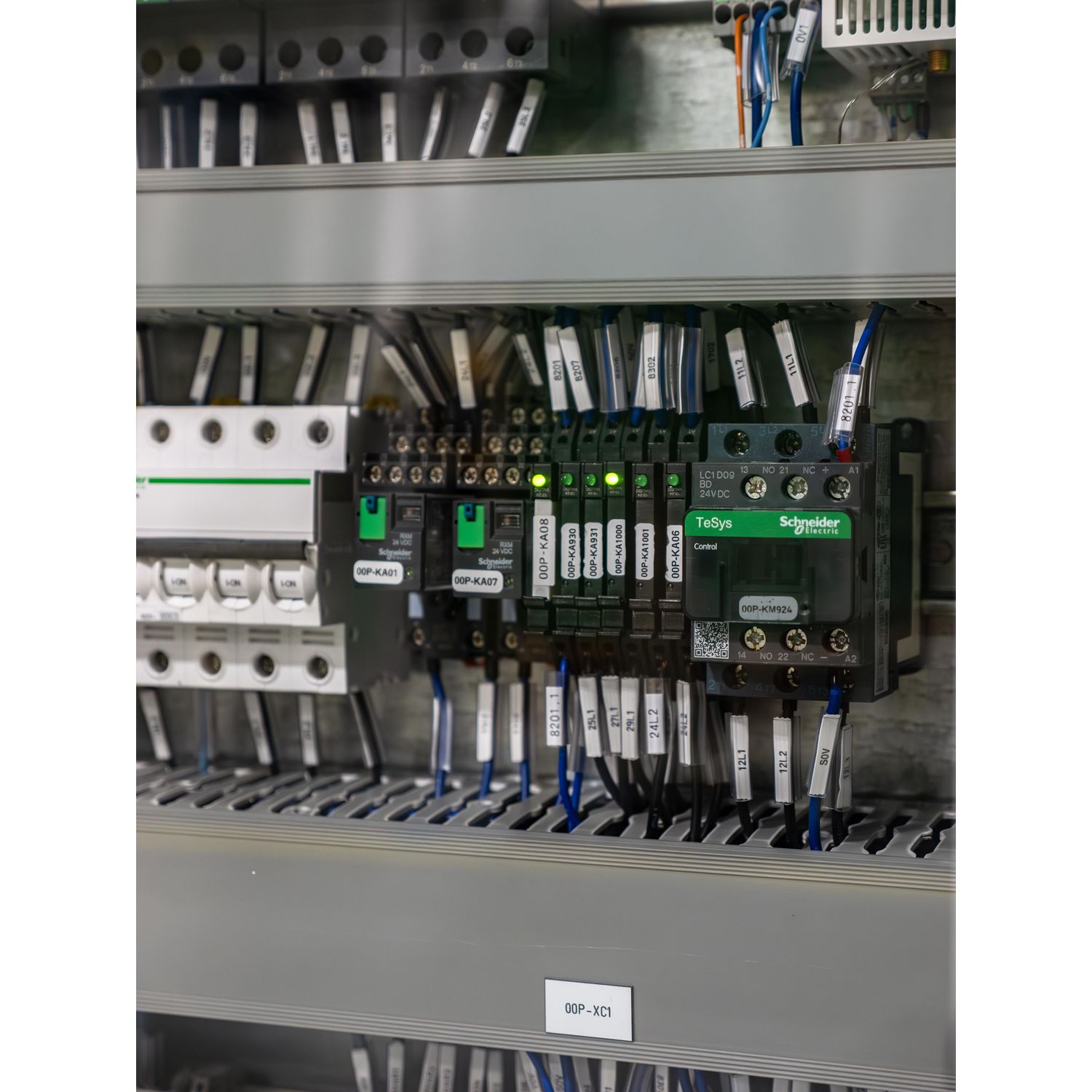

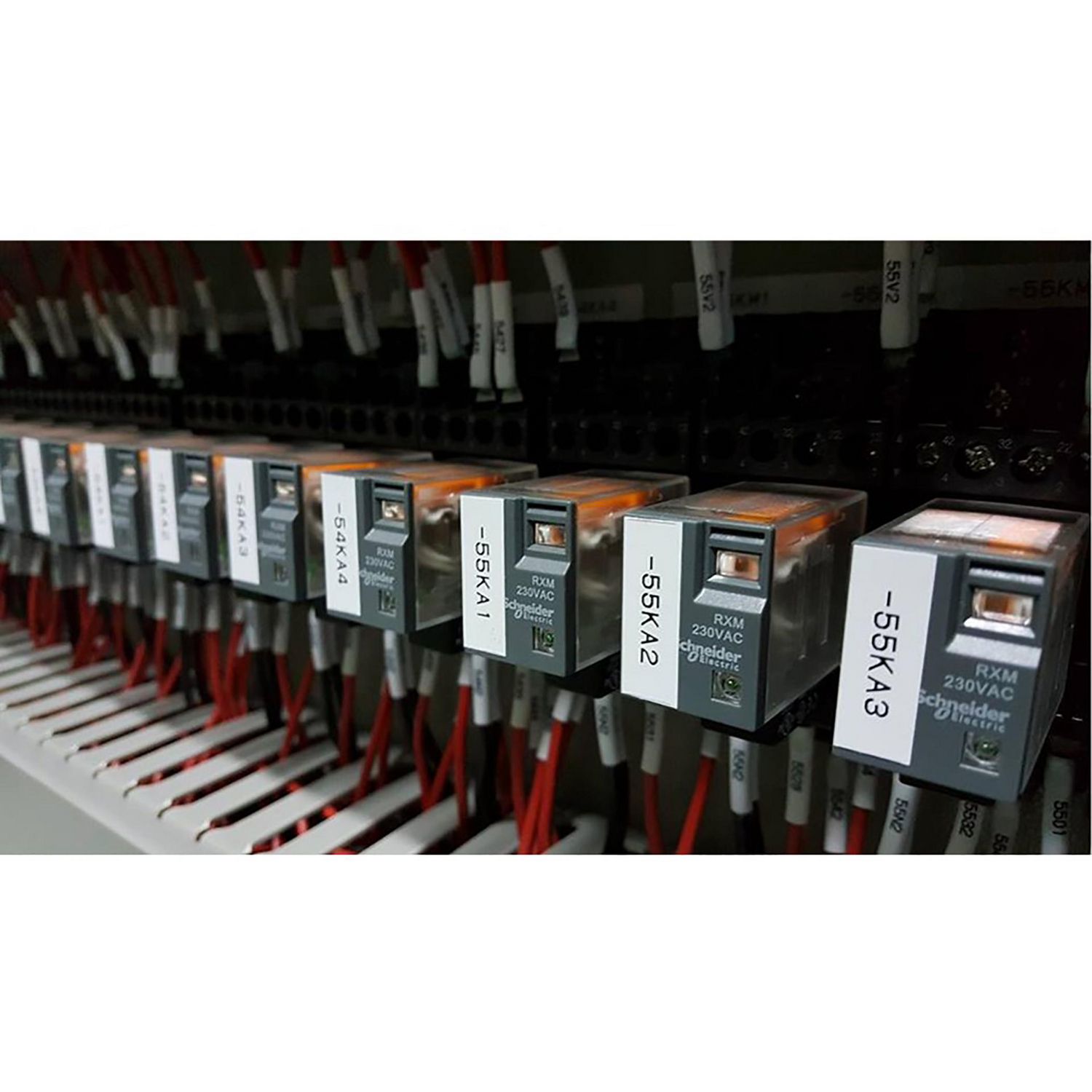

"This Harmony RXM miniature plug-in relay has a coil control voltage of 24V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and mechanical indicator for contact status." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RXM
[Uc] control circuit voltage 24 V, 24 V AC 50/60 Hz
Control type lockable test button
Range of product Harmony Electromechanical Relays
Utilisation coefficient 20 %
[In] rated current 10 A
Contacts type and composition 3 C/O
Series name Miniature
Status LED without
Product or component type plug-in relay
Complementary
Drop-out voltage threshold >= 0.15 Uc
[Uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
Load current 10 A at 28 V DC, 10 A at 250 V AC
Operating position any position
Compatibility code RXM
Mechanical durability 10000000 cycles
Electrical durability 100000 cycles for resistive load
Device presentation complete product
Average resistance 180 Ohm at 20 °C +/- 15 %
CAD overall height 79 mm
Shape of pin flat
Contacts material AgNi
Safety reliability data B10d = 100000
Maximum switching capacity 2500 VA/280 W
Average coil consumption in VA 1.2-1.2 at 60 Hz
CAD overall depth 78.45 mm
Minimum switching capacity 170 mW at 10 mA, 17 V
Operating time 20 ms
[Ui] rated insulation voltage 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
[Ie] rated operational current 10 A at 277 V (AC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 5 A at 250 V (AC) NC conforming to IEC, 5 A at 28 V (DC) NC conforming to IEC, 10 A at 250 V (AC) NO conforming to IEC, 10 A at 28 V (DC) NO conforming to IEC
Rated operational voltage limits 19.2...26.4 V AC
Maximum switching voltage 250 V conforming to IEC
Net weight 0.037 kg
Reset time 20 ms
Test levels level A group mounting
Protection category RT I
Operating rate <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Continuous output current 6.7 A
Average consumption 1.2 VA at 60 Hz
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Pollution degree 2
Shock resistance 30 gn for not operating, 10 gn for in operation
Vibration resistance 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength 2000 V AC between poles, 2000 V AC between coil and contact, 1300 V AC between contacts with micro disconnection
Standards CSA C22.2 No 14, UL 508, IEC 61810-1
Product certifications IECEE CB Scheme, GOST, CSA, CE, Lloyd's, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.1 cm
Package 1 Width 10.3 cm
Package 1 Length 12.5 cm
Package 1 Weight 36 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.1 cm
Package 2 Width 10.3 cm
Package 2 Length 12.5 cm
Package 2 Weight 395 g
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 15 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 9.993 kg
