SKU:

RXM3AB1BD

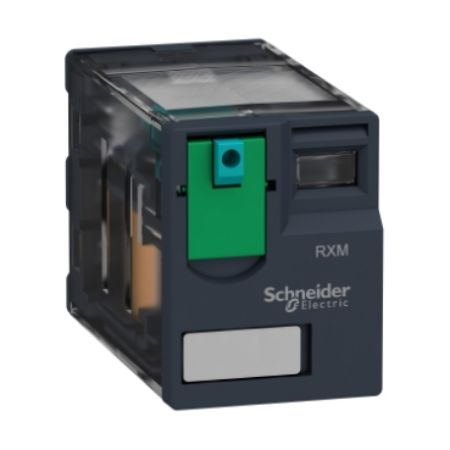

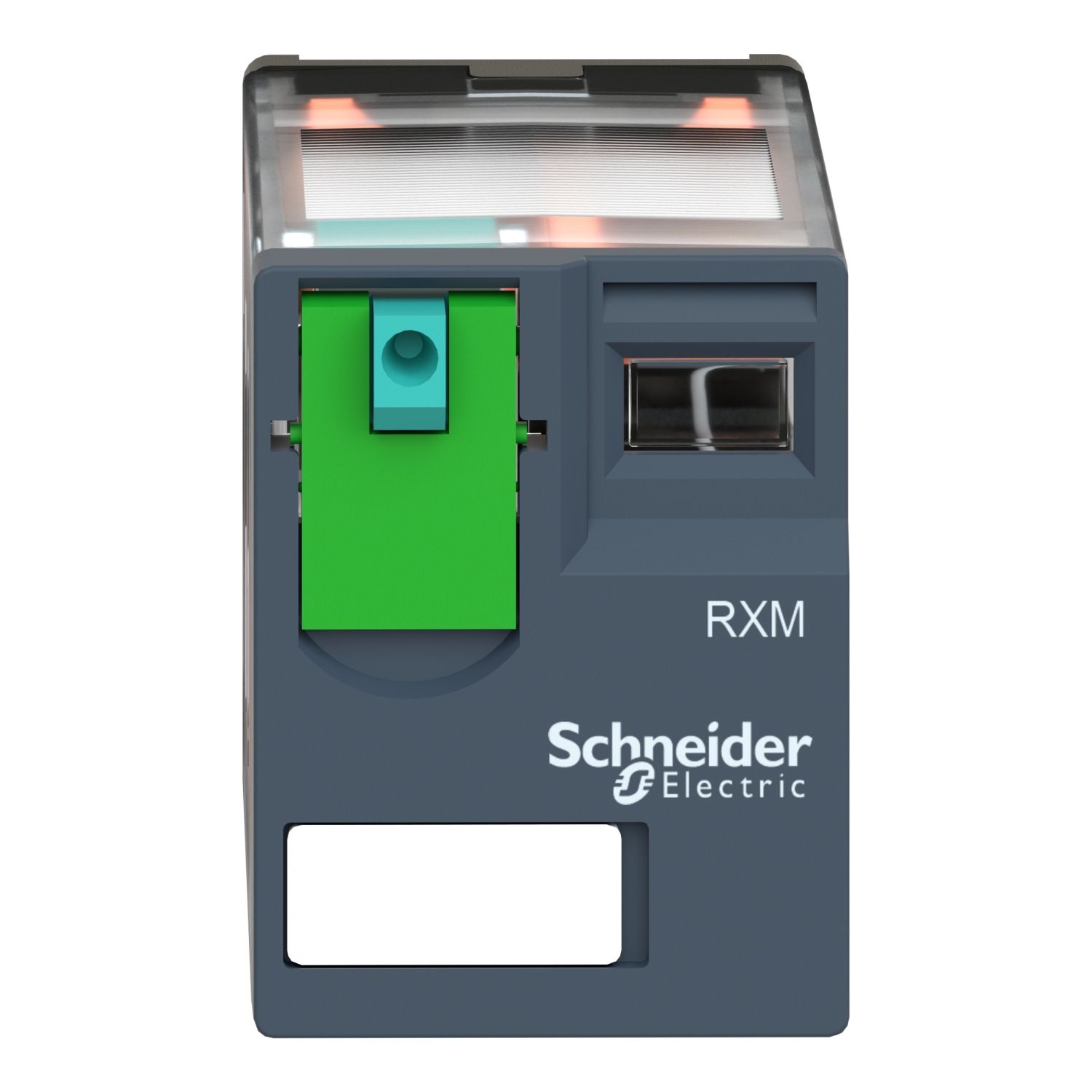

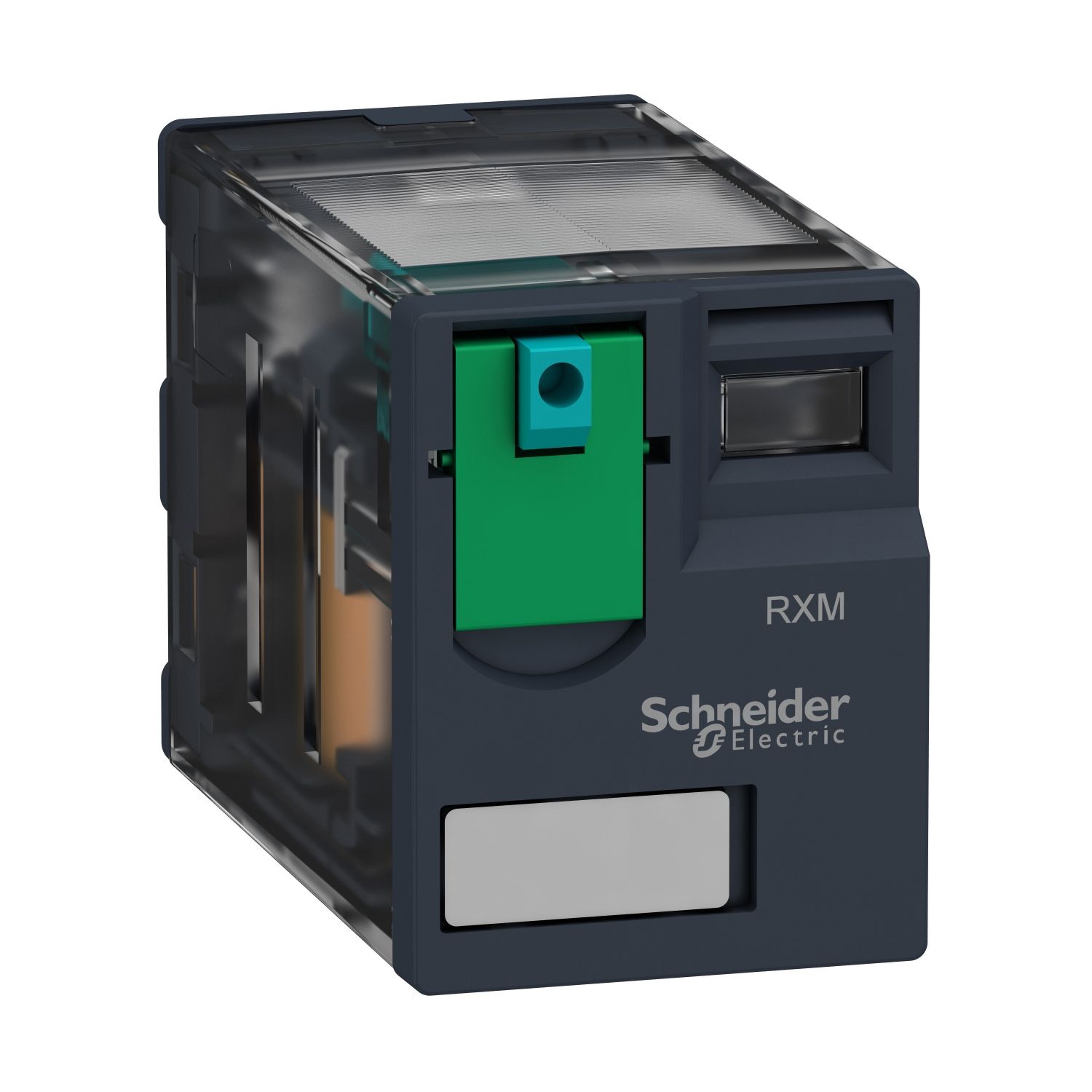

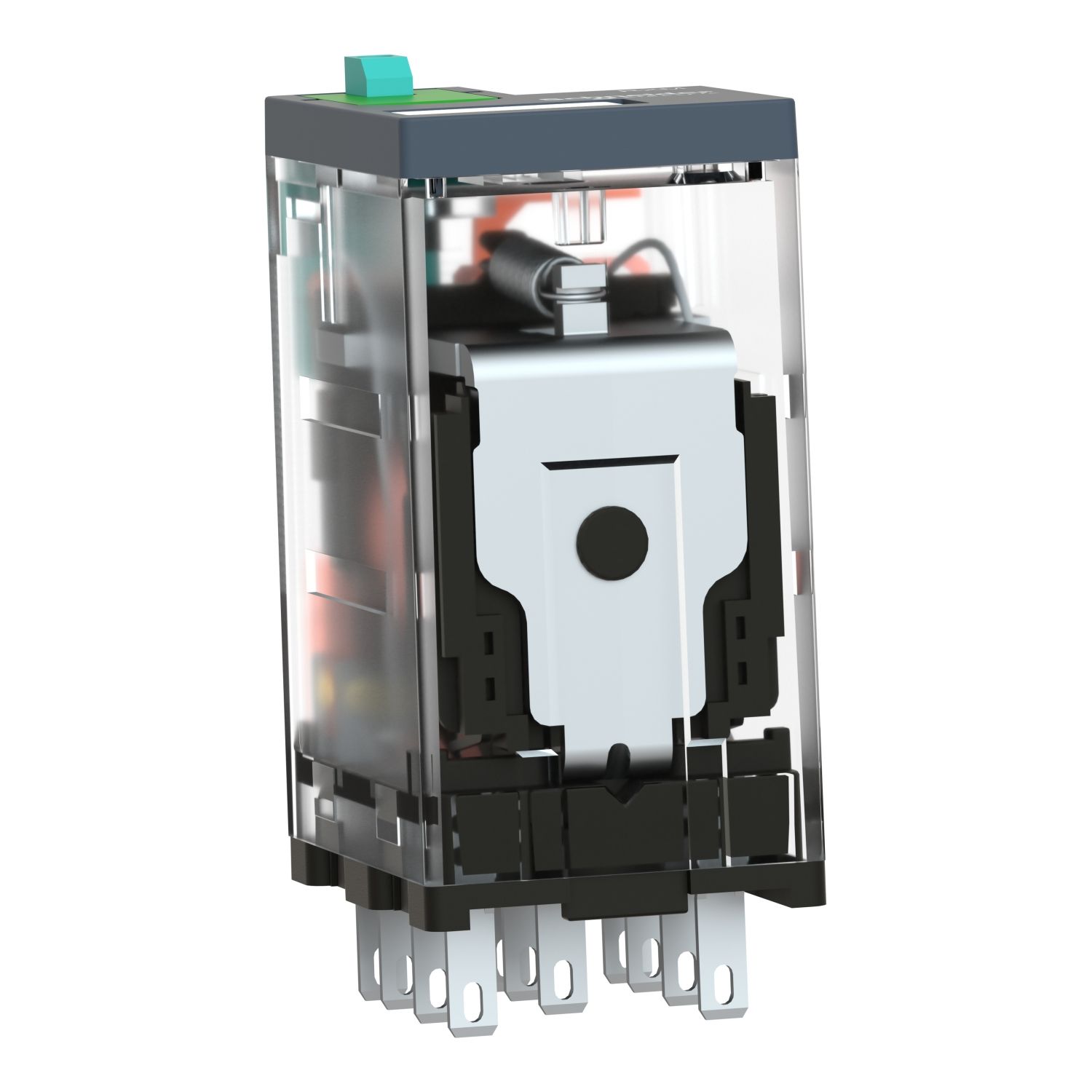

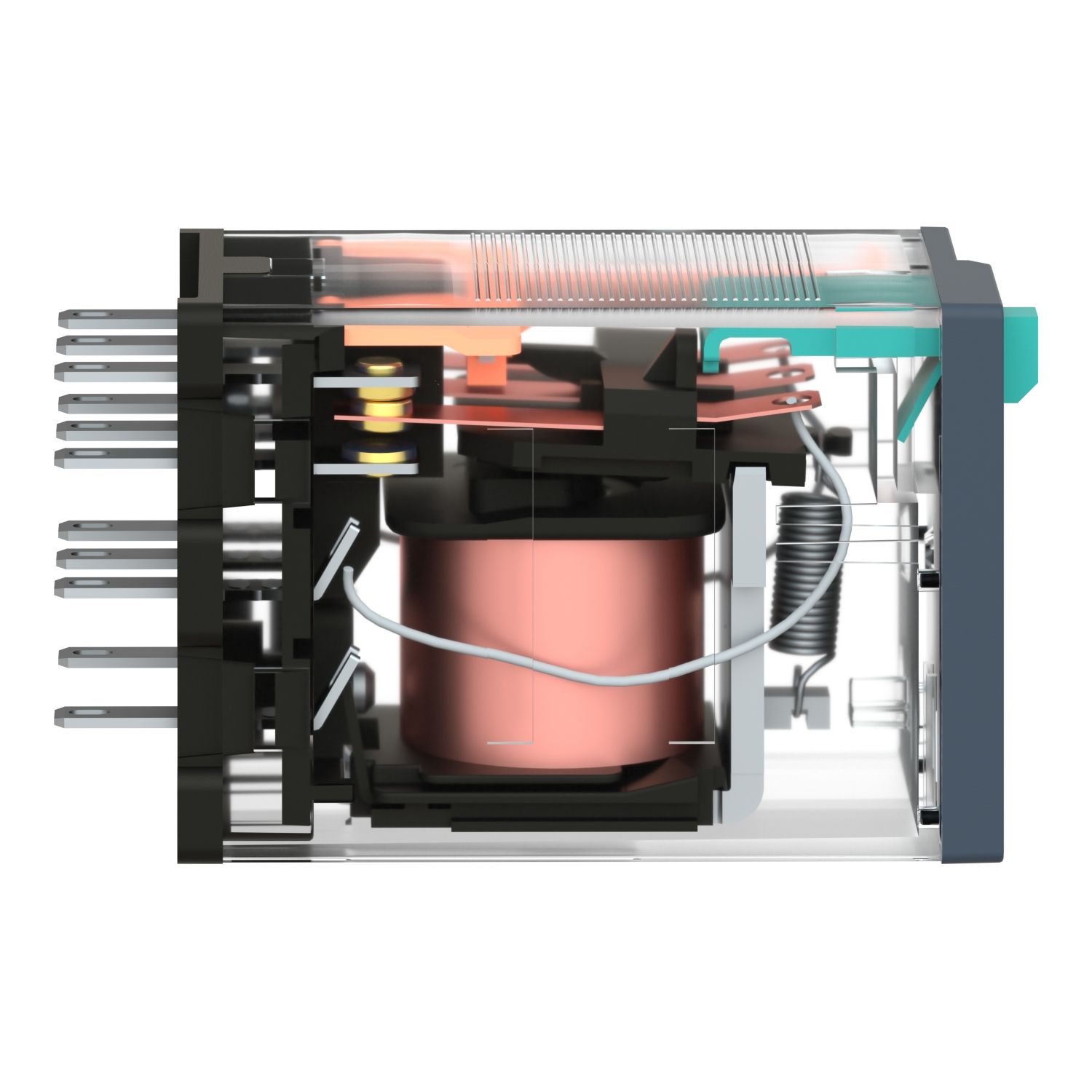

miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 24V DC

$21.48
Product Selector
miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Catalogue
Image of product
Image of product
Image of product
End of life manual
Technical illustration
Image of product
Declaration of conformity
Image of product
Product environmental
Product Page Link
Product Data Sheet

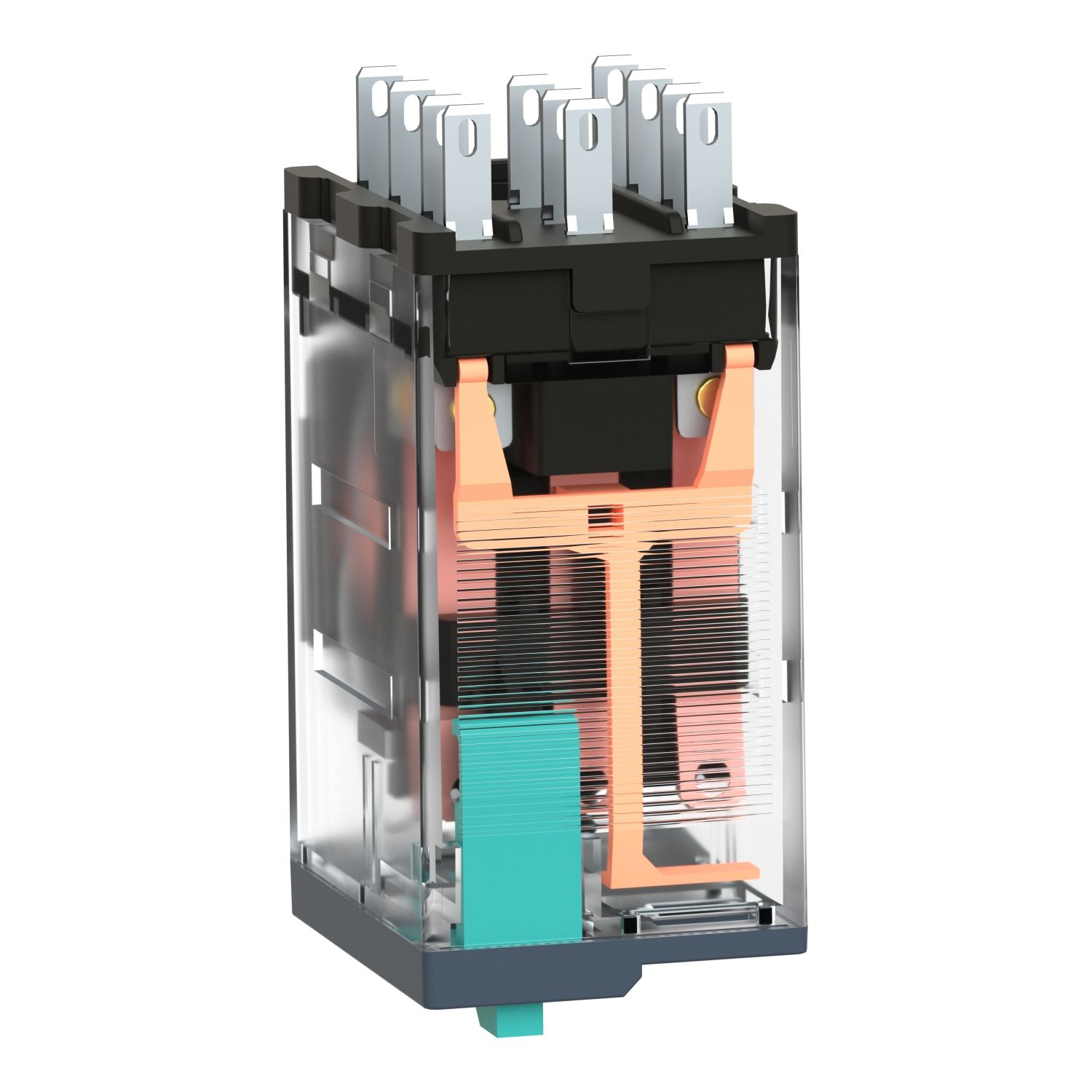

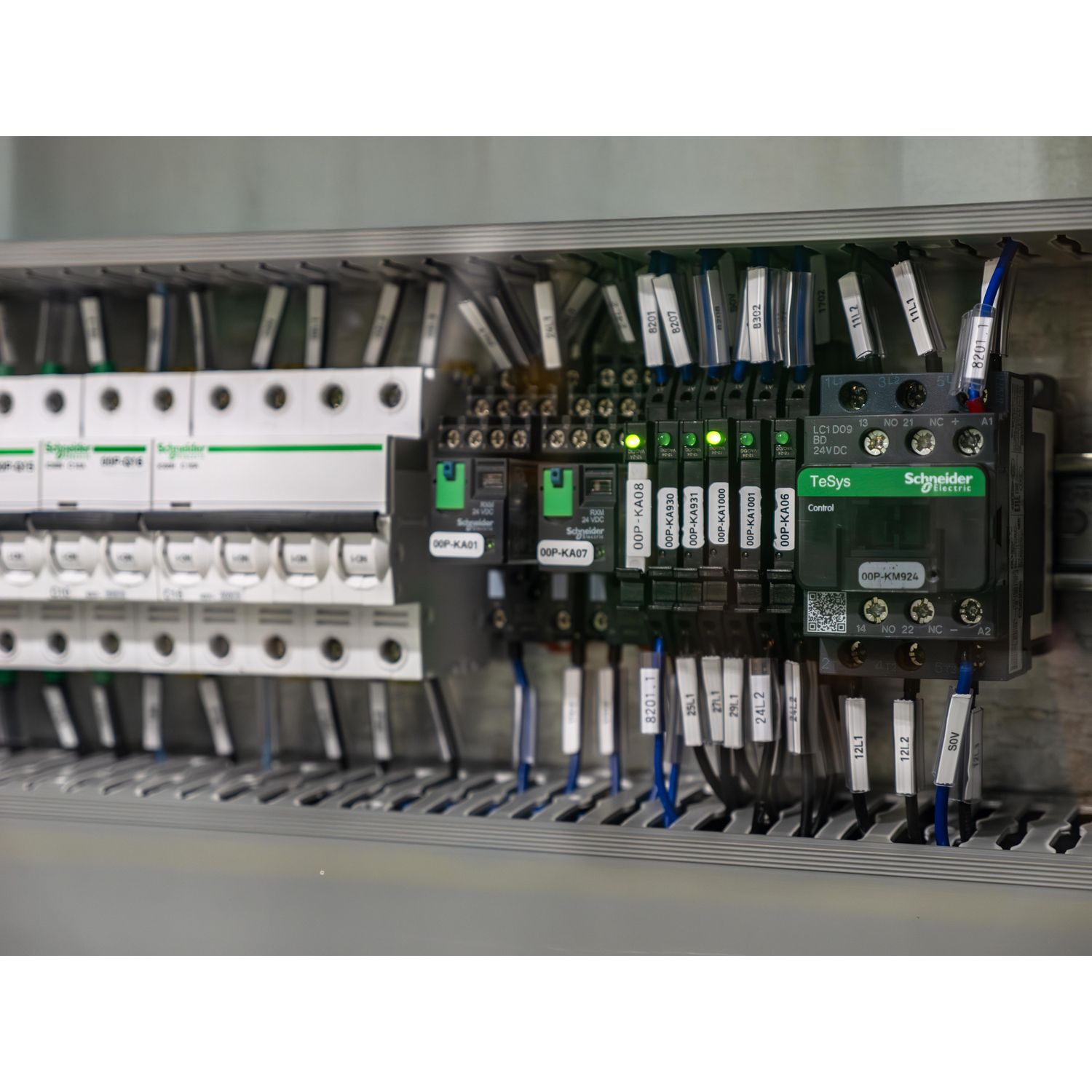

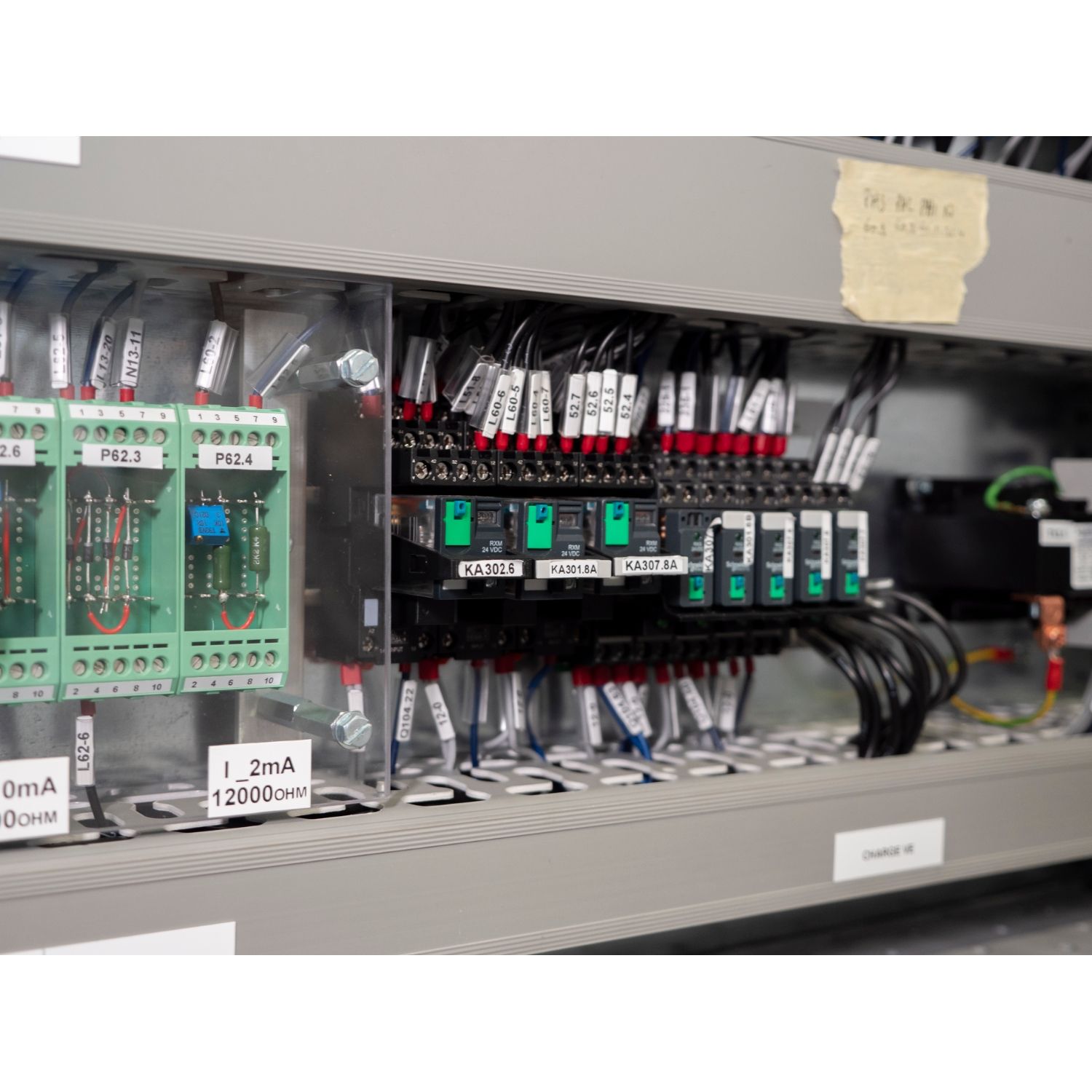

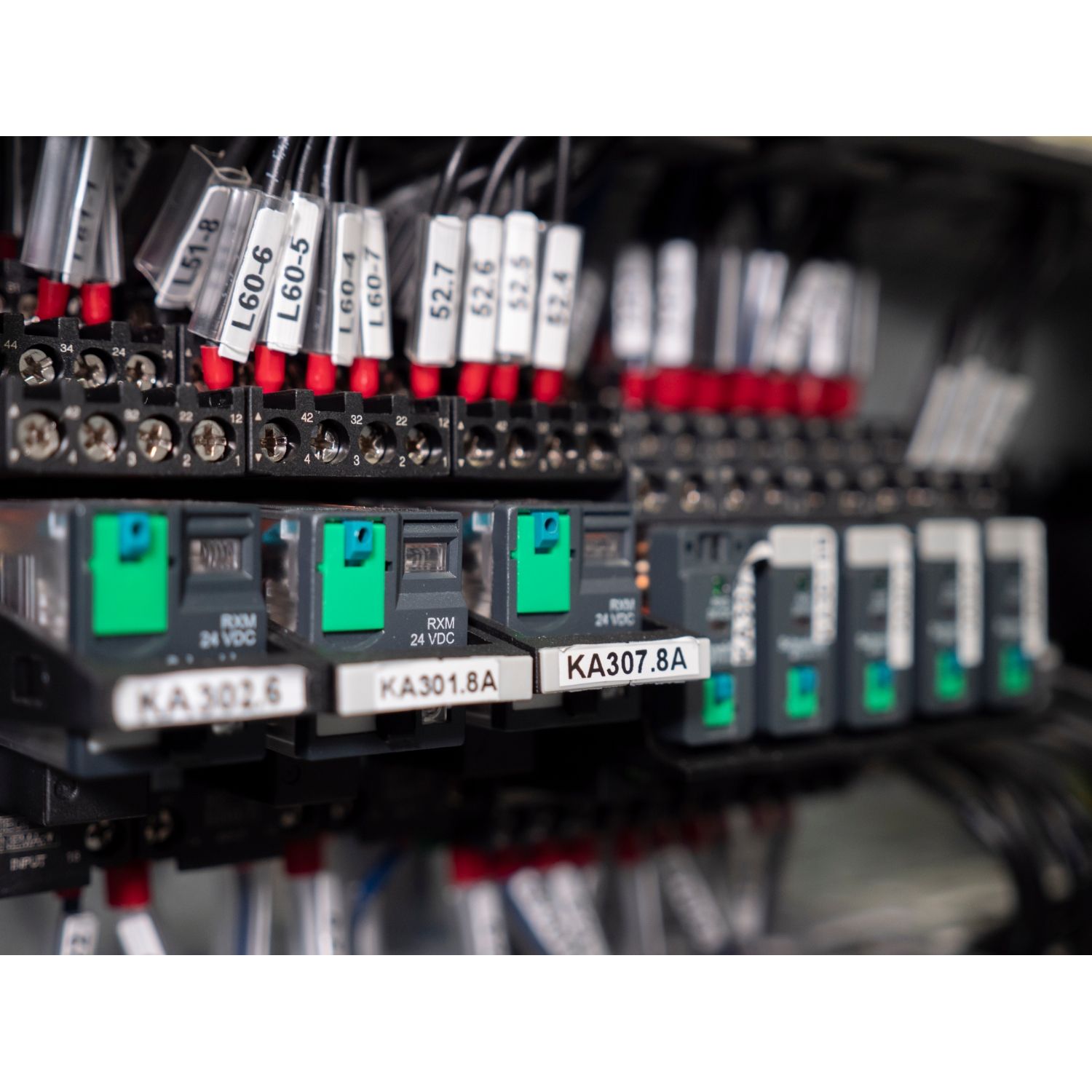

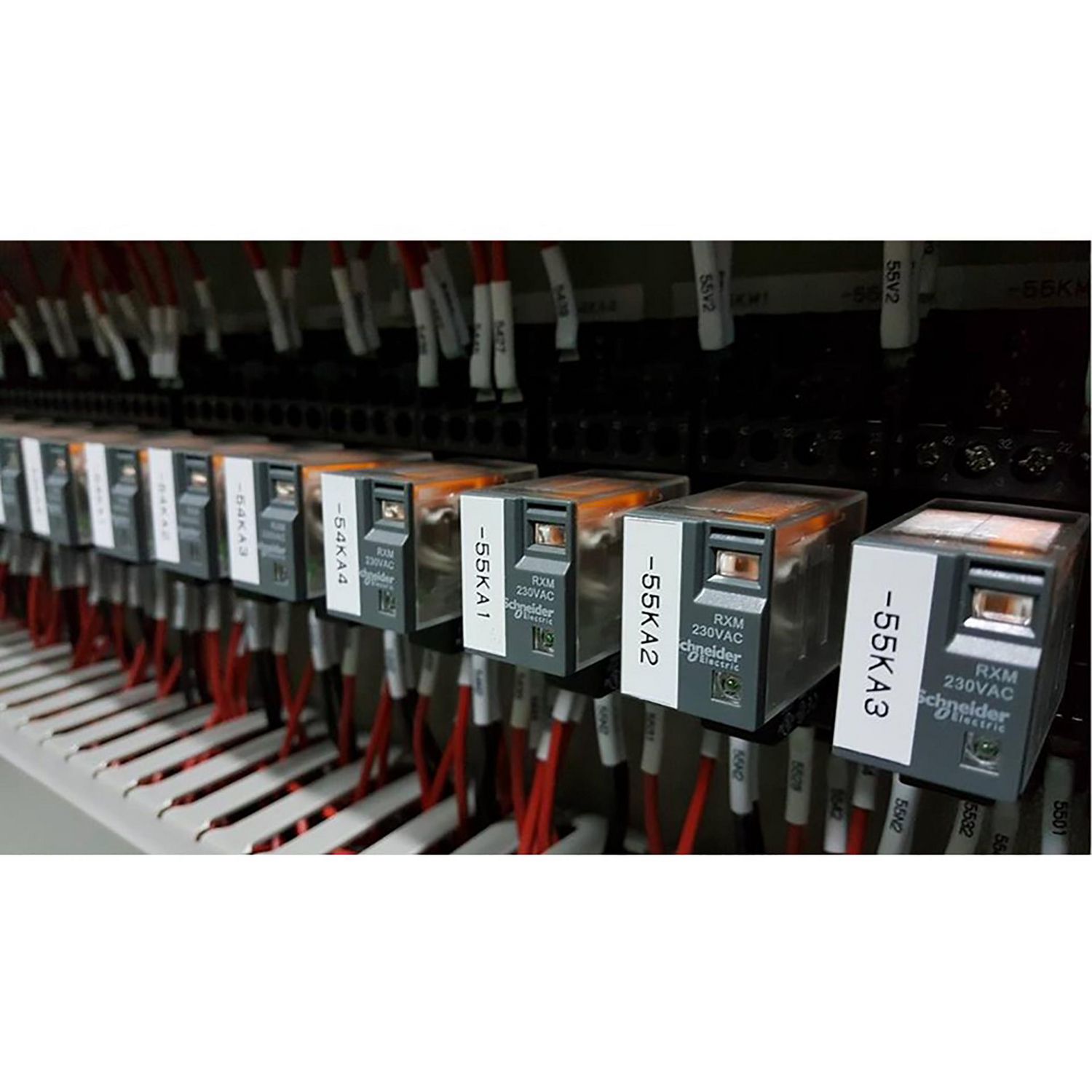

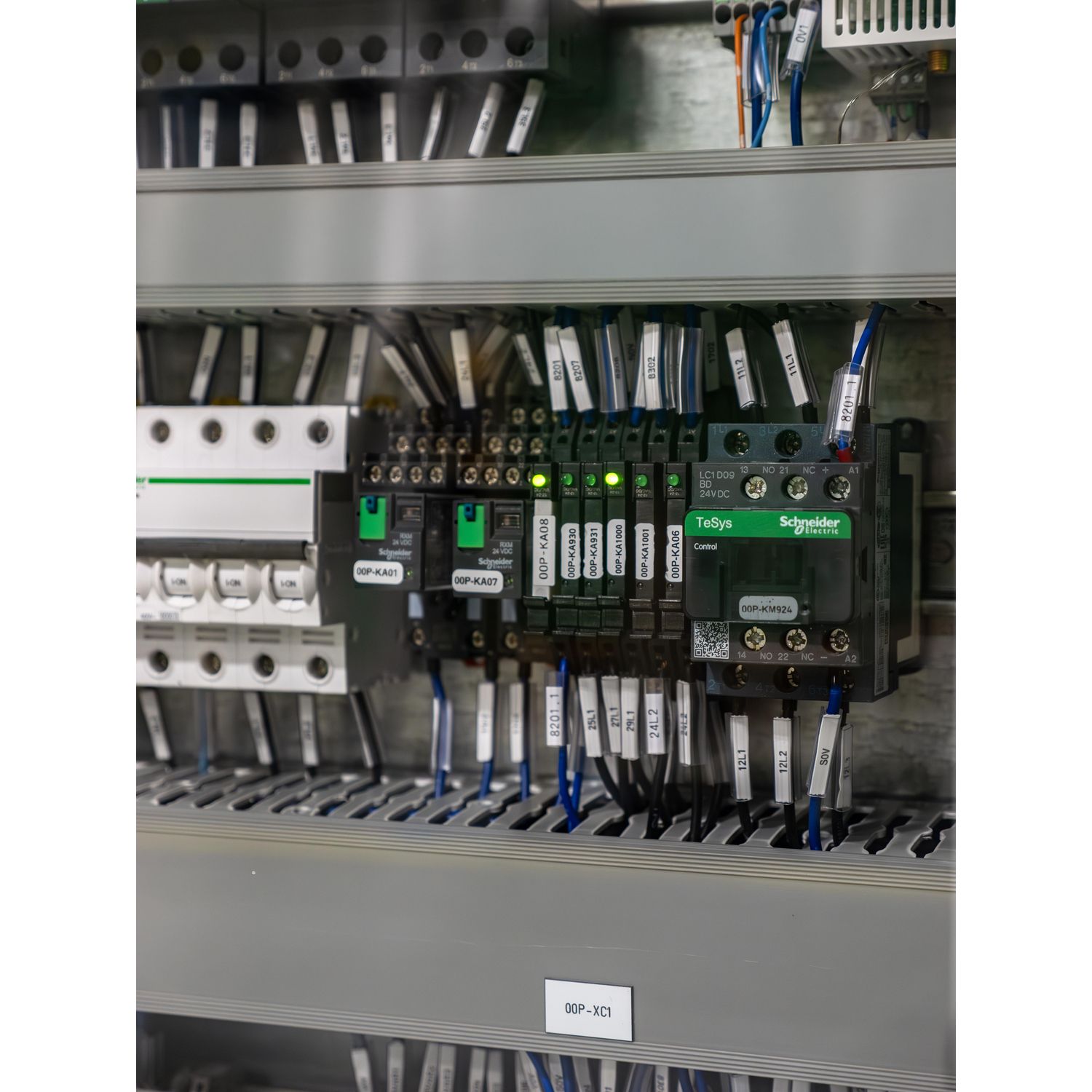

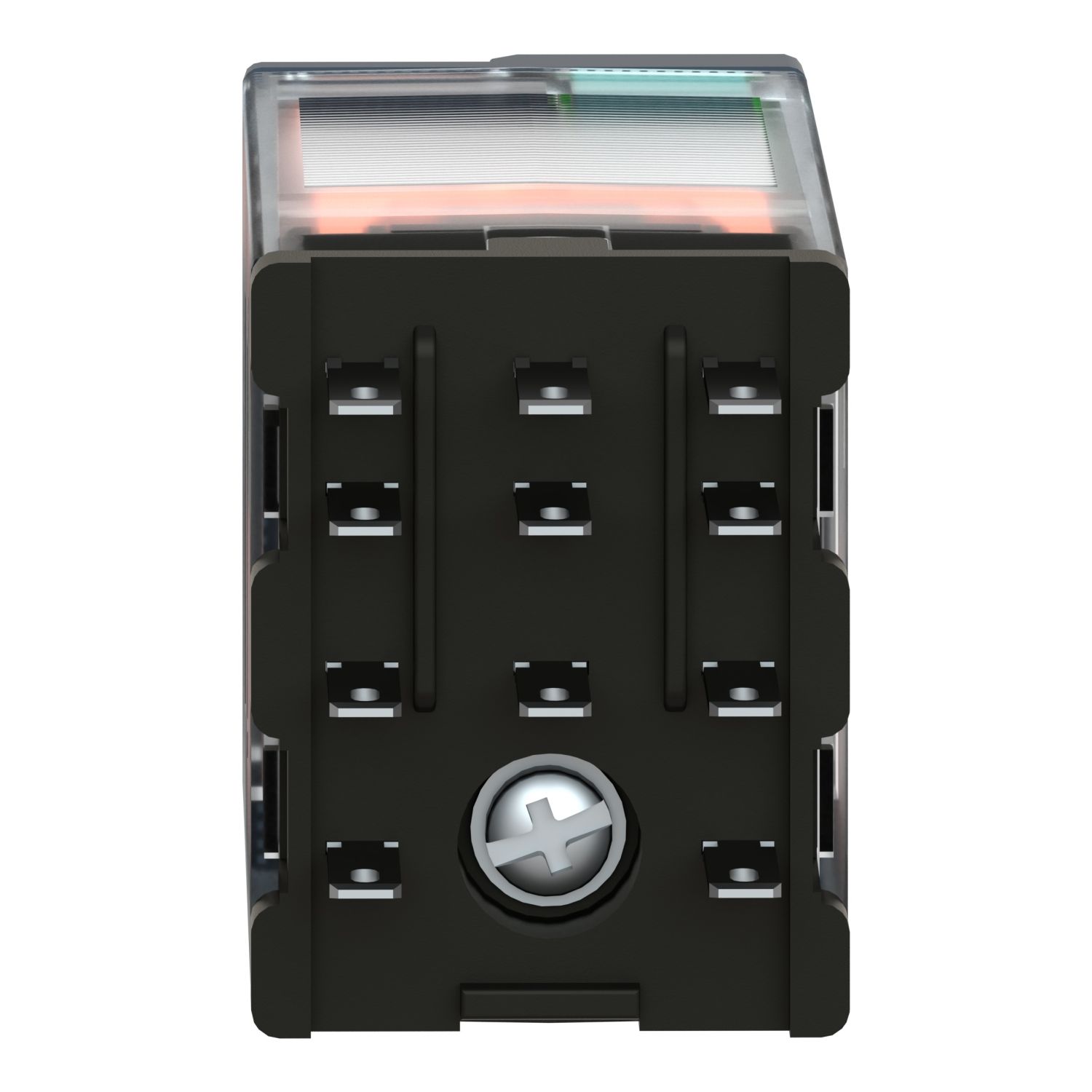

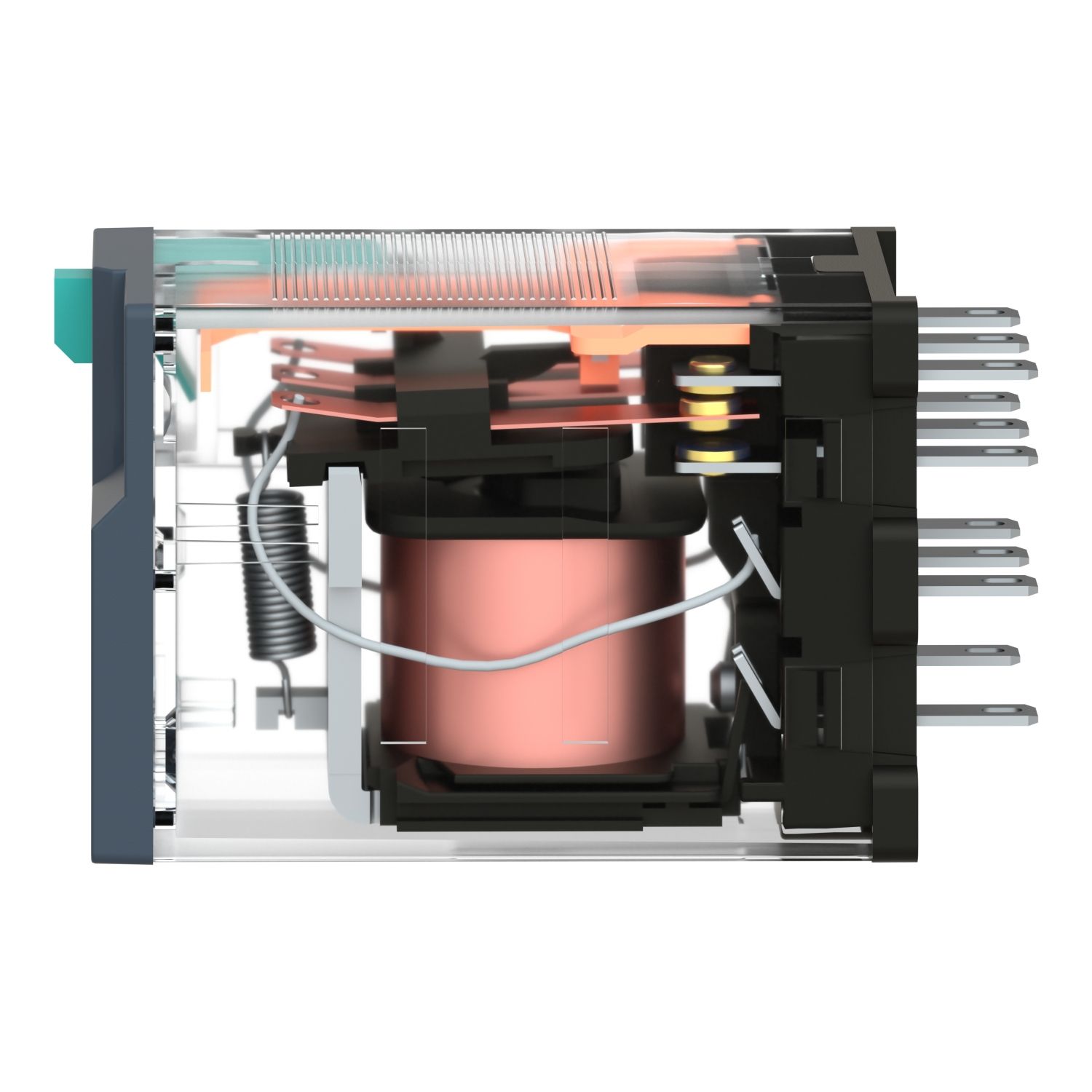

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Products specifications

Attribute nameAttribute value
Main
Device short nameRXM
[Uc] control circuit voltage24 V, 24 V DC
Control typelockable test button
Range of productHarmony Electromechanical Relays
Utilisation coefficient20 %
[In] rated current10 A
Contacts type and composition3 C/O
Series nameMiniature
Status LEDwithout
Product or component typeplug-in relay
Complementary
Drop-out voltage threshold>= 0.1 Uc
[Uimp] rated impulse withstand voltage4 kV during 1.2/50 µs
Load current10 A at 28 V DC, 10 A at 250 V AC
Operating positionany position
Compatibility codeRXM
Mechanical durability10000000 cycles
Electrical durability100000 cycles for resistive load
Average coil consumption0.9 W
Device presentationcomplete product
Average resistance650 Ohm at 20 °C +/- 10 %
CAD overall height82.8 mm
Shape of pinflat
Contacts materialAgNi
Safety reliability dataB10d = 100000
Maximum switching capacity2500 VA/280 W
CAD overall depth80.35 mm
Minimum switching capacity170 mW at 10 mA, 17 V
Operating time20 ms
[Ui] rated insulation voltage300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
[Ie] rated operational current10 A at 277 V (AC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 5 A at 250 V (AC) NC conforming to IEC, 5 A at 28 V (DC) NC conforming to IEC, 10 A at 250 V (AC) NO conforming to IEC, 10 A at 28 V (DC) NO conforming to IEC
Rated operational voltage limits19.2...26.4 V DC
Maximum switching voltage250 V conforming to IEC
Net weight0.037 kg
Reset time20 ms
Test levelslevel A group mounting
Protection categoryRT I
Operating rate<= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Continuous output current6.7 A
Environment
Ambient air temperature for storage-40-85 °C
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-40-55 °C
Pollution degree2
Shock resistance30 gn for not operating, 10 gn for in operation
Vibration resistance5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength2000 V AC between poles, 2000 V AC between coil and contact, 1300 V AC between contacts with micro disconnection
StandardsUL 508, CSA C22.2 No 14, IEC 61810-1
Product certificationsIECEE CB Scheme, GOST, CSA, CE, Lloyd's, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2 cm
Package 1 Width2.5 cm
Package 1 Length5 cm
Package 1 Weight37 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height3 cm
Package 2 Width10 cm
Package 2 Length12.5 cm
Package 2 Weight398 g
Unit Type of Package 33
Number of Units in Package 3220
Package 3 Height15 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight9.005 kg
Unit Type of Package 44
Number of Units in Package 43520
Package 4 Height75 cm
Package 4 Width80 cm
Package 4 Length60 cm
Package 4 Weight152.08 kg

Related products

Picture of Harmony Electromechanical Relays, Clip-in legends, for RPM/RXM relays

Harmony Electromechanical Relays, Clip-in legends, for RPM/RXM relays

RXZL520
$2.47
View Detail
Picture of Harmony Electromechanical Relays, Protection module, with Varistor, for RPZ RXZ sockets, 24...60V AC DC

Harmony Electromechanical Relays, Protection module, with Varistor, for RPZ RXZ sockets, 24...60V AC DC

RXM021BN
$14.44
View Detail

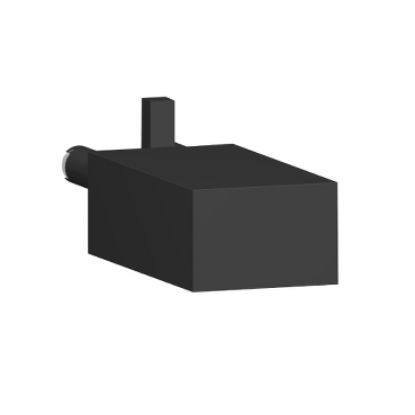

Picture of Harmony Electromechanical Relays, Protection module, with diode, for RPZ RXZ sockets, 6...250V DC
