SKU:

RXM3AB1JD

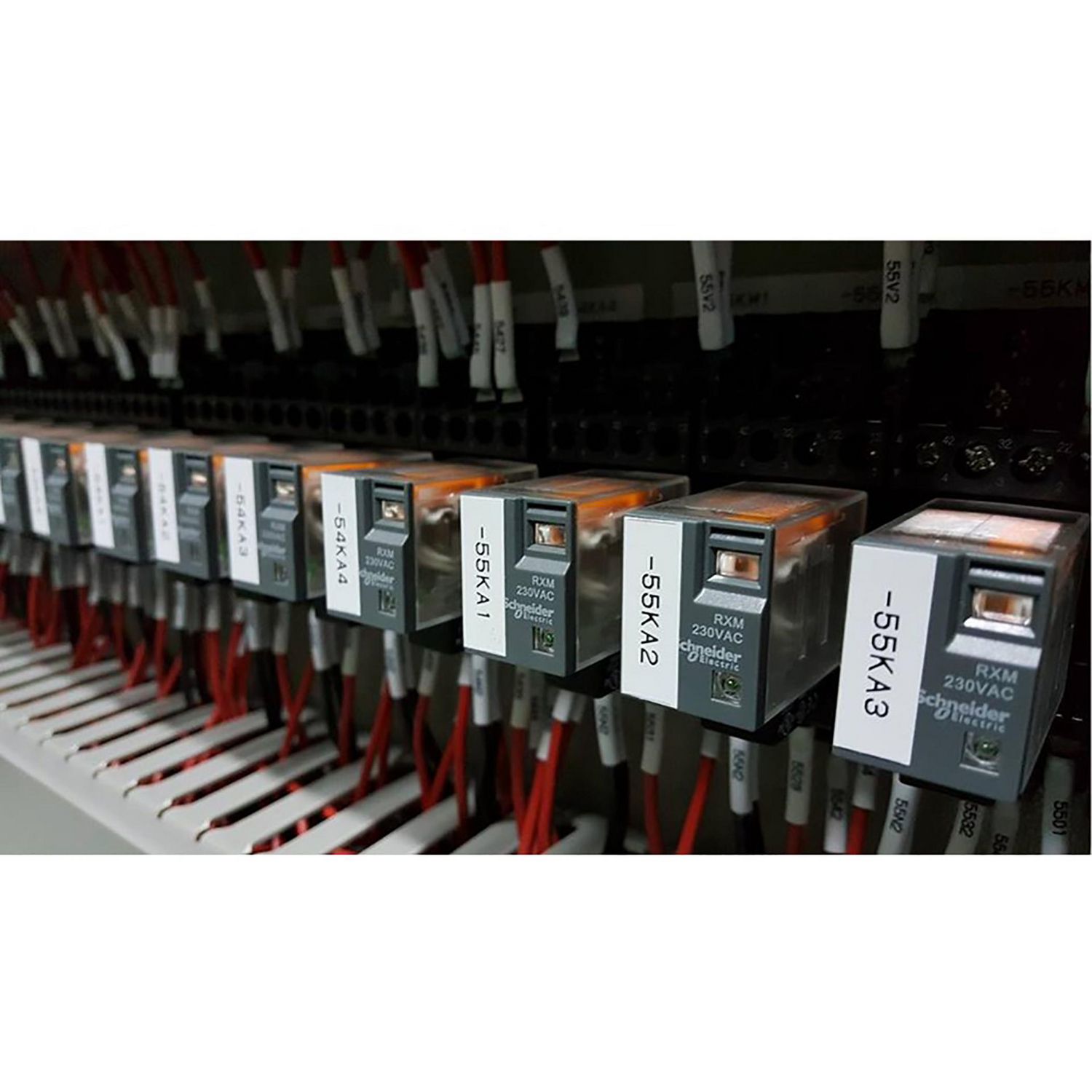

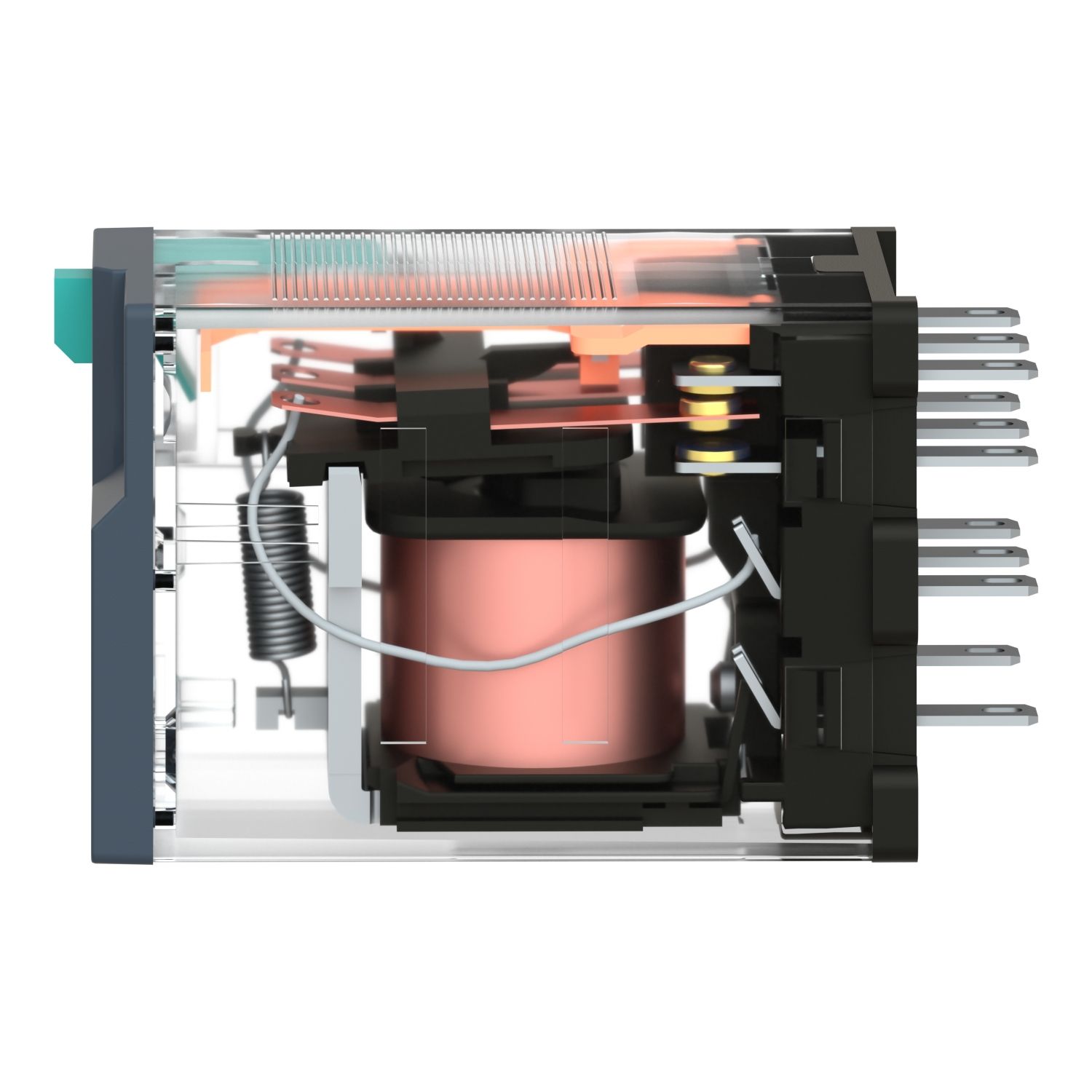

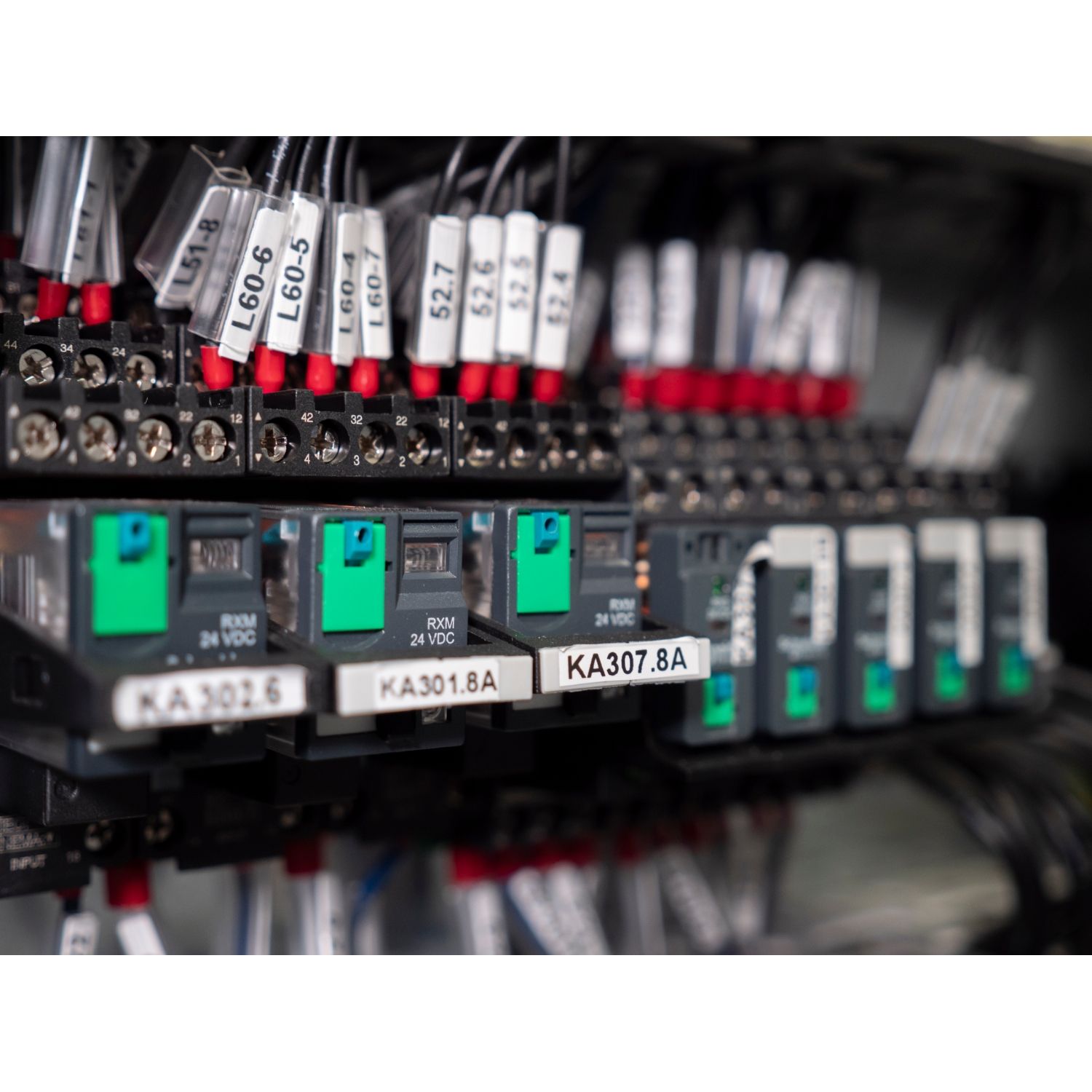

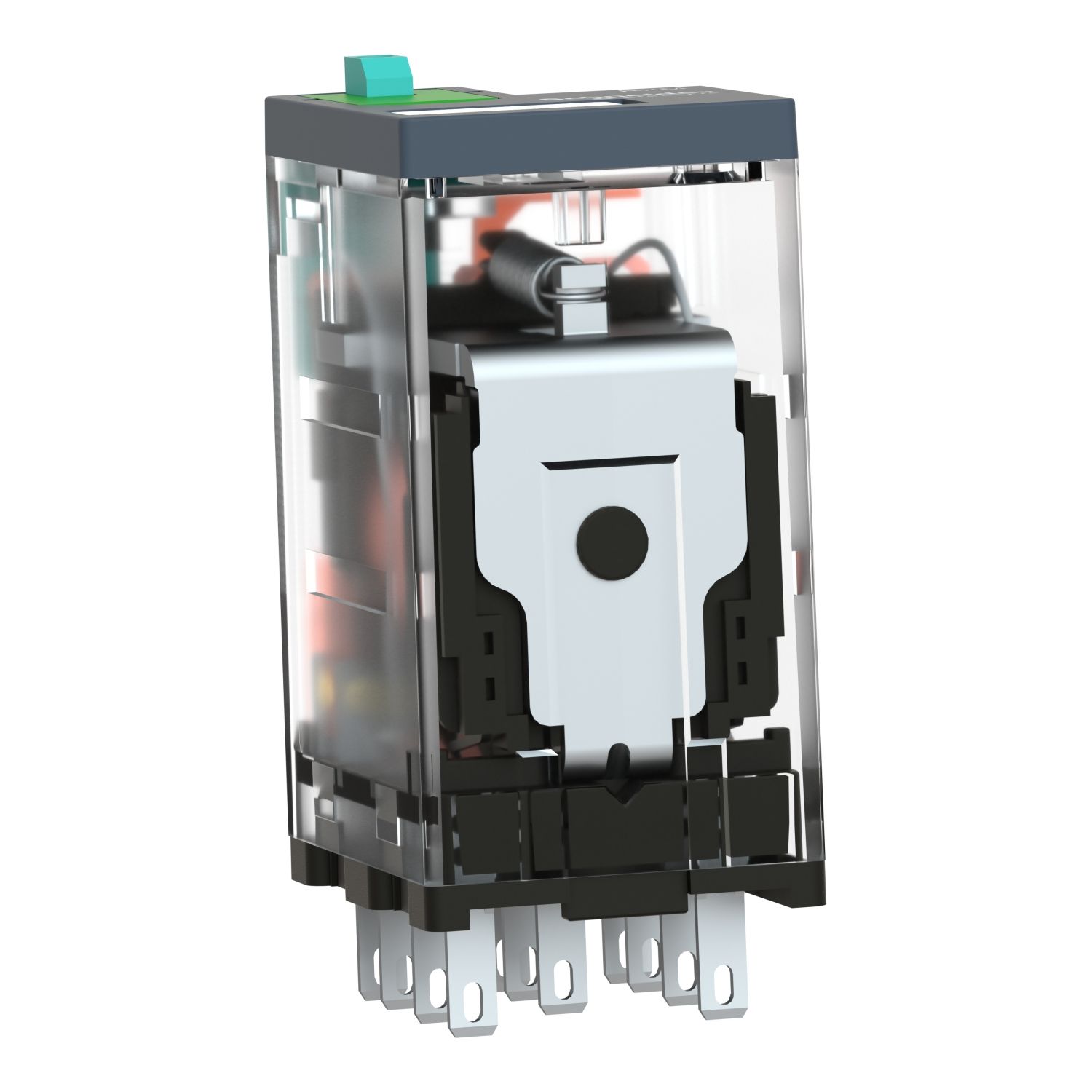

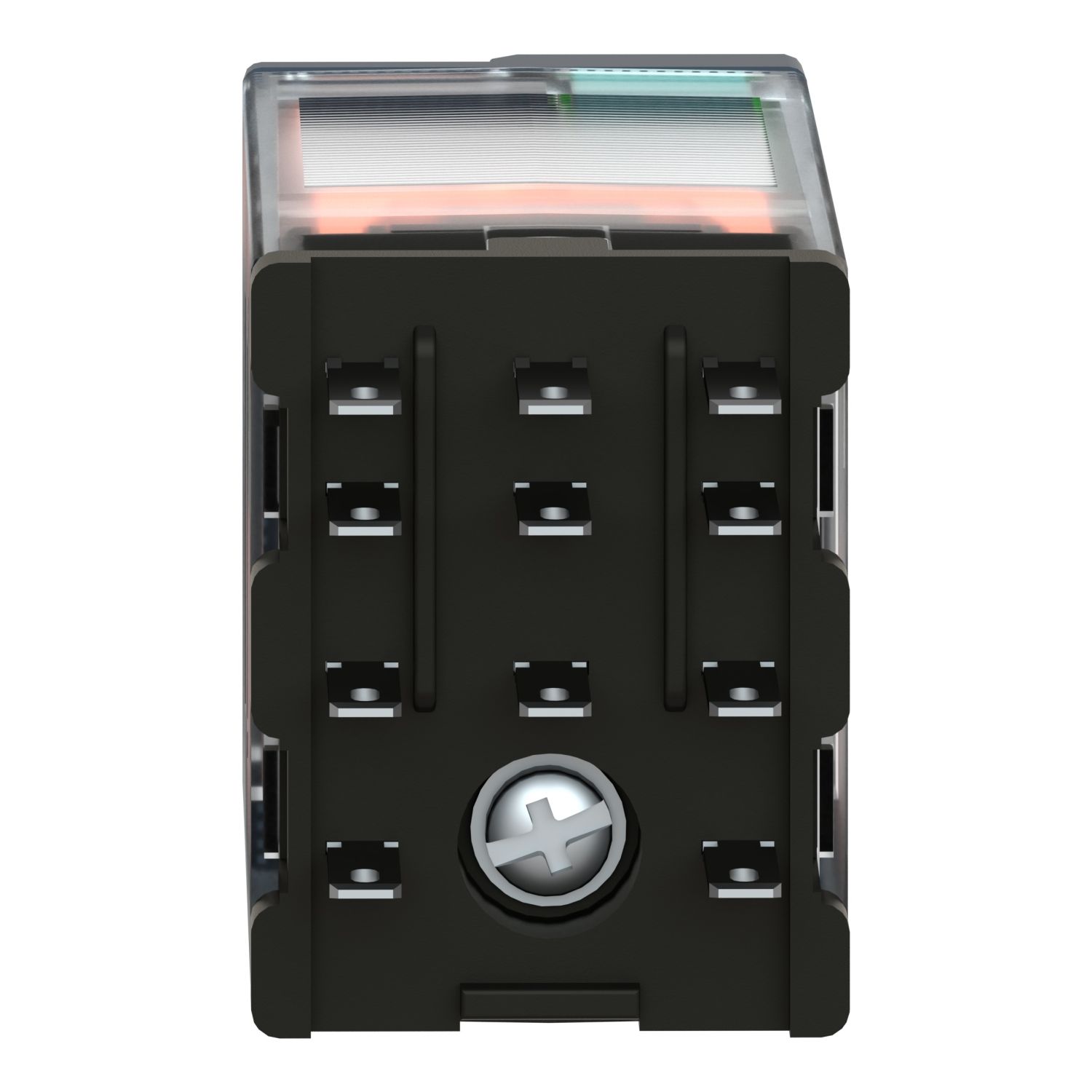

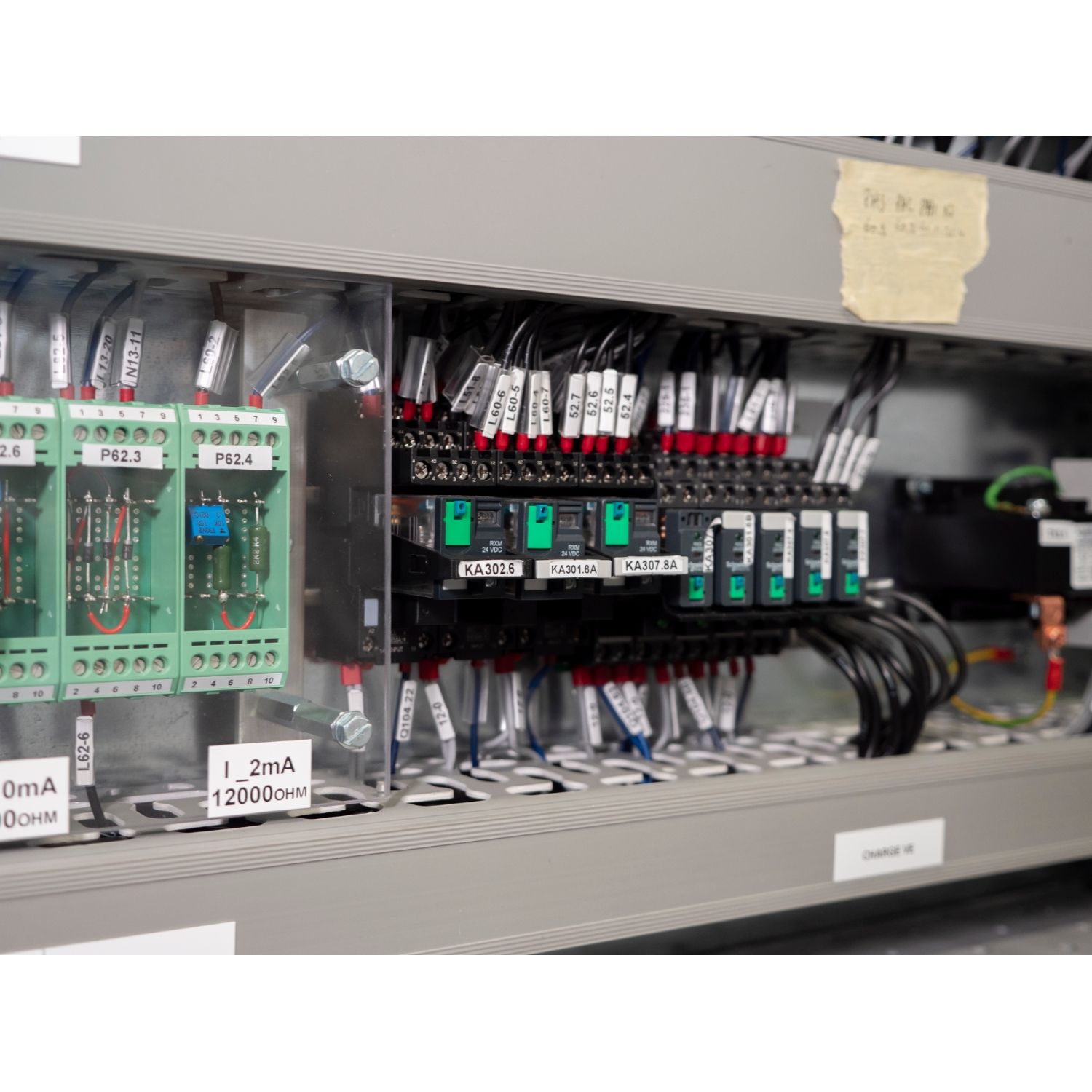

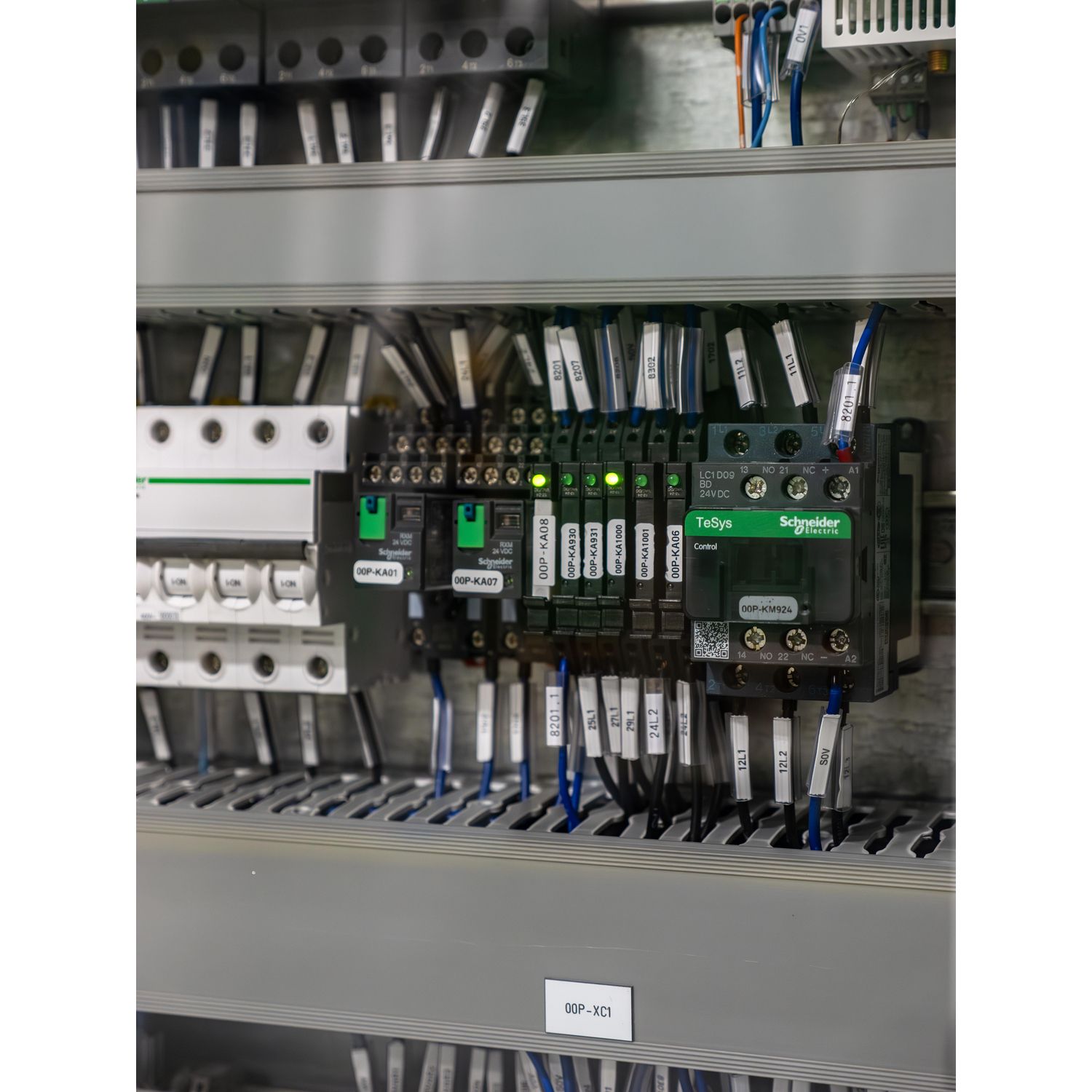

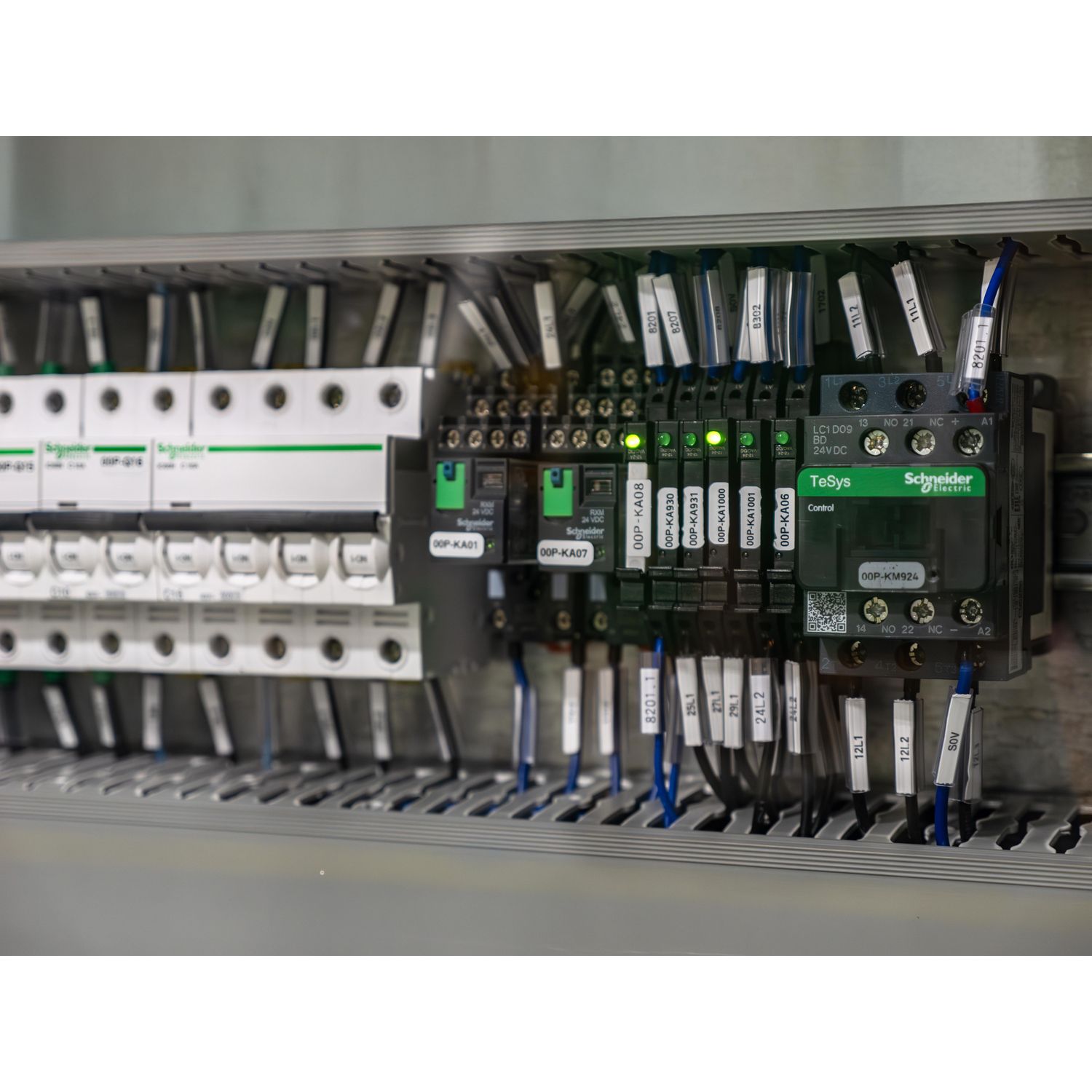

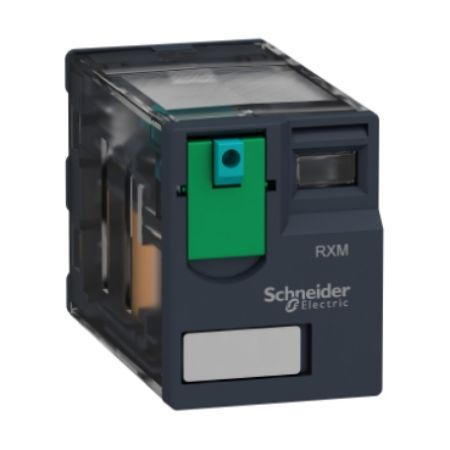

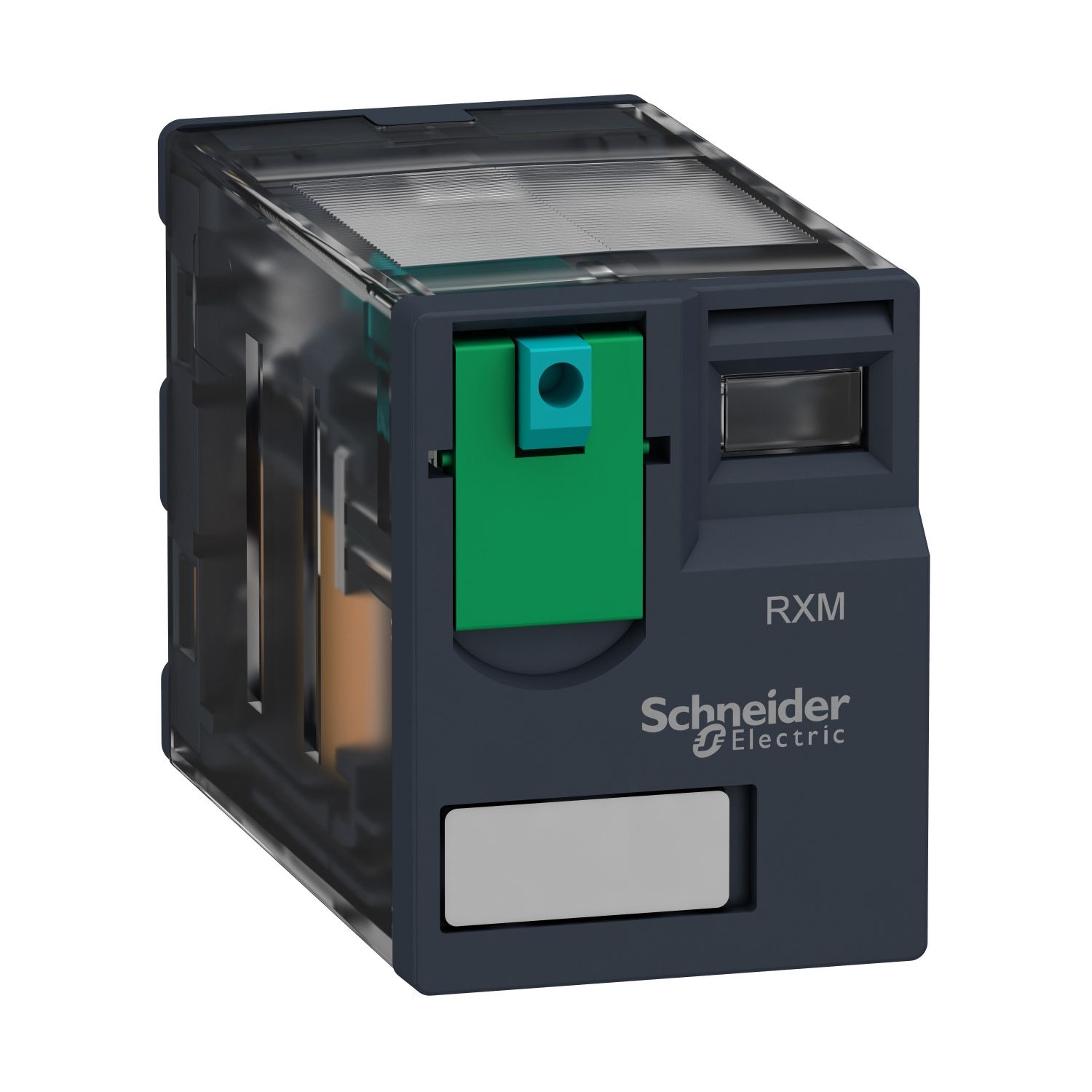

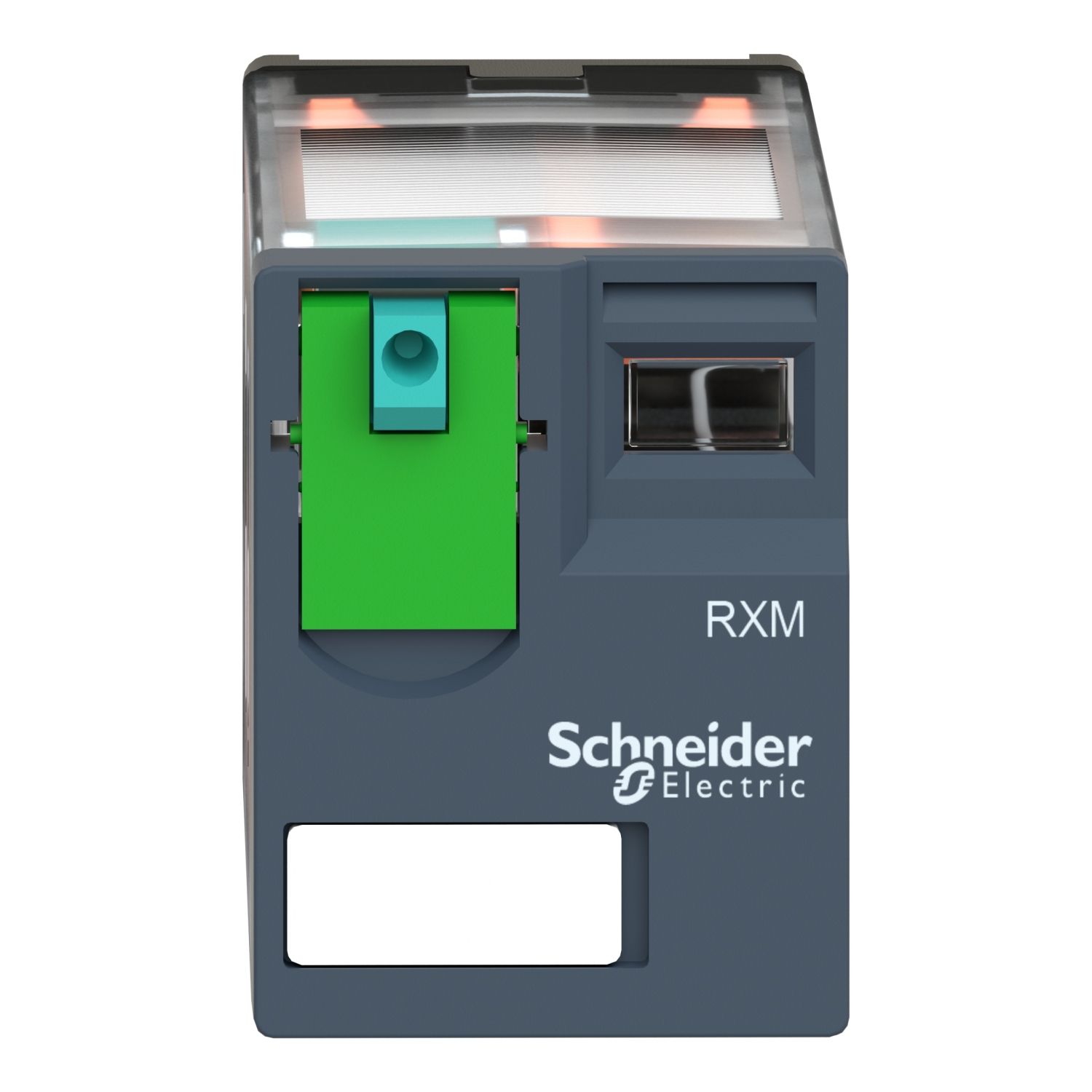

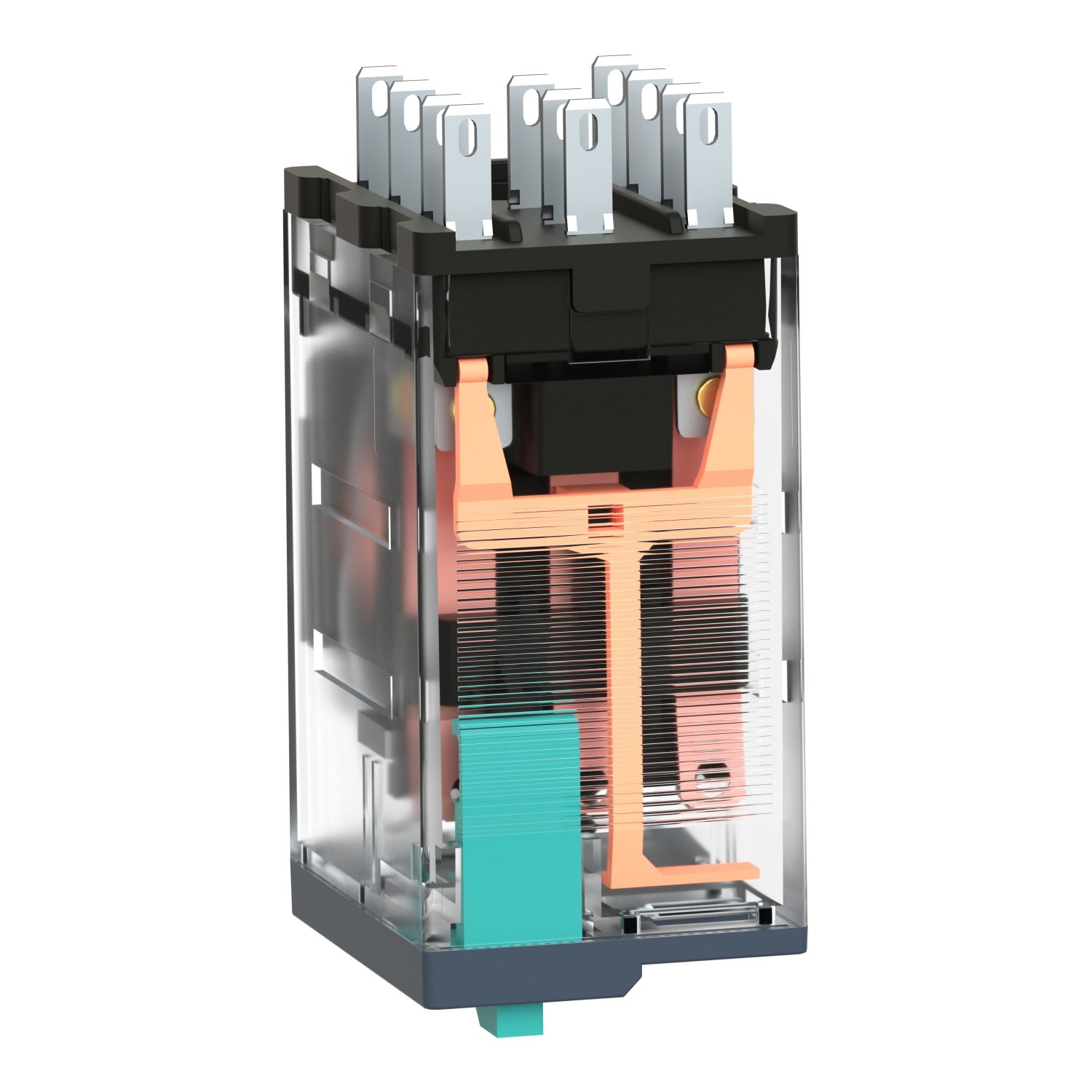

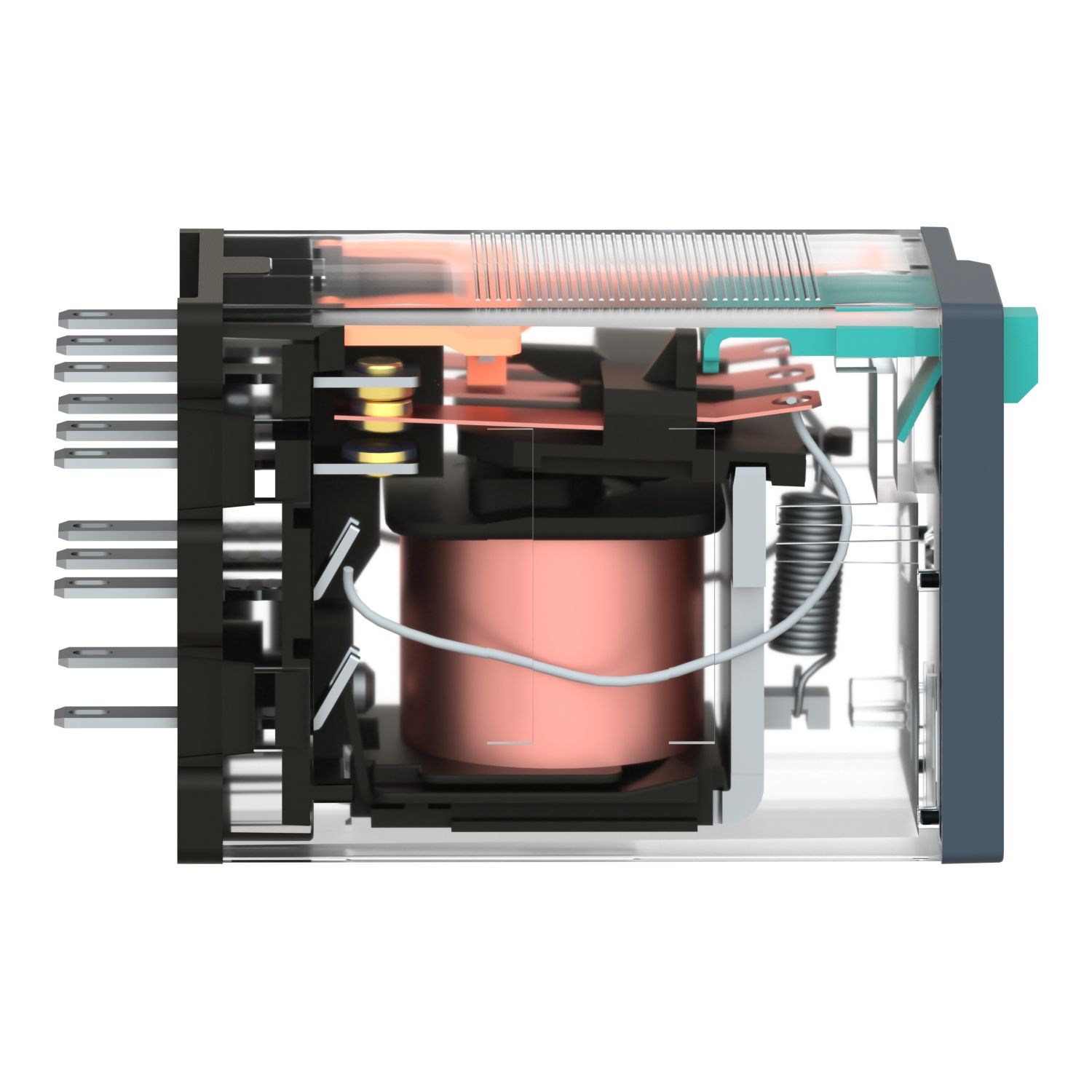

miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 12V DC

$21.48
Product Selector
miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 12V DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Image of product
Catalogue
Image of product
Image of product
Image of product
End of life manual
Technical illustration
Image of product
Declaration of conformity
Image of product
Product environmental
Product Page Link
Product Data Sheet
"This Harmony RXM miniature plug-in relay has a coil control voltage of 12V DC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers one-step lockable test button and mechanical indicator for contact status." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 "It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH." "RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available." "It is sold in lots of 10 and reference includes relay only." 0 "The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts." 0 0

Products specifications

Attribute nameAttribute value
Main
Device short nameRXM
[Uc] control circuit voltage12 V, 12 V DC
Control typelockable test button
Range of productHarmony Electromechanical Relays
Utilisation coefficient20 %
[In] rated current10 A
Contacts type and composition3 C/O
Series nameMiniature
Status LEDwithout
Product or component typeplug-in relay
Complementary
Drop-out voltage threshold>= 0.1 Uc
[Uimp] rated impulse withstand voltage4 kV during 1.2/50 µs
Load current10 A at 28 V DC, 10 A at 250 V AC
Operating positionany position
Compatibility codeRXM
Mechanical durability10000000 cycles
Electrical durability100000 cycles for resistive load
Average coil consumption0.9 W
Device presentationcomplete product
Average resistance160 Ohm at 20 °C +/- 10 %
CAD overall height79 mm
Shape of pinflat
Contacts materialAgNi
Safety reliability dataB10d = 100000
Maximum switching capacity2500 VA/280 W
CAD overall depth78.45 mm
Minimum switching capacity170 mW at 10 mA, 17 V
Operating time20 ms
[Ui] rated insulation voltage300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
[Ie] rated operational current10 A at 277 V (AC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 5 A at 250 V (AC) NC conforming to IEC, 5 A at 28 V (DC) NC conforming to IEC, 10 A at 250 V (AC) NO conforming to IEC, 10 A at 28 V (DC) NO conforming to IEC
Rated operational voltage limits9.6...13.2 V DC
Maximum switching voltage250 V conforming to IEC
Net weight0.037 kg
Reset time20 ms
Test levelslevel A group mounting
Protection categoryRT I
Operating rate<= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Continuous output current6.7 A
Environment
Ambient air temperature for storage-40-85 °C
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-40-55 °C
Pollution degree2
Shock resistance30 gn for not operating, 10 gn for in operation
Vibration resistance5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength2000 V AC between poles, 2000 V AC between coil and contact, 1300 V AC between contacts with micro disconnection
StandardsUL 508, CSA C22.2 No 14, IEC 61810-1
Product certificationsIECEE CB Scheme, GOST, CSA, CE, Lloyd's, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.1 cm
Package 1 Width2.1 cm
Package 1 Length2.8 cm
Package 1 Weight39 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height3.1 cm
Package 2 Width10.3 cm
Package 2 Length12.5 cm
Package 2 Weight400 g
Unit Type of Package 33
Number of Units in Package 3120
Package 3 Height15 cm
Package 3 Width15 cm
Package 3 Length40 cm
Package 3 Weight5.06 kg

Related products

Picture of Harmony Electromechanical Relays, Clip-in legends, for RPM/RXM relays

Harmony Electromechanical Relays, Clip-in legends, for RPM/RXM relays

RXZL520
$2.47
View Detail
Picture of Harmony Electromechanical Relays, Protection module, with diode, for RPZ RXZ sockets, 6...250V DC

Harmony Electromechanical Relays, Protection module, with diode, for RPZ RXZ sockets, 6...250V DC

RXM040W
$6.10
View Detail
