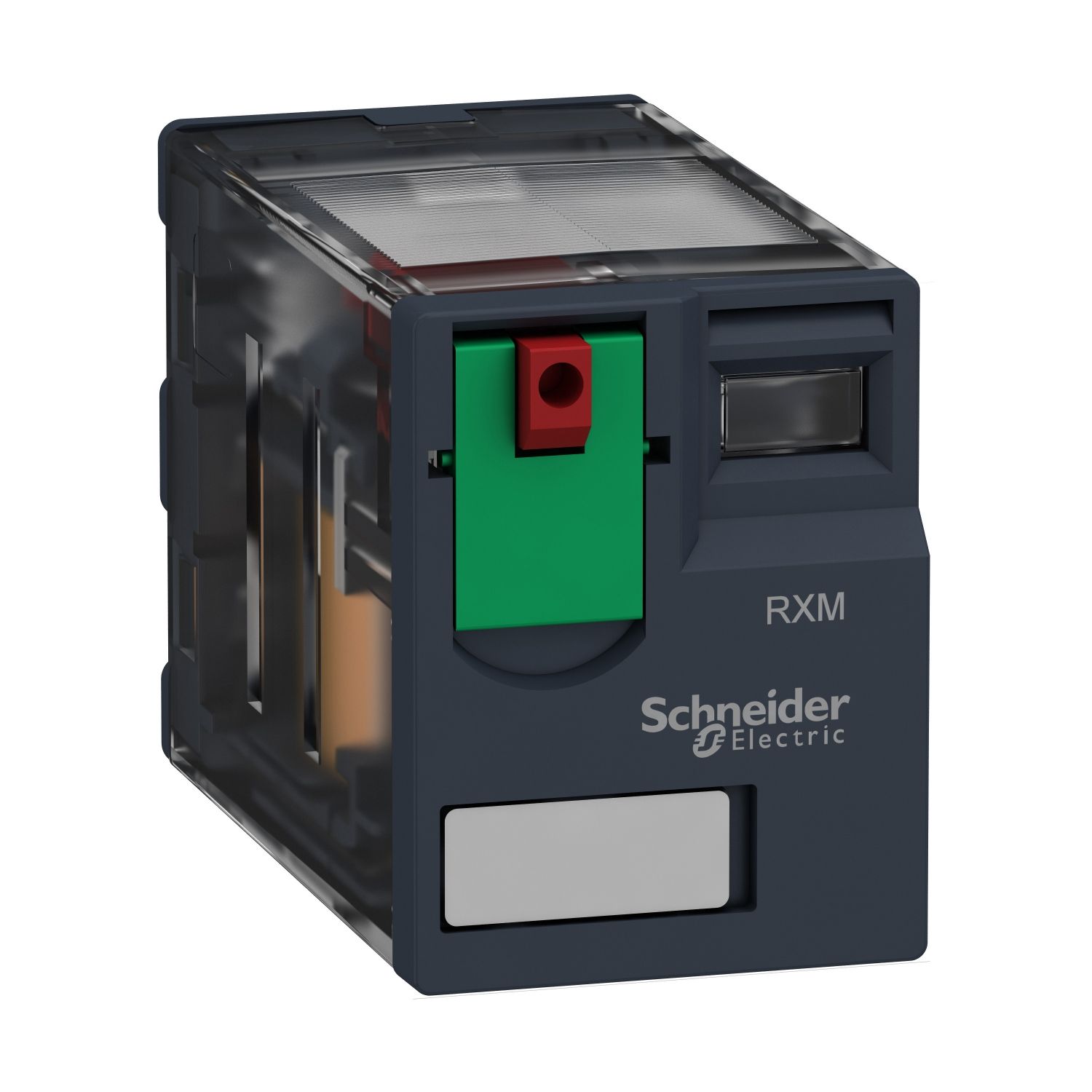

Picture of miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC

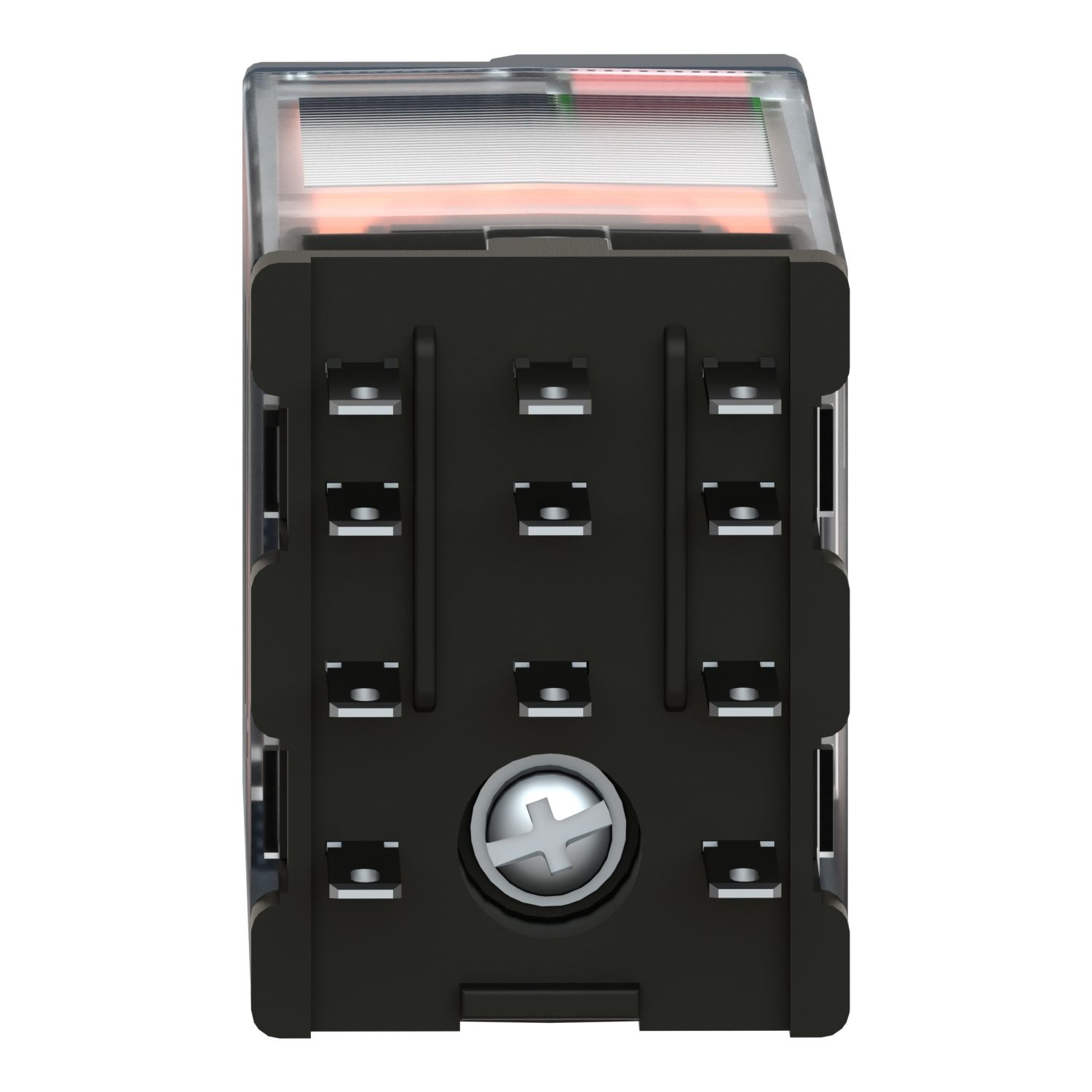

Picture of miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC

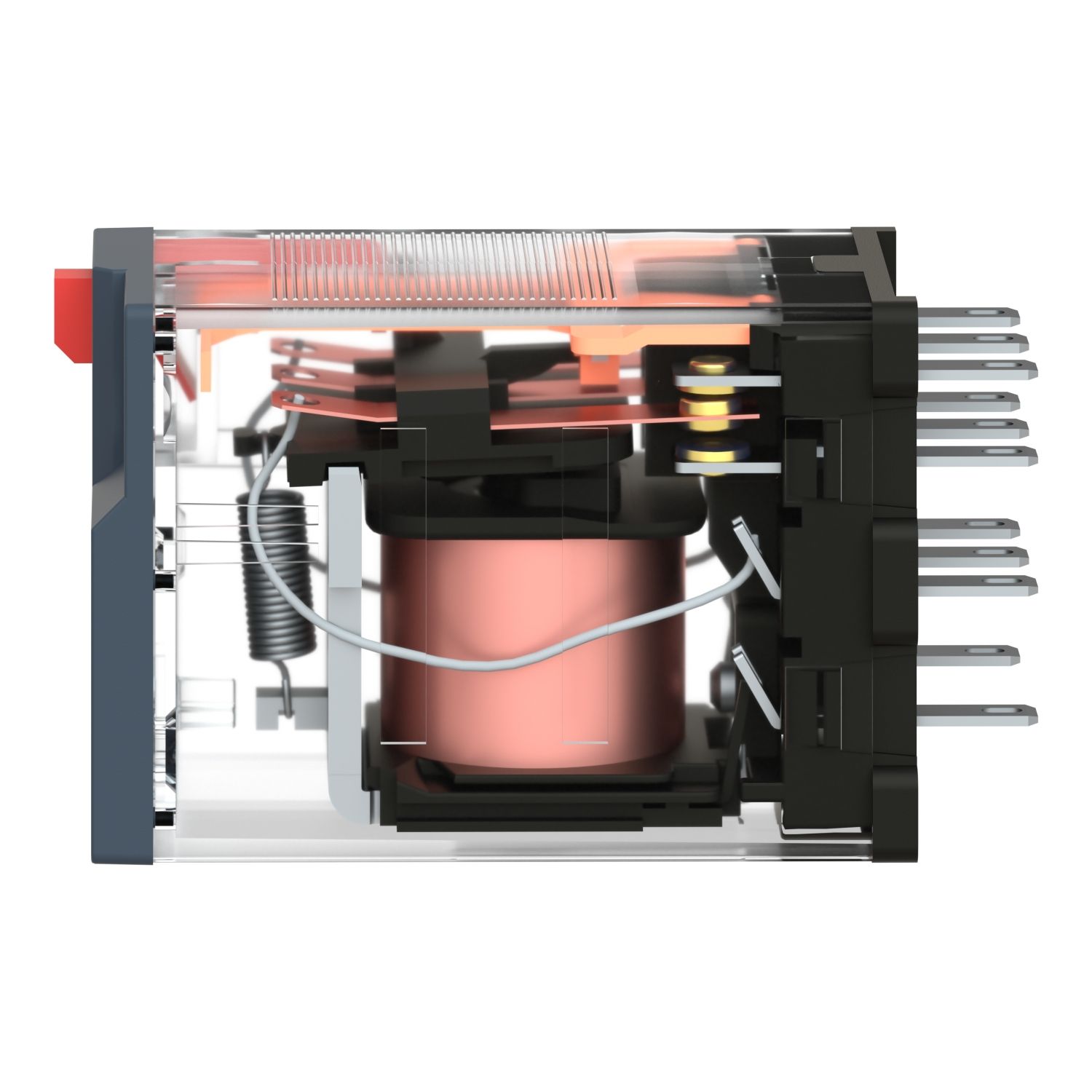

Picture of miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC

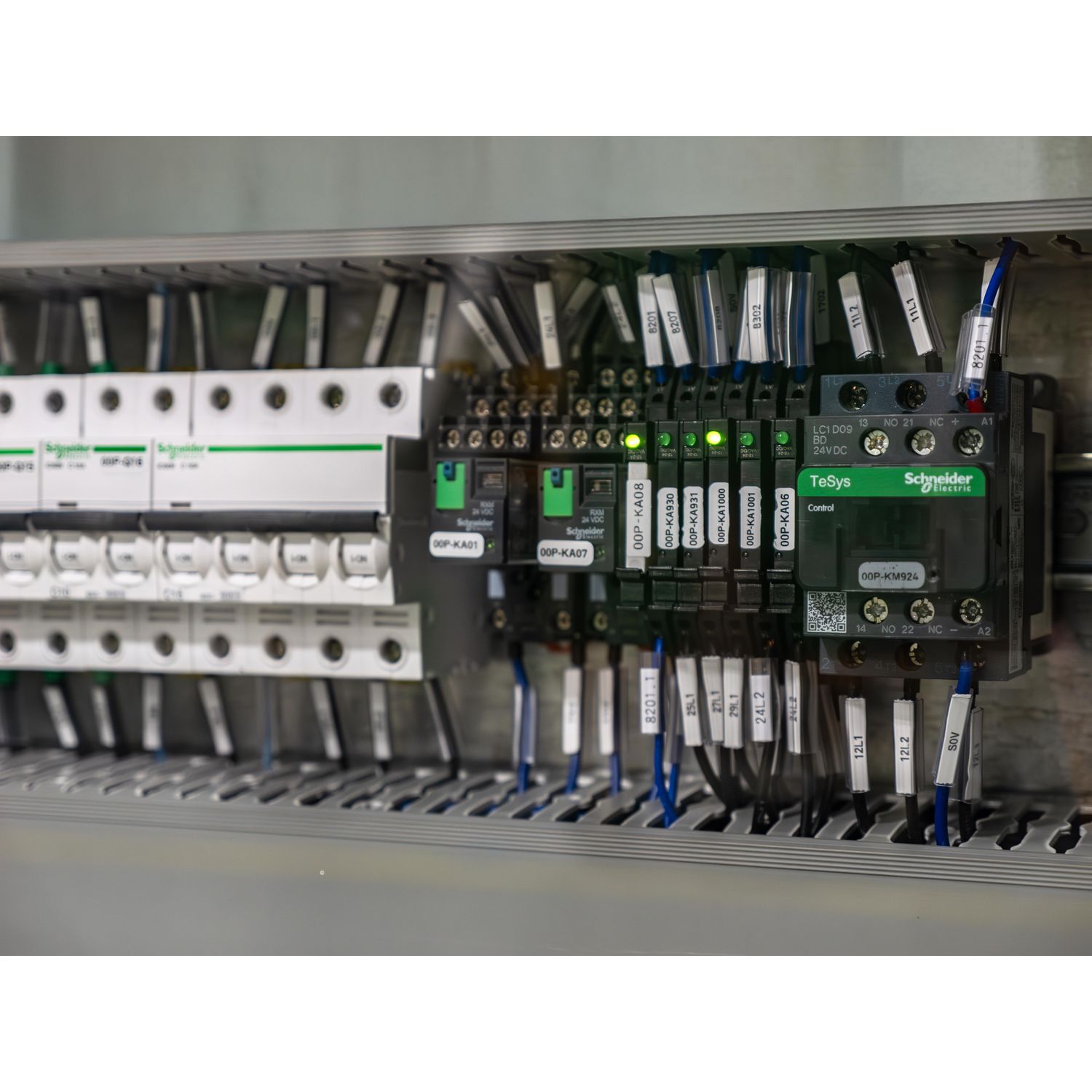

Picture of miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC

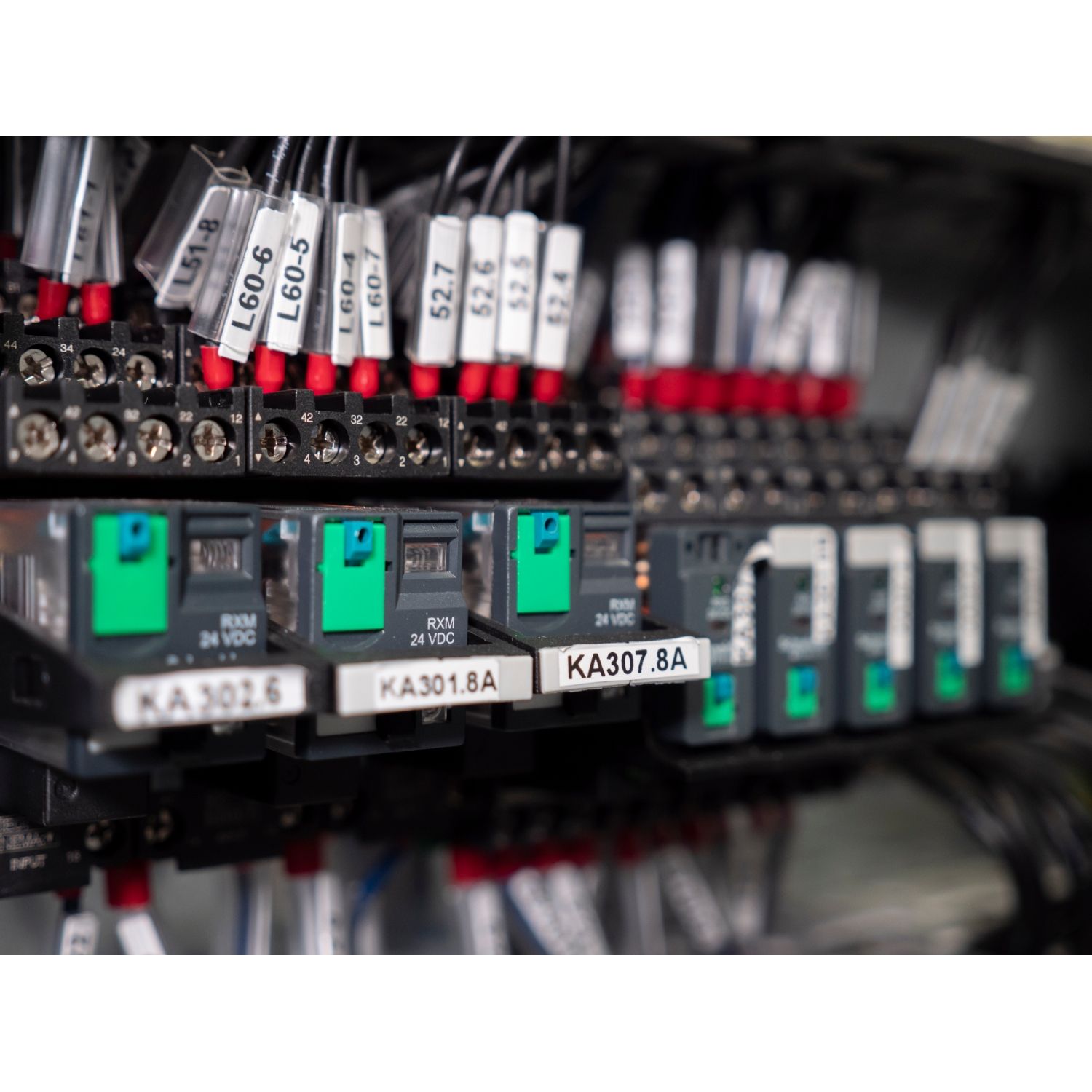

Picture of miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC

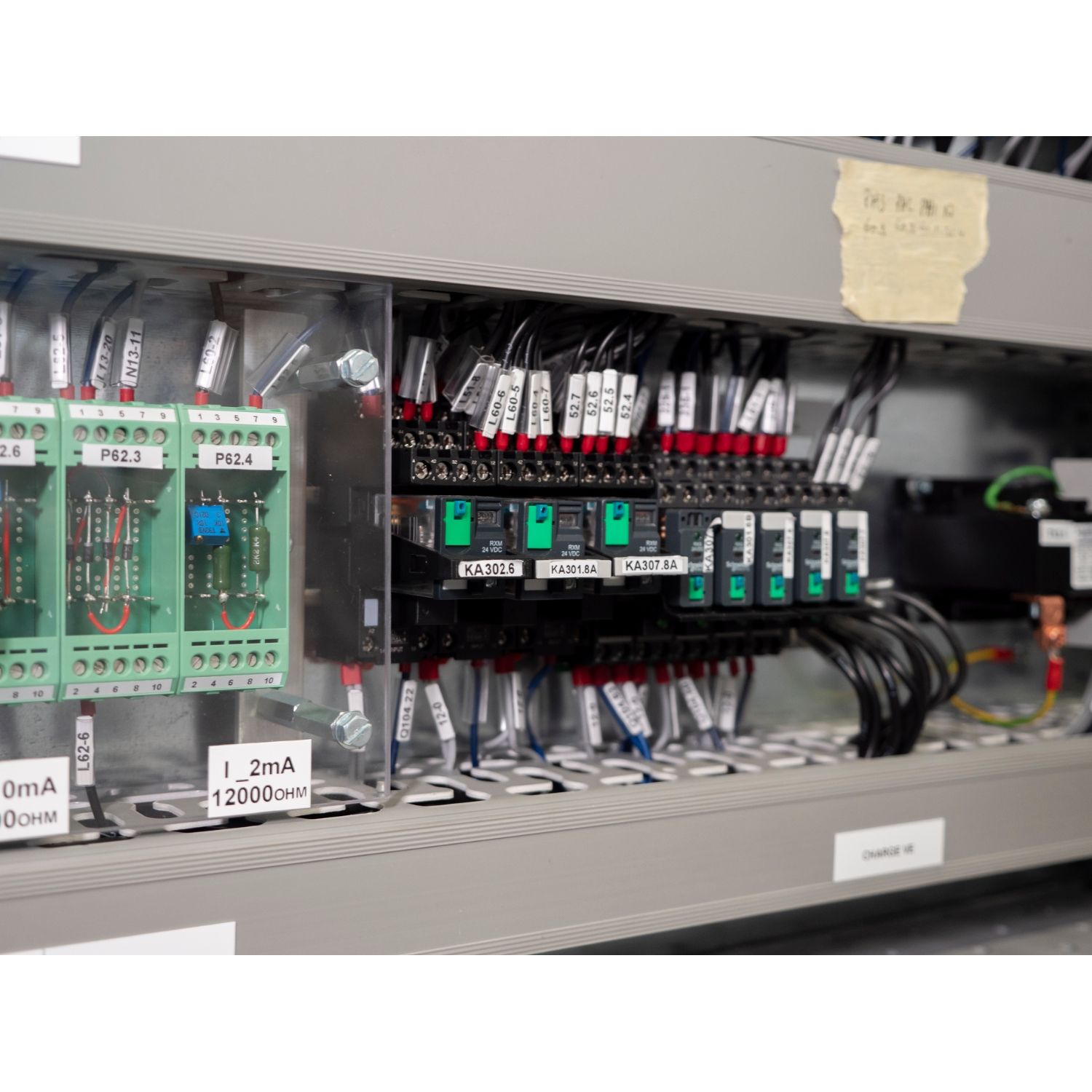

Picture of miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC

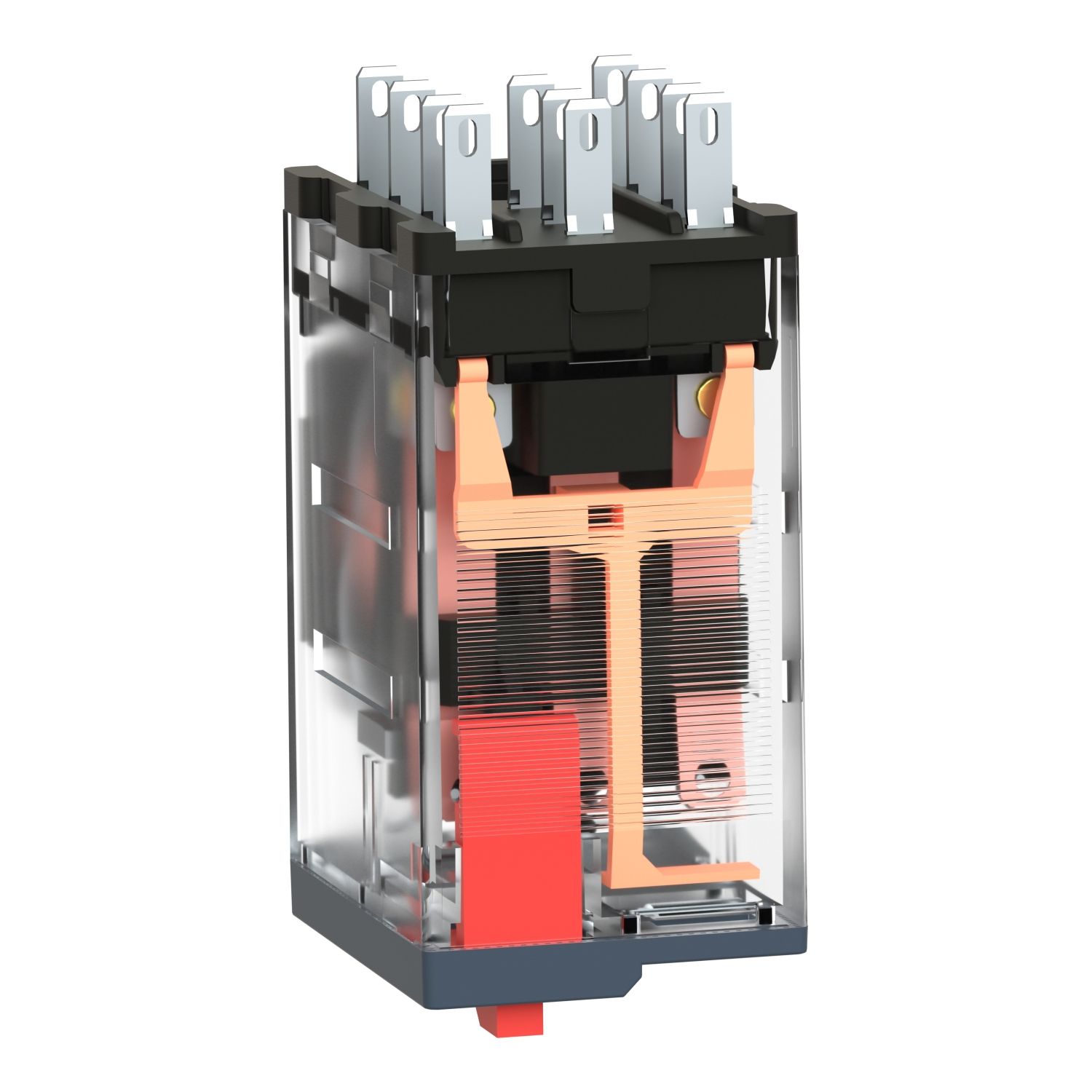

Picture of miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC

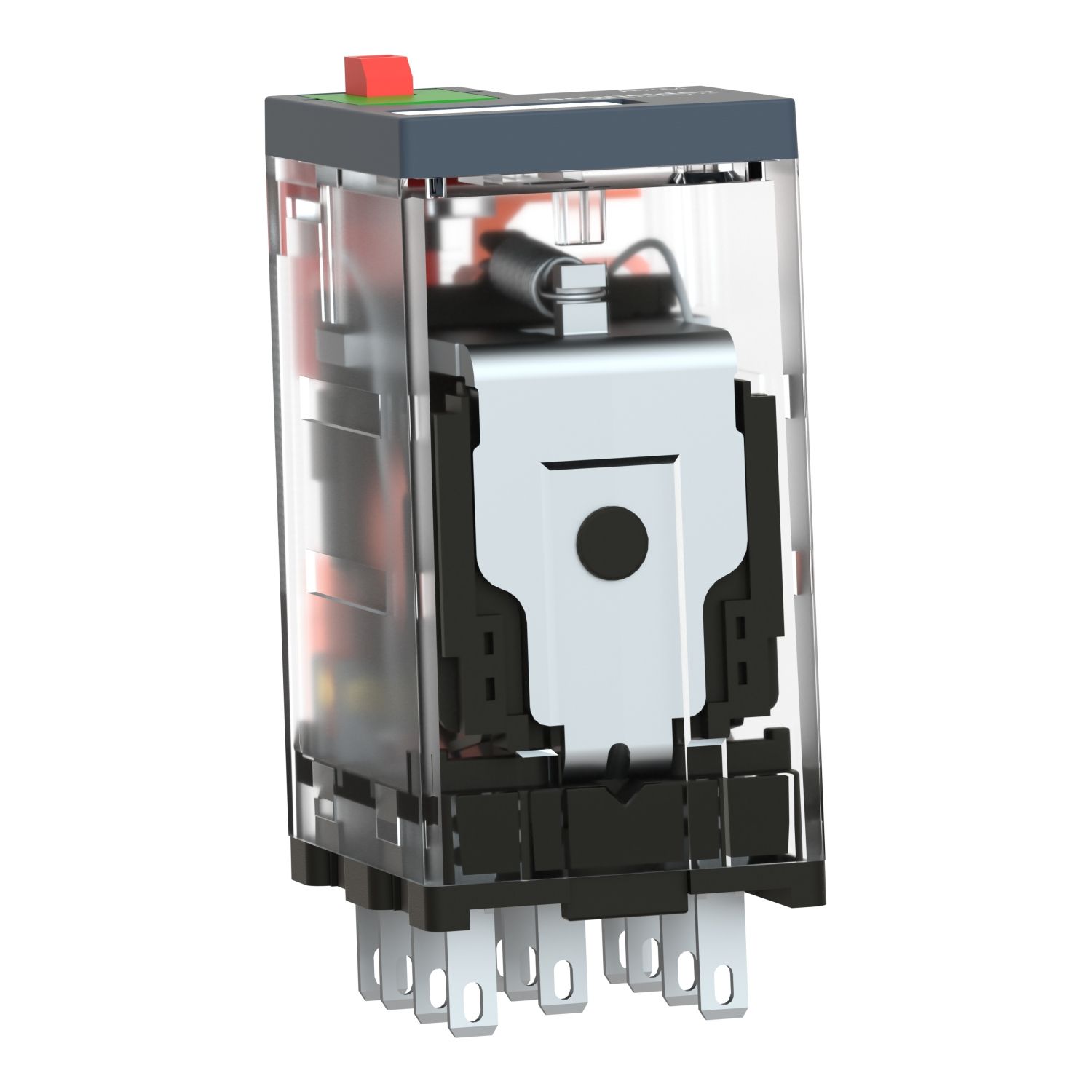

Picture of miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC
SKU:

RXM3AB1P7

miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC

$21.48
Available for Shipping : 24-Nov-2024
Product Selector
miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, lockable test but to n, 230V AC
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
End of life manual
Technical illustration
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet

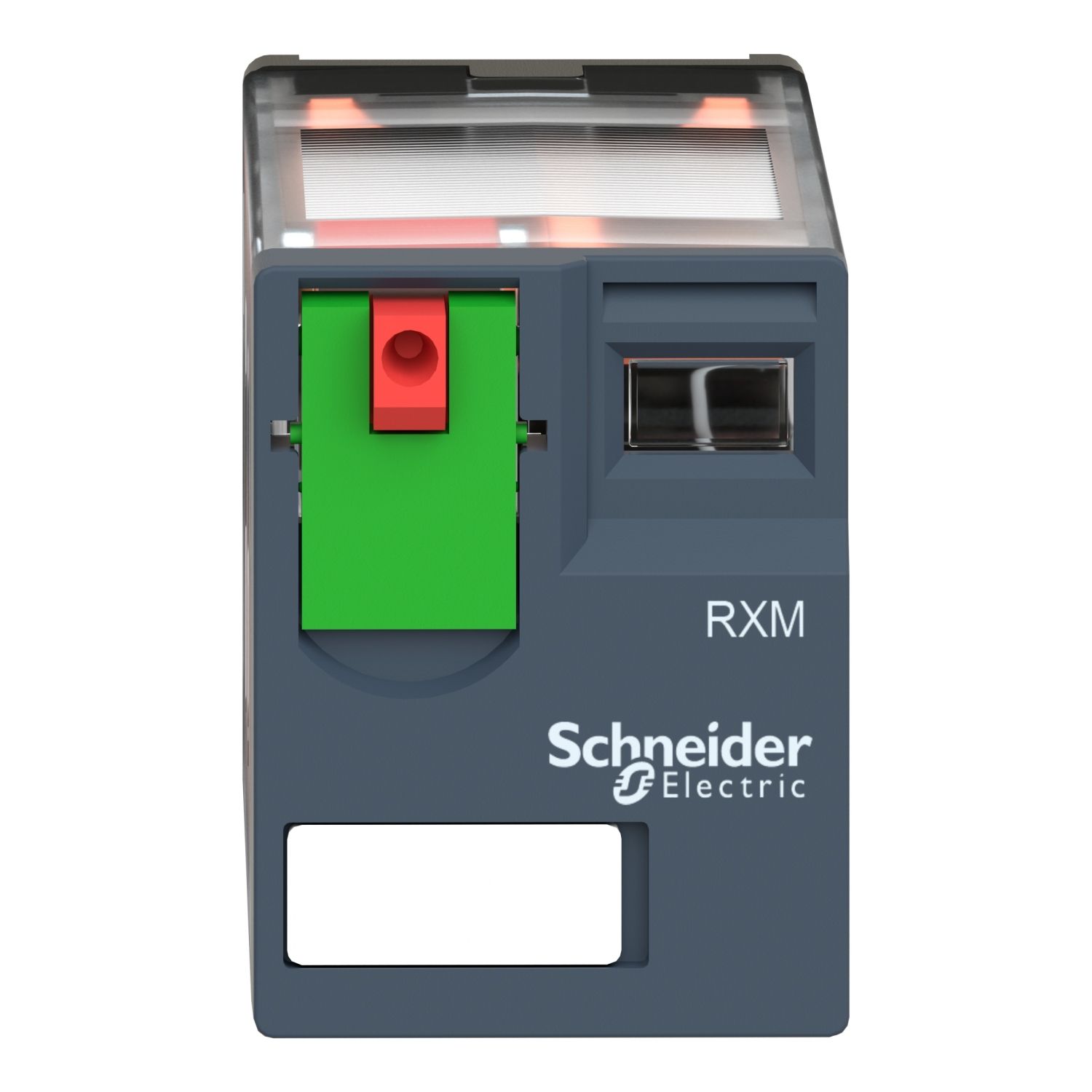

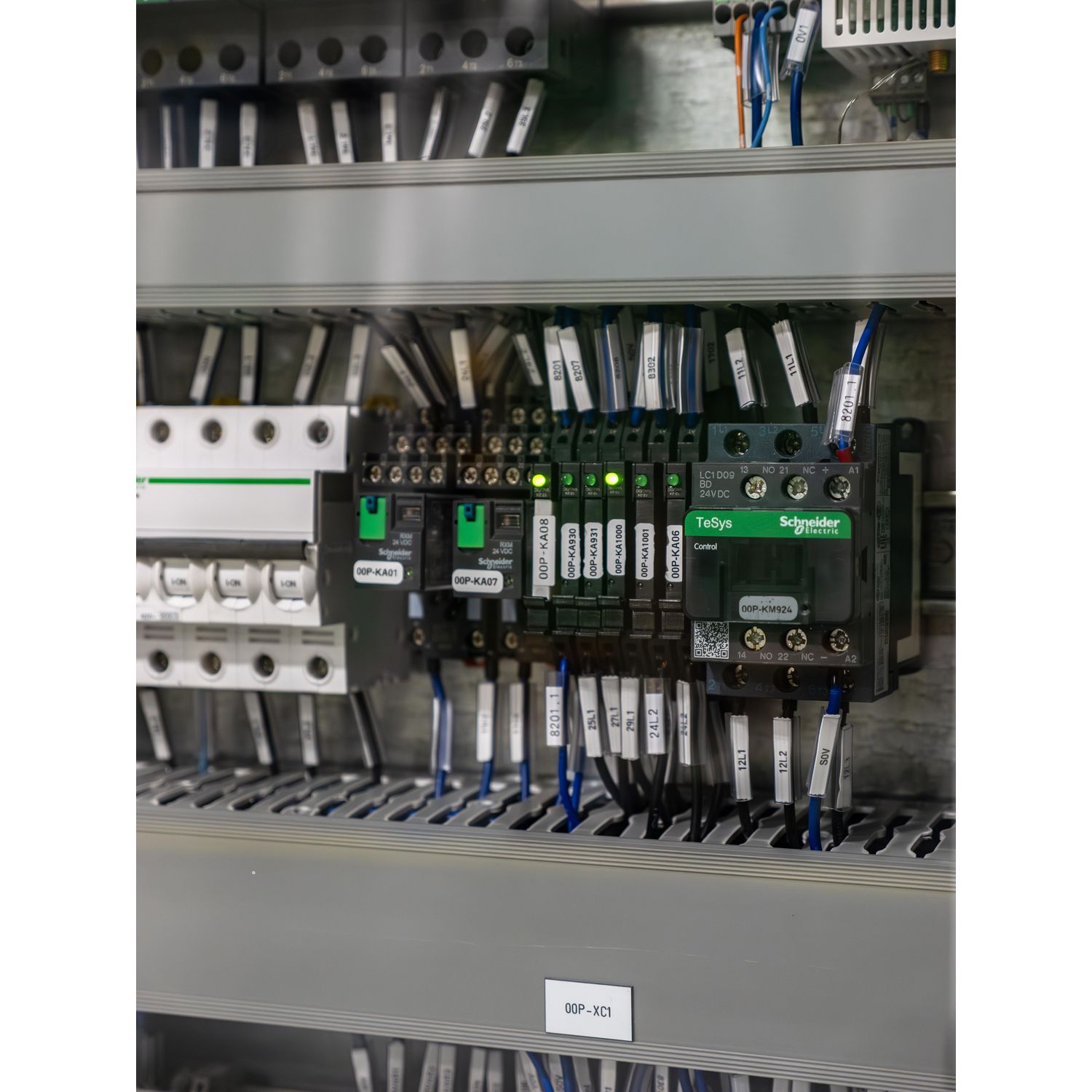

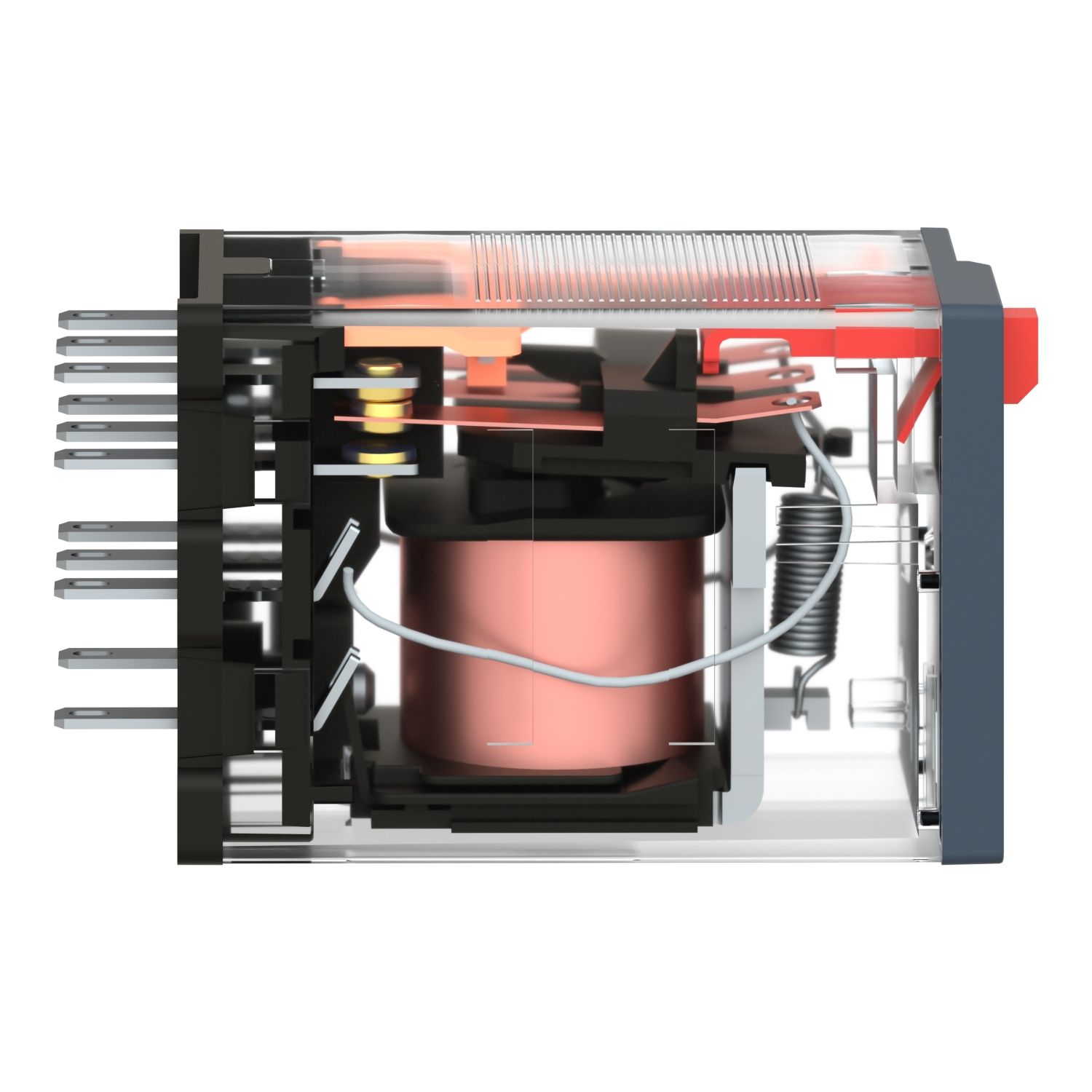

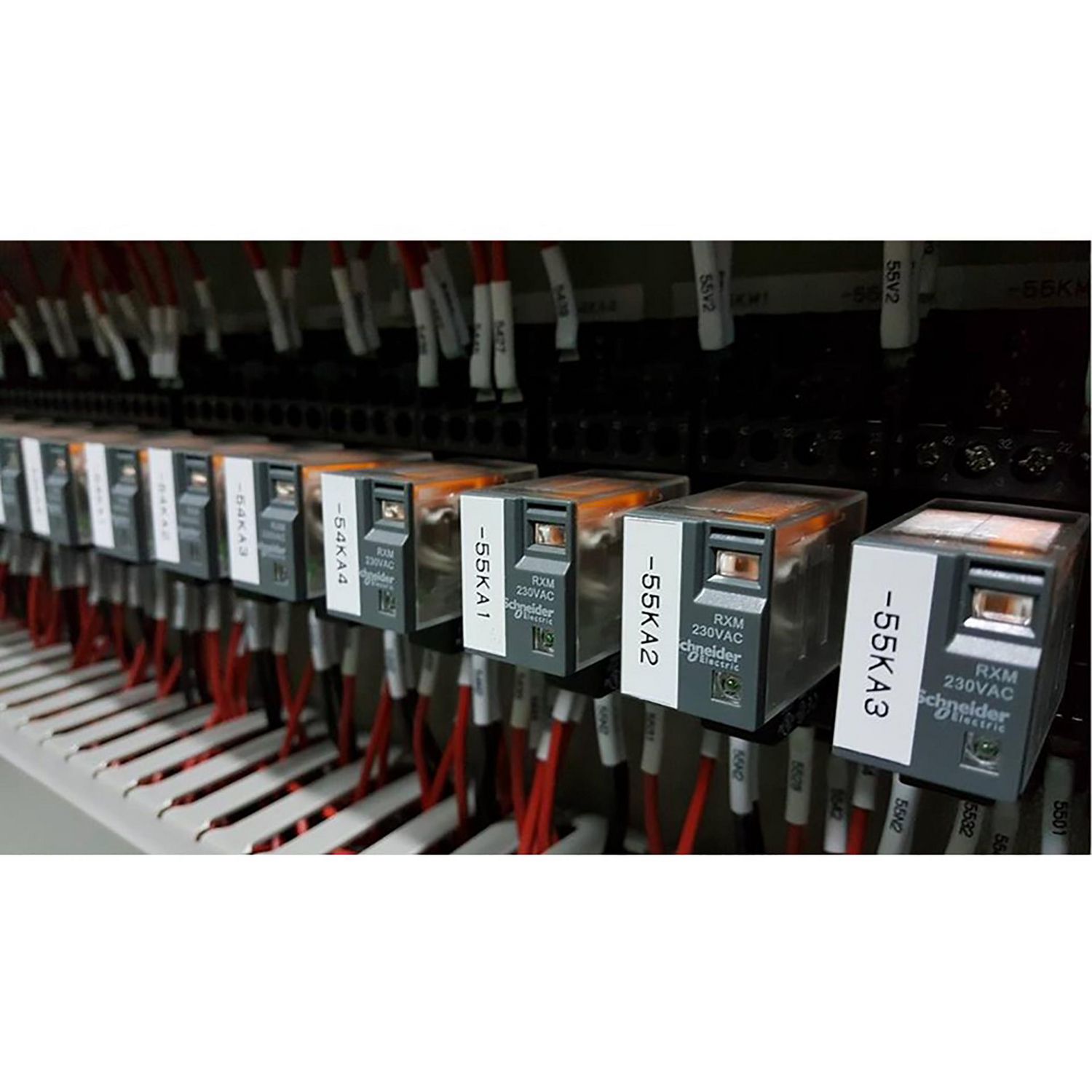

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 230 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Products specifications

Attribute name Attribute value
Main
Device short name RXM
[Uc] control circuit voltage 230 V, 230 V AC 50/60 Hz
Control type lockable test button
Range of product Harmony Electromechanical Relays
Utilisation coefficient 20 %
[In] rated current 10 A
Contacts type and composition 3 C/O
Series name Miniature
Status LED without
Product or component type plug-in relay
Complementary
Drop-out voltage threshold >= 0.15 Uc
[Uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
Load current 10 A at 28 V DC, 10 A at 250 V AC
Operating position any position
Compatibility code RXM
Mechanical durability 10000000 cycles
Electrical durability 100000 cycles for resistive load
Device presentation complete product
Average resistance 15000 Ohm at 20 °C +/- 15 %
CAD overall height 82.8 mm
Shape of pin flat
Contacts material AgNi
Safety reliability data B10d = 100000
Maximum switching capacity 2500 VA/280 W
Average coil consumption in VA 1.2-1.2 at 60 Hz
CAD overall depth 80.35 mm
Minimum switching capacity 170 mW at 10 mA, 17 V
Operating time 20 ms
[Ui] rated insulation voltage 300 V conforming to UL, 300 V conforming to CSA, 250 V conforming to IEC
[Ie] rated operational current 10 A at 277 V (AC) conforming to UL, 10 A at 30 V (DC) conforming to UL, 5 A at 250 V (AC) NC conforming to IEC, 5 A at 28 V (DC) NC conforming to IEC, 10 A at 250 V (AC) NO conforming to IEC, 10 A at 28 V (DC) NO conforming to IEC
Rated operational voltage limits 184...253 V AC
Maximum switching voltage 250 V conforming to IEC
Net weight 0.037 kg
Reset time 20 ms
Test levels level A group mounting
Protection category RT I
Operating rate <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Continuous output current 6.7 A
Average consumption 1.2 VA at 60 Hz
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -40-55 °C
Pollution degree 2
Shock resistance 30 gn for not operating, 10 gn for in operation
Vibration resistance 5 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles not operating, 3 gn, amplitude = +/- 1 mm (f = 10-150 Hz)5 cycles in operation
Dielectric strength 2000 V AC between poles, 2000 V AC between coil and contact, 1300 V AC between contacts with micro disconnection
Standards UL 508, CSA C22.2 No 14, IEC 61810-1
Product certifications IECEE CB Scheme, GOST, CSA, CE, Lloyd's, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 2.700 cm
Package 1 Length 4.800 cm
Package 1 Weight 36.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.100 cm
Package 2 Width 10.300 cm
Package 2 Length 12.600 cm
Package 2 Weight 388.000 g
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.801 kg
