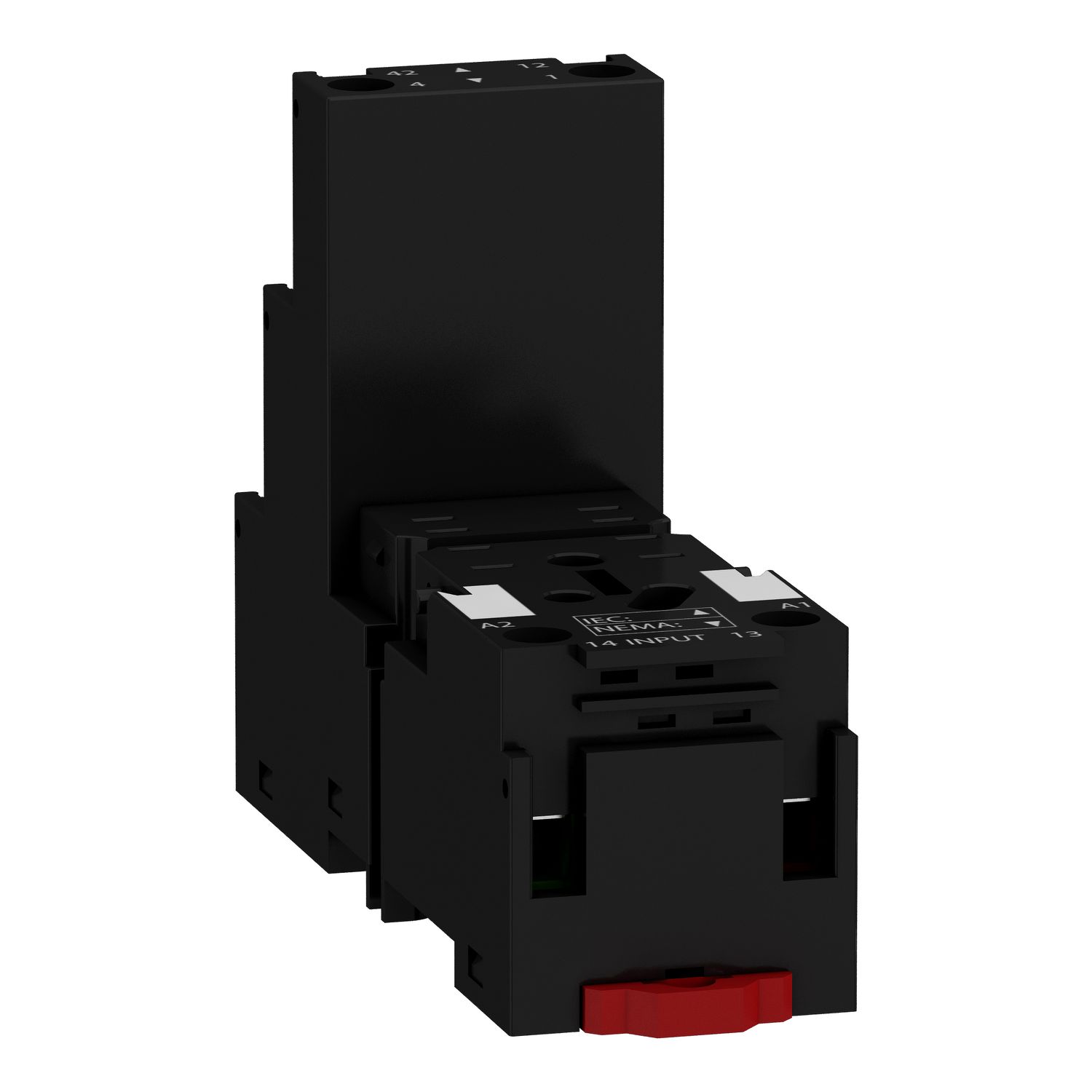

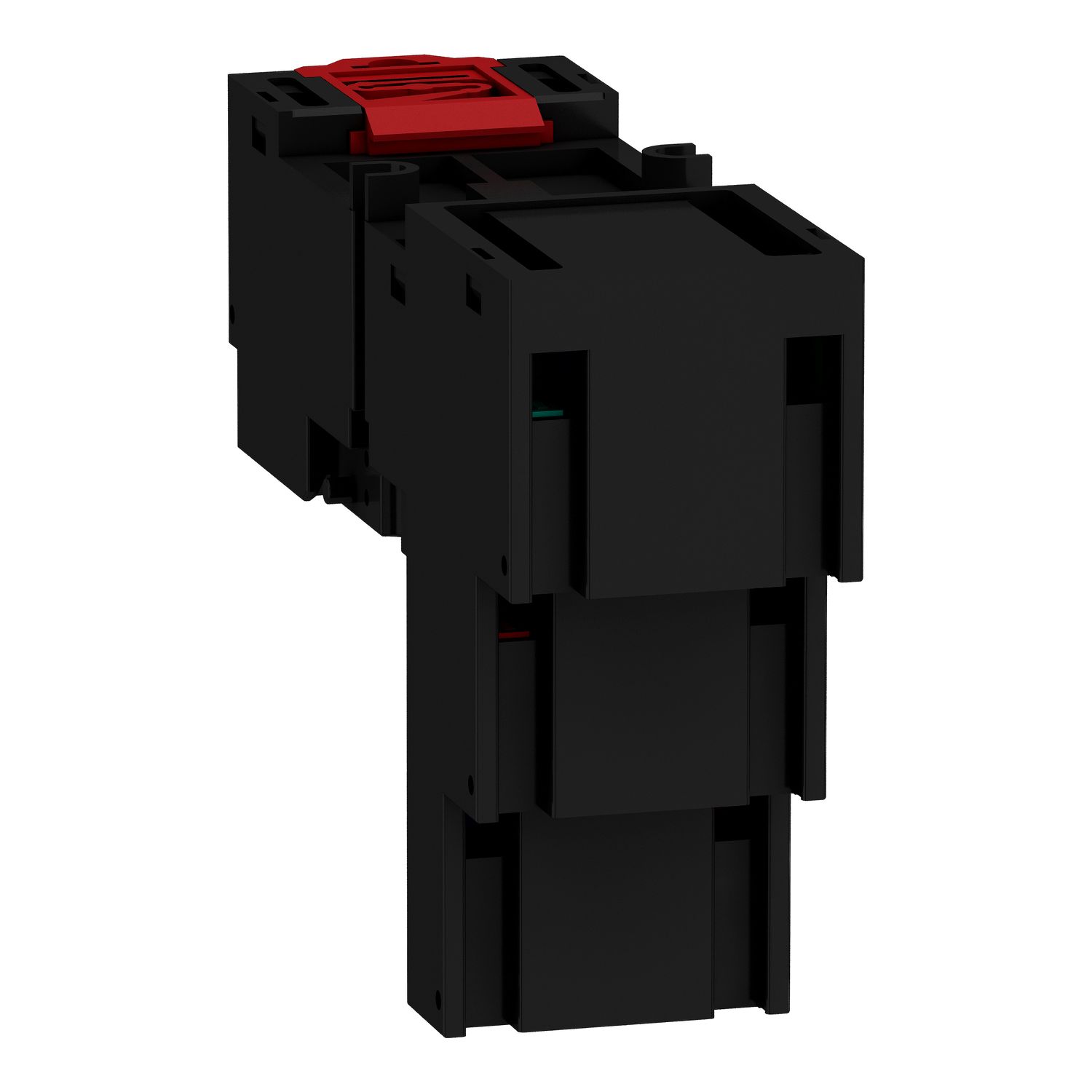

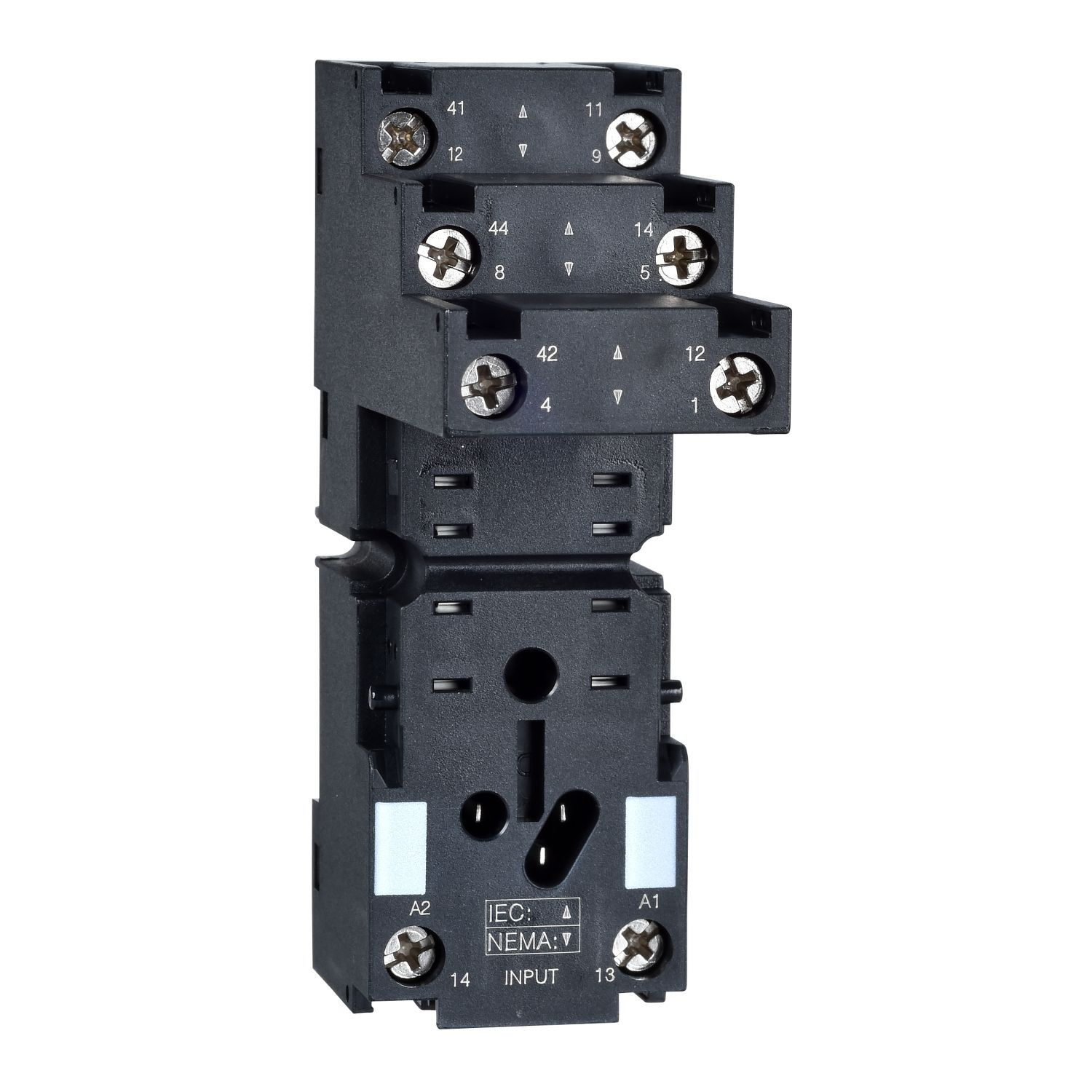

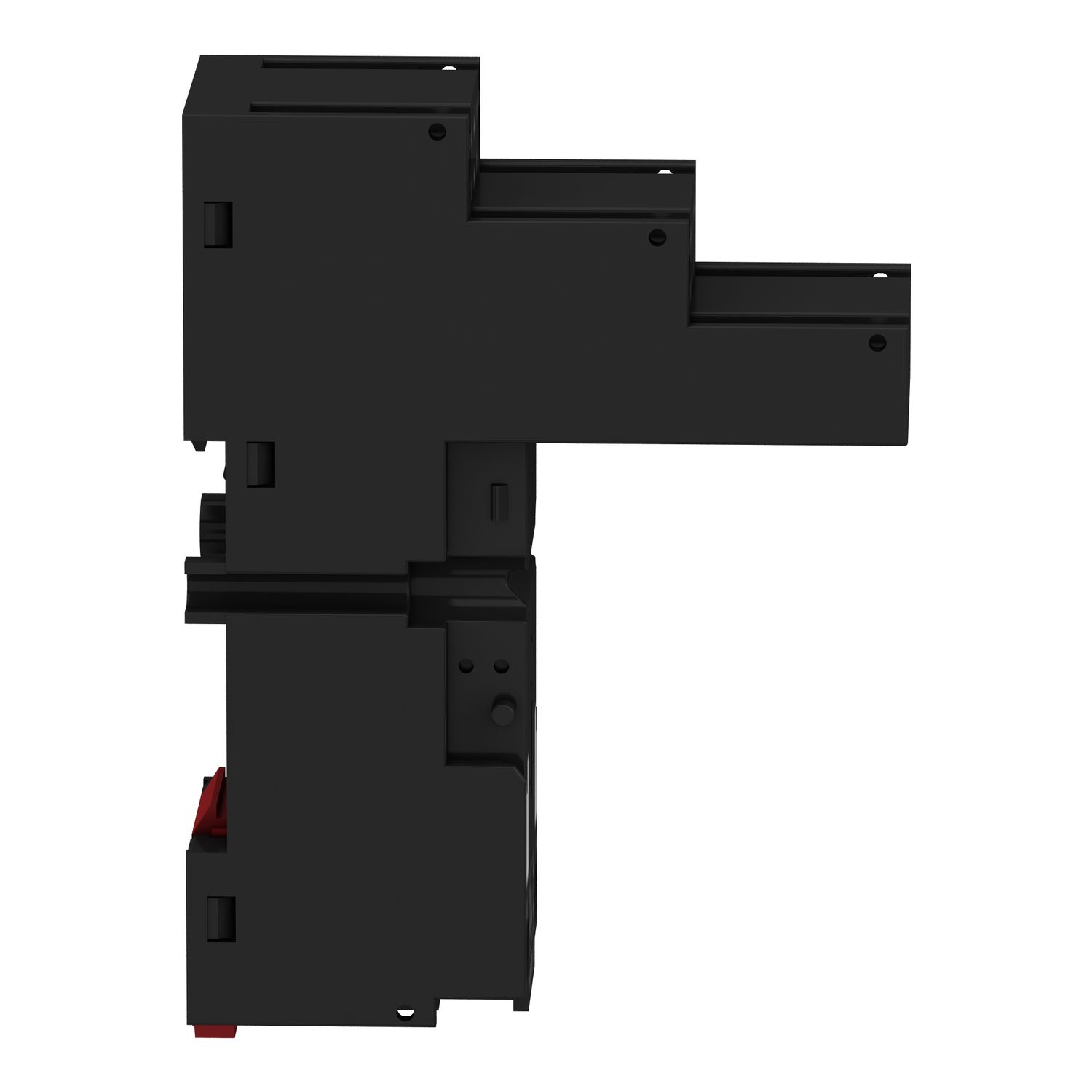

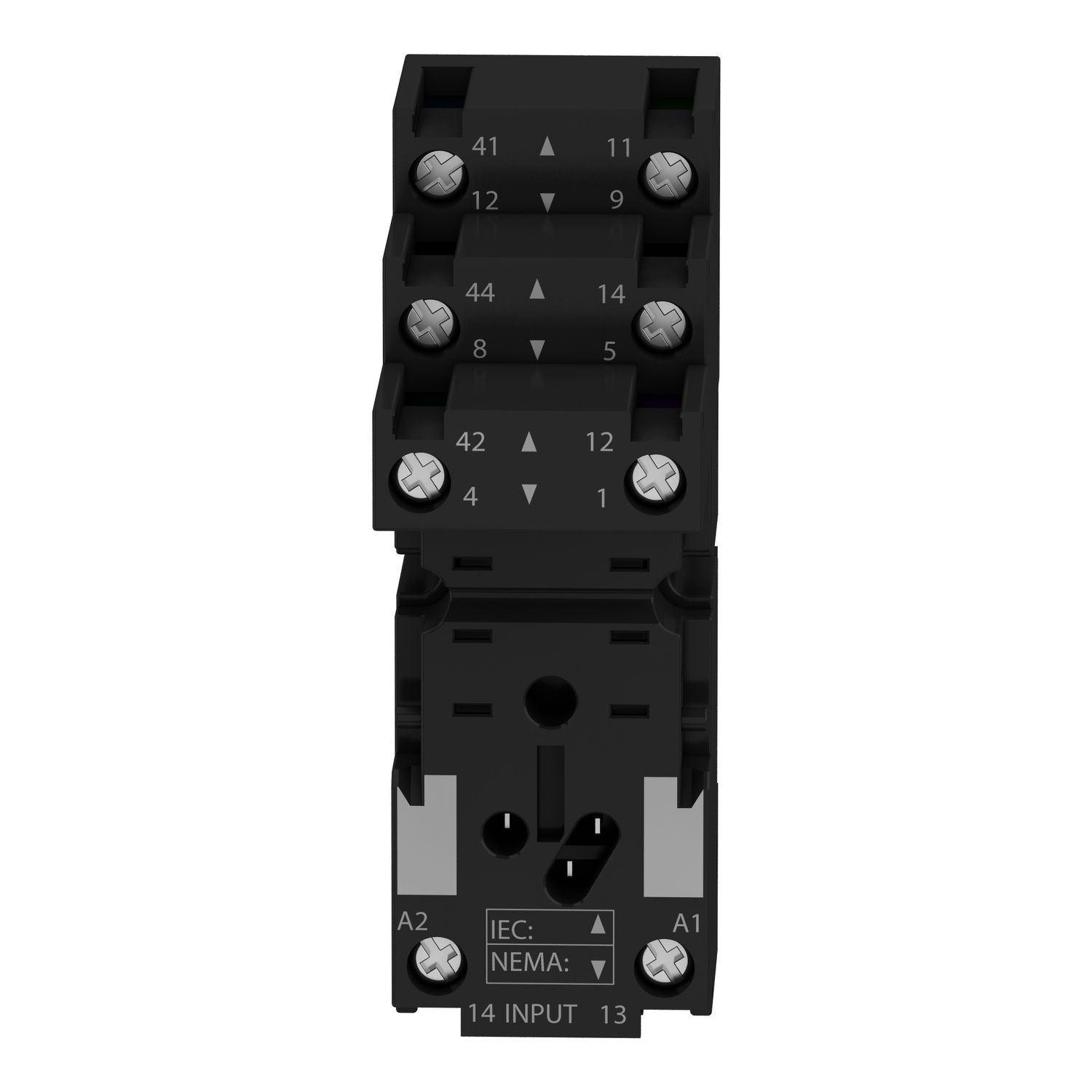

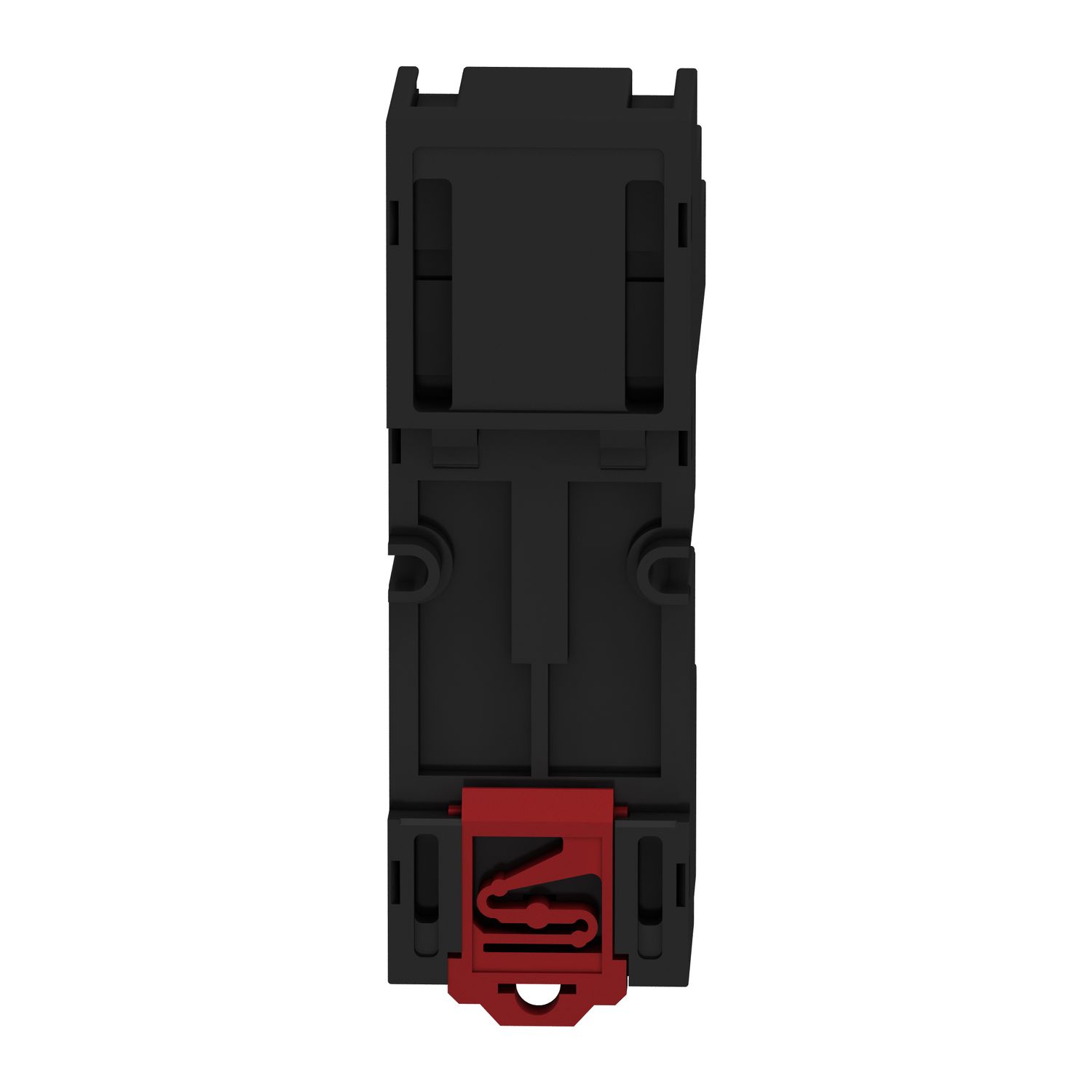

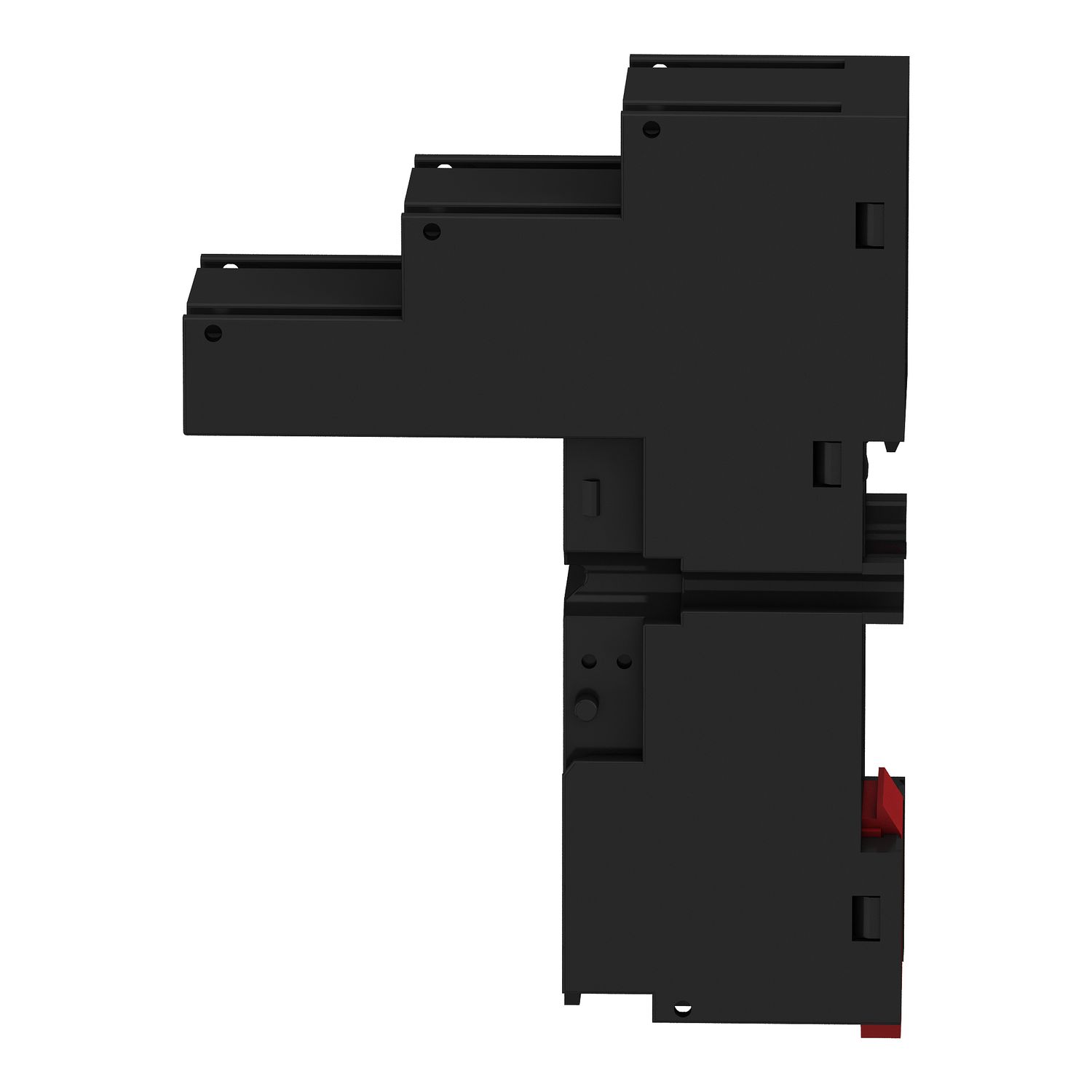

Picture of Harmony Timer Relays, Socket for RXM2 relays, screw connectors, separate contact
SKU:

RXZE2S108M

Harmony Timer Relays, Socket for RXM2 relays, screw connectors, separate contact

$12.10
Available for Shipping : 17-Nov-2024
Product Selector
Harmony Timer Relays, Socket for RXM2 relays, screw connectors, separate contact
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Technical illustration
Product environmental
Product Page Link
Product Data Sheet
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name RXZ
Product compatibility plug-in relay REXL with 2 C/O contact, plug-in relay RXM with 2 C/O contact
Range of product Harmony Timer Relays, Harmony Electromechanical Relays
[Ith] conventional free air thermal current 12 A
Output type relay
[In] rated current 12 A
Contacts type and composition 2 C/O
Product or component type socket
Complementary
Group of product RXM_2_C/O_CON_SEP_FLAT
Compatibility code RXZ
Sale per indivisible quantity 10
Fixing mode clip-on (35 mm symmetrical DIN rail), by screw (panel)
Contact terminal arrangement separate
Shape of pin flat
Pollution degree 3
[Uimp] rated impulse withstand voltage 4 kV
Overvoltage category III
Width 27 mm
Connections - terminals connector, 2 x 0.25...2 x 1 mm² (AWG 20...AWG 14) solid without cable end, connector, 1 x 0.5...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 17) flexible with cable end, connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, screw connectors
Net weight 0.058 kg
[Ue] rated operational voltage < 250 V
Tightening torque < 1 N.m for M3 screw(s)
Environment
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20 conforming to IEC 60529
Marking CE
Ambient air temperature for operation -40-55 °C
Dielectric strength 2500 V
Standards IEC 61984
Product certifications UL, Lloyd's, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.746 cm
Package 1 Width 6.112 cm
Package 1 Length 8.207 cm
Package 1 Weight 50 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.6 cm
Package 2 Width 11 cm
Package 2 Length 13.9 cm
Package 2 Weight 580 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 11.173 kg
